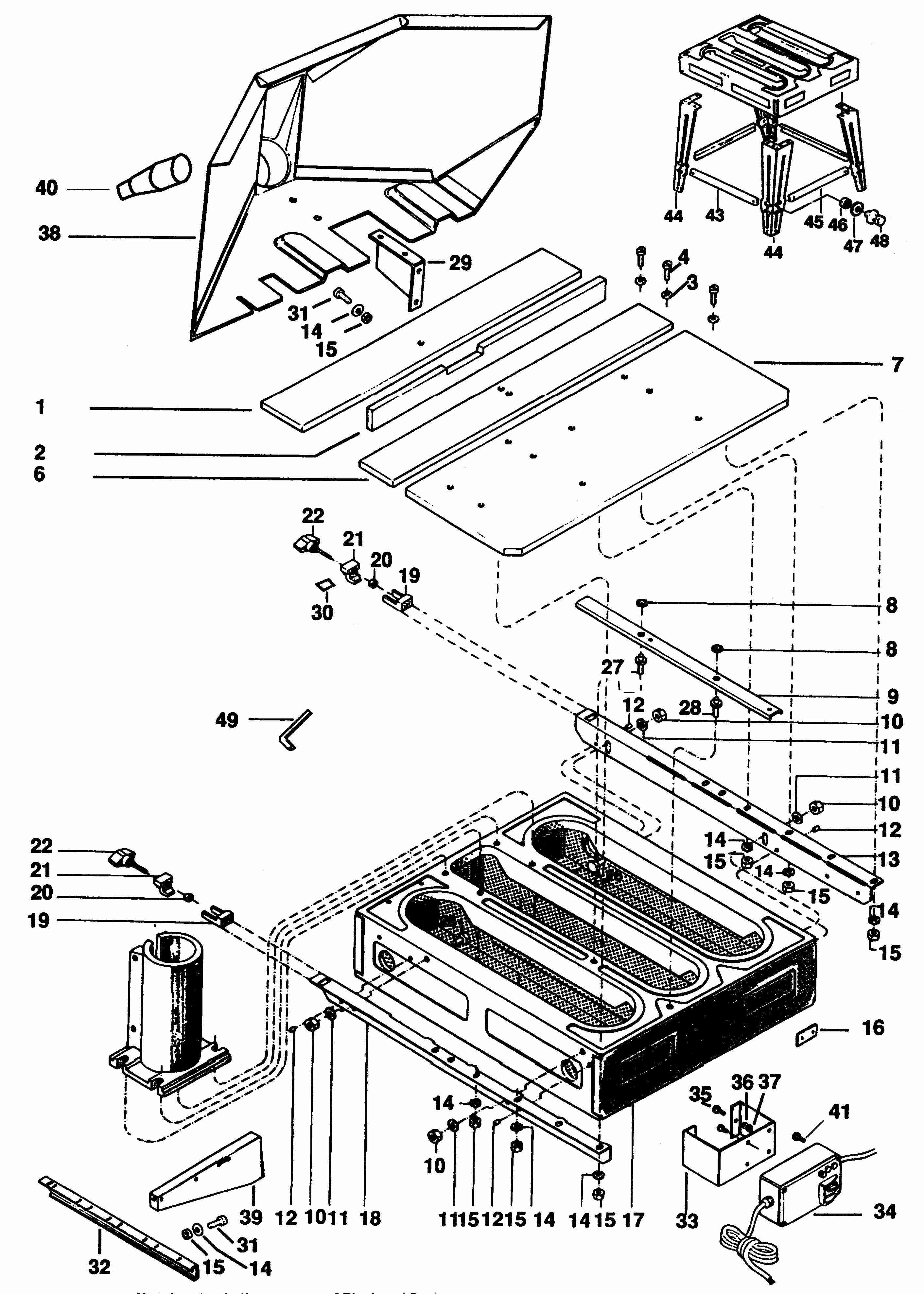

DEWALT RADIAL ARM SAW (Type 1 France)
SKU Produs: DW1251----C /Type: 1 France
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | 860073-03 | 2 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 8 | 860074-03 | 2 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 10 | 860083-05 | 4 | NUT,HEX THICK M.10 UNI 5587 | 4,7 Lei | |
| 11 | 860074-04 | 4 | WASHER,SPRING CON.10.2X22X1.2 | 4,7 Lei | |
| 14 | 860074-03 | 12 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 15 | 860083-04 | 12 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 20 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 31 | 860085-04 | 1 | SCREW,HEX M.8X16 UNI 5739 | 4,7 Lei | |
| 35 | 860089-18 | 1 | SCREW,FIL.HD M.5X16 UNI6107 Z | 4,7 Lei | |
| 36 | 860073-01 | 2 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 37 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 41 | 760998-00 | 4 | SCREW M5X10 | 4,7 Lei | |
| 44 | 860008-00 | 4 | LEG,(STAND K ) BLACK | 398,3 Lei | |
| 46 | 860083-04 | 24 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 47 | 860073-03 | 48 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 48 | 860085-04 | 24 | SCREW,HEX M.8X16 UNI 5739 | 4,7 Lei |
