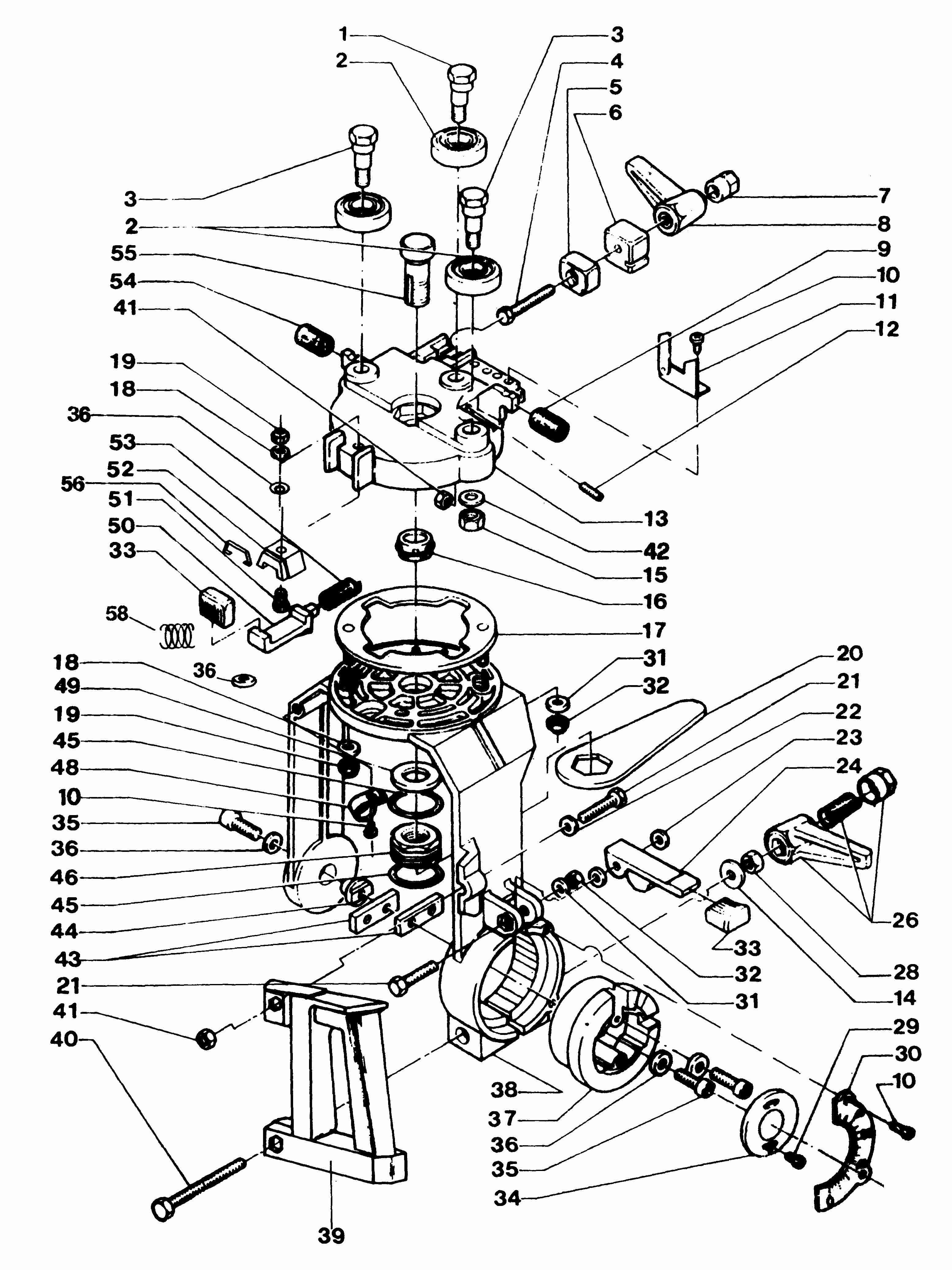

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW1201----E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 760417-00 | 1 | BEARING SHAFT-ECCENTRIC DW125- | 38,6 Lei | |
| 2 | 860154-00 | 3 | BEARING,SPECIAL SKF 614432-B | 199,6 Lei | |
| 3 | 760421-00 | 2 | SCREW,CONCENTRIC BEARING 1712 | 26,1 Lei | |
| 10 | 860094-02 | 2 | SCREW,PAN PH/TT M.4X8 UNI8112 | 4,7 Lei | |
| 12 | 860088-10 | 1 | SCREW,SET M.6X20 UNI 5923 | 4,7 Lei | |
| 14 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 15 | 860083-08 | 1 | NUT,HEX THICK M.8X1 UNI 5587 | 4,7 Lei | |
| 18 | 860073-01 | 1 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 19 | 860092-03 | 1 | NUT M5 | 4,7 Lei | |
| 22 | 860074-02 | 1 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 28 | 860083-15 | 1 | NUT,HEX THIN M.8 UNI5589 ZINC | 4,7 Lei | |
| 29 | 949894-06 | 2 | FILLISTER HEAD SCREW | 4,7 Lei | |
| 31 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei | |
| 32 | 860092-00 | 1 | NUT,ELAST.STOP M.6 UNI 7474 | 4,7 Lei | |
| 35 | 860093-07 | 2 | SCREW,SOCKET M.8X20 UNI 5931 | 4,7 Lei | |
| 36 | 860658-01 | 5 | WASHER,SPRING CURV.A8 UNI8840 | 4,7 Lei | |
| 41 | 860083-03 | 1 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 42 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 54 | 860786-00 | 1 | BUMPER FOR STOP D. 16X22 | 6,4 Lei | |
| 56 | 863803-00 | 1 | BAR | 59,2 Lei |
