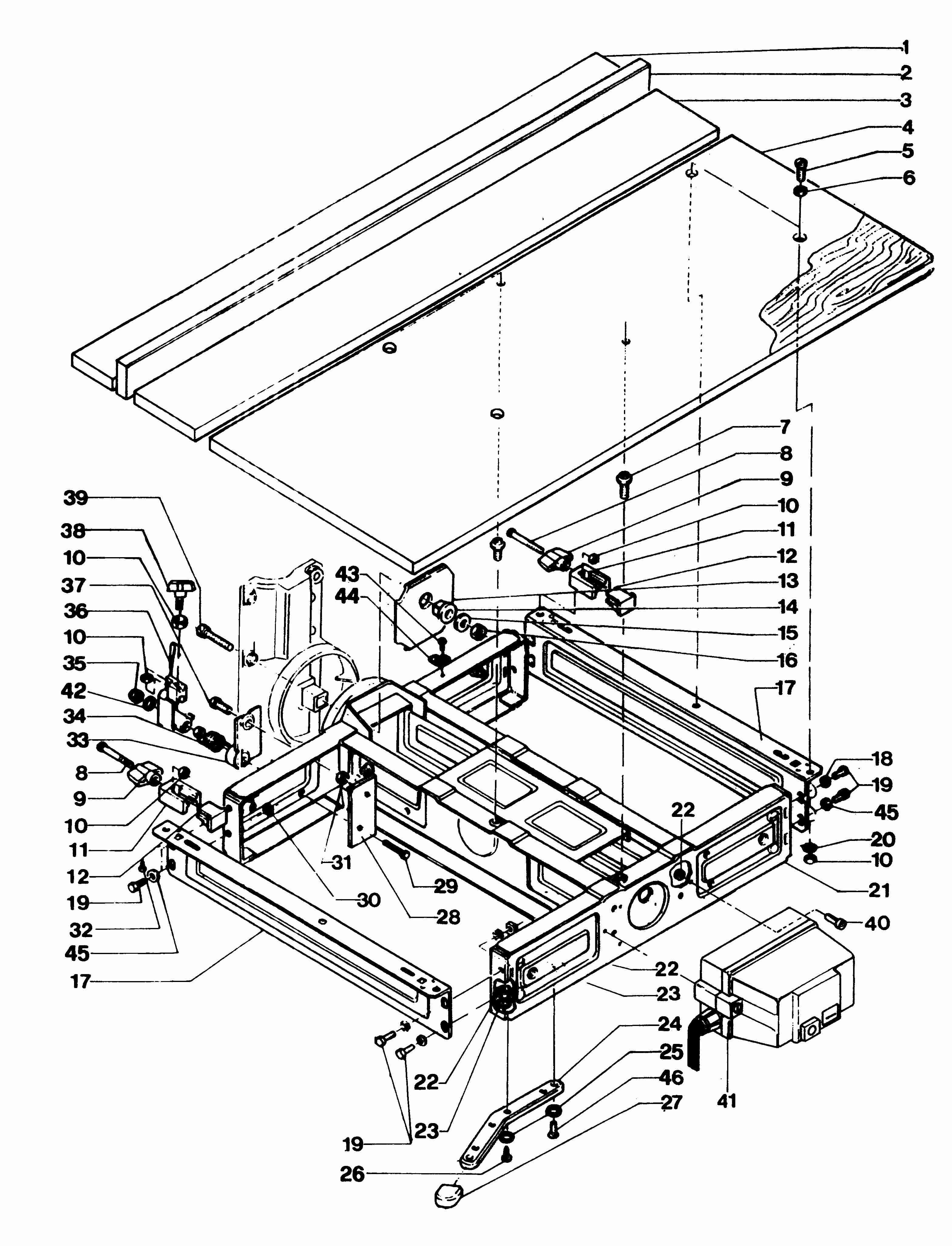

DEWALT RADIAL ARM SAW (Type 1)
SKU Produs: DW1201----D /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 5 | 941518-00 | 1 | SCREW,FLAT FILL.HD.M6X20 UNI61 | 4,7 Lei | |
| 6 | 860075-00 | 4 | WASHER,FLAT SPEC. 6.4X16X1.5 | 4,7 Lei | |
| 10 | 860083-03 | 2 | NUT,HEX THICK M.6 UNI 5587 | 4,7 Lei | |
| 15 | 860073-04 | 1 | WASHER,FLAT 10.5X21 UNI6592 Z | 4,7 Lei | |
| 16 | 860083-05 | 1 | NUT,HEX THICK M.10 UNI 5587 | 4,7 Lei | |
| 18 | 933055-00 | 4 | TOOTHED WASHER DW320 | 4,7 Lei | |
| 19 | 860085-07 | 8 | SCREW | 4,7 Lei | |
| 20 | 860074-02 | 1 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 22 | 860083-02 | 4 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 23 | 860073-01 | 4 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 25 | 860075-01 | 4 | WASHER,FLAT SPEC.5.5X20X1.5 | 4,7 Lei | |
| 26 | 760998-00 | 4 | SCREW M5X10 | 4,7 Lei | |
| 29 | 860085-23 | 32 | SCREW,HEX M.8X55 UNI 5739 | 5,3 Lei | |
| 31 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 32 | 860084-05 | 4 | SCREW,PAN.PHAB 3.5X9.5UNI6954 | 4,7 Lei | |
| 35 | 860092-05 | 1 | NUT,SELF LOCKING M.8 | 4,7 Lei | |
| 37 | 860085-03 | 1 | SCREW,HEX M.8X20 UNI 5739 | 4,7 Lei | |
| 39 | 860085-05 | 1 | SCREW,HEX M.10X45 UNI 5739 | 5,3 Lei | |
| 40 | 860089-17 | 1 | SCREW,FIL.HD M.5X20 UNI6107 Z | 4,5 Lei | |
| 42 | 860073-03 | 1 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 43 | 860084-03 | 1 | SCREW,PAN.PHAB 4.2X9.5UNI6954 | 4,7 Lei | |
| 44 | 860843-02 | 1 | STRAP,CABLE N6 3/8 NYLON | 4,7 Lei | |
| 45 | 720959-00 | 1 | WASHER,FLAT 6.4X12.5 UNI 6592 | 4,7 Lei |
