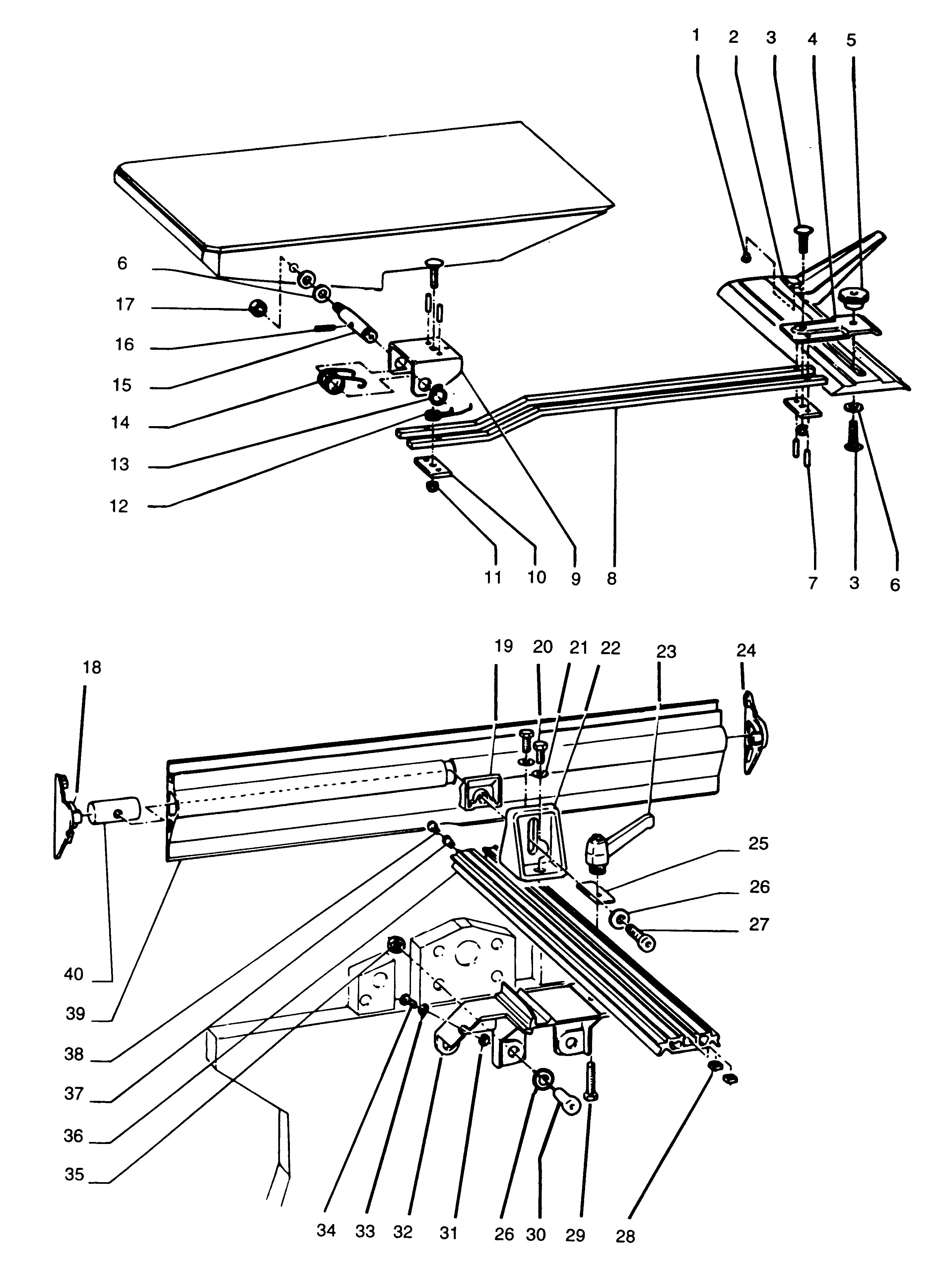

DEWALT PLANER THICKNESSER (Type 1)
SKU Produs: DW1150----E /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 6 | 860073-03 | 3 | WASHER,FLAT 8.4X17 UNI6592 ZN | 4,7 Lei | |
| 11 | 860092-03 | 1 | NUT M5 | 4,7 Lei | |
| 13 | 860079-03 | 1 | RING,SPRING SHAFT D12 UNI7435 | 4,7 Lei | |
| 17 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei | |
| 20 | 860085-07 | 2 | SCREW | 4,7 Lei | |
| 21 | 860074-02 | 2 | WASHER,SPRING CON.D6.2X14X0.9 | 4,7 Lei | |
| 23 | 861840-00 | 1 | LEVER | 26,1 Lei | |
| 26 | 860074-03 | 1 | WASHER,SPRING CON.D8.2X18X1 | 4,7 Lei | |
| 27 | 860093-04 | 1 | SCREW,SOCKET M.8X40 UNI 5931 | 4,7 Lei | |
| 30 | 860093-00 | 1 | SCREW,SOCKET M.8X30 UNI 5931 | 4,7 Lei | |
| 31 | 860083-02 | 1 | NUT,HEX THICK M.5 UNI 5587 | 4,7 Lei | |
| 33 | 860073-01 | 1 | WASHER,FLAT 5.3X10 UNI 6592 | 4,7 Lei | |
| 34 | 860089-18 | 1 | SCREW,FIL.HD M.5X16 UNI6107 Z | 4,7 Lei | |
| 35 | 860083-04 | 1 | NUT,HEX THICK M.8 UNI 5587 | 4,7 Lei |
