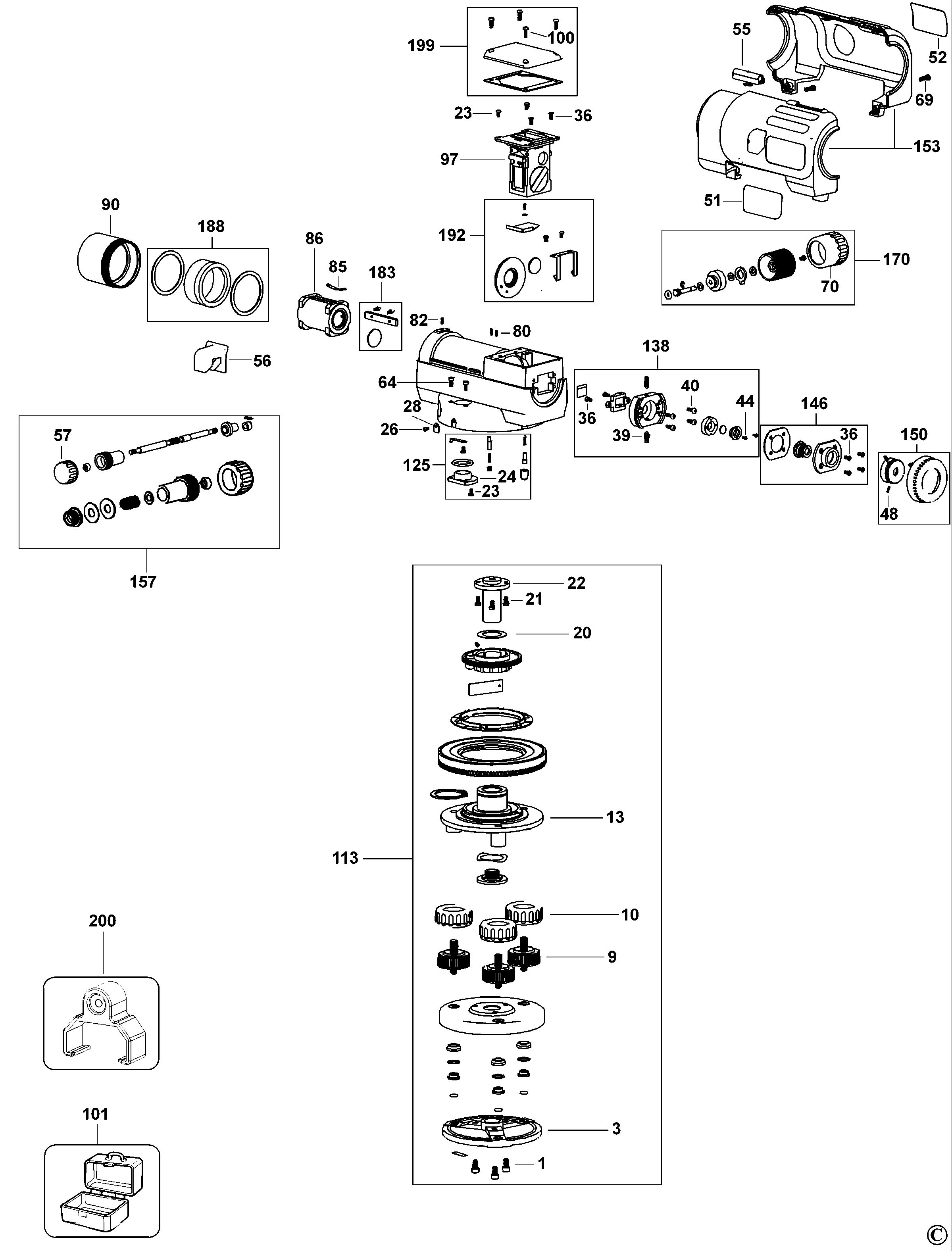

DEWALT OPTICAL INSTRUMENT (Type 1)
SKU Produs: DW096PK /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 597662-00 | 3 | SCREW | 19,95 Lei | |
| 3 | 597663-00 | 1 | BASEPLATE | 300,47 Lei | |
| 9 | 597664-00 | 3 | SCREW | 120,82 Lei | |
| 10 | 597665-00 | 3 | RUBBER BOOT | 41,93 Lei | |
| 13 | 597666-00 | 1 | SEAT | 613,14 Lei | |
| 20 | 597668-00 | 1 | GASKET | 15,12 Lei | |
| 21 | 597669-00 | 4 | SCREW | 19,95 Lei | |
| 22 | 597670-00 | 1 | AXIS | 375,31 Lei | |
| 23 | 597671-00 | 3 | SCREW | 4,57 Lei | |
| 24 | 597672-00 | 1 | LEVEL | 307,21 Lei | |
| 26 | 597674-00 | 4 | SCREW | 12,71 Lei | |
| 28 | 597675-00 | 1 | PLATE | 12,71 Lei | |
| 36 | 597676-00 | 8 | SCREW | 12,71 Lei | |
| 39 | 597677-00 | 2 | SCREW | 25,54 Lei | |
| 40 | 597678-00 | 4 | SCREW | 12,71 Lei | |
| 44 | 597679-00 | 2 | SCREW | 12,71 Lei | |
| 48 | 597682-00 | 3 | SCREW | 19,95 Lei | |
| 51 | 597684-00 | 1 | RATING PLATE | 12,71 Lei | |
| 52 | 597685-00 | 1 | BRAND LABEL | 12,71 Lei | |
| 55 | 597687-00 | 1 | ALIGNMENT DISC | 145,09 Lei | |
| 56 | 597688-00 | 1 | REFLECTOR SA | 7,37 Lei | |
| 57 | 597689-00 | 1 | COVER | 41,93 Lei | |
| 64 | 597691-00 | 2 | SCREW | 19,95 Lei | |
| 69 | 597692-00 | 2 | SCREW | 25,54 Lei | |
| 70 | 597693-00 | 1 | COVER | 70,39 Lei | |
| 80 | 597695-00 | 2 | SCREW | 19,95 Lei | |
| 82 | 597696-00 | 1 | SCREW | 19,95 Lei | |
| 85 | 597706-00 | 1 | LEAF SPRING | 19,95 Lei | |
| 86 | 597698-00 | 1 | SEAT | 157,92 Lei | |
| 90 | 597700-00 | 1 | COVER | 88,55 Lei | |
| 97 | 597702-00 | 1 | BLOCK | 1565,13 Lei | |
| 100 | 597704-00 | 4 | SCREW | 19,95 Lei | |
| 101 | 597705-00 | 1 | KITBOX | 433,24 Lei | |
| 113 | 597667-00 | 1 | TABLE SA | 2561,46 Lei | |
| 125 | 597673-00 | 1 | PARTS PACK(KIT) | 96,56 Lei | |
| 138 | 597680-00 | 1 | PARTS PACK | 850,09 Lei | |
| 146 | 597681-00 | 1 | PARTS PACK | 300,47 Lei | |
| 150 | 597683-00 | 1 | RING SA | 130,35 Lei | |
| 153 | 597686-00 | 1 | CLAMSHELL SET | 41,93 Lei | |
| 157 | 597690-00 | 1 | Drive Shaft | 613,14 Lei | |
| 170 | 597694-00 | 1 | KNOB SA | 57,81 Lei | |
| 183 | 597697-00 | 1 | RACK SA | 264,01 Lei | |
| 188 | 597699-00 | 1 | LENS | 307,21 Lei | |
| 192 | 597701-00 | 1 | PARTS PACK | 375,31 Lei | |
| 199 | 597703-00 | 1 | COVER SA | 145,09 Lei | |
| 200 | 5140029-42 | 1 | LEVEL | 41,93 Lei |
