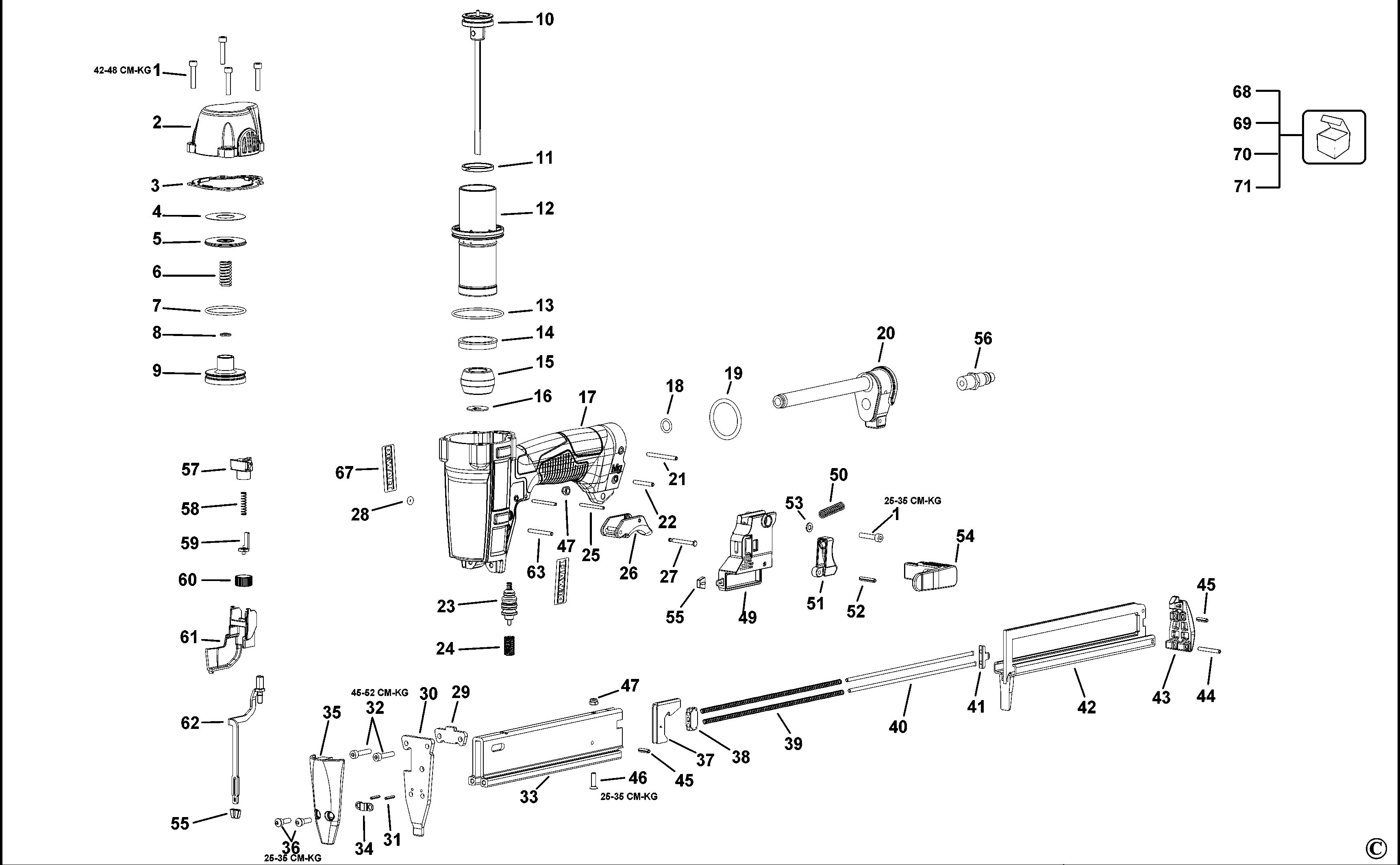

DEWALT STAPLER (Type 1)
SKU Produs: DPSSX38 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 9R195614 | 1 | END CAP | 80,04 Lei | |
| 3 | 9R195626 | 1 | GASKET | 8,64 Lei | |
| 12 | 9R195284 | 1 | CYLINDER | 21,85 Lei | |
| 17 | 9R195612 | 1 | FRAME | 349,13 Lei | |
| 19 | 9R195332 | 1 | O RING | 4,57 Lei | |
| 20 | 9R195281 | 1 | END CAP | 17,02 Lei | |
| 21 | 9R195285 | 1 | SPIROL PIN | 4,57 Lei | |
| 23 | 9R195308 | 1 | VALVE | 57,81 Lei | |
| 24 | 9R195329 | 1 | SPRING | 4,57 Lei | |
| 26 | 9R195660 | 1 | TRIGGER | 12,71 Lei | |
| 27 | 9R195317 | 1 | PIN | 4,57 Lei | |
| 30 | 9R195369 | 1 | NOSE | 41,93 Lei | |
| 33 | 9R195362 | 1 | MAGAZINE | 106,98 Lei | |
| 35 | 9R195368 | 1 | COVER | 7,37 Lei | |
| 37 | 9R195363 | 1 | PUSHER | 7,37 Lei | |
| 49 | 9R195619 | 1 | BRACKET | 15,12 Lei | |
| 51 | N869562 | 1 | LATCH | 5,21 Lei | |
| 53 | N905878 | 1 | WASHER | 4,57 Lei | |
| 54 | 9R195620 | 1 | HOOK | 8,64 Lei | |
| 55 | 9R195734 | 1 | FOOT | 4,57 Lei | |
| 60 | 9R195663 | 1 | KNOB | 4,57 Lei | |
| 61 | 9R195365 | 1 | GUIDE | 6,23 Lei | |
| 62 | 195366 | 1 | TRIP SA | 21,85 Lei | |
| 67 | 9R195863 | 1 | BRAND LABEL | 4,57 Lei | |
| 68 | DWFP12231-CTK | 1 | KIT | 30,87 Lei | |
| 69 | DWFP12232-DK | 1 | KIT | 96,56 Lei | |
| 70 | DWFP12231-TVK | 1 | VALVE KIT | 41,93 Lei | |
| 71 | DWFP12231-OK | 1 | KIT | 70,39 Lei |
