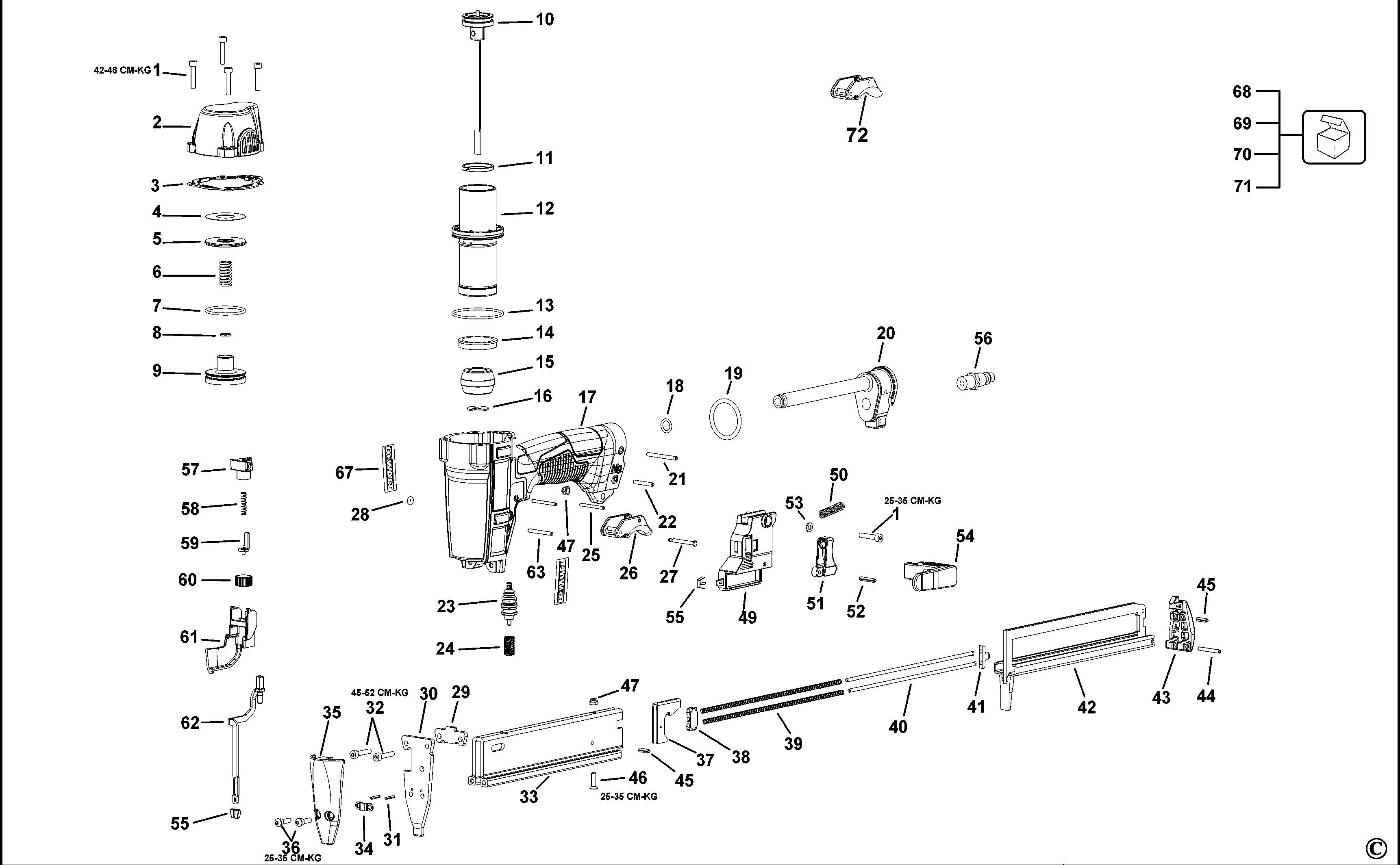

DEWALT STAPLER (Type 1)
SKU Produs: DPSSX38-1 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 5 | SCREW | 5,15 Lei | |
| 2 | 9R195614 | 1 | END CAP | 80,04 Lei | |
| 3 | 9R195626 | 1 | GASKET | 8,64 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 180205-K | 1 | DRIVER SA | 28,14 Lei | |
| 12 | 9R195284 | 1 | CYLINDER | 21,85 Lei | |
| 13 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | N906034 | 1 | GUIDE | 3,78 Lei | |
| 17 | 9R195612 | 1 | FRAME | 349,13 Lei | |
| 18 | MRG008819 | 1 | O-RING,.346X.075 | 5,15 Lei | |
| 19 | 9R195332 | 1 | O RING | 4,57 Lei | |
| 20 | 9R195281 | 1 | END CAP | 17,02 Lei | |
| 21 | 9R195285 | 1 | SPIROL PIN | 4,57 Lei | |
| 22 | 180503 | 1 | PIN | 5,15 Lei | |
| 23 | 9R195308 | 1 | VALVE | 57,81 Lei | |
| 24 | 9R195329 | 1 | SPRING | 4,57 Lei | |
| 25 | 195327 | 1 | SPIROL PIN | 3,78 Lei | |
| 27 | 9R195317 | 1 | PIN | 4,57 Lei | |
| 28 | 174073 | 1 | O RING | 5,15 Lei | |
| 29 | 180208 | 1 | PLATE | 5,15 Lei | |
| 30 | 9R195369 | 1 | NOSE | 41,93 Lei | |
| 31 | 180490 | 2 | PIN | 5,15 Lei | |
| 32 | N906076 | 1 | SCREW | 3,78 Lei | |
| 33 | 9R195362 | 1 | MAGAZINE | 106,98 Lei | |
| 34 | 180207 | 1 | BRACKET, TRIP | 5,15 Lei | |
| 35 | 9R195368 | 1 | COVER | 7,37 Lei | |
| 36 | 180587 | 2 | SHOULDER SCREW, M4.0X12MM | 3,78 Lei | |
| 37 | 9R195363 | 1 | PUSHER | 7,37 Lei | |
| 38 | 180199 | 1 | GUIDE, SLIDING | 5,15 Lei | |
| 39 | 180527 | 1 | SPRING, PUSHER | 5,15 Lei | |
| 40 | 180526 | 1 | ROD, SPRING GUIDE | 5,15 Lei | |
| 41 | 180200 | 1 | SUPPORT, SLIDING GUIDE | 5,15 Lei | |
| 42 | 180206 | 1 | ASSEMBLY, MAGAZINE CORE | 43,16 Lei | |
| 43 | 180201 | 1 | END CAP, MAGAZINE | 5,15 Lei | |
| 44 | 180567 | 1 | PIN | 5,15 Lei | |
| 45 | MPG030012 | 1 | PIN-M4x12 | 5,15 Lei | |
| 46 | 174307 | 1 | SCREW | 5,15 Lei | |
| 47 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 49 | 9R195619 | 1 | BRACKET | 15,12 Lei | |
| 50 | 180528 | 1 | SPRING, LATCH | 5,15 Lei | |
| 51 | N869562 | 1 | LATCH | 5,21 Lei | |
| 52 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 54 | 9R195620 | 1 | HOOK | 8,64 Lei | |
| 55 | 9R195734 | 1 | FOOT | 4,57 Lei | |
| 56 | 159977 | 2 | ADAPTOR | 8,51 Lei | |
| 58 | N906013 | 1 | SPRING | 7,14 Lei | |
| 59 | N905944 | 1 | ARM | 7,14 Lei | |
| 60 | 9R195663 | 1 | KNOB | 4,57 Lei | |
| 61 | 9R195365 | 1 | GUIDE | 6,23 Lei | |
| 62 | 195366 | 1 | TRIP SA | 21,85 Lei | |
| 63 | 174345 | 1 | PIN | 5,15 Lei | |
| 68 | DWFP12231-CTK | 1 | KIT | 30,87 Lei | |
| 69 | DWFP12232-DK | 1 | KIT | 96,56 Lei | |
| 70 | DWFP12231-TVK | 1 | VALVE KIT | 41,93 Lei | |
| 71 | DWFP12231-OK | 1 | KIT | 70,39 Lei |
