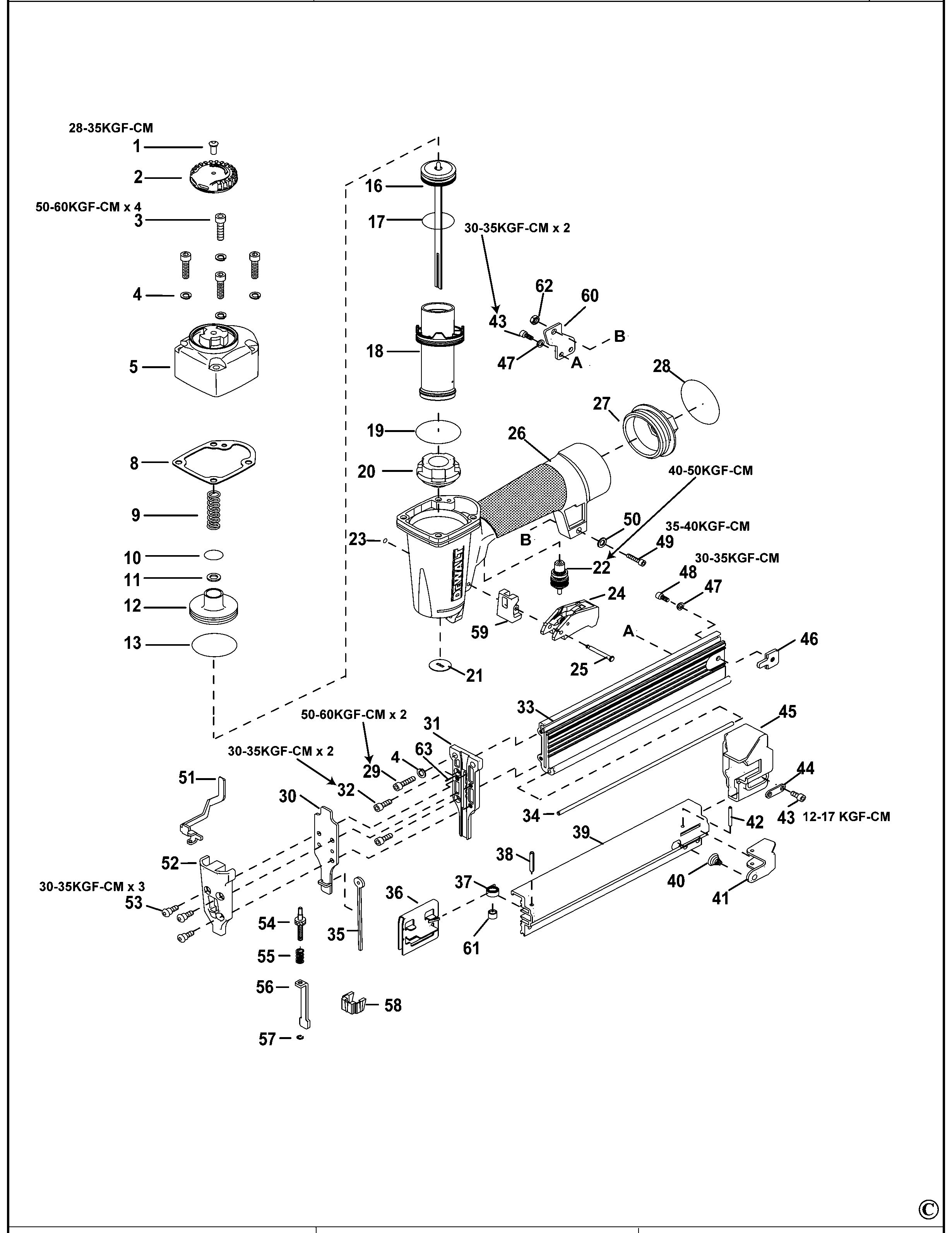

DEWALT STAPLER (Type 1)
SKU Produs: DPSB2IN1 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 9R206619 | 1 | SCREW | 4,57 Lei | |
| 2 | P0590000200 | 1 | Exhaust Cover | 18,06 Lei | |
| 3 | 1A105401 | 4 | HEX SOC.HD.BOLT | 5,15 Lei | |
| 4 | 188750 | 6 | WASHER SPRING-D5 | 3,78 Lei | |
| 5 | 9R209586 | 1 | CAP | 52,22 Lei | |
| 8 | P0590000400 | 1 | GASKET | 4,31 Lei | |
| 9 | 180447 | 1 | SPRING | 5,15 Lei | |
| 10 | S06P001500 | 1 | O-RING | 4,31 Lei | |
| 11 | 1E10610 | 1 | FLAT WASHER | 5,15 Lei | |
| 12 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 13 | 180448 | 1 | O RING | 5,15 Lei | |
| 16 | G0201400-K | 1 | DRIVER | 31,19 Lei | |
| 17 | S06Z000900 | 1 | O RING | 3,78 Lei | |
| 18 | 188708 | 1 | CYLINDER | 17,02 Lei | |
| 19 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 20 | JA1111O1 | 1 | BUMPER | 5,15 Lei | |
| 21 | P0775201562 | 1 | JOINT GUIDE | 3,78 Lei | |
| 22 | 9R217674 | 1 | SERVICE TRIGGER VALVE | 14,07 Lei | |
| 23 | 174073 | 1 | O RING | 5,15 Lei | |
| 24 | PB2081A1 | 1 | TRIGGER UNIT (ST) | 31,19 Lei | |
| 25 | JA2071W1 | 1 | STEPPED PIN | 5,15 Lei | |
| 26 | 9R217680 | 1 | FRAME | 181,55 Lei | |
| 27 | JA3612D1 | 1 | END CAP | 18,06 Lei | |
| 28 | 1FZ0019 | 1 | O-RING | 5,15 Lei | |
| 29 | 9R199720 | 2 | SCREW | 4,31 Lei | |
| 30 | G2000501 | 1 | DRIVER GUIDE COVER A UNIT | 16,49 Lei | |
| 31 | P0640000501 | 1 | DRIVER GUIDE SB-2IN1 (P0650000401) | 228,8 Lei | |
| 33 | P0640000663 | 1 | MAGAZIN A SB-2IN1 | 47,78 Lei | |
| 34 | P0645200701 | 1 | PO 645200701 MAGAZINSCHIENE SB-2IN1 | 5,15 Lei | |
| 35 | P0645200462 | 1 | GUIDE BAR | 5,15 Lei | |
| 36 | P0645200862 | 1 | PUSHER | 10,5 Lei | |
| 37 | P0640000900 | 1 | SPRING | 7,14 Lei | |
| 38 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 39 | P0640001001 | 1 | MAGAZIN B | 58,17 Lei | |
| 40 | P0645201162 | 1 | SPRING | 5,15 Lei | |
| 41 | 9R209591 | 1 | LEVER | 17,02 Lei | |
| 42 | P0645201662 | 1 | PIN | 3,78 Lei | |
| 43 | S0110408100 | 2 | HEX.SOC.HD.BOLT | 5,15 Lei | |
| 44 | JA4501I1 | 1 | END COVER PLATE | 5,15 Lei | |
| 45 | P0640001300 | 1 | END COVER | 5,15 Lei | |
| 46 | P0645201401 | 1 | PO 645201401 PLATTE SB-2IN1 | 5,15 Lei | |
| 47 | 1D104 | 2 | SPRING WASHER | 5,15 Lei | |
| 49 | S1210522100 | 1 | BUTTON HD.SOC.SCREW SB-2IN1 | 5,15 Lei | |
| 50 | 180569 | 1 | WASHER | 5,15 Lei | |
| 51 | JA5073I1 | 1 | SAFETY B | 5,15 Lei | |
| 52 | P0770002400 | 1 | COVER | 3,78 Lei | |
| 54 | JA5161W1 | 1 | SETTING KNOB | 5,15 Lei | |
| 55 | JA5092S1 | 1 | SPRING | 5,15 Lei | |
| 56 | P0655100101 | 1 | PO 655100101 KONTAKTTRIP A SB-2IN1 | 5,15 Lei | |
| 57 | 1I1020 | 1 | E-RING | 5,15 Lei | |
| 58 | 9R209590 | 1 | PAD | 4,57 Lei | |
| 59 | P0590007400 | 1 | SAFETY GUIDE | 3,78 Lei | |
| 60 | P0655100201 | 1 | TAIL HANGER SB-2IN1 | 5,15 Lei | |
| 61 | P0645201701 | 1 | BUSHING | 5,15 Lei | |
| 63 | S0801008000 | 1 | SO 801008000 STIFT SB-2IN1 | 5,15 Lei |
