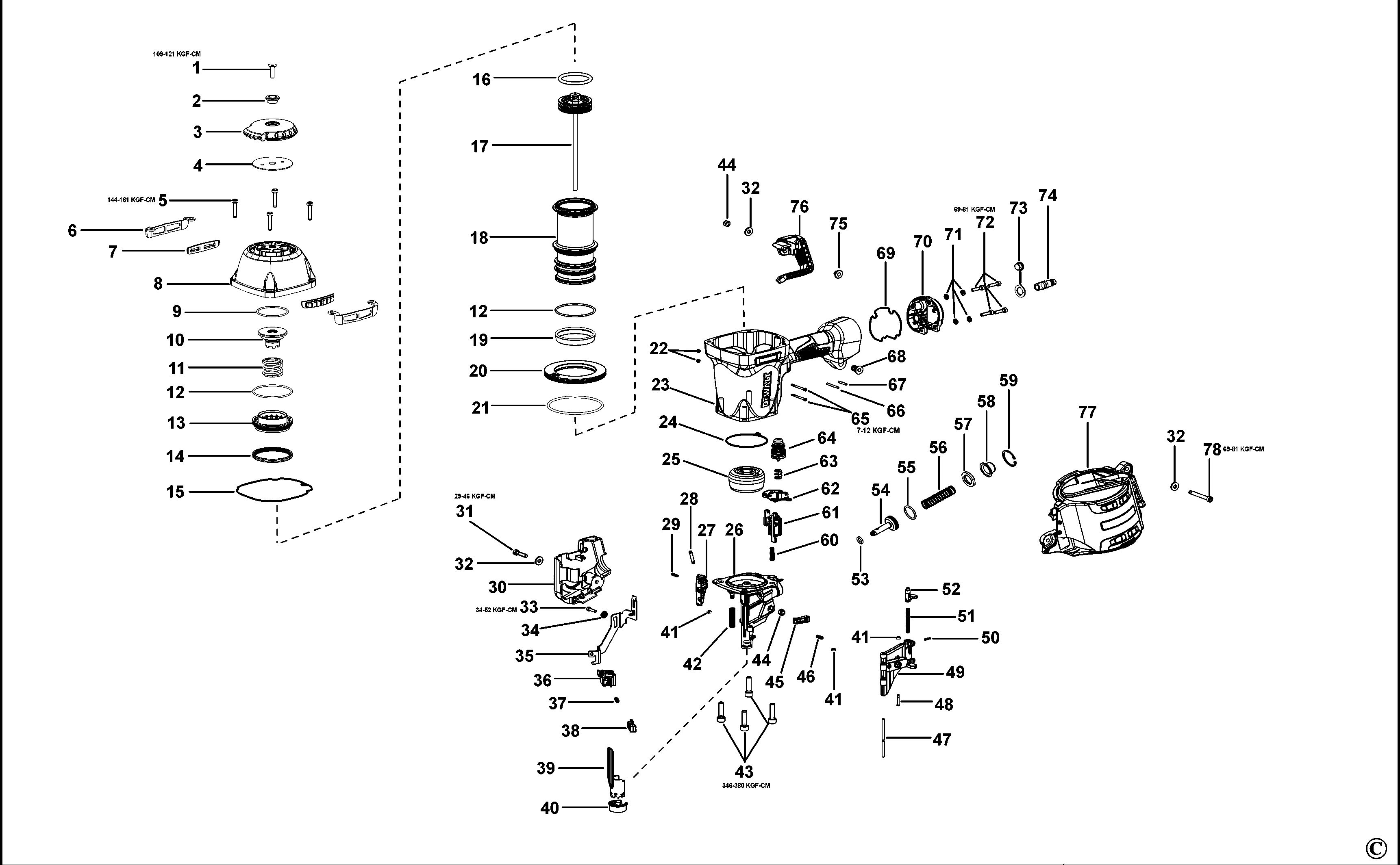

DEWALT NAILER (Type 1)
SKU Produs: DPN90C /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | MSF6100-25 | 1 | SCREW, SFHCS, M6X1.00X25 | 5,15 Lei | |
| 2 | 163859 | 1 | BUSHING,EXHAUST DEFLECTOR | 16,49 Lei | |
| 3 | 163818 | 1 | DEFLECTOR,EXHAUST | 12,5 Lei | |
| 4 | 163830 | 1 | PLATE,CAP | 5,15 Lei | |
| 5 | MSC6100-30 | 4 | SCREW,SHCS,M6X1.00X30 | 5,15 Lei | |
| 6 | 163827 | 2 | PLATE,WEAR | 5,15 Lei | |
| 7 | 149819 | 2 | WEAR GUIDE | 5,15 Lei | |
| 8 | 9R207477 | 1 | CAP | 200,99 Lei | |
| 9 | 105814 | 1 | O-RING,1.929X.098 | 10,5 Lei | |
| 10 | 163820 | 1 | BUMPER,HEAD VALVE | 6,09 Lei | |
| 11 | 163844 | 1 | SPRING,HEAD VALVE | 5,15 Lei | |
| 12 | 163822 | 2 | -RING,2.487X.103XNBR | 10,5 Lei | |
| 13 | 163821 | 1 | LOWER BODY,HEAD VALVE (REV C) | 5,15 Lei | |
| 14 | 163823 | 1 | SEAL,HEAD VALVE | 5,15 Lei | |
| 15 | 163845 | 1 | SEAL,FRAME/CAP | 5,15 Lei | |
| 17 | 163816 | 1 | ASSEMBLY,PISTON/DRIVER | 390,29 Lei | |
| 18 | 163824 | 1 | SLEEVE | 107,73 Lei | |
| 19 | 175520 | 1 | SEAL CHECK | 5,15 Lei | |
| 20 | 163855 | 1 | RING,CYLINDER SLEEVE | 11,45 Lei | |
| 21 | 108718 | 1 | O-RING 3.484X.139 | 5,15 Lei | |
| 22 | MHE3050-100 | 2 | NUT,ESN,M3X0.5 | 5,15 Lei | |
| 23 | 9R207410 | 1 | FRAME | 375,31 Lei | |
| 24 | 163884 | 1 | SEAL,NOSE | 5,15 Lei | |
| 25 | 107231 | 1 | BUMPER,DRIVE | 43,16 Lei | |
| 26 | 166763 | 1 | NOSE, MACHINING, N89C | 341,25 Lei | |
| 27 | 166773 | 1 | PAWL,FEED,MACHINING,N89C | 73,19 Lei | |
| 28 | 166787 | 1 | PIN,FEED PAWL | 5,15 Lei | |
| 29 | 166774 | 1 | SPRING,FEED PAWL | 5,15 Lei | |
| 30 | 166766 | 1 | COVER,TRIP | 16,49 Lei | |
| 31 | MSC6100-25 | 1 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 32 | MPW6.2 | 4 | WASHER.SPECIAL | 5,15 Lei | |
| 33 | MSC4070-16 | 1 | SCREW | 16,49 Lei | |
| 34 | 163876 | 1 | BUSHING,UPPER CONTACT ARM | 5,15 Lei | |
| 35 | 163908 | 1 | ARM,UPPER CONTACT | 34,65 Lei | |
| 36 | 163906 | 1 | CASTING,HOUSING CONTACT | 58,17 Lei | |
| 37 | 115230 | 1 | SPRING,HOUSING | 5,15 Lei | |
| 38 | 188703 | 1 | CASTING PLUNGER | 28,14 Lei | |
| 39 | 163907 | 1 | ARM,LOWER CONTACT (SERRATED) | 66,15 Lei | |
| 40 | 166765 | 1 | FOOT, TRIP, N89C | 8,51 Lei | |
| 41 | 854004 | 1 | WASHER | 5,15 Lei | |
| 42 | 116970 | 1 | SPRING,CONTACT ARM | 5,15 Lei | |
| 43 | MSC8125-30 | 1 | SCREW,SHCS,M8X1.25X30 | 5,15 Lei | |
| 44 | MHE6100-100 | 1 | NUT,ESN M6X1 | 5,15 Lei | |
| 45 | N70149 | 1 | PAWL CHECK | 43,16 Lei | |
| 46 | 854011 | 1 | COMPRESSION SPRING | 5,15 Lei | |
| 47 | N80125 | 1 | PIN,SPECIAL | 5,15 Lei | |
| 48 | N70140 | 1 | PIN SPECIAL | 5,15 Lei | |
| 49 | 166760 | 1 | DOOR,MACHINING,N89C | 150,05 Lei | |
| 50 | MPG030012 | 1 | PIN-M4x12 | 5,15 Lei | |
| 51 | 854013 | 1 | SPRING,COMPRESSION | 5,15 Lei | |
| 52 | N70150 | 1 | LATCH DOOR | 47,78 Lei | |
| 53 | 88999 | 1 | BLACK+DECKER OSCILLATING TOOL (Type 1) | 6,23 Lei | |
| 54 | 163894 | 1 | PISTON,FEED | 79,8 Lei | |
| 55 | 87112 | 1 | O-RING,.924X.103 | 7,14 Lei | |
| 56 | 163930 | 1 | SPRING,FEED PISTON | 5,15 Lei | |
| 57 | 163897 | 1 | STOP,FEED PISTON | 5,15 Lei | |
| 58 | 163895 | 1 | COLLAR,SPRING | 5,15 Lei | |
| 59 | 163896 | 1 | RETAINING RING,INCH | 5,15 Lei | |
| 60 | 166781 | 1 | SPRING, UPPER TRIP | 5,15 Lei | |
| 61 | 163883 | 1 | GUIDE,ARM | 5,15 Lei | |
| 62 | 166759 | 1 | ASSEMBLY,SEQUENTIAL TRIGGER | 8,51 Lei | |
| 63 | 100387 | 1 | SPRING | 5,15 Lei | |
| 64 | 102039 | 1 | TRIGGER | 57,81 Lei | |
| 65 | 108562 | 2 | SCREW,TRIGGER PIVOT | 5,15 Lei | |
| 66 | 100298 | 1 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 67 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 68 | 123859 | 1 | BUSHING, FLANGED ISOLATION | 5,15 Lei | |
| 69 | 163856 | 1 | SEAL,END CAP | 5,15 Lei | |
| 70 | 163843 | 1 | END CAP,PAINT | 47,78 Lei | |
| 71 | T50118 | 4 | WASHER,PWW M5 | 5,15 Lei | |
| 73 | 9R195380 | 1 | COVER | 4,57 Lei | |
| 74 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 75 | 171342 | 1 | WASHER, UTILITY HOOK | 5,15 Lei | |
| 76 | 171354 | 1 | ASSEMBLY, UTILITY HOOK | 25,52 Lei | |
| 77 | 9R207465 | 1 | CANISTER | 361,33 Lei | |
| 78 | MSC6100-50 | 1 | SCREW,SHSC,M6X1.00X50 | 5,15 Lei | |
| 800 | WINTEROIL-20OZ | 1 | OIL-WINTER OIL - PNEUMATIC | 66,15 Lei |
