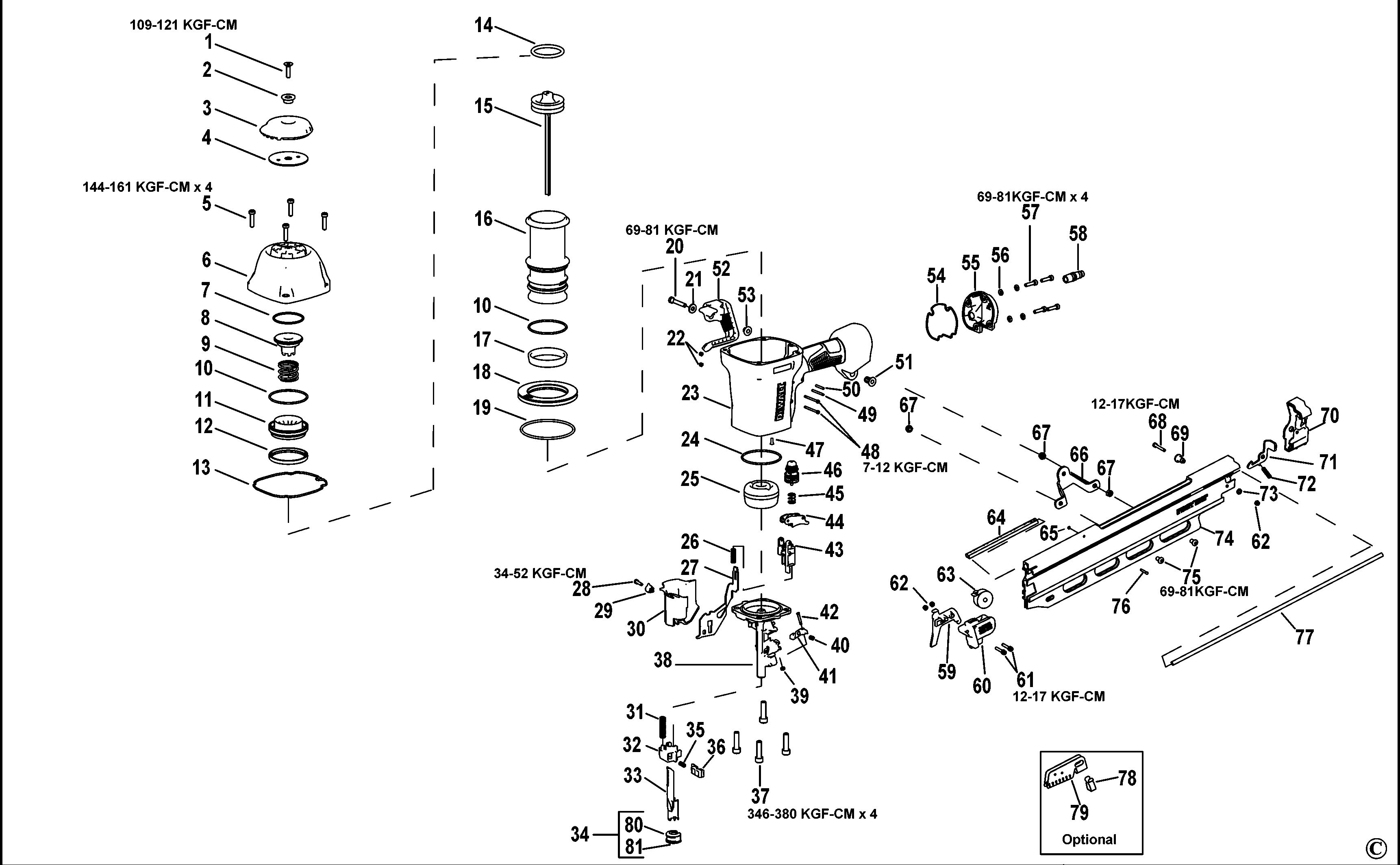

DEWALT NAILER (Type 1)
SKU Produs: DPN9017PL /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | MSF6100-25 | 1 | SCREW, SFHCS, M6X1.00X25 | 5,15 Lei | |
| 2 | 163859 | 1 | BUSHING,EXHAUST DEFLECTOR | 16,49 Lei | |
| 3 | 163818 | 1 | DEFLECTOR,EXHAUST | 12,5 Lei | |
| 4 | 163830 | 1 | PLATE,CAP | 5,15 Lei | |
| 5 | MSC6100-25 | 4 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 6 | 9R207477 | 1 | CAP | 200,99 Lei | |
| 7 | 105814 | 1 | O-RING,1.929X.098 | 10,5 Lei | |
| 8 | 163820 | 1 | BUMPER,HEAD VALVE | 6,09 Lei | |
| 9 | 163844 | 1 | SPRING,HEAD VALVE | 5,15 Lei | |
| 10 | 163822 | 2 | -RING,2.487X.103XNBR | 10,5 Lei | |
| 11 | 163821 | 1 | LOWER BODY,HEAD VALVE (REV C) | 5,15 Lei | |
| 12 | 163823 | 1 | SEAL,HEAD VALVE | 5,15 Lei | |
| 13 | 163845 | 1 | SEAL,FRAME/CAP | 5,15 Lei | |
| 15 | 163921 | 1 | ASSEMBLY,PISTON/DRIVER | 317,1 Lei | |
| 16 | 163824 | 1 | SLEEVE | 107,73 Lei | |
| 17 | 175520 | 1 | SEAL CHECK | 5,15 Lei | |
| 18 | 163855 | 1 | RING,CYLINDER SLEEVE | 11,45 Lei | |
| 19 | 108718 | 1 | O-RING 3.484X.139 | 5,15 Lei | |
| 20 | MSC6100-35 | 1 | SCREW,SHCS,M6X1.00X35 | 5,15 Lei | |
| 21 | MPW6.2 | 1 | WASHER.SPECIAL | 5,15 Lei | |
| 22 | MHE3050-100 | 2 | NUT,ESN,M3X0.5 | 5,15 Lei | |
| 23 | 9R207410 | 1 | FRAME | 375,31 Lei | |
| 24 | 89673 | 1 | O-RING,2.550X.103 | 5,15 Lei | |
| 25 | 107231 | 1 | BUMPER,DRIVE | 43,16 Lei | |
| 26 | 166781 | 1 | SPRING, UPPER TRIP | 5,15 Lei | |
| 27 | 163900 | 1 | ARM,UPPER CONTACT | 6,09 Lei | |
| 28 | MSC4070-16 | 1 | SCREW | 16,49 Lei | |
| 29 | 163903 | 1 | BUSHING, TRIP COVER | 6,09 Lei | |
| 30 | 171338 | 1 | TRIP COVER | 6,09 Lei | |
| 31 | 166772 | 1 | SPRING,CONTACT ARM | 5,15 Lei | |
| 32 | 108224 | 1 | CASTING,HOUSING CONTACT | 66,15 Lei | |
| 33 | 142941 | 1 | ARM, LOWER CONTACT | 79,8 Lei | |
| 34 | 121072 | 1 | SEGMENT | 5,15 Lei | |
| 35 | 115230 | 1 | SPRING,HOUSING | 5,15 Lei | |
| 36 | 166777 | 1 | CASTING,PLUNGER | 28,14 Lei | |
| 37 | MSC8125-30 | 4 | SCREW,SHCS,M8X1.25X30 | 5,15 Lei | |
| 38 | 163923 | 1 | NOSE,F21PL | 208,74 Lei | |
| 39 | 854004 | 1 | WASHER | 5,15 Lei | |
| 40 | 163878 | 1 | SPRING,CHECK PAWL | 5,15 Lei | |
| 41 | 163877 | 1 | PAWL | 16,49 Lei | |
| 42 | 149882 | 1 | PIN, CHECK PAWL | 5,15 Lei | |
| 43 | 163883 | 1 | GUIDE,ARM | 5,15 Lei | |
| 44 | SEQ7 | 1 | KIT, SEQUENTIAL TRIP CONVERSION | 21,11 Lei | |
| 45 | 100387 | 1 | SPRING | 5,15 Lei | |
| 46 | TVA6 | 1 | TRIGGER VALVE ASSEMBLY | 208,74 Lei | |
| 47 | 163858 | 1 | PLUG,EXHAUST | 5,15 Lei | |
| 48 | 108562 | 2 | SCREW,TRIGGER PIVOT | 5,15 Lei | |
| 49 | 100298 | 1 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 50 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 51 | 123859 | 1 | BUSHING, FLANGED ISOLATION | 5,15 Lei | |
| 52 | 171354 | 1 | ASSEMBLY, UTILITY HOOK | 25,52 Lei | |
| 53 | 171342 | 1 | WASHER, UTILITY HOOK | 5,15 Lei | |
| 54 | 163856 | 1 | SEAL,END CAP | 5,15 Lei | |
| 55 | 163843 | 1 | END CAP,PAINT | 47,78 Lei | |
| 56 | T50118 | 4 | WASHER,PWW M5 | 5,15 Lei | |
| 58 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 59 | 163901 | 1 | PUSHER | 73,19 Lei | |
| 60 | 163902 | 1 | HANDLE,PUSHER | 6,09 Lei | |
| 61 | 121052 | 2 | SCREWS,SHCS,M4X0.70X25 | 5,15 Lei | |
| 62 | MHE4070-100 | 3 | NUT | 5,15 Lei | |
| 63 | 115143 | 1 | SPRING,CONSTANT FORCE | 66,15 Lei | |
| 64 | 121406 | 1 | LINER, NAIL GUIDE | 11,45 Lei | |
| 65 | 166797 | 1 | O RING | 5,15 Lei | |
| 66 | 163860 | 1 | BRACKET | 25,52 Lei | |
| 67 | MHE6100-100 | 3 | NUT,ESN M6X1 | 5,15 Lei | |
| 68 | 100261 | 1 | SCREW,SHCS,M4X0.7X30 | 5,15 Lei | |
| 69 | 121472 | 1 | SPACER, PUSHER LATCH | 5,15 Lei | |
| 70 | 163912 | 1 | ASSEMBLY,END CAP | 18,06 Lei | |
| 71 | 166778 | 1 | LATCH,PUSHER | 5,15 Lei | |
| 72 | 120878 | 1 | SPRING, PUSHER LATCH | 5,15 Lei | |
| 73 | MPW4 | 1 | WASHER-M4 | 5,15 Lei | |
| 74 | 9R209589 | 1 | MAGAZINE | 307,21 Lei | |
| 75 | MSB6100-12 | 2 | SCREW,SBHCS,M6X1.00X12 (KN85) | 5,15 Lei | |
| 76 | 121407 | 1 | PIN, SPECIAL | 5,15 Lei | |
| 77 | 163867 | 1 | ROD,GUIDE | 5,15 Lei | |
| 78 | 112631 | 1 | SPRING,CLIP | 5,15 Lei | |
| 80 | 121071 | 1 | CLIP, TRIP FOOT | 5,15 Lei | |
| 81 | 121070 | 1 | FOOT TRIP | 5,15 Lei |
