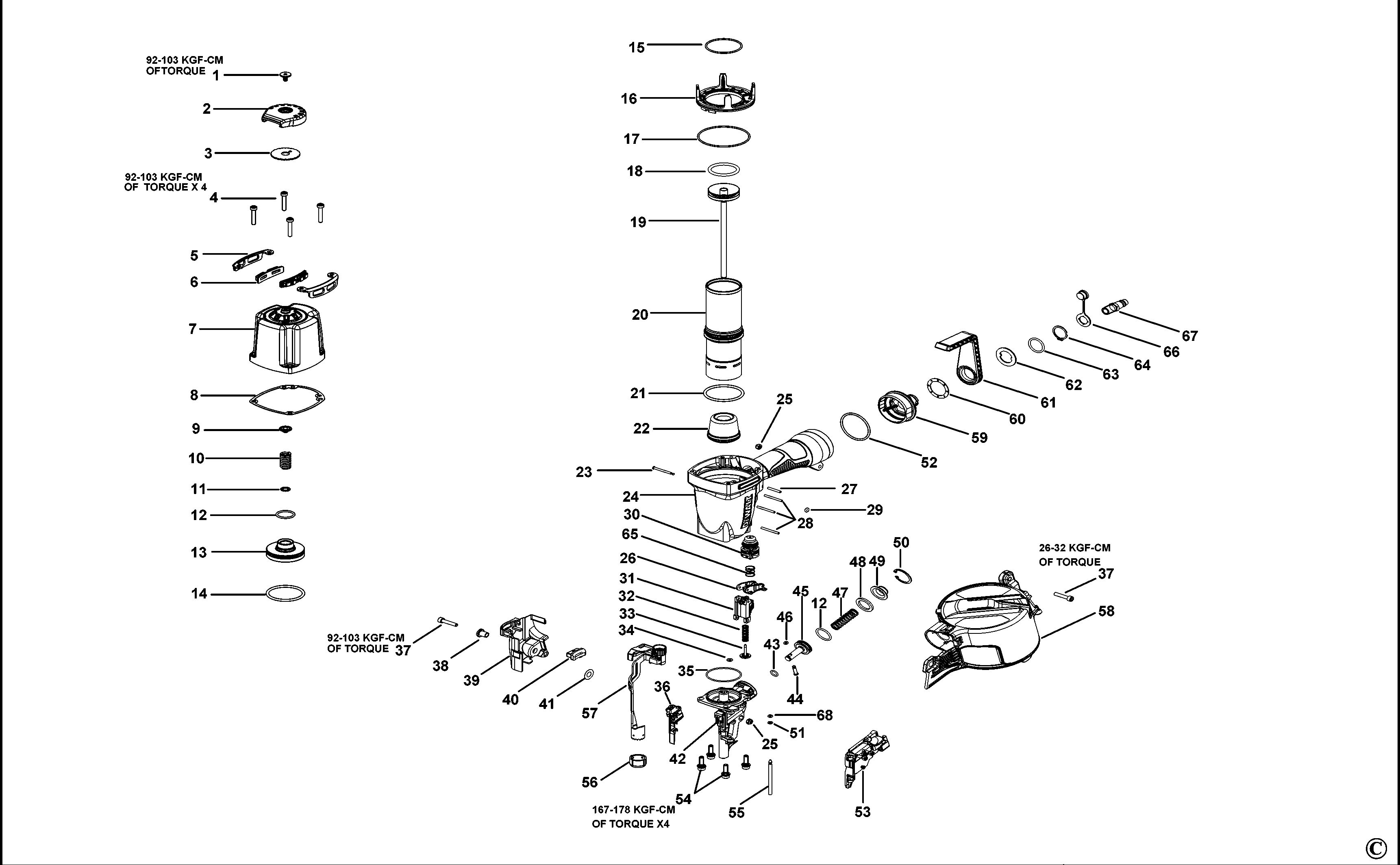

DEWALT NAILER (Type 1)
SKU Produs: DPN75C /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 175551 | 1 | SCREW | 5,15 Lei | |
| 2 | 175552 | 1 | COVER | 7,14 Lei | |
| 3 | 175553 | 1 | PLATE | 4,31 Lei | |
| 4 | 175554 | 1 | SCREW, SHCD, M5X0.80X3 | 3,78 Lei | |
| 5 | 174046 | 1 | BRACKET, RUBBER PAD | 5,15 Lei | |
| 6 | 174045 | 1 | PAD, RUBBER | 5,15 Lei | |
| 7 | 9R207483 | 1 | CAP SA | 120,82 Lei | |
| 8 | 174050 | 1 | PACKING | 28,14 Lei | |
| 9 | 174049 | 1 | SEAL, DEFLECTOR | 5,15 Lei | |
| 10 | 174051 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 11 | 174052 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 12 | 174053 | 2 | O-RING, 20.8MMX2.4MM | 5,15 Lei | |
| 13 | 174054 | 1 | PISTON, HEAD VALVE | 11,45 Lei | |
| 14 | 174055 | 1 | O-RING, 44.7MMX3.5MM | 5,15 Lei | |
| 15 | 174058 | 1 | O-RING, 45.5MMX2.0MM | 5,15 Lei | |
| 16 | 175556 | 1 | COLLAR,CYLINDER SLEEVE,N755 | 11,45 Lei | |
| 17 | 174056 | 1 | O-RING, 66.5MMX2.0MM | 5,15 Lei | |
| 18 | 174060 | 1 | O-RING, 36.0 MM X 4.0 MM | 5,15 Lei | |
| 19 | 9R207467 | 1 | DRIVER SA | 139,97 Lei | |
| 20 | 175558 | 1 | SLEEVE | 139,97 Lei | |
| 21 | 86460 | 1 | O-RING,1.859X.139 | 16,49 Lei | |
| 22 | 175562 | 1 | BUMPER | 25,52 Lei | |
| 23 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 24 | 9R207421 | 1 | FRAME | 276,84 Lei | |
| 25 | 9R202137 | 2 | NUT | 4,57 Lei | |
| 26 | 107582 | 1 | ASSEMBLY,S.T.TRIGGER | 5,15 Lei | |
| 27 | 174070 | 1 | PIN | 5,15 Lei | |
| 28 | 9R203788 | 3 | SPIROL PIN | 3,78 Lei | |
| 29 | 174073 | 1 | O RING | 5,15 Lei | |
| 30 | 102039 | 1 | TRIGGER | 57,81 Lei | |
| 31 | 9R199740 | 1 | GUIDE | 7,14 Lei | |
| 32 | 9R199741 | 1 | SPRING | 3,78 Lei | |
| 33 | P2845203062 | 1 | SPRING HOLDER | 10,5 Lei | |
| 34 | S06P000400 | 1 | O-RING | 5,15 Lei | |
| 35 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 36 | G7600300 | 1 | ASSEMBLY,FEED/JAW CONNECTOR | 47,78 Lei | |
| 38 | P2325205662 | 1 | MAGAZINE SPACER | 5,15 Lei | |
| 39 | P2320005500 | 1 | GUARD | 6,09 Lei | |
| 40 | P2320005400 | 1 | RUBBER PAD | 5,15 Lei | |
| 41 | P3490000200 | 1 | WASHER | 3,78 Lei | |
| 42 | P3030000565 | 1 | NOSE | 411,39 Lei | |
| 43 | MRG008819 | 1 | O-RING,.346X.075 | 5,15 Lei | |
| 44 | P2325207562 | 1 | SPRING PIN | 5,15 Lei | |
| 45 | P3035502962 | 1 | FEED PISTON | 16,49 Lei | |
| 46 | S06A000500 | 1 | O-RING | 5,15 Lei | |
| 47 | P2325205062 | 1 | SPRING | 5,15 Lei | |
| 48 | P2322005100 | 1 | FEED PISTON BUMPER | 5,15 Lei | |
| 49 | P2325205262 | 1 | FEED PISTON COVER | 5,15 Lei | |
| 50 | S15202800 | 1 | C-RING | 5,15 Lei | |
| 51 | 184434 | 1 | O RING | 3,78 Lei | |
| 52 | 174067 | 1 | O-RING,45.7MMX2.62MM N66C | 3,78 Lei | |
| 53 | 9R217710 | 1 | DOOR-ASSEMBLY DOOR N75C | 139,97 Lei | |
| 54 | 9R195545 | 4 | SCREW | 3,78 Lei | |
| 55 | P2325203662 | 1 | DOOR PIVOT PIN | 5,15 Lei | |
| 56 | 9R207471 | 1 | FOOT | 5,21 Lei | |
| 57 | 9R207473 | 1 | ACTUATION ARM | 88,55 Lei | |
| 58 | G4700400 | 1 | MAGAZINE SA | 225,26 Lei | |
| 59 | 9R209578 | 1 | END CAP | 28,14 Lei | |
| 60 | 175582 | 1 | SEAT PLATE, HOOK | 5,15 Lei | |
| 61 | 175583 | 1 | HOOK | 5,15 Lei | |
| 62 | 175585 | 1 | CAP, HOOK | 5,15 Lei | |
| 63 | 175557 | 1 | O-RING | 5,15 Lei | |
| 64 | 175586 | 1 | RING, RETAINING | 5,15 Lei | |
| 65 | 100387 | 1 | SPRING | 5,15 Lei | |
| 66 | 9R195380 | 1 | COVER | 4,57 Lei | |
| 67 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 68 | S06P000300 | 1 | O-RING | 5,15 Lei | |
| 69 | 9R217712 | 1 | COLLAR | 8,51 Lei | |
| 70 | MSC5080-25 | 1 | SCREW | 5,15 Lei |
