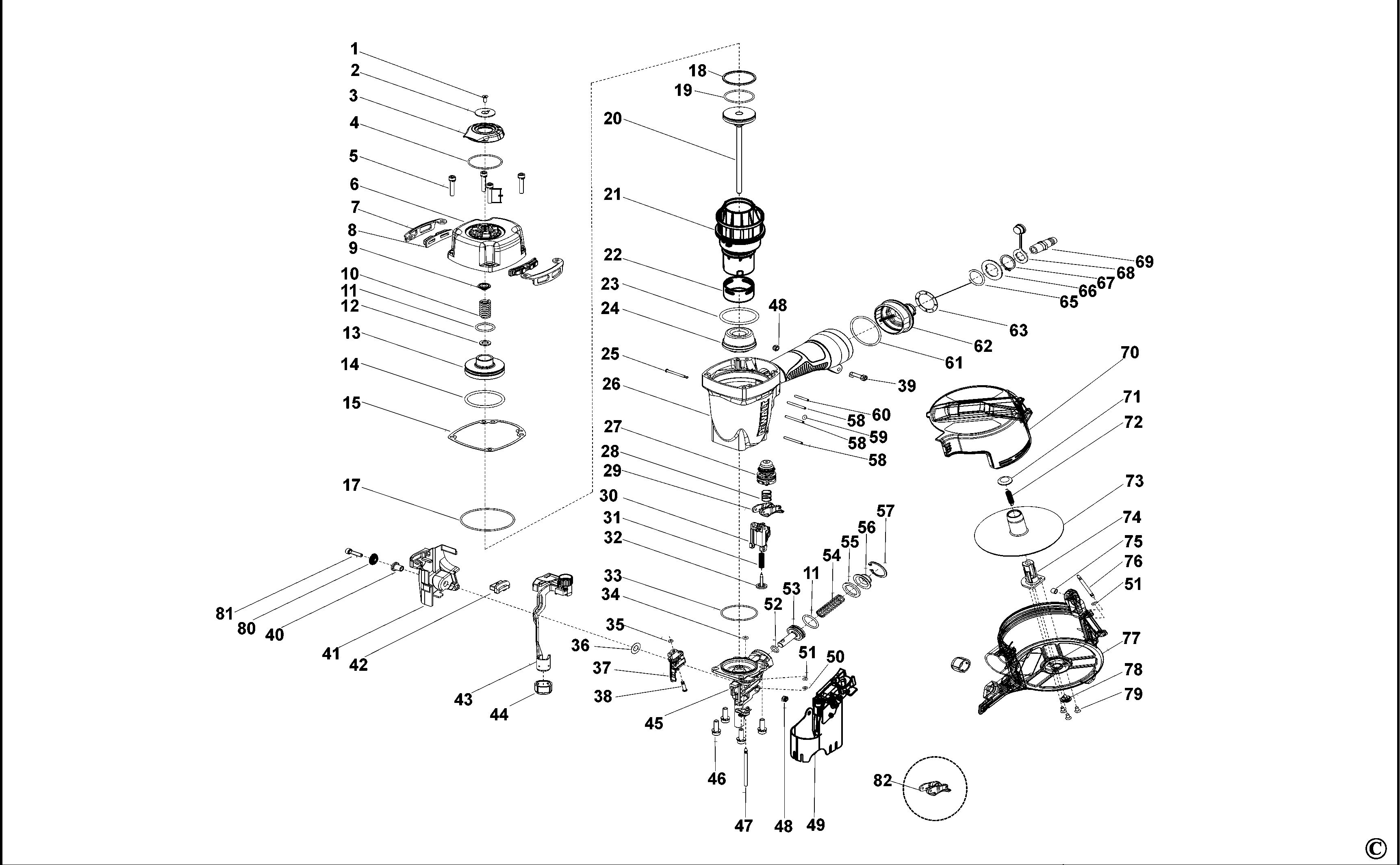

DEWALT COIL NAILER (Type 1)
SKU Produs: DPN64C-1 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 174041 | 1 | SCREW,SFHCS,M40X0.7X10 CF15 | 3,78 Lei | |
| 2 | 174042 | 1 | SPACER,EXHAUST COVER | 4,31 Lei | |
| 3 | 174043 | 1 | COVER,EXHAUST | 6,09 Lei | |
| 4 | 174044 | 1 | O RING | 5,15 Lei | |
| 5 | 175554 | 1 | SCREW, SHCD, M5X0.80X3 | 3,78 Lei | |
| 6 | 9R207485 | 1 | CAP | 120,82 Lei | |
| 7 | 174046 | 1 | BRACKET, RUBBER PAD | 5,15 Lei | |
| 8 | 174045 | 1 | PAD, RUBBER | 5,15 Lei | |
| 9 | 174049 | 1 | SEAL, DEFLECTOR | 5,15 Lei | |
| 10 | 174051 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 11 | 174053 | 1 | O-RING, 20.8MMX2.4MM | 5,15 Lei | |
| 12 | 174052 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 13 | 174054 | 1 | PISTON, HEAD VALVE | 11,45 Lei | |
| 14 | 174055 | 1 | O-RING, 44.7MMX3.5MM | 5,15 Lei | |
| 15 | 174050 | 1 | PACKING | 28,14 Lei | |
| 17 | 9R217757 | 1 | O RING | 5,15 Lei | |
| 18 | P2320006600 | 1 | SEAL RING | 5,15 Lei | |
| 19 | S06S003600 | 1 | O-RING | 5,15 Lei | |
| 20 | G0209200 | 1 | DRIVER UNIT N66C | 373,38 Lei | |
| 21 | 9R213301 | 1 | COLLAR | 28,14 Lei | |
| 22 | 9R217824 | 1 | RING | 18,06 Lei | |
| 23 | 86460 | 1 | O-RING,1.859X.139 | 16,49 Lei | |
| 24 | 174075 | 1 | BUMPER, PISTON STOP | 43,16 Lei | |
| 25 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 26 | 9R207421 | 1 | FRAME | 276,84 Lei | |
| 27 | 102039 | 1 | TRIGGER | 57,81 Lei | |
| 28 | 100387 | 1 | SPRING | 5,15 Lei | |
| 29 | 107582 | 1 | ASSEMBLY,S.T.TRIGGER | 5,15 Lei | |
| 30 | 9R199740 | 1 | GUIDE | 7,14 Lei | |
| 31 | 9R199741 | 1 | SPRING | 3,78 Lei | |
| 32 | P2845203062 | 1 | SPRING HOLDER | 10,5 Lei | |
| 33 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 34 | S06P000400 | 1 | O-RING | 5,15 Lei | |
| 35 | S06A000500 | 1 | O-RING | 5,15 Lei | |
| 36 | P3490000200 | 1 | WASHER | 3,78 Lei | |
| 37 | G7600200 | 1 | ASSEMBLY, FEED JAW/CONNECTOR | 107,73 Lei | |
| 38 | P2325207562 | 1 | SPRING PIN | 5,15 Lei | |
| 40 | P2325205662 | 1 | MAGAZINE SPACER | 5,15 Lei | |
| 41 | P2320005500 | 1 | GUARD | 6,09 Lei | |
| 42 | P2320005400 | 1 | RUBBER PAD | 5,15 Lei | |
| 43 | 9R207475 | 1 | CONTACT | 96,56 Lei | |
| 44 | 9R213318 | 1 | FOOT | 4,31 Lei | |
| 45 | P2840001065 | 1 | NOSE | 589,89 Lei | |
| 46 | 9R195545 | 1 | SCREW | 3,78 Lei | |
| 47 | P2325203662 | 1 | DOOR PIVOT PIN | 5,15 Lei | |
| 48 | 9R202137 | 1 | NUT | 4,57 Lei | |
| 49 | 9R217661 | 1 | DOOR | 139,97 Lei | |
| 50 | 184434 | 1 | O RING | 3,78 Lei | |
| 51 | S06P000300 | 1 | O-RING | 5,15 Lei | |
| 52 | MRG008819 | 1 | O-RING,.346X.075 | 5,15 Lei | |
| 53 | P2325504962 | 1 | FEED PISTON | 16,49 Lei | |
| 54 | P2325205062 | 1 | SPRING | 5,15 Lei | |
| 55 | P2322005100 | 1 | FEED PISTON BUMPER | 5,15 Lei | |
| 56 | P2325205262 | 1 | FEED PISTON COVER | 5,15 Lei | |
| 57 | S15202800 | 1 | C-RING | 5,15 Lei | |
| 58 | 9R203788 | 1 | SPIROL PIN | 3,78 Lei | |
| 59 | 174073 | 1 | O RING | 5,15 Lei | |
| 60 | 174070 | 1 | PIN | 5,15 Lei | |
| 61 | 174067 | 1 | O-RING,45.7MMX2.62MM N66C | 3,78 Lei | |
| 62 | 9R209578 | 1 | END CAP | 28,14 Lei | |
| 63 | 175582 | 1 | SEAT PLATE, HOOK | 5,15 Lei | |
| 65 | 175557 | 1 | O-RING | 5,15 Lei | |
| 66 | 175585 | 1 | CAP, HOOK | 5,15 Lei | |
| 67 | 175586 | 1 | RING, RETAINING | 5,15 Lei | |
| 68 | 9R195380 | 1 | COVER | 4,57 Lei | |
| 69 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 70 | P2840002566 | 1 | MAGAZINE COVER | 21,11 Lei | |
| 72 | 191794 | 1 | SPRING | 3,78 Lei | |
| 73 | P2840002366 | 1 | NAIL HOLDER | 8,51 Lei | |
| 74 | P2840002466 | 1 | ADJUSTING POST | 5,15 Lei | |
| 75 | P2842003400 | 1 | BUSHING | 5,15 Lei | |
| 76 | P2845202662 | 1 | PIN | 5,15 Lei | |
| 77 | P2840002266 | 1 | MAGAZINE | 70,39 Lei | |
| 78 | 195013 | 1 | CAP | 3,78 Lei | |
| 80 | 9R217712 | 1 | COLLAR | 8,51 Lei | |
| 81 | MSC5080-25 | 1 | SCREW | 5,15 Lei | |
| 82 | 107582 | 1 | ASSEMBLY,S.T.TRIGGER | 5,15 Lei |
