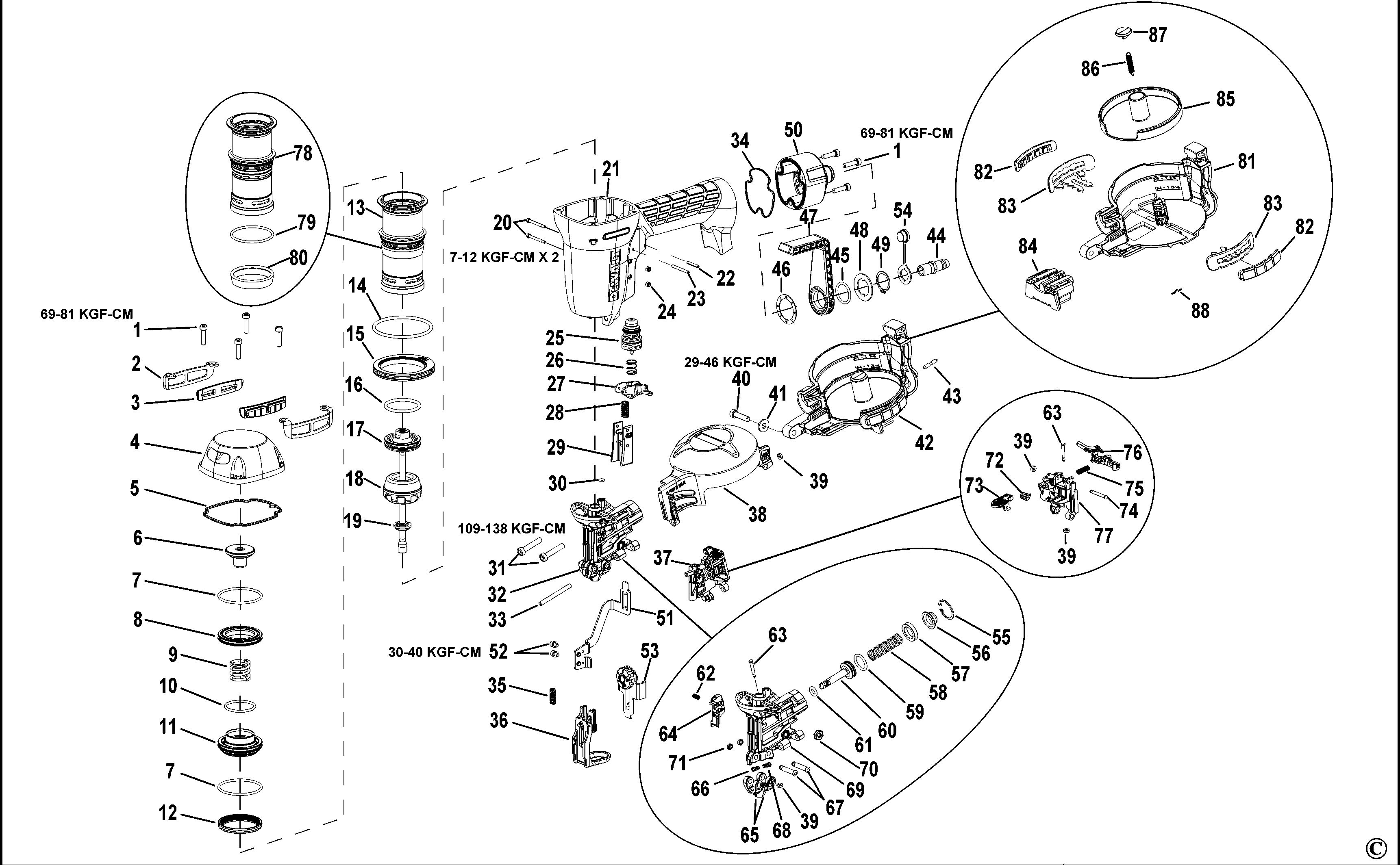

DEWALT NAILER (Type 1)
SKU Produs: DPN46RN /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 149833 | 2 | PLATE | 5,15 Lei | |
| 3 | 149819 | 2 | WEAR GUIDE | 5,15 Lei | |
| 4 | 9R209580 | 1 | CAP | 181,55 Lei | |
| 5 | 149832 | 1 | SEAL, FRAME/CAP | 5,15 Lei | |
| 6 | 149838 | 1 | BUMPER, HEAD VALVE | 5,15 Lei | |
| 7 | 149828 | 2 | O-RING 1.925X.103XNBR | 5,15 Lei | |
| 8 | 149836 | 1 | UPPER BODY, HEAD VALVE | 5,15 Lei | |
| 9 | 149806 | 1 | SPRING, HEAD VALVE | 5,15 Lei | |
| 10 | 149842 | 1 | O-RING 1.299X.103XNBR | 5,15 Lei | |
| 11 | 149839 | 1 | LOWER BODY, HEAD VALVE | 6,09 Lei | |
| 12 | 149840 | 1 | SEAL, SLEEVE | 5,15 Lei | |
| 13 | 9R217792 | 1 | SLEEVE SA | 31,19 Lei | |
| 14 | 850766 | 1 | O-RING,2.609X.139 (KN85) | 7,14 Lei | |
| 15 | 149814 | 1 | RING, SLEEVE | 5,15 Lei | |
| 16 | 850607 | 1 | O-RING,1.484X.139 | 6,09 Lei | |
| 17 | 9R195148 | 1 | PISTON SA | 186,17 Lei | |
| 18 | 191777 | 1 | BUMPER | 25,52 Lei | |
| 19 | 149820 | 1 | GUIDE, DRIVER | 5,15 Lei | |
| 20 | 105811 | 2 | SCREW,TRIGGER PIVOT | 5,15 Lei | |
| 21 | 9R209582 | 1 | FRAME | 497,78 Lei | |
| 22 | MPP030020 | 1 | PIN,SPIROL M3X20MM | 5,15 Lei | |
| 23 | 100298 | 1 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 24 | MHE3050-100 | 2 | NUT,ESN,M3X0.5 | 5,15 Lei | |
| 25 | TVA11 | 1 | TRIGGER VALVE KIT | 161,18 Lei | |
| 26 | 100387 | 1 | SPRING | 5,15 Lei | |
| 27 | 107582 | 1 | ASSEMBLY,S.T.TRIGGER | 5,15 Lei | |
| 28 | 149871 | 1 | SPRING, CONTACT ARM | 5,15 Lei | |
| 29 | 107522 | 1 | GUIDE,TRIP | 12,5 Lei | |
| 30 | 149885 | 1 | O-RING .145X.070 CP | 5,15 Lei | |
| 31 | MSC6100-30 | 2 | SCREW,SHCS,M6X1.00X30 | 5,15 Lei | |
| 32 | 9R217784 | 1 | NOSE | 810,6 Lei | |
| 33 | 149905 | 1 | PIN, DOOR/COVER | 5,15 Lei | |
| 34 | 149816 | 1 | SEAL, END CAP | 5,15 Lei | |
| 35 | 149874 | 1 | SPRING, DEPTH ADJUST CAM | 5,15 Lei | |
| 36 | 9R193689 | 1 | ARM LINK | 73,19 Lei | |
| 37 | 9R195146 | 1 | DOOR | 139,97 Lei | |
| 38 | 161234 | 1 | COVER | 25,54 Lei | |
| 39 | N12112 | 4 | PIN, RETAINER | 5,15 Lei | |
| 40 | MSC6100-25 | 1 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 41 | MPW6.2 | 1 | WASHER.SPECIAL | 5,15 Lei | |
| 42 | 149939 | 1 | ASSEMBLY, CANISTER | 166,11 Lei | |
| 43 | 149907 | 1 | PIN, COVER/CANISTER | 5,15 Lei | |
| 44 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 45 | 175557 | 1 | O-RING | 5,15 Lei | |
| 46 | 175582 | 1 | SEAT PLATE, HOOK | 5,15 Lei | |
| 47 | 175583 | 1 | HOOK | 5,15 Lei | |
| 48 | 175585 | 1 | CAP, HOOK | 5,15 Lei | |
| 49 | 175586 | 1 | RING, RETAINING | 5,15 Lei | |
| 50 | 193702 | 1 | END CAP | 34,65 Lei | |
| 51 | 9R195374 | 1 | ARM LINK | 31,19 Lei | |
| 52 | 9R195377 | 2 | SCREW | 3,78 Lei | |
| 53 | 9R199758 | 1 | CONTACT SA | 28,14 Lei | |
| 54 | 9R195380 | 1 | COVER | 4,57 Lei | |
| 55 | 149854 | 1 | RETAINING RING, INCH | 5,15 Lei | |
| 56 | 149853 | 1 | COLLAR, SPRING | 5,15 Lei | |
| 57 | 149855 | 1 | STOP, FEED PISTON | 5,15 Lei | |
| 58 | 149887 | 1 | SPRING C78, FEED PISTON | 5,15 Lei | |
| 59 | 88998 | 1 | O-RING,.674X.103 | 10,5 Lei | |
| 61 | 149883 | 1 | O-RING .299X.103 NBR | 5,15 Lei | |
| 62 | 149859 | 1 | SPRING, FEED PAWL | 5,15 Lei | |
| 63 | 149882 | 2 | PIN, CHECK PAWL | 5,15 Lei | |
| 64 | 9R205576 | 1 | PAWL | 47,78 Lei | |
| 66 | 9R195371 | 1 | SPRING | 4,31 Lei | |
| 67 | 9R193692 | 2 | PIN | 8,51 Lei | |
| 68 | 9R195372 | 1 | SPRING | 5,15 Lei | |
| 69 | 9R195141 | 1 | NOSE | 471,87 Lei | |
| 70 | MHE6100-100 | 1 | NUT,ESN M6X1 | 5,15 Lei | |
| 71 | 9R195750 | 2 | PIN | 6,09 Lei | |
| 72 | 9R205484 | 1 | SPRING TORSION | 4,57 Lei | |
| 73 | 149861 | 1 | LATCH | 34,65 Lei | |
| 74 | 149886 | 1 | PIN,DOOR LATCH | 5,15 Lei | |
| 75 | 149898 | 1 | APS ORDER ONLY (SPRING, CHECK PAWL) | 5,15 Lei | |
| 77 | 195150 | 1 | DOOR | 106,98 Lei | |
| 78 | 9R217792 | 1 | SLEEVE SA | 31,19 Lei | |
| 79 | 149829 | 1 | O-RING,1.862X.103 NBR | 5,15 Lei | |
| 80 | 149812 | 1 | SEAL, CHECK | 5,15 Lei | |
| 81 | 9R201803 | 1 | PLATFORM | 96,56 Lei | |
| 82 | 149866 | 2 | WEAR PAD, CANISTER | 5,15 Lei | |
| 83 | 161236 | 2 | GUARD,CANISTER | 5,15 Lei | |
| 84 | 149940 | 1 | ASSY, SHINGLE GUIDE | 21,11 Lei | |
| 85 | 149908 | 1 | CANISTER | 19,95 Lei | |
| 86 | 101773 | 1 | SPRING | 5,15 Lei | |
| 87 | 149910 | 1 | CAP,NAIL TRAY | 5,15 Lei | |
| 88 | 149909 | 1 | RETAINER | 4,57 Lei |
