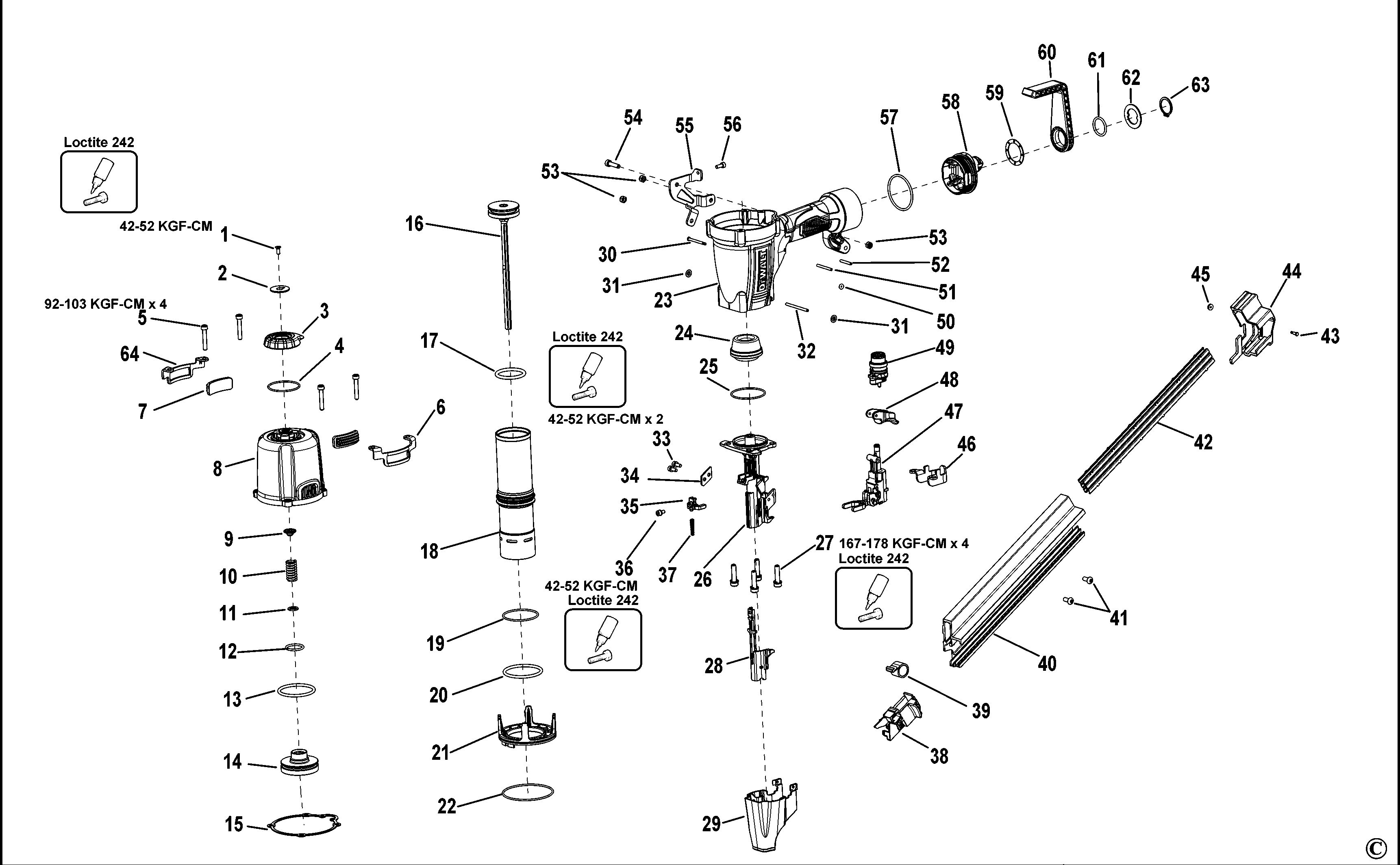

DEWALT NAILER (Type 1)
SKU Produs: DPN250MCN /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 174041 | 1 | SCREW,SFHCS,M40X0.7X10 CF15 | 3,78 Lei | |
| 2 | 174042 | 1 | SPACER,EXHAUST COVER | 4,31 Lei | |
| 3 | 174043 | 1 | COVER,EXHAUST | 6,09 Lei | |
| 4 | S06A003000 | 1 | O RING | 3,78 Lei | |
| 5 | 175554 | 4 | SCREW, SHCD, M5X0.80X3 | 3,78 Lei | |
| 6 | 9R203792 | 1 | BRACKET LH | 15,12 Lei | |
| 7 | 9R203791 | 2 | RUBBER PAD | 4,57 Lei | |
| 8 | 9R209549 | 1 | CAP SA | 120,82 Lei | |
| 9 | 174049 | 1 | SEAL, DEFLECTOR | 5,15 Lei | |
| 10 | 174051 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 11 | 174052 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 12 | 174053 | 1 | O-RING, 20.8MMX2.4MM | 5,15 Lei | |
| 13 | 174055 | 1 | O-RING, 44.7MMX3.5MM | 5,15 Lei | |
| 14 | 174054 | 1 | PISTON, HEAD VALVE | 11,45 Lei | |
| 15 | 9R203793 | 1 | GASKET | 25,54 Lei | |
| 16 | 9R199716 | 1 | PISTON SA | 288,54 Lei | |
| 17 | 174060 | 1 | O-RING, 36.0 MM X 4.0 MM | 5,15 Lei | |
| 18 | 175558 | 1 | SLEEVE | 139,97 Lei | |
| 19 | 174058 | 1 | O-RING, 45.5MMX2.0MM | 5,15 Lei | |
| 20 | 86460 | 1 | O-RING,1.859X.139 | 16,49 Lei | |
| 21 | 175556 | 1 | COLLAR,CYLINDER SLEEVE,N755 | 11,45 Lei | |
| 22 | 174056 | 1 | O-RING, 66.5MMX2.0MM | 5,15 Lei | |
| 23 | 9R203805 | 1 | FRAME | 252,58 Lei | |
| 24 | 175562 | 1 | BUMPER | 25,52 Lei | |
| 25 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 26 | 9R209476 | 1 | NOSE SA | 390,29 Lei | |
| 27 | 174078 | 4 | SCREW | 5,15 Lei | |
| 28 | 9R209479 | 1 | NOSE | 43,16 Lei | |
| 29 | 175569 | 1 | COVER | 8,51 Lei | |
| 30 | 174062 | 1 | STEPPED PIN | 5,15 Lei | |
| 31 | 174087 | 2 | PLUG | 5,15 Lei | |
| 32 | 174086 | 1 | ROLL PIN | 3,78 Lei | |
| 33 | 174069 | 2 | SCREW | 5,15 Lei | |
| 34 | 175577 | 1 | SPACER | 5,15 Lei | |
| 35 | 174081 | 1 | FOLLOWER, MOVABLE NOSE | 16,49 Lei | |
| 36 | 174080 | 1 | SCREW,SHCS,M4X0.7X8 | 5,15 Lei | |
| 37 | 174082 | 1 | SPRING, COMPRESSION | 5,15 Lei | |
| 38 | 9R205723 | 1 | PUSHER | 16,49 Lei | |
| 39 | 175576 | 1 | PUSHER | 47,78 Lei | |
| 40 | 9R199710 | 1 | MAGAZINE | 166,11 Lei | |
| 41 | 9R199719 | 2 | SCREW | 3,78 Lei | |
| 42 | 9R199712 | 2 | LINER | 21,11 Lei | |
| 43 | 174092 | 1 | PIN | 3,78 Lei | |
| 44 | 9R199711 | 1 | COVER | 14,07 Lei | |
| 45 | 174093 | 1 | WASHER, SPECIAL | 5,15 Lei | |
| 46 | 174085 | 1 | BRACKET | 11,45 Lei | |
| 47 | 174084 | 1 | ASSEMBLY, CT HOUSING | 253,89 Lei | |
| 48 | 174072 | 1 | ASSEMBLY, TRIGGER | 5,15 Lei | |
| 49 | 174117 | 1 | VALVE | 73,19 Lei | |
| 50 | 174073 | 1 | O RING | 5,15 Lei | |
| 51 | 100298 | 1 | PIN,SPRING,M3X30MM | 5,15 Lei | |
| 52 | 174070 | 1 | PIN | 5,15 Lei | |
| 53 | MHE5080-100 | 3 | LOCK-NUT | 5,15 Lei | |
| 54 | 9R199720 | 1 | SCREW | 4,31 Lei | |
| 55 | 9R209550 | 1 | BRACKET | 25,54 Lei | |
| 56 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 57 | 174067 | 1 | O-RING,45.7MMX2.62MM N66C | 3,78 Lei | |
| 58 | 175561 | 1 | CAP, END | 21,11 Lei | |
| 59 | 175582 | 1 | SEAT PLATE, HOOK | 5,15 Lei | |
| 60 | 175583 | 1 | HOOK | 5,15 Lei | |
| 61 | 175557 | 1 | O-RING | 5,15 Lei | |
| 62 | 175585 | 1 | CAP, HOOK | 5,15 Lei | |
| 63 | 175586 | 1 | RING, RETAINING | 5,15 Lei | |
| 64 | 9R203794 | 1 | BRACKET RH | 15,12 Lei |
