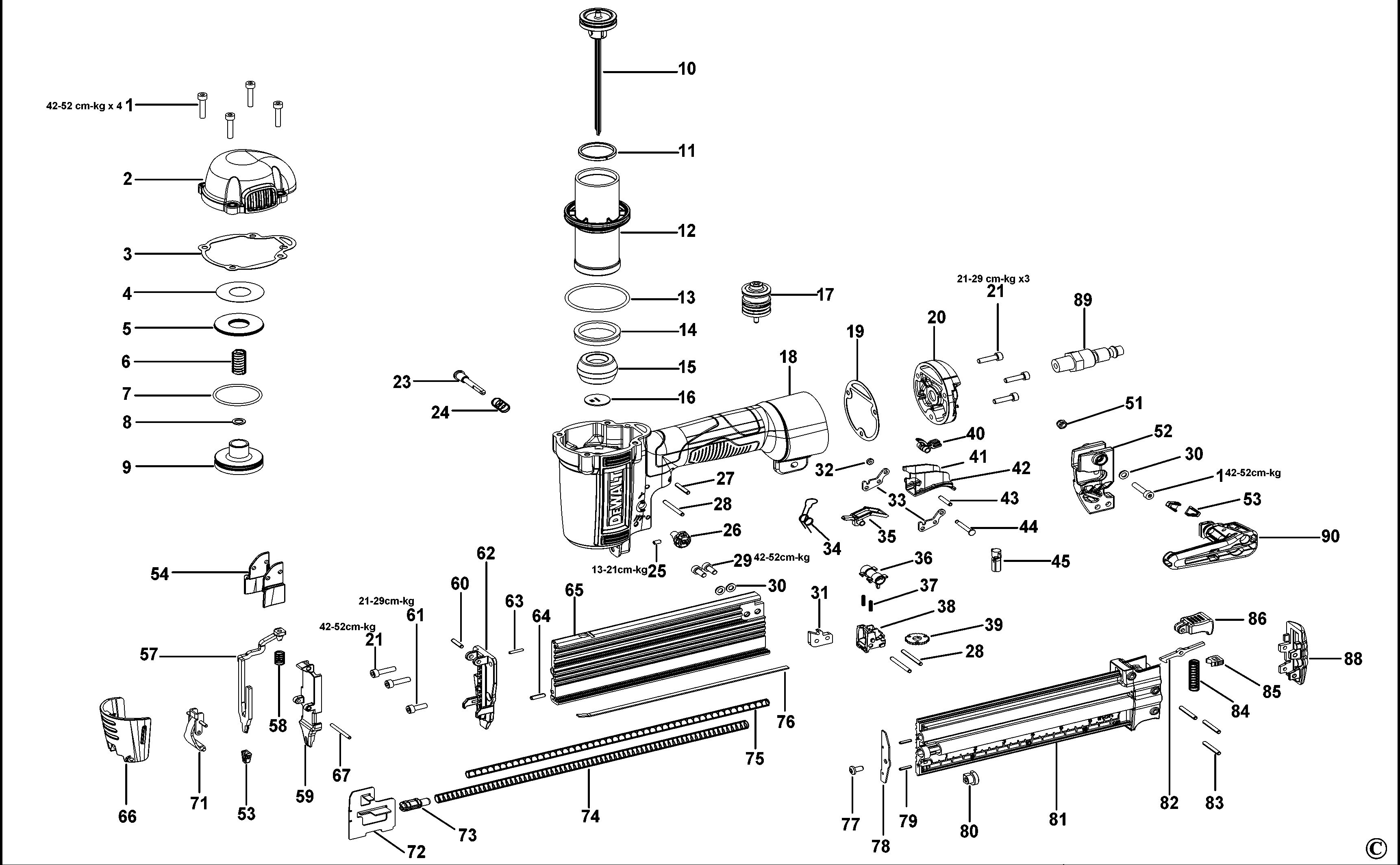

DEWALT BRAD NAILER 18 GAUGE (Type 1)
SKU Produs: DPN1850PP /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 5 | SCREW | 5,15 Lei | |
| 2 | 9R205670 | 1 | CAP | 70,39 Lei | |
| 3 | 9R208913 | 1 | GASKET | 15,5 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 180451 | 1 | PISTON SA | 99,86 Lei | |
| 12 | 180458 | 1 | CYLINDER | 7,14 Lei | |
| 13 | 180459 | 1 | O RING | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | N906034 | 1 | GUIDE | 3,78 Lei | |
| 17 | 9R205626 | 1 | VALVE | 58,17 Lei | |
| 18 | 9R208906 | 1 | FRAME | 240,38 Lei | |
| 19 | 180463 | 1 | GASKET | 5,15 Lei | |
| 20 | 180465 | 1 | CAP | 16,49 Lei | |
| 21 | MSC4070-16 | 5 | SCREW | 16,49 Lei | |
| 23 | 9R205605 | 1 | PIN | 15,12 Lei | |
| 24 | 180481 | 1 | SPRING | 5,15 Lei | |
| 25 | 9R198788 | 1 | GRUB SCREW | 3,78 Lei | |
| 26 | 9R208907 | 1 | BUTTON | 6,23 Lei | |
| 27 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 28 | 174345 | 1 | PIN | 5,15 Lei | |
| 29 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 31 | 180500 | 1 | BACKPLATE | 5,15 Lei | |
| 32 | 391814-00 | 1 | GROMMET | 4,57 Lei | |
| 33 | 9R201812 | 1 | BRACKET | 4,31 Lei | |
| 34 | 9R205607 | 1 | SPRING | 3,78 Lei | |
| 35 | 9R205614 | 1 | ROCKER | 34,65 Lei | |
| 36 | 9R201813 | 1 | PAWL | 16,49 Lei | |
| 37 | 9R201809 | 2 | SPRING | 3,78 Lei | |
| 38 | 9R198774 | 1 | GUIDE | 3,78 Lei | |
| 39 | 9R203952 | 1 | WHEEL ADJUSTER | 4,57 Lei | |
| 40 | 9R205615 | 1 | ROCKER | 4,57 Lei | |
| 41 | 9R205611 | 1 | TRIGGER | 25,52 Lei | |
| 42 | 9R205608 | 1 | TRIGGER | 15,12 Lei | |
| 43 | 181920 | 1 | PIN | 3,78 Lei | |
| 44 | 9R196682 | 1 | PIN | 3,78 Lei | |
| 45 | 9R201814 | 1 | CONTACT SA | 25,52 Lei | |
| 51 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 52 | 9R196726 | 1 | BRACKET | 11,45 Lei | |
| 53 | 9R208924 | 3 | FOOT | 4,57 Lei | |
| 54 | 9R203845 | 1 | COVER | 7,37 Lei | |
| 57 | 9R196686 | 1 | TRIP SA | 21,11 Lei | |
| 58 | 9R207509 | 1 | SPRING | 3,78 Lei | |
| 59 | 9R196725 | 1 | DOOR | 66,15 Lei | |
| 60 | 192046 | 1 | ROLLPIN | 3,78 Lei | |
| 61 | MSC4070-12 | 1 | SCREW | 5,15 Lei | |
| 62 | 9R196719 | 1 | NOSE | 79,8 Lei | |
| 63 | 180490 | 1 | PIN | 5,15 Lei | |
| 64 | MPG030012 | 1 | PIN-M4x12 | 5,15 Lei | |
| 65 | 9R196743 | 1 | MAGAZINE | 79,8 Lei | |
| 66 | 9R203842 | 1 | COVER | 6,09 Lei | |
| 67 | 195327 | 1 | SPIROL PIN | 3,78 Lei | |
| 71 | 9R196742 | 1 | LATCH | 34,65 Lei | |
| 72 | 9R196677 | 1 | PUSHER | 10,5 Lei | |
| 73 | 9R208925 | 1 | PUSHER | 4,57 Lei | |
| 74 | 180495 | 1 | SPRING | 5,15 Lei | |
| 75 | 180496 | 1 | SPRING | 5,15 Lei | |
| 76 | 180497 | 1 | GUIDE | 5,15 Lei | |
| 77 | 9R196691 | 1 | SCREW | 3,78 Lei | |
| 78 | 9R196737 | 1 | PLATE | 4,31 Lei | |
| 79 | 110071 | 1 | PIN | 5,15 Lei | |
| 80 | 180238 | 1 | NUT | 5,15 Lei | |
| 82 | 180501 | 1 | LATCH | 5,15 Lei | |
| 83 | 180503 | 1 | PIN | 5,15 Lei | |
| 84 | 180502 | 1 | SPRING | 5,15 Lei | |
| 85 | 180319 | 1 | SUPPORT | 5,15 Lei | |
| 86 | 9R208926 | 1 | COVER | 5,21 Lei | |
| 88 | 175665 | 1 | END CAP | 5,15 Lei | |
| 89 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 90 | 9R202294 | 1 | ASSEMBLY BELT HOOK | 21,11 Lei |
