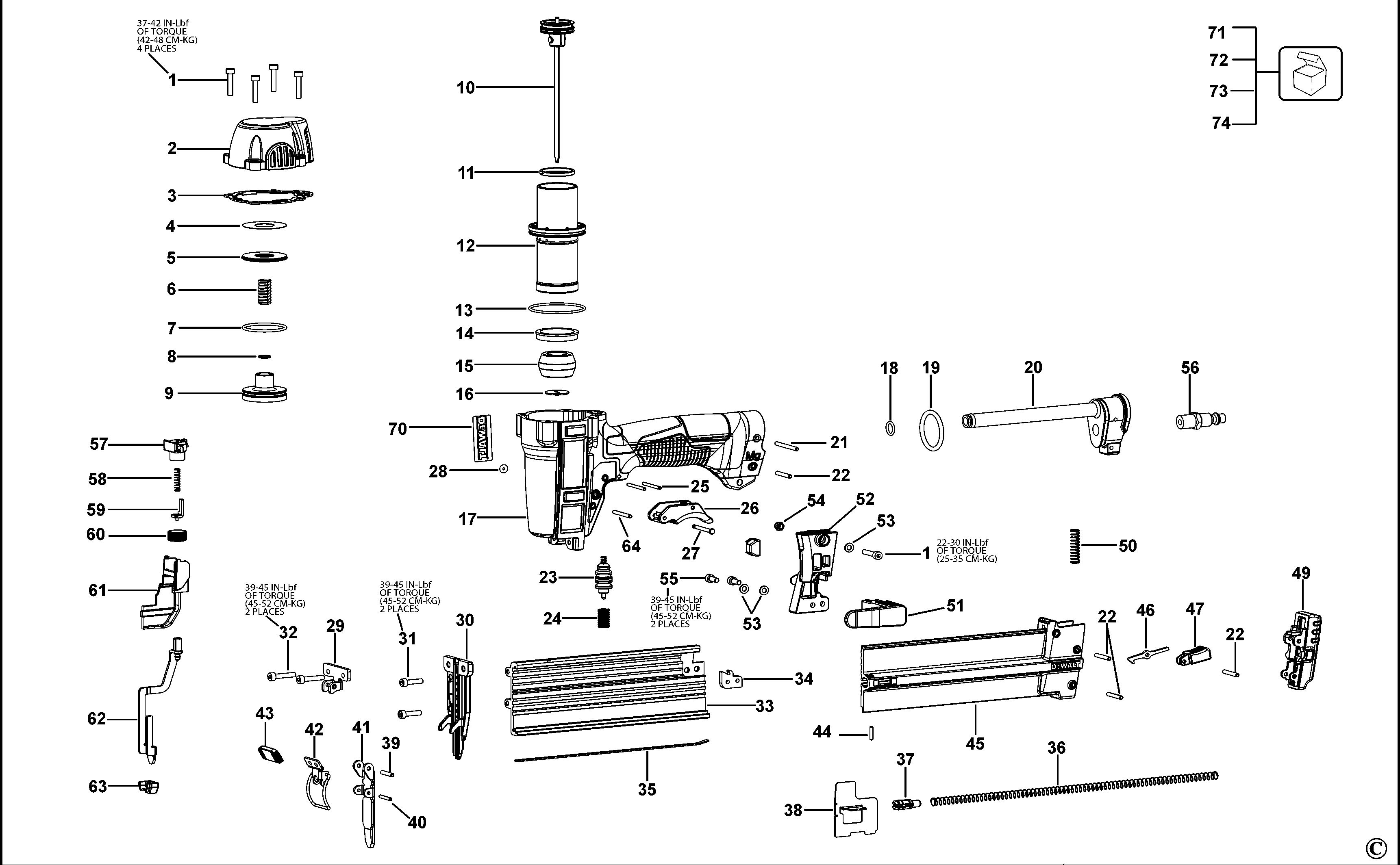

DEWALT NAILER (Type 1)
SKU Produs: DPN1850 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 182237 | 1 | SCREW | 5,15 Lei | |
| 2 | 9R195614 | 1 | END CAP | 80,04 Lei | |
| 3 | 9R195626 | 1 | GASKET | 8,64 Lei | |
| 5 | 180446 | 1 | SEAL | 5,15 Lei | |
| 6 | 180447 | 1 | SPRING | 5,15 Lei | |
| 7 | 180448 | 1 | O RING | 5,15 Lei | |
| 8 | 180449 | 1 | WASHER | 5,15 Lei | |
| 9 | 180450-S | 1 | BODY, HEAD VALVE (NEW 05/AP/2011) | 5,15 Lei | |
| 10 | 9R195283-K | 1 | DRIVER SA | 43,16 Lei | |
| 12 | 9R195284 | 1 | CYLINDER | 21,85 Lei | |
| 13 | 851483-S | 1 | O-RING,1.739X.070 | 5,15 Lei | |
| 14 | 180460 | 1 | SEAL | 5,15 Lei | |
| 15 | 180461 | 1 | BUMPER | 5,15 Lei | |
| 16 | N906034 | 1 | GUIDE | 3,78 Lei | |
| 17 | 9R195612 | 1 | FRAME | 349,13 Lei | |
| 18 | MRG008819 | 1 | O-RING,.346X.075 | 5,15 Lei | |
| 19 | 9R195332 | 1 | O RING | 4,57 Lei | |
| 20 | 9R195281 | 1 | END CAP | 17,02 Lei | |
| 21 | 9R195285 | 1 | SPIROL PIN | 4,57 Lei | |
| 22 | 180503 | 1 | PIN | 5,15 Lei | |
| 23 | 9R195308 | 1 | VALVE | 57,81 Lei | |
| 24 | 9R195329 | 1 | SPRING | 4,57 Lei | |
| 25 | 195327 | 1 | SPIROL PIN | 3,78 Lei | |
| 26 | 9R195660 | 1 | TRIGGER | 12,71 Lei | |
| 27 | 9R195317 | 1 | PIN | 4,57 Lei | |
| 28 | 174073 | 1 | O RING | 5,15 Lei | |
| 29 | 9R195345 | 1 | COVER | 7,37 Lei | |
| 30 | 9R195294 | 1 | NOSE | 106,98 Lei | |
| 31 | MSC4070-16 | 1 | SCREW | 16,49 Lei | |
| 32 | N906076 | 1 | SCREW | 3,78 Lei | |
| 33 | 9R195303 | 1 | MAGAZINE | 96,56 Lei | |
| 34 | 180500 | 1 | BACKPLATE | 5,15 Lei | |
| 35 | 180497 | 1 | GUIDE | 5,15 Lei | |
| 36 | 180495 | 1 | SPRING | 5,15 Lei | |
| 37 | 9R195662 | 1 | ROLLER | 4,57 Lei | |
| 38 | 9R195319 | 1 | PUSHER | 7,37 Lei | |
| 39 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 40 | MPG025018 | 1 | PIN | 5,15 Lei | |
| 41 | 9R195339 | 1 | DOOR | 34,05 Lei | |
| 42 | 9R195336 | 1 | PLATE SA | 7,37 Lei | |
| 43 | 9R195736 | 1 | GRIP | 5,21 Lei | |
| 44 | 9R184419 | 1 | PIN | 4,57 Lei | |
| 45 | 9R195696 | 1 | MAGAZINE | 57,81 Lei | |
| 47 | 9R195664 | 1 | COVER | 5,21 Lei | |
| 49 | 9R195697 | 1 | END CAP | 10,29 Lei | |
| 50 | 180502 | 1 | SPRING | 5,15 Lei | |
| 51 | 9R195620 | 1 | HOOK | 8,64 Lei | |
| 52 | 9R195618 | 1 | BRACKET | 8,64 Lei | |
| 54 | MHE4070-100 | 1 | NUT | 5,15 Lei | |
| 55 | MSC4070-10 | 1 | SCREW | 5,15 Lei | |
| 56 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 58 | N906013 | 1 | SPRING | 7,14 Lei | |
| 59 | N905944 | 1 | ARM | 7,14 Lei | |
| 60 | 9R195663 | 1 | KNOB | 4,57 Lei | |
| 61 | 9R195328 | 1 | GUIDE | 5,21 Lei | |
| 62 | 9R195330 | 1 | TRIP SA | 34,05 Lei | |
| 63 | 9R195661 | 1 | FOOT | 4,57 Lei | |
| 64 | 174345 | 1 | PIN | 5,15 Lei | |
| 70 | 9R195863 | 1 | BRAND LABEL | 4,57 Lei | |
| 71 | DWFP12231-CTK | 1 | KIT | 30,87 Lei | |
| 72 | DWFP12231-DK | 1 | KIT | 94,2 Lei | |
| 73 | DWFP12231-TVK | 1 | VALVE KIT | 41,93 Lei | |
| 74 | DWFP12231-OK | 1 | KIT | 70,39 Lei |
