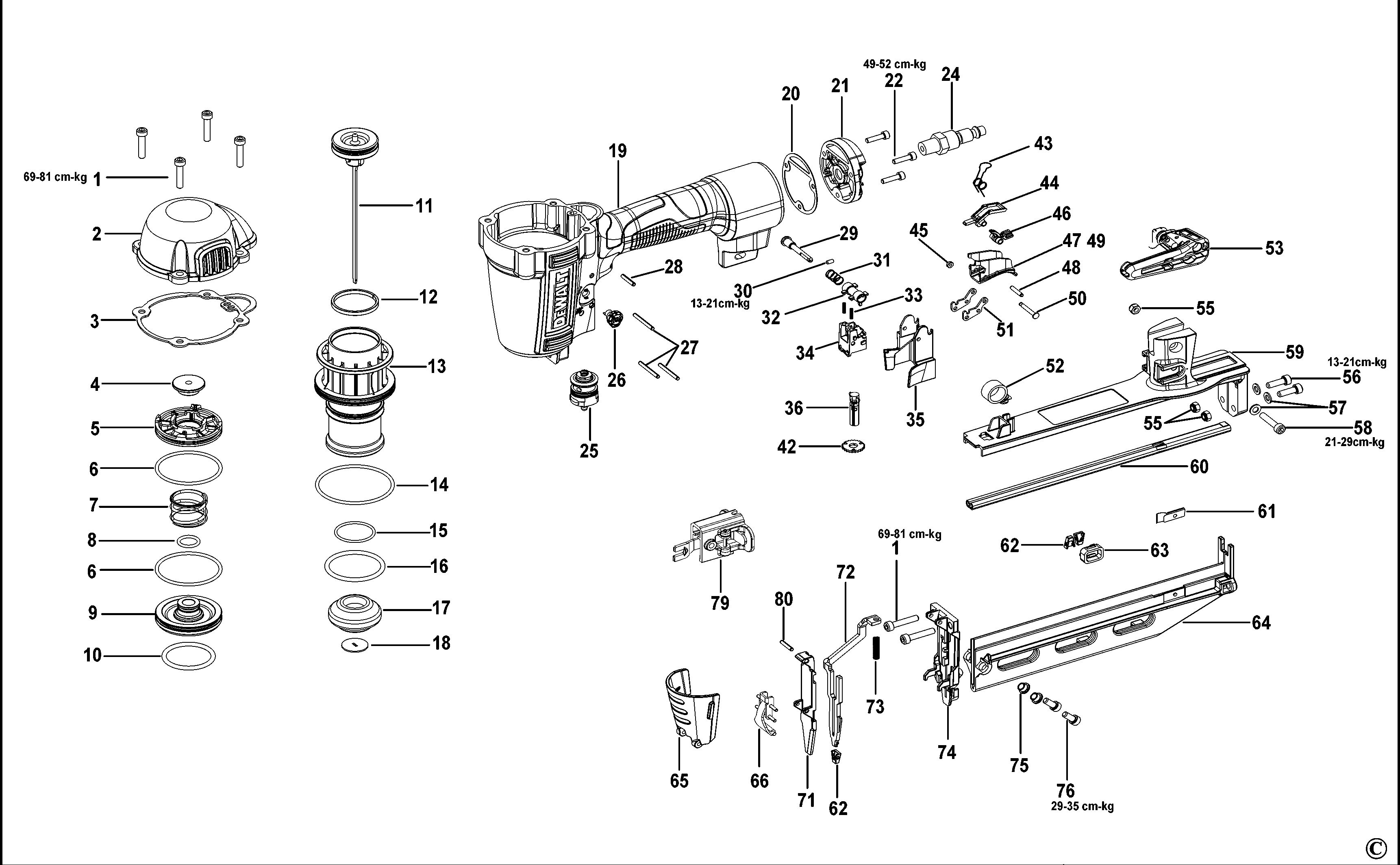

DEWALT NAILER (Type 1)
SKU Produs: DPN1664PP /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | MSC5080-25 | 6 | SCREW | 5,15 Lei | |
| 2 | 9R205674 | 1 | END CAP | 96,56 Lei | |
| 3 | 9R203809 | 1 | GASKET | 15,12 Lei | |
| 4 | 180533 | 1 | SEAL | 5,15 Lei | |
| 5 | N895050 | 1 | SEAL | 11,45 Lei | |
| 6 | 850605 | 2 | O RING | 5,15 Lei | |
| 7 | 180532 | 1 | SPRING | 5,15 Lei | |
| 8 | 100843 | 1 | O RING | 5,15 Lei | |
| 9 | 180537 | 1 | VALVE | 43,16 Lei | |
| 10 | 182253 | 1 | O RING | 5,15 Lei | |
| 11 | 9R204250 | 1 | PISTON SA | 58,17 Lei | |
| 12 | 180543 | 1 | PISTON RING | 5,15 Lei | |
| 13 | 180538 | 1 | SLEEVE | 14,07 Lei | |
| 14 | 166047 | 1 | O RING | 5,15 Lei | |
| 15 | 180544 | 1 | O RING | 5,15 Lei | |
| 16 | 180540 | 1 | O RING | 5,15 Lei | |
| 18 | 180293 | 1 | GUIDE | 5,15 Lei | |
| 19 | 9R203801 | 1 | FRAME | 307,21 Lei | |
| 20 | 180463 | 1 | GASKET | 5,15 Lei | |
| 21 | 180465 | 1 | CAP | 16,49 Lei | |
| 22 | MSC4070-16 | 3 | SCREW | 16,49 Lei | |
| 24 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 25 | 9R196764 | 1 | VALVE | 34,65 Lei | |
| 26 | 9R208907 | 1 | BUTTON | 6,23 Lei | |
| 27 | 174345 | 3 | PIN | 5,15 Lei | |
| 28 | 107583 | 1 | SPIROL PIN | 5,15 Lei | |
| 29 | 9R205605 | 1 | PIN | 15,12 Lei | |
| 30 | 9R198788 | 1 | GRUB SCREW | 3,78 Lei | |
| 31 | 180481 | 1 | SPRING | 5,15 Lei | |
| 32 | 9R201813 | 1 | PAWL | 16,49 Lei | |
| 33 | 9R201809 | 2 | SPRING | 3,78 Lei | |
| 34 | 9R205579 | 1 | GUIDE | 4,31 Lei | |
| 35 | 9R203807 | 1 | COVER | 13,85 Lei | |
| 36 | 9R205583 | 1 | CONTACT | 28,14 Lei | |
| 42 | 9R203952 | 1 | WHEEL ADJUSTER | 4,57 Lei | |
| 43 | 9R205607 | 1 | SPRING | 3,78 Lei | |
| 44 | 9R205614 | 1 | ROCKER | 34,65 Lei | |
| 45 | 391814-00 | 1 | GROMMET | 4,57 Lei | |
| 46 | 9R205615 | 1 | ROCKER | 4,57 Lei | |
| 47 | 9R205611 | 1 | TRIGGER | 25,52 Lei | |
| 48 | 181920 | 2 | PIN | 3,78 Lei | |
| 49 | 9R205608 | 1 | TRIGGER | 15,12 Lei | |
| 50 | 9R196682 | 1 | PIN | 3,78 Lei | |
| 51 | 9R201812 | 2 | BRACKET | 4,31 Lei | |
| 52 | 9R205585 | 1 | SPRING | 12,5 Lei | |
| 53 | 182272 | 1 | HOOK | 14,07 Lei | |
| 55 | MHE5080-100 | 3 | LOCK-NUT | 5,15 Lei | |
| 56 | MSC5080-16 | 1 | SCREW | 5,15 Lei | |
| 57 | 180569 | 1 | WASHER | 5,15 Lei | |
| 58 | MSC5080-22.2 | 1 | SCREW,SHCS,M5X0.80X22 | 5,15 Lei | |
| 59 | 180236 | 1 | CASING UPPER | 34,65 Lei | |
| 60 | 180560 | 1 | LINER | 12,5 Lei | |
| 61 | 180564 | 1 | STOP | 5,15 Lei | |
| 62 | 9R208927 | 3 | FOOT | 4,57 Lei | |
| 63 | 9R205581 | 1 | ADAPTOR | 3,78 Lei | |
| 64 | 181916 | 1 | MAGAZINE, BOTTOM | 28,14 Lei | |
| 65 | 9R203808 | 1 | COVER | 13,85 Lei | |
| 66 | 9R196742 | 1 | LATCH | 34,65 Lei | |
| 71 | 9R198730 | 1 | DOOR | 43,16 Lei | |
| 72 | 9R198754 | 1 | CONTACT | 25,52 Lei | |
| 73 | 9R205580 | 1 | SPRING | 3,78 Lei | |
| 74 | 9R198726 | 1 | NOSE | 99,86 Lei | |
| 75 | 180235 | 2 | BUSHING | 5,15 Lei | |
| 76 | 9R199720 | 2 | SCREW | 4,31 Lei | |
| 79 | 9R205613 | 1 | PUSHER | 18,06 Lei | |
| 80 | 103858 | 1 | PIN,SPRING,4X20MM | 5,15 Lei |
