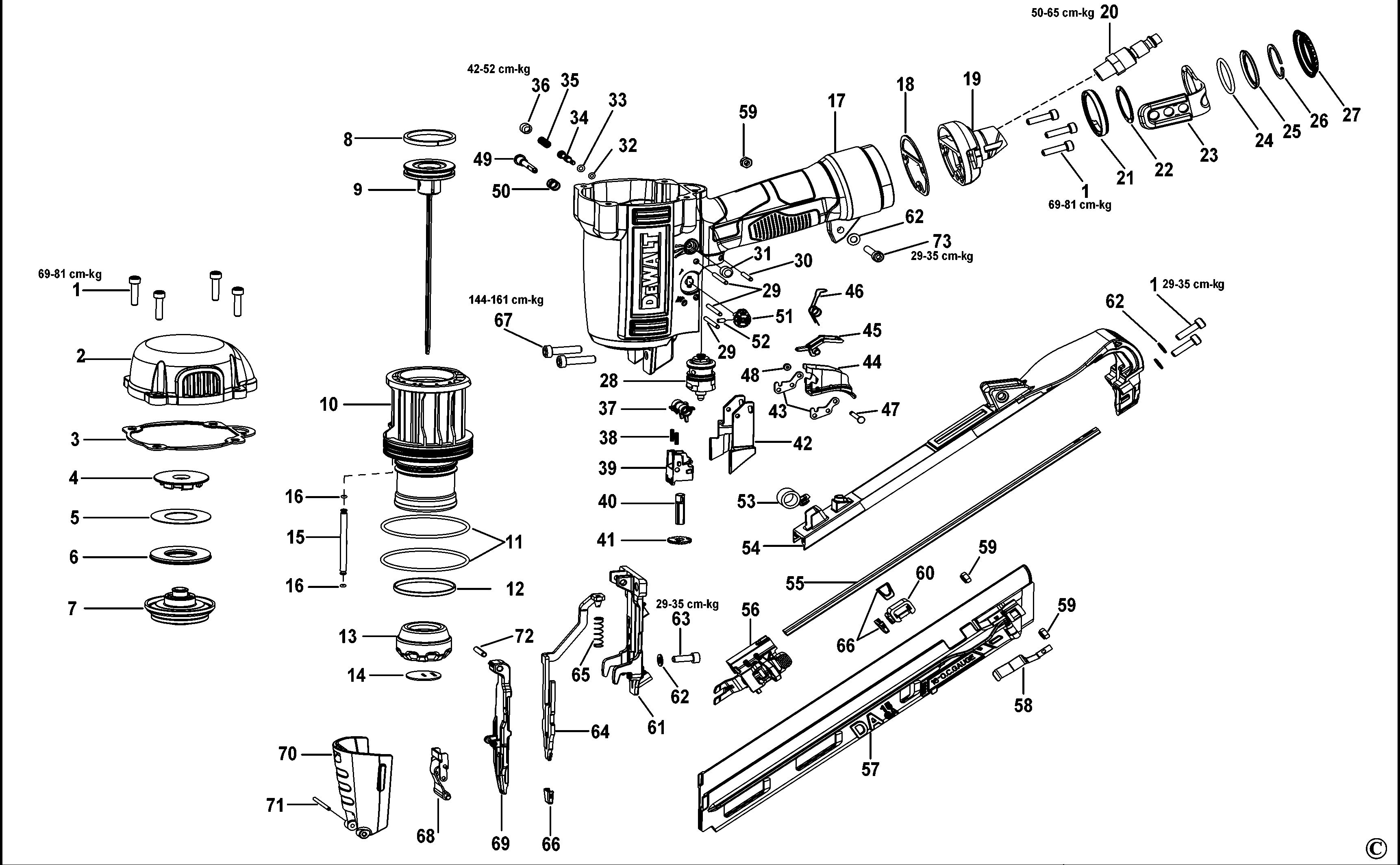

DEWALT NAILER (Type 1)
SKU Produs: DPN1564APP /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | 9R205678 | 1 | END CAP | 145,09 Lei | |
| 3 | 9R203831 | 1 | GASKET | 34,05 Lei | |
| 4 | 9R188810 | 1 | SEAL, FRAME CAP | 5,15 Lei | |
| 5 | 9R188852 | 1 | PLATE, HEAD VALVE | 5,15 Lei | |
| 6 | 9R188849 | 1 | SEAL, HEAD VALVE | 5,15 Lei | |
| 7 | 9R188859 | 1 | ASSEMBLY, HEAD VALVE | 18,06 Lei | |
| 8 | 9R188846 | 1 | RING, PISTON | 6,09 Lei | |
| 9 | 9R203880 | 1 | PISTON SA | 225,26 Lei | |
| 10 | 9R192035 | 1 | CYLINDER | 47,78 Lei | |
| 11 | 9R188836 | 2 | O-RING, 64.1X2.5 | 5,15 Lei | |
| 12 | 9R188835 | 1 | CHECK SEAL | 5,15 Lei | |
| 13 | 9R188807 | 1 | BUMPER, BOTTOM | 18,06 Lei | |
| 14 | 9R188847 | 1 | DRIVER GUIDE | 5,15 Lei | |
| 15 | 9R192036 | 1 | TUBE OUTLET | 6,09 Lei | |
| 16 | 166797 | 2 | O RING | 5,15 Lei | |
| 17 | 9R203802 | 1 | FRAME | 383,69 Lei | |
| 18 | 9R192039 | 1 | GASKET | 7,14 Lei | |
| 19 | 9R192034 | 1 | END CAP | 47,78 Lei | |
| 20 | 159977 | 1 | ADAPTOR | 8,51 Lei | |
| 21 | 188829 | 1 | HOUSING | 5,15 Lei | |
| 22 | 9R188830 | 1 | PLATE | 3,78 Lei | |
| 23 | 9R188815 | 1 | HOOK | 14,07 Lei | |
| 24 | 174309 | 1 | O-RING,1.049X.103 | 5,15 Lei | |
| 25 | 9R188812 | 1 | CAP | 4,31 Lei | |
| 26 | 9R188811 | 1 | CIRCLIP | 3,78 Lei | |
| 27 | 9R188828 | 1 | COVER | 6,09 Lei | |
| 28 | 9R196764 | 1 | VALVE | 34,65 Lei | |
| 29 | 9R203788 | 3 | SPIROL PIN | 3,78 Lei | |
| 30 | 180475 | 1 | PIN | 5,15 Lei | |
| 31 | 9R188824 | 1 | BUTTON | 3,78 Lei | |
| 32 | MRG002514 | 1 | O-RING,.098X.055 | 5,15 Lei | |
| 33 | 9R188768 | 1 | O-RING, 3 X 1.5 | 5,15 Lei | |
| 34 | 195518 | 1 | ROD | 11,45 Lei | |
| 35 | 9R188832 | 1 | SPRING | 3,78 Lei | |
| 36 | 9R188837 | 1 | SCREW | 3,78 Lei | |
| 37 | 9R201813 | 1 | PAWL | 16,49 Lei | |
| 38 | 9R201809 | 2 | SPRING | 3,78 Lei | |
| 39 | 9R205579 | 1 | GUIDE | 4,31 Lei | |
| 40 | 9R203784 | 1 | PIN SA | 31,19 Lei | |
| 41 | 9R203952 | 1 | WHEEL ADJUSTER | 4,57 Lei | |
| 42 | 9R203817 | 1 | COVER | 7,37 Lei | |
| 43 | 9R201812 | 2 | BRACKET | 4,31 Lei | |
| 44 | 9R205611 | 1 | TRIGGER | 25,52 Lei | |
| 45 | 9R205614 | 1 | ROCKER | 34,65 Lei | |
| 46 | 9R205607 | 1 | SPRING | 3,78 Lei | |
| 47 | 9R196682 | 1 | PIN | 3,78 Lei | |
| 48 | 391814-00 | 1 | GROMMET | 4,57 Lei | |
| 49 | 9R205605 | 1 | PIN | 15,12 Lei | |
| 50 | 9R188850 | 1 | SPRING, MODE SWITCH | 5,15 Lei | |
| 51 | 9R208907 | 1 | BUTTON | 6,23 Lei | |
| 52 | 9R198788 | 1 | GRUB SCREW | 3,78 Lei | |
| 53 | 9R188831 | 1 | SPRING, CONSTANT FORCE | 11,45 Lei | |
| 54 | 9R192012 | 1 | MAGAZINE | 58,17 Lei | |
| 55 | 9R192015 | 1 | LINER(APS ONLY) | 28,14 Lei | |
| 56 | 9R203871 | 1 | PUSHER | 41,93 Lei | |
| 57 | 9R203861 | 1 | MAGAZINE SA | 96,56 Lei | |
| 58 | 9R188801 | 1 | STOP | 5,15 Lei | |
| 59 | MHE5080-100 | 3 | LOCK-NUT | 5,15 Lei | |
| 60 | 9R203923 | 1 | ADAPTOR | 6,09 Lei | |
| 61 | 9R203885 | 1 | NOSE | 157,92 Lei | |
| 62 | 180569 | 4 | WASHER | 5,15 Lei | |
| 63 | 188771 | 1 | SCREW | 4,57 Lei | |
| 64 | 9R203891 | 1 | TRIP SA | 57,81 Lei | |
| 65 | 9R203787 | 1 | SPRING | 4,31 Lei | |
| 66 | 9R203869 | 1 | FOOT | 7,37 Lei | |
| 67 | MSC6100-25 | 2 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 68 | 9R203887 | 1 | DOOR | 96,56 Lei | |
| 69 | 9R188794 | 1 | ASSEMBLY,PINCH PLATE | 7,14 Lei | |
| 70 | 9R203814 | 1 | COVER | 15,12 Lei | |
| 71 | 9R203790 | 1 | PLUNGER | 3,78 Lei | |
| 72 | 103858 | 1 | PIN,SPRING,4X20MM | 5,15 Lei | |
| 73 | MSC5080-25 | 1 | SCREW | 5,15 Lei |
