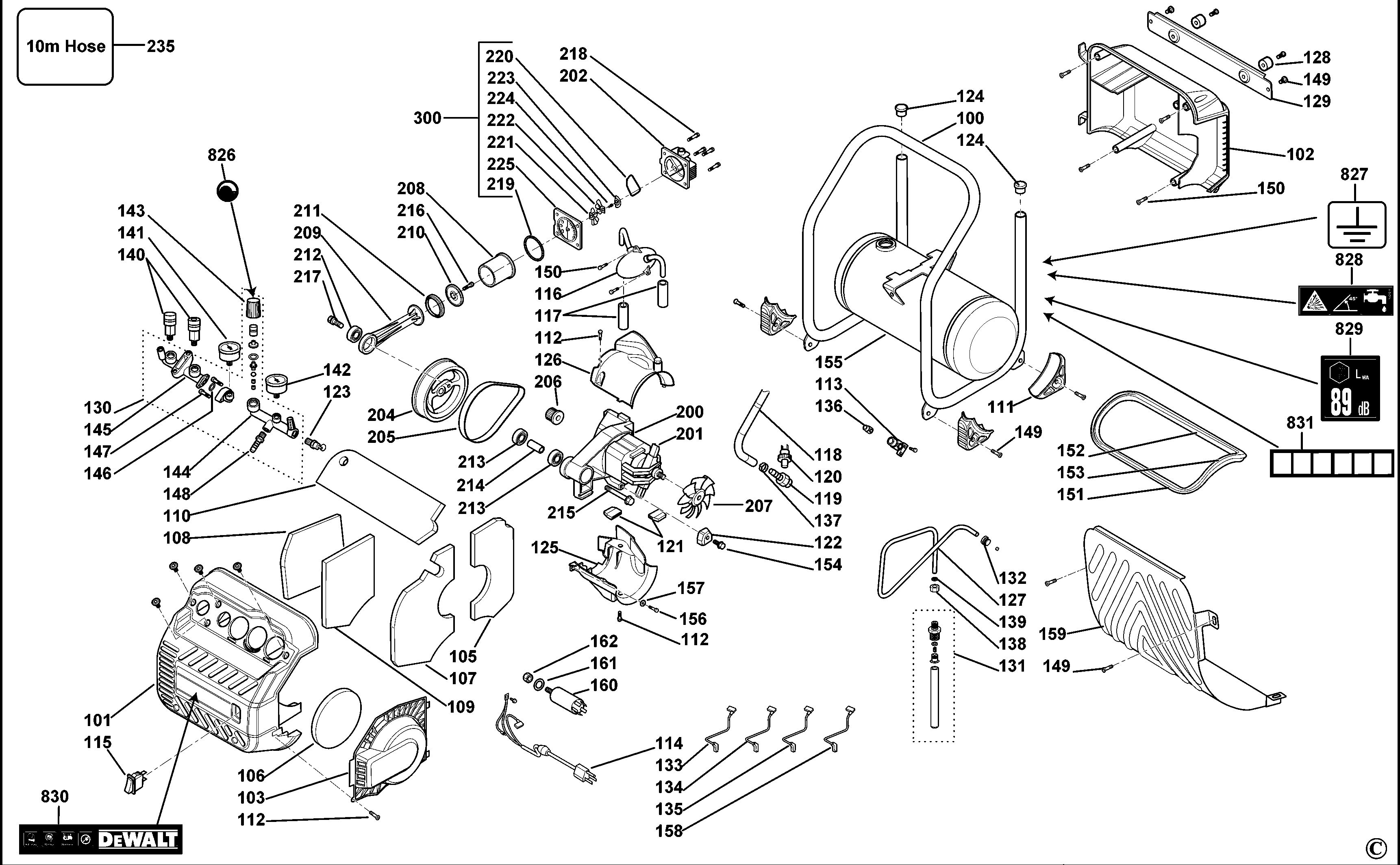

DEWALT COMPRESSOR (Type 1)
SKU Produs: DPC10QTC /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 100 | N396003 | 1 | TANK | 1472,26 Lei | |
| 101 | N372379 | 1 | SHROUD | 145,09 Lei | |
| 102 | N121990 | 1 | SHROUD | 96,56 Lei | |
| 103 | N216652 | 1 | COVER | 34,05 Lei | |
| 105 | N125105 | 1 | FOAM | 30,87 Lei | |
| 106 | N125109 | 1 | FOAM | 25,54 Lei | |
| 107 | N125229 | 1 | FOAM | 37,73 Lei | |
| 108 | N125230 | 1 | FOAM | 25,54 Lei | |
| 109 | N125428 | 1 | FOAM | 30,87 Lei | |
| 110 | N313999 | 1 | FOAM | 30,87 Lei | |
| 111 | N144436 | 4 | FOOT | 19,95 Lei | |
| 112 | SSF3156 | 3 | SCREW | 7,37 Lei | |
| 113 | 9047091 | 1 | VALVE | 33,2 Lei | |
| 114 | 9065873 | 1 | CORDSET | 96,56 Lei | |
| 116 | N299059 | 1 | MUFFLER | 25,54 Lei | |
| 117 | N117449 | 2 | HOSE | 10,29 Lei | |
| 118 | 9270051 | 1 | HOSE | 157,92 Lei | |
| 119 | N115939 | 1 | CONNECTOR | 34,05 Lei | |
| 120 | N402543 | 1 | MICRO SWITCH | 57,81 Lei | |
| 121 | N436181 | 1 | ISOLATOR | 8,64 Lei | |
| 122 | ACG18 | 1 | MOUNT | 17,02 Lei | |
| 123 | N022549 | 1 | VALVE | 52,22 Lei | |
| 124 | N048415 | 2 | PLUG | 7,37 Lei | |
| 125 | N093234 | 1 | COVER | 21,85 Lei | |
| 126 | N093235 | 1 | COVER-TOP | 21,85 Lei | |
| 127 | N148800 | 1 | TUBE OUTLET | 25,54 Lei | |
| 127 | N436063 | 1 | TUBE OUTLET | 145,09 Lei | |
| 128 | N178742 | 2 | BUMPER | 7,37 Lei | |
| 129 | N266360 | 1 | MOUNT | 106,98 Lei | |
| 130 | N272979 | 1 | MANIFOLD ASSEMBLY | 195,02 Lei | |
| 131 | N378375 | 1 | VALVE KIT | 120,82 Lei | |
| 132 | N148738 | 1 | NUT | 21,85 Lei | |
| 133 | N406816 | 1 | LEAD BROWN | 12,71 Lei | |
| 134 | N406815 | 2 | LEAD BLACK | 17,02 Lei | |
| 135 | N406818 | 2 | LEAD BLUE | 12,71 Lei | |
| 136 | 9038905 | 1 | O RING | 7,5 Lei | |
| 137 | A20009 | 2 | CLAMP | 12,71 Lei | |
| 138 | SSP7813 | 1 | NUT | 17,02 Lei | |
| 139 | SSG3105 | 1 | O RING | 7,37 Lei | |
| 141 | N401440 | 1 | GAUGE | 52,22 Lei | |
| 142 | N401439 | 1 | GAUGE | 52,22 Lei | |
| 143 | N261306 | 1 | KNOB | 15,12 Lei | |
| 144 | N272981 | 1 | VALVE BODY | 70,39 Lei | |
| 146 | N272983 | 1 | O RING | 7,37 Lei | |
| 147 | 9411073 | 2 | SCREW | 7,37 Lei | |
| 148 | A03008 | 1 | CONNECTOR | 19,95 Lei | |
| 149 | D28104 | 10 | SCREW | 7,37 Lei | |
| 150 | D29132 | 8 | SCREW | 7,37 Lei | |
| 151 | N479090 | 1 | SEAL | 34,05 Lei | |
| 152 | N479119 | 1 | SEAL | 34,05 Lei | |
| 153 | N479120 | 1 | SEAL | 8,64 Lei | |
| 154 | 91895680 | 1 | SCREW | 7,37 Lei | |
| 155 | SUDL91 | 2 | SCREW | 7,37 Lei | |
| 155 | SV-6735-23 | 2 | CHASSIS ASSY RL300/RL350GL | 3246,6 Lei | |
| 156 | SSF5531 | 2 | SCREW | 7,37 Lei | |
| 157 | N317839 | 2 | WASHER | 7,37 Lei | |
| 158 | N406819 | 1 | LEAD EARTH | 17,02 Lei | |
| 159 | N376470 | 1 | PANEL | 169,36 Lei | |
| 160 | 9064867 | 1 | NOISE FILTER PCB | 88,55 Lei | |
| 161 | 9411088 | 1 | WASHER | 7,37 Lei | |
| 200 | N399486 | 1 | CASTING | 169,36 Lei | |
| 201 | N494871 | 1 | MOTOR SA 230V | 980,83 Lei | |
| 202 | N260996 | 1 | CYLINDER HEAD | 41,93 Lei | |
| 204 | N398105 | 1 | FLYWHEEL | 300,47 Lei | |
| 205 | N406246 | 1 | BELT DRIVE | 161,6 Lei | |
| 206 | N049820 | 1 | SPROCKET | 26,1 Lei | |
| 207 | N051334 | 1 | FAN | 12,71 Lei | |
| 208 | N072495 | 1 | CYLINDER | 70,39 Lei | |
| 209 | N490044 | 1 | CON ROD | 52,22 Lei | |
| 210 | N073046 | 1 | CAP | 13,85 Lei | |
| 211 | N073052 | 1 | PISTON RING | 52,22 Lei | |
| 212 | N074819 | 1 | BEARING | 30,87 Lei | |
| 213 | N400652 | 2 | BEARING 6202 | 30,87 Lei | |
| 214 | N398089 | 1 | SPACER | 25,54 Lei | |
| 215 | N398090 | 1 | SCREW | 17,02 Lei | |
| 216 | N054934 | 1 | SCREW | 7,37 Lei | |
| 217 | N073286 | 1 | SCREW | 8,64 Lei | |
| 218 | SSF995 | 4 | SCREW | 7,37 Lei | |
| 219 | N261339 | 1 | O RING | 7,37 Lei | |
| 220 | N261340 | 1 | O RING | 7,37 Lei | |
| 221 | N261341 | 1 | INTAKE VALVE | 25,54 Lei | |
| 222 | N261342 | 1 | VALVE | 21,85 Lei | |
| 223 | N261343 | 1 | VALVE | 7,37 Lei | |
| 224 | N261346 | 1 | RIVET | 7,37 Lei | |
| 225 | N261344M | 1 | CASTING | 52,22 Lei | |
| 235 | 9045834 | 1 | HOSE SA | 264,01 Lei | |
| 300 | N261345 | 1 | VALVE BODY | 90,6 Lei | |
| 826 | N401073 | 1 | LABEL | 7,37 Lei | |
| 826 | N401103 | 1 | LABEL RATING DW621-AR03 | 8,4 Lei | |
| 828 | N421211 | 1 | LABEL | 7,37 Lei | |
| 829 | N413619 | 1 | LABEL | 7,37 Lei | |
| 830 | N413629 | 1 | IDENTITY LABEL | 10,29 Lei |
