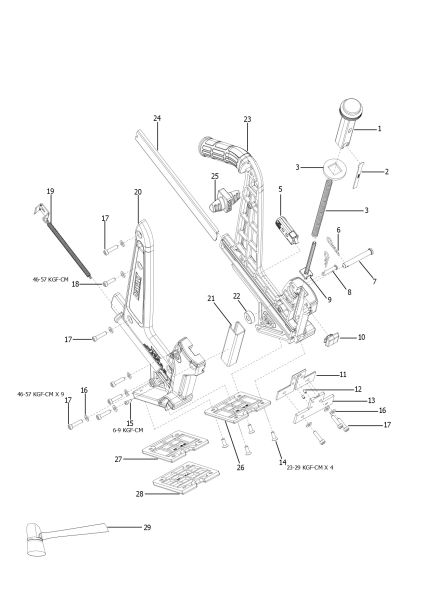

DEWALT NAILER (Type 1)
SKU Produs: DMF1550 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 175777 | 1 | PLUNGER | 130,52 Lei | |
| 2 | 175778 | 1 | DRIVER | 5,15 Lei | |
| 3 | 175783 | 1 | BUMPER | 5,15 Lei | |
| 4 | 175791 | 1 | SPRING,COMPRESSION,PLUNGER | 6,09 Lei | |
| 5 | 180325 | 1 | ASSEMBLY, RATCHET | 16,49 Lei | |
| 6 | 175798 | 2 | RETAINER, CLIP | 5,15 Lei | |
| 7 | 175784 | 1 | CLEVIS PIN | 18,06 Lei | |
| 8 | 175824 | 1 | CLEVIS PIN | 11,45 Lei | |
| 9 | 175825 | 1 | SUPPORT,PLUNGER SPRING | 5,15 Lei | |
| 10 | 175813 | 1 | BUMPER | 7,14 Lei | |
| 11 | 175786 | 1 | PLATE | 31,19 Lei | |
| 12 | 180324 | 1 | PIN | 3,78 Lei | |
| 13 | 175792 | 1 | NOSE | 43,16 Lei | |
| 14 | MSF6100-16 | 4 | SCREW | 3,78 Lei | |
| 15 | NA042605 | 1 | SCREW | 25,52 Lei | |
| 16 | MPW6.3 | 10 | WASHER,PWN M6 | 5,15 Lei | |
| 17 | MSC6100-25 | 9 | SCREW,SHCS,M6X1.00X25 | 5,15 Lei | |
| 18 | 180334 | 1 | SCREW | 3,78 Lei | |
| 19 | 180327 | 1 | ASSEMBLY, PUSHER HANDLE | 5,15 Lei | |
| 20 | 9R209648 | 1 | FRAME RH | 276,84 Lei | |
| 21 | 175823 | 1 | SLEEVE | 31,19 Lei | |
| 22 | 175785 | 1 | ROLLER | 5,15 Lei | |
| 23 | 9R209647 | 1 | FRAME LH | 361,33 Lei | |
| 24 | 9R209652 | 1 | PUSHER | 34,05 Lei | |
| 25 | 175812 | 1 | BUMPER | 18,06 Lei | |
| 26 | 175794 | 1 | SHOE, 3/4 IN | 8,51 Lei | |
| 27 | 180337 | 1 | SHOE, 5/8 IN | 10,5 Lei | |
| 28 | 180326 | 1 | SHOE, 1/2 IN | 10,5 Lei | |
| 29 | 9R199607 | 1 | HAMMER | 383,69 Lei |
