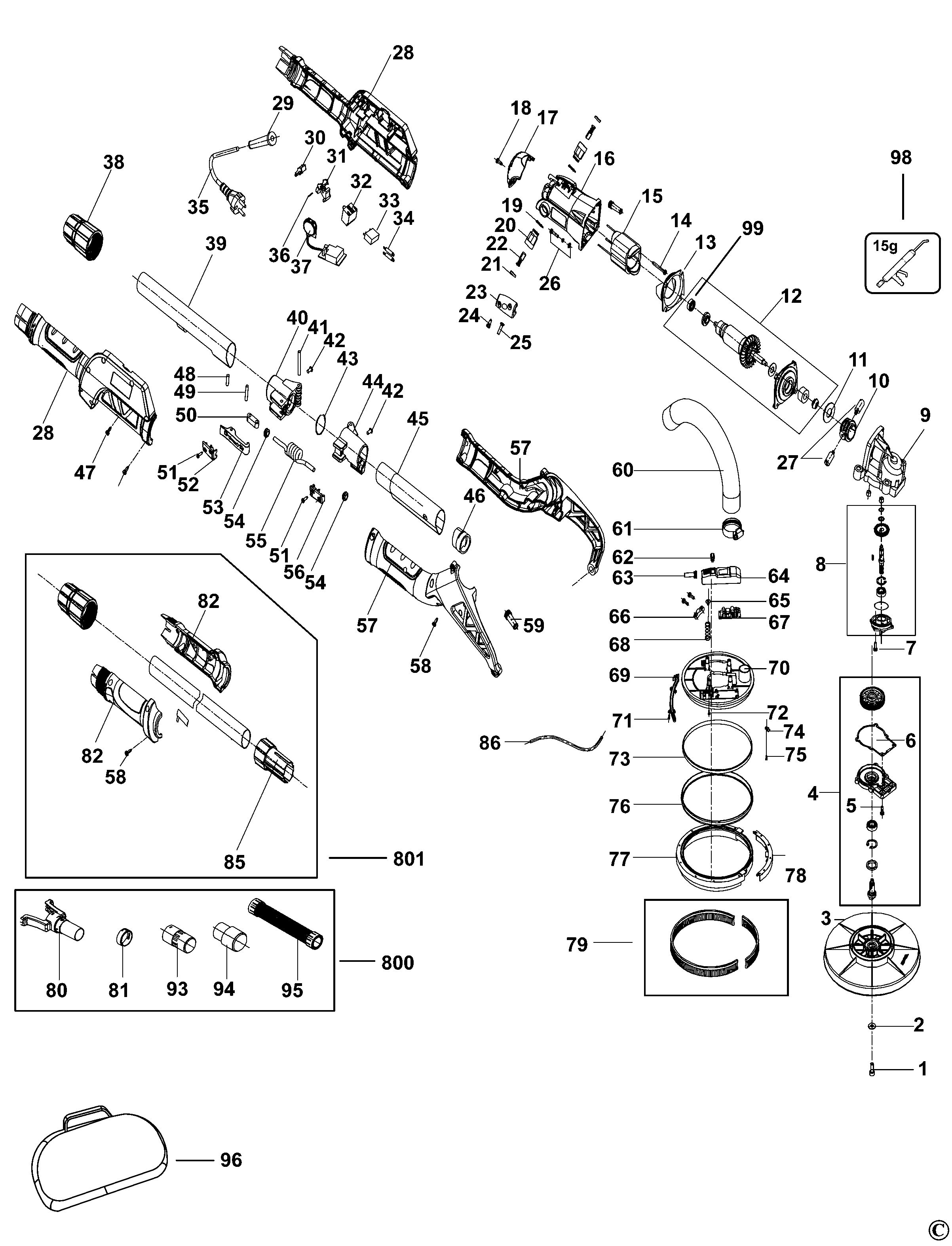

SANDER
SKU Produs: SFMEE500S /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 5170032-15 | 1 | SCREW | 4,57 Lei | |
| 2 | 5170032-16 | 1 | WASHER | 4,57 Lei | |
| 3 | 5170032-17 | 1 | PAD | 130,35 Lei | |
| 4 | 5170032-18 | 1 | COVER SA | 120,82 Lei | |
| 5 | 5170032-19 | 1 | SCREW | 6,23 Lei | |
| 6 | 5170032-20 | 1 | WASHER | 4,57 Lei | |
| 7 | 5170032-21 | 4 | SCREW | 4,57 Lei | |
| 8 | 5170032-22 | 1 | COVER SA | 120,82 Lei | |
| 9 | 5170032-23 | 1 | GEARBOX SA | 88,55 Lei | |
| 10 | 5170032-24 | 1 | SLEEVE | 21,85 Lei | |
| 11 | 5170032-25 | 1 | FELT | 4,57 Lei | |
| 12 | 5170032-26 | 1 | ROTOR SA | 252,58 Lei | |
| 13 | 5170032-27 | 1 | RING | 4,57 Lei | |
| 14 | 5170032-28 | 2 | SCREW | 4,57 Lei | |
| 15 | 5170032-29 | 1 | FIELD | 79,8 Lei | |
| 16 | 5170032-30 | 1 | HOUSING | 25,52 Lei | |
| 17 | 5170032-31 | 1 | COVER | 6,23 Lei | |
| 18 | 5170032-32 | 2 | SCREW | 4,57 Lei | |
| 19 | 5170032-33 | 2 | SPRING | 8,64 Lei | |
| 20 | 5170032-34 | 2 | HOLDER | 25,54 Lei | |
| 21 | 5170032-35 | 2 | COVER | 25,54 Lei | |
| 22 | 5170032-36 | 1 | BRUSH SA | 34,05 Lei | |
| 23 | 5170032-37 | 1 | BLOCK | 6,23 Lei | |
| 24 | 5170032-38 | 2 | SCREW | 4,57 Lei | |
| 25 | 5170032-39 | 1 | SLEEVE | 4,57 Lei | |
| 26 | 5170032-40 | 1 | SCREW | 6,23 Lei | |
| 27 | 5170032-41 | 2 | PIN | 7,14 Lei | |
| 28 | 1004769-21 | 1 | HANDLE SA | 88,55 Lei | |
| 29 | 5170032-43 | 1 | SLEEVE | 4,31 Lei | |
| 30 | 5170032-44 | 1 | BUTTON | 3,78 Lei | |
| 31 | 5170032-45 | 1 | LEVER | 4,57 Lei | |
| 32 | 5170032-46 | 1 | SWITCH | 25,54 Lei | |
| 33 | 5170032-47 | 1 | CAPACITOR | 14,07 Lei | |
| 34 | 5170032-48 | 2 | INDUCTOR | 21,11 Lei | |
| 35 | 5170104-12 | 1 | CORDSET-QS | 88,41 Lei | |
| 36 | 5170032-50 | 1 | PIN | 4,57 Lei | |
| 37 | 5170032-51 | 1 | BUTTON | 88,41 Lei | |
| 38 | 5170032-52 | 2 | NUT | 21,85 Lei | |
| 39 | 5170032-53 | 1 | TUBE | 58,17 Lei | |
| 40 | 5170032-54 | 1 | COVER | 14,07 Lei | |
| 41 | 5170032-55 | 1 | PIN | 4,57 Lei | |
| 42 | 5170032-56 | 1 | SCREW | 4,57 Lei | |
| 43 | 5170032-57 | 1 | RING | 4,57 Lei | |
| 44 | 5170032-58 | 1 | COVER | 14,07 Lei | |
| 45 | 5170032-59 | 1 | TUBE | 28,14 Lei | |
| 46 | 5170032-60 | 1 | TUBE | 15,12 Lei | |
| 47 | 5170032-61 | 1 | SCREW | 4,57 Lei | |
| 48 | 5170032-62 | 1 | PIN | 4,57 Lei | |
| 49 | 5170032-63 | 1 | PIN | 4,57 Lei | |
| 50 | 5170032-64 | 1 | BRACKET | 8,64 Lei | |
| 51 | 5170032-32 | 4 | SCREW | 4,57 Lei | |
| 52 | 5170032-65 | 1 | PLATE | 4,57 Lei | |
| 53 | 5170032-66 | 1 | KNOB | 15,12 Lei | |
| 54 | 5170032-67 | 1 | SLEEVE | 6,23 Lei | |
| 55 | 5170032-68 | 1 | WIRE | 28,14 Lei | |
| 56 | 5170032-69 | 1 | PLATE | 4,57 Lei | |
| 57 | 1004769-22 | 1 | BRACKET SA | 70,39 Lei | |
| 58 | 5170032-71 | 20 | SCREW | 7,37 Lei | |
| 59 | 5170032-72 | 2 | SLEEVE | 41,93 Lei | |
| 60 | 5170032-73 | 1 | PIPE | 30,87 Lei | |
| 61 | 5170032-74 | 1 | CLAMP | 6,23 Lei | |
| 62 | 5170032-75 | 1 | SWITCH | 7,37 Lei | |
| 63 | 5170032-76 | 1 | SLEEVE | 5,21 Lei | |
| 64 | 5170032-77 | 1 | COVER | 6,23 Lei | |
| 65 | 5170032-78 | 1 | SCREW | 4,57 Lei | |
| 66 | 5170032-79 | 1 | PLATE | 4,57 Lei | |
| 67 | 5170032-80 | 1 | BOARD | 166,11 Lei | |
| 68 | 5170032-81 | 4 | SPRING | 4,57 Lei | |
| 69 | 5170032-82 | 1 | BAR | 3,78 Lei | |
| 70 | 5170032-83 | 1 | PAD | 16,49 Lei | |
| 71 | 5170032-84 | 4 | SCREW | 4,57 Lei | |
| 72 | 5170032-85 | 4 | SCREW | 4,57 Lei | |
| 73 | 5170032-86 | 1 | LED | 99,86 Lei | |
| 74 | 5170032-87 | 1 | PLATE | 7,37 Lei | |
| 75 | 5170032-88 | 1 | SCREW | 4,57 Lei | |
| 76 | 5170032-89 | 1 | COVER | 12,5 Lei | |
| 77 | 5170032-90 | 1 | PLATE | 37,73 Lei | |
| 78 | 5170032-91 | 1 | PLATE | 8,64 Lei | |
| 79 | 5170032-92 | 1 | BRUSH SA | 19,95 Lei | |
| 80 | 5170032-93 | 1 | JOINT | 17,02 Lei | |
| 81 | 5170032-94 | 1 | RING | 5,21 Lei | |
| 82 | 1004769-23 | 1 | HANDLE SA | 37,73 Lei | |
| 85 | 5170092-98 | 1 | SLEEVE | 4,57 Lei | |
| 86 | 5170092-99 | 1 | CABLE | 4,31 Lei | |
| 93 | 5170033-07 | 1 | JOINT | 7,37 Lei | |
| 94 | 5170033-08 | 1 | JOINT | 8,64 Lei | |
| 95 | 5170033-09 | 1 | TUBE | 130,35 Lei | |
| 96 | 1004769-19 | 1 | BAG | 157,92 Lei | |
| 98 | 1004769-20 | 1 | GREASE | 34,05 Lei | |
| 99 | 1004769-14 | 1 | BEARING | 17,02 Lei | |
| 800 | 1004769-12 | 1 | HOSE SA | 200,99 Lei | |
| 801 | 1004769-13 | 1 | PIPE SA | 181,55 Lei |
