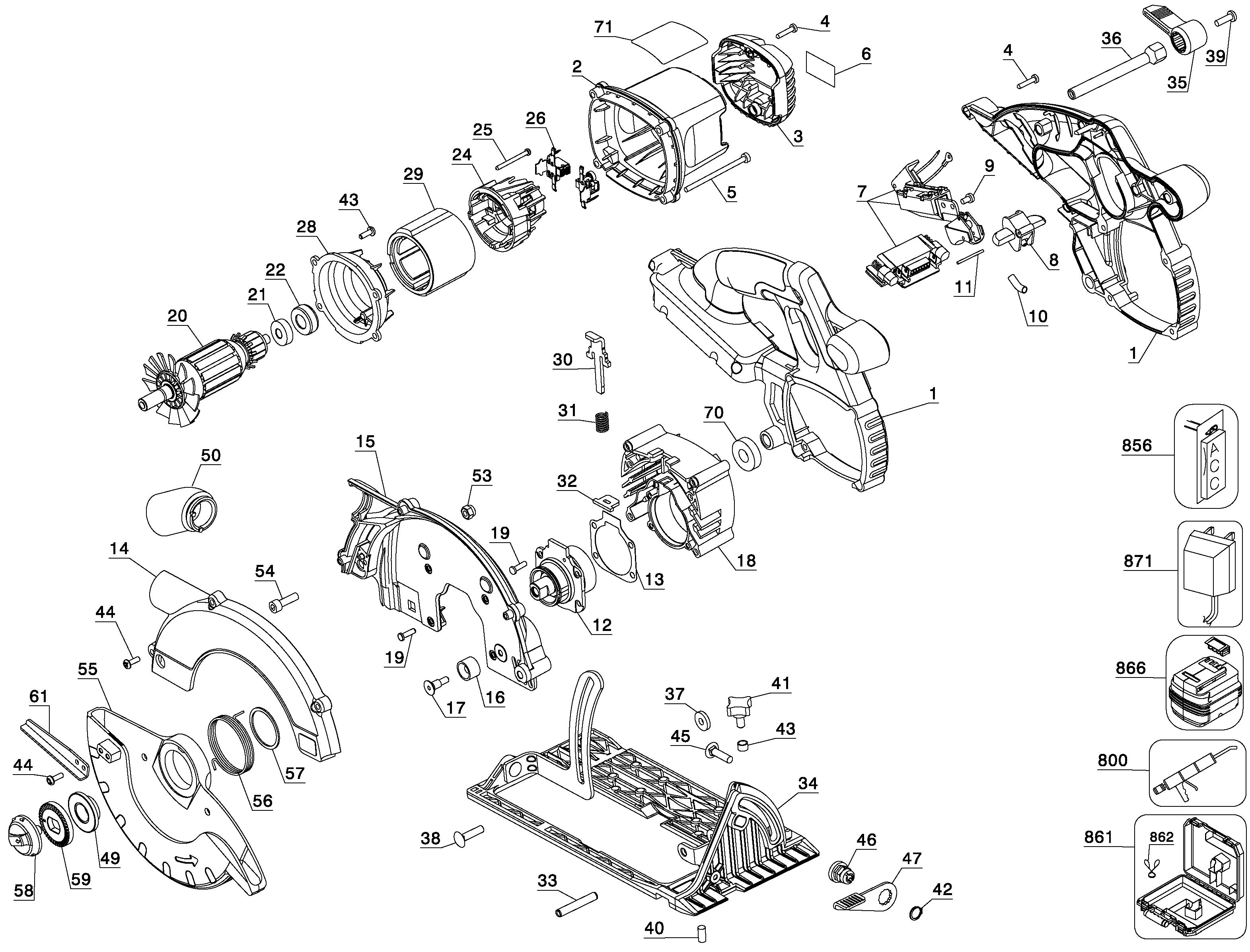

36V Circular Saw
SKU Produs: DC300KL
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 3 | N173219 | 1 | END CAP | 21,85 Lei | |
| 4 | 330019-04 | 8 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 5 | 398987-00 | 4 | SCREW | 4,57 Lei | |
| 8 | 605107-00 | 1 | BUTTON LOCK-OFF | 20,4 Lei | |
| 9 | 330019-40 | 1 | SCREW DW007K | 4,57 Lei | |
| 10 | 389120-00 | 1 | SPRING DW007K | 4,57 Lei | |
| 11 | 388531-00 | 1 | PIN DW007K | 5,21 Lei | |
| 13 | 605081-01 | 1 | GASKET | 5,21 Lei | |
| 19 | 613783-00 | 8 | SCREW | 4,57 Lei | |
| 21 | N110359 | 1 | BALL BEARING | 8,64 Lei | |
| 22 | 631563-00 | 1 | BOOT | 4,57 Lei | |
| 25 | 330019-25 | 2 | SCREW, PLASTIC THD FORM, M3.5X65 T15 | 4,7 Lei | |
| 26 | 636233-00 | 2 | BRUSHBOX SA | 98,8 Lei | |
| 28 | 610124-01 | 1 | BAFFLE | 17,02 Lei | |
| 30 | 629444-00 | 1 | SPINDLE LOCK | 7,37 Lei | |
| 31 | 058698-00 | 1 | SPRING | 3,78 Lei | |
| 32 | 605094-00 | 1 | WIPER, RUBBER | 4,57 Lei | |
| 33 | 614048-00 | 1 | SPIRAL PIN | 4,57 Lei | |
| 35 | 605105-00 | 1 | LEVER | 7,37 Lei | |
| 36 | 629663-00 | 1 | SHAFT | 21,3 Lei | |
| 37 | 142013-00 | 1 | SPACER | 4,57 Lei | |
| 38 | 098128-85 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 39 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 40 | 381069-00 | 1 | SCREW DW007K | 4,57 Lei | |
| 41 | 396992-02 | 1 | KNOB | 4,57 Lei | |
| 42 | 152211-00 | 1 | RING | 4,57 Lei | |
| 43 | 058287-00 | 1 | SPRING, CPRSN | 4,57 Lei | |
| 44 | 330045-45 | 7 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 49 | 610046-00 | 1 | WASHER INNER CLAMP | 15,12 Lei | |
| 58 | N376797 | 1 | BLADE CLAMP | 299,8 Lei | |
| 70 | 330003-64 | 1 | BEARING, BALL | 30,87 Lei | |
| 856 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 861 | 633095-00 | 1 | KITBOX | 282,1 Lei | |
| 862 | 605265-00 | 1 | spring clip from DC390KN-EC | 4,57 Lei |
