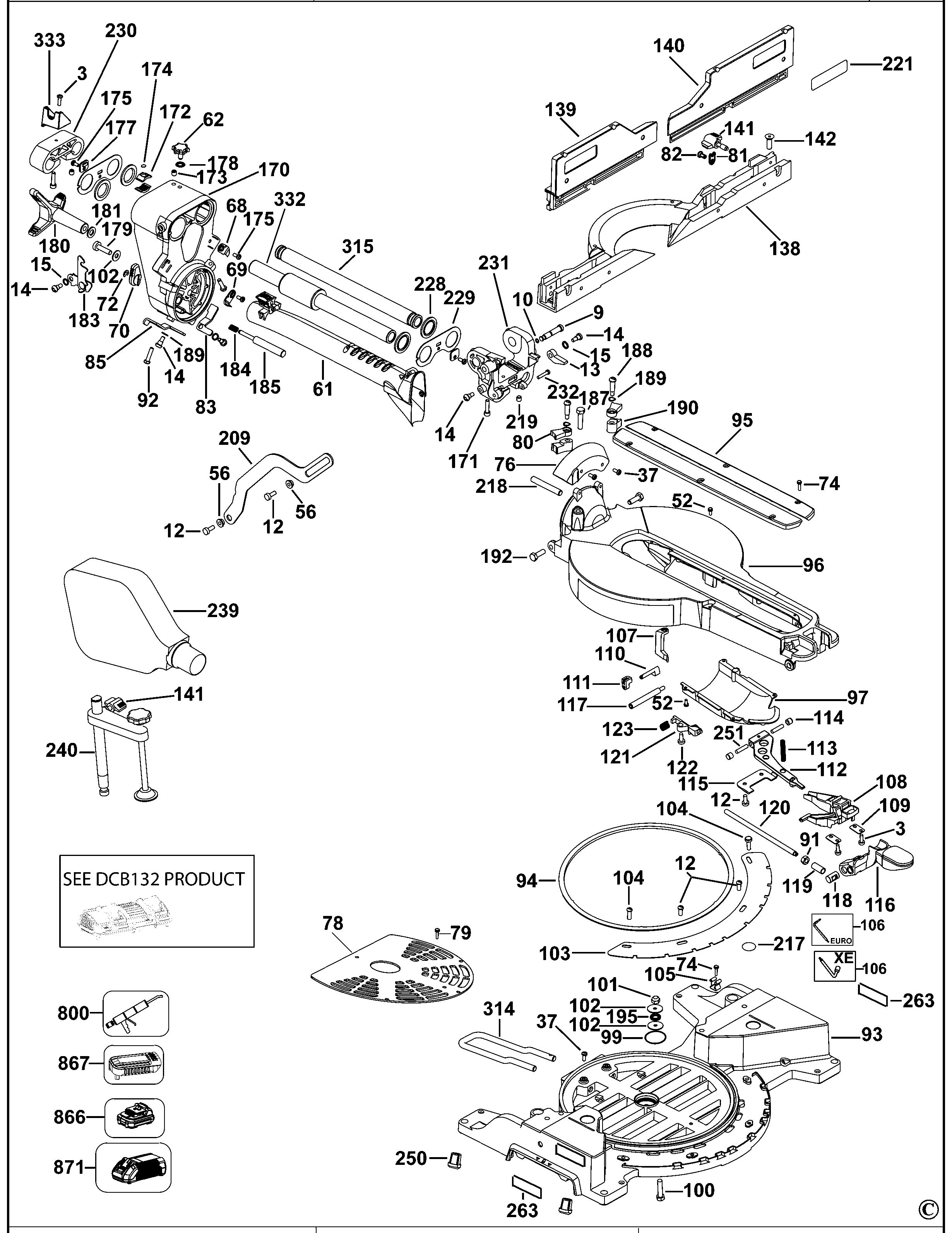

DEWALT MITRE SAW (Type 20)
SKU Produs: DHS780 /Type: 20
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N512874 | 1 | ARM | 957,3 Lei | |
| 1 | N618208 | 1 | ARM | 1087,42 Lei | |
| 2 | N459235 | 1 | COVER | 145,09 Lei | |
| 3 | 330045-14 | 7 | SCREW M5X16 T25 | 4,57 Lei | |
| 4 | 146751-00 | 1 | SHAFT,PIVOT | 17,02 Lei | |
| 5 | 146732-00 | 2 | SPACER | 5,21 Lei | |
| 6 | N039404 | 1 | SPRING | 70,39 Lei | |
| 7 | 150075-00 | 2 | SCREW | 5,21 Lei | |
| 8 | N377514 | 2 | BUSHING | 13,85 Lei | |
| 9 | 387130-00 | 1 | PIN, LOCKING | 17,02 Lei | |
| 10 | 34158-00 | 1 | GASKET | 4,57 Lei | |
| 11 | N058304 | 1 | GUARD REAR | 21,85 Lei | |
| 12 | 330045-23 | 8 | SCREW | 4,57 Lei | |
| 13 | 153603-01 | 1 | STOP, PAWL | 7,37 Lei | |
| 14 | 153639-00 | 5 | SHOULDER SCREW | 4,57 Lei | |
| 15 | 153655-00 | 2 | WAVY WASHER | 4,57 Lei | |
| 16 | N185664 | 1 | SCREW | 15,12 Lei | |
| 17 | 150718-00 | 1 | NUT WING | 4,57 Lei | |
| 18 | N439376 | 1 | LED LIGHT | 106,98 Lei | |
| 20 | 618198-00 | 1 | SCREW | 6,23 Lei | |
| 23 | 647776-00 | 1 | BLADE BOLT SC | 6,23 Lei | |
| 24 | N199395 | 1 | CLAMP OUTER | 80,04 Lei | |
| 25 | 393868-00 | 1 | ADAPTOR | 21,85 Lei | |
| 26 | 645000-00 | 1 | WASHER INNER CLAMP | 52,22 Lei | |
| 29 | 330003-66 | 1 | BEARING,BALL | 41,93 Lei | |
| 30 | 391616-00 | 1 | BEARING NEEDLE | 15,12 Lei | |
| 32 | 605040-20 | 1 | Ball Brg | 17,02 Lei | |
| 33 | 605040-33 | 1 | BEARING | 21,85 Lei | |
| 35 | 153752-00 | 2 | RING,RET.EXT | 4,57 Lei | |
| 36 | 618244-00 | 1 | PLATE,BEARING RETAINER | 5,21 Lei | |
| 37 | 330045-49 | 11 | SCREW | 4,57 Lei | |
| 38 | 391310-00 | 1 | BEARING PLATE | 10,29 Lei | |
| 40 | N004511 | 1 | DRIVEN PULLEY | 41,93 Lei | |
| 44 | N272402 | 1 | GEARCASE COVER SA | 133,4 Lei | |
| 45 | N510450 | 1 | GASKET | 19,95 Lei | |
| 47 | N464473 | 1 | BELT | 181,55 Lei | |
| 49 | 153561-00 | 1 | LOCKING PIN | 7,37 Lei | |
| 50 | 448176-00 | 1 | SPRING | 4,57 Lei | |
| 51 | 393071-00 | 1 | PLATE | 4,57 Lei | |
| 52 | 330045-45 | 8 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 53 | 153559-00 | 1 | WASHER | 4,57 Lei | |
| 56 | 146740-00 | 2 | SLEEVE | 4,57 Lei | |
| 57 | 394589-01 | 2 | SCREW | 5,21 Lei | |
| 60 | 330045-15 | 11 | Screw Metal | 4,57 Lei | |
| 61 | N142121 | 1 | DUST PORT | 106,98 Lei | |
| 62 | N080677 | 1 | KNOB | 15,12 Lei | |
| 68 | N058308 | 1 | BEVEL POINTER, RIGHT | 6,23 Lei | |
| 69 | N058309 | 1 | BEVEL POINTER, LEFT | 6,23 Lei | |
| 70 | N080199 | 1 | KNOB | 8,64 Lei | |
| 72 | 060325-01 | 1 | RING, RET. EXT | 4,57 Lei | |
| 74 | 330045-06 | 7 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 76 | N090294 | 1 | BEVEL SCALE DWS780 | 34,05 Lei | |
| 78 | N482412 | 1 | BLADE COVER, EURO | 14,2 Lei | |
| 79 | 330045-49 | 1 | SCREW | 4,57 Lei | |
| 80 | N043045 | 2 | PAWL | 12,71 Lei | |
| 81 | 641484-00 | 1 | PLATE | 5,21 Lei | |
| 82 | 098103-18 | 1 | Screw Thread Forming | 4,57 Lei | |
| 83 | N049689 | 1 | PLATE STOP RH | 5,21 Lei | |
| 85 | N051519 | 1 | PLATE STOP LH | 7,37 Lei | |
| 91 | 330015-03 | 1 | NUT,HEX | 4,57 Lei | |
| 92 | N058312 | 2 | SCREW | 5,21 Lei | |
| 93 | N450450 | 1 | BASE SA | 1633,1 Lei | |
| 94 | N528183 | 1 | PLATE | 25,54 Lei | |
| 95 | N544383 | 1 | PLATE | 34,05 Lei | |
| 96 | N450345 | 1 | TABLE SA | 1506,4 Lei | |
| 97 | N401778 | 1 | COVER | 21,85 Lei | |
| 99 | 49787-00 | 1 | RING | 4,57 Lei | |
| 100 | N058318 | 1 | SCREW M8X1,25 L.27,5 DWS780 | 5,21 Lei | |
| 101 | N044739 | 1 | LOCK NUT | 4,57 Lei | |
| 102 | 153792-00 | 4 | LAP WASHER | 4,57 Lei | |
| 103 | N059784 | 1 | DETENT PLATE | 106,98 Lei | |
| 104 | 604410-00 | 2 | SCREW | 4,57 Lei | |
| 105 | 391358-01 | 1 | HOLDER | 7,37 Lei | |
| 106 | N040940 | 1 | WRENCH | 25,54 Lei | |
| 107 | N057963 | 1 | POINTER, MITER | 7,37 Lei | |
| 108 | N050755 | 1 | ACTUATOR, DETENT SPRING | 21,85 Lei | |
| 109 | N066280 | 2 | PLATE, CLAMP | 4,57 Lei | |
| 111 | 622395-00 | 1 | LEVER | 4,57 Lei | |
| 112 | N488468 | 1 | DETENT | 169,36 Lei | |
| 113 | 618176-00 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 114 | 093128-00 | 2 | NEEDLE BEARING | 7,37 Lei | |
| 115 | 618254-00 | 1 | RETAINER | 8,64 Lei | |
| 116 | N082785 | 1 | LEVER, MITER LOCK | 25,54 Lei | |
| 117 | N057386 | 1 | PIN | 13,85 Lei | |
| 118 | 624460-00 | 1 | PIN | 6,23 Lei | |
| 119 | 624461-00 | 1 | SLEEVE | 6,23 Lei | |
| 120 | 618186-00 | 1 | ROD | 13,85 Lei | |
| 121 | 618185-00 | 1 | BLOCK | 37,73 Lei | |
| 122 | 385915-03 | 1 | SCREW | 7,37 Lei | |
| 123 | 618253-00 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 124 | N633984 | 1 | HANDLE SA | 169,36 Lei | |
| 125 | 330045-18 | 4 | SCREW | 4,57 Lei | |
| 126 | 330019-32 | 3 | SCREW,PLASTITE | 4,57 Lei | |
| 127 | N494159 | 1 | PCB SA | 96,56 Lei | |
| 128 | N447769 | 1 | SWITCH | 130,35 Lei | |
| 129 | N458834 | 4 | SCREW | 4,57 Lei | |
| 130 | 330045-23 | 1 | SCREW | 4,57 Lei | |
| 131 | 330019-12 | 1 | SCREW | 4,57 Lei | |
| 133 | N083060 | 1 | HANDLE | 25,54 Lei | |
| 134 | 330019-22 | 1 | SCREW (CARRY HANDLE) | 4,57 Lei | |
| 135 | 398443-00 | 1 | CABLE CLAMP | 4,57 Lei | |
| 137 | N030322 | 1 | COVER | 5,21 Lei | |
| 138 | N450334 | 1 | FENCE | 627,4 Lei | |
| 139 | N450406 | 1 | FENCE LH | 205,7 Lei | |
| 140 | N450408 | 1 | FENCE RH | 213,19 Lei | |
| 141 | N480604 | 2 | KNOB SA | 34,05 Lei | |
| 144 | N448791 | 1 | COVER | 17,02 Lei | |
| 145 | N480342 | 1 | SCREW | 4,7 Lei | |
| 146 | N493970 | 1 | LEAD | 70,39 Lei | |
| 147 | N443879 | 1 | LEAD | 25,54 Lei | |
| 148 | N449481 | 1 | BUSHING | 4,57 Lei | |
| 149 | 48822-00 | 1 | CLAMP DW744 | 4,7 Lei | |
| 150 | N004510 | 1 | DRIVE PULLEY | 41,93 Lei | |
| 151 | N426940 | 1 | HOUSING | 37,73 Lei | |
| 152 | 323924-08 | 4 | SCREW, PLASTIC 5X12 | 4,57 Lei | |
| 153 | N426941 | 1 | HOUSING | 17,02 Lei | |
| 154 | N449474 | 1 | SCREW | 4,57 Lei | |
| 155 | N461735 | 2 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 157 | N426942 | 1 | HOUSING | 52,22 Lei | |
| 158 | 330019-16 | 10 | SCREW, PLASTIC THD FORM, M4*38 T20 | 4,57 Lei | |
| 160 | N457629 | 1 | RATING PLATE | 17,02 Lei | |
| 161 | N599680 | 1 | SPACER | 12,71 Lei | |
| 162 | N592867 | 1 | LEAD SA | 145,09 Lei | |
| 163 | N594146 | 1 | LIFTER | 4,57 Lei | |
| 164 | 330019-02 | 1 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 165 | 330045-15 | 1 | Screw Metal | 4,57 Lei | |
| 165 | 330045-18 | 1 | SCREW | 4,57 Lei | |
| 170 | N450353 | 1 | HOUSING | 1712,1 Lei | |
| 171 | 603390-00 | 8 | SCREW | 4,57 Lei | |
| 172 | 397118-00 | 2 | WEAR GUIDE | 10,29 Lei | |
| 173 | 153576-04 | 1 | SCREW M8X10 | 13,85 Lei | |
| 174 | 613497-00 | 1 | FRICTION DISC | 4,57 Lei | |
| 175 | N058314 | 4 | SCREW SHOULDER M5X12 | 6,23 Lei | |
| 177 | N051244 | 2 | RUBBER WASHER | 4,57 Lei | |
| 178 | 659919-00 | 1 | SPRING | 6,23 Lei | |
| 179 | 612008-00 | 1 | SCREW | 7,37 Lei | |
| 180 | N459410 | 1 | LOCK HANDLE | 98,8 Lei | |
| 181 | 330016-04 | 1 | WASHER, PLAIN, STEEL,10 * 20 * 2.0 THIC | 4,57 Lei | |
| 183 | N095579 | 1 | SA SLIDE STOP LEVER | 19,95 Lei | |
| 184 | 167785-00 | 2 | SPRING | 4,57 Lei | |
| 185 | N834068 | 1 | PIN | 17,02 Lei | |
| 188 | N058315 | 2 | SHOULDER SCREW M6 | 5,21 Lei | |
| 189 | 385946-00 | 4 | WASHER SPRING MBR100 TYPE 2 | 4,57 Lei | |
| 190 | N043046 | 2 | PAWL | 15,12 Lei | |
| 192 | 153797-04 | 2 | SCREW M8X25 | 6,23 Lei | |
| 194 | N505548 | 1 | DUST DEFLECTOR | 15,12 Lei | |
| 195 | 153451-00 | 1 | BEARING THRUST | 5,21 Lei | |
| 199 | N450454 | 1 | GUARD LOWER | 433,24 Lei | |
| 200 | N457634 | 1 | BRAND LABEL | 13,85 Lei | |
| 203 | 386780-00 | 2 | BEARING | 13,85 Lei | |
| 205 | N450456 | 1 | GUARD PLATE | 90,6 Lei | |
| 206 | 385915-01 | 4 | SCREW | 4,57 Lei | |
| 207 | N041973 | 1 | PLATE | 30,87 Lei | |
| 208 | 146768-00 | 1 | BUMPER | 4,57 Lei | |
| 209 | N142523 | 1 | LINK | 106,98 Lei | |
| 212 | 146750-01 | 1 | RETAINING PLATE | 34,05 Lei | |
| 213 | 661454-00 | 1 | SPRING | 8,64 Lei | |
| 214 | 148295-00 | 1 | SLEEVE | 7,37 Lei | |
| 215 | 625825-00 | 2 | ROLLER | 5,21 Lei | |
| 216 | 142273-00 | 2 | RING | 4,57 Lei | |
| 217 | 394976-00 | 2 | LABEL | 10,29 Lei | |
| 218 | 146760-02 | 1 | STUD | 7,37 Lei | |
| 219 | 153666-00 | 2 | SCREW | 4,57 Lei | |
| 221 | N497365 | 2 | WARNING LABEL | 7,37 Lei | |
| 228 | 397117-00 | 4 | WIPER | 6,23 Lei | |
| 229 | N049684 | 2 | PLATE COVER | 7,37 Lei | |
| 230 | N455343 | 1 | HOUSING | 157,92 Lei | |
| 231 | N443949 | 1 | TRUNNION | 252,58 Lei | |
| 232 | 330019-14 | 1 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 233 | N066282 | 1 | LEVER LOCK DWS780 | 17,02 Lei | |
| 234 | 386196-00 | 1 | SPRING | 7,37 Lei | |
| 235 | 152852-00 | 1 | UNLOCKING LEVER SCREW | 7,37 Lei | |
| 239 | N126162 | 1 | DUST BAG | 41,93 Lei | |
| 240 | N142123 | 1 | CLAMP SA | 240,38 Lei | |
| 250 | 868777-00 | 4 | FOOT | 4,57 Lei | |
| 251 | 618170-00 | 2 | PIN,DETENT PIVOT | 5,21 Lei | |
| 260 | N457632 | 1 | LABEL | 7,37 Lei | |
| 261 | N460811 | 1 | LABEL | 7,37 Lei | |
| 263 | N458771 | 2 | LABEL | 7,37 Lei | |
| 280 | N599679 | 1 | PARTS PACK(KIT) | 252,58 Lei | |
| 290 | 394034-00 | 1 | SCREW | 6,23 Lei | |
| 314 | N441566 | 1 | BAR FENCE | 52,22 Lei | |
| 315 | N058319 | 1 | SA RAIL SOFT DWS780 | 361,33 Lei | |
| 332 | N104494 | 1 | RAIL HARD DWS780 | 200,99 Lei | |
| 333 | N450867 | 1 | BRACKET | 17,02 Lei | |
| 533 | N443880 | 1 | SWITCH | 41,93 Lei | |
| 533 | N595757 | 1 | SWITCH | 120,82 Lei | |
| 534 | N300152 | 1 | RUBBER BOOT, WORKLIGHT ACTIVATION SWITC | 10,29 Lei | |
| 535 | N631525 | 1 | HEATSHIELD | 4,57 Lei | |
| 800 | 5140061-28 | 1 | GREASE | 169,36 Lei | |
| 800 | 93488-00 | 1 | GREASE DW704 TYPE 3 | 96,56 Lei | |
| 857 | N500157 | 1 | ADAPTOR SA | 570,96 Lei | |
| 867 | N462141 | 1 | SAFETY CAP | 41,93 Lei |
