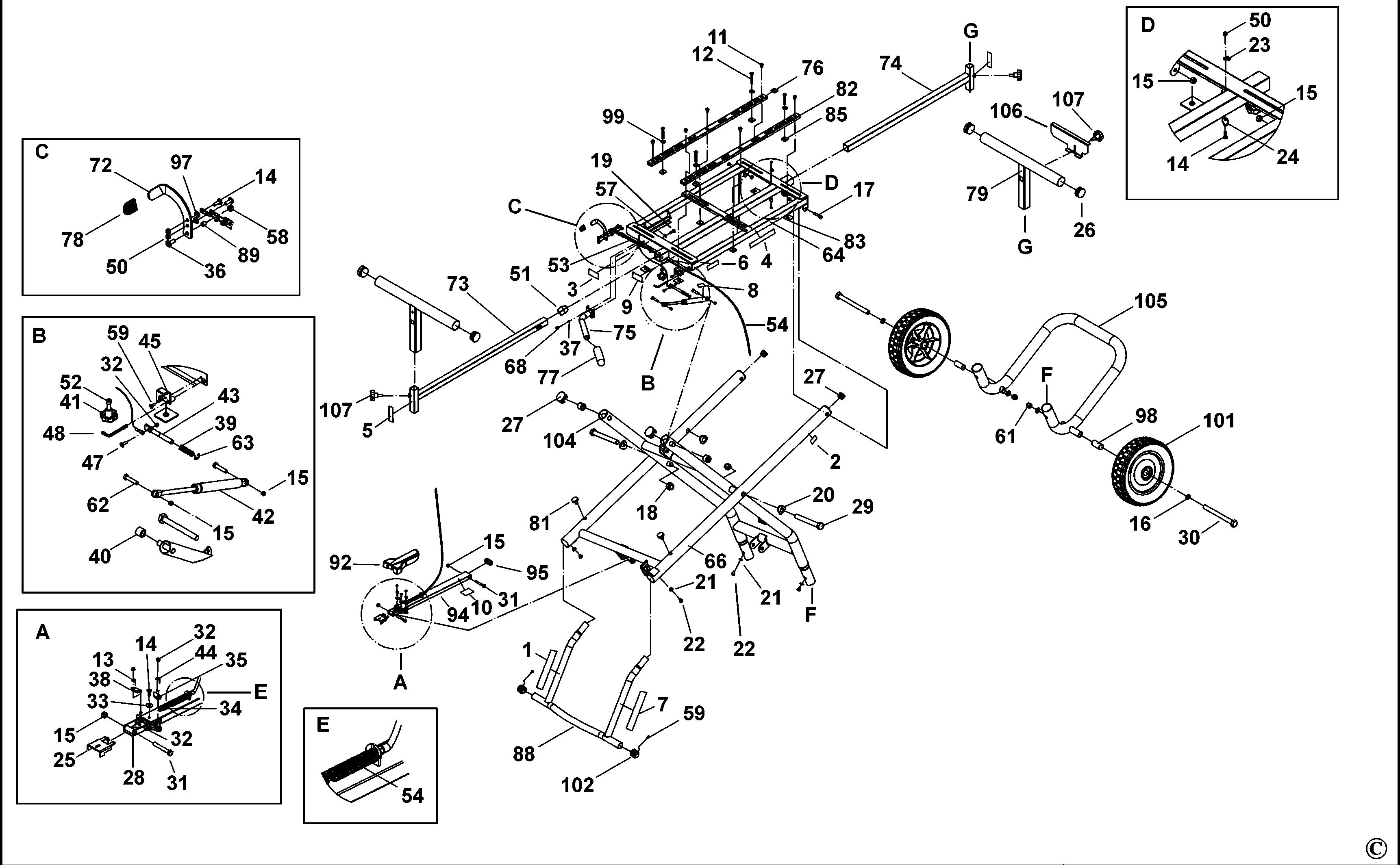

DEWALT FOLDING STAND (Type 1)
SKU Produs: DE7260 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N567279 | 2 | WARNING LABEL | 6,23 Lei | |
| 3 | N567280 | 1 | LABEL | 10,29 Lei | |
| 4 | N116780 | 1 | LABEL | 5,21 Lei | |
| 6 | N567274 | 1 | LABEL | 6,23 Lei | |
| 8 | N116784 | 1 | WARNING LABEL | 5,21 Lei | |
| 9 | N116542 | 1 | IDENTITY LABEL | 5,21 Lei | |
| 10 | N594646 | 1 | RATING PLATE | 10,29 Lei | |
| 11 | N474586 | 6 | SCREW | 4,57 Lei | |
| 12 | N474591 | 4 | SCREW | 7,37 Lei | |
| 13 | N476133 | 1 | SPRING LH | 4,57 Lei | |
| 14 | N477168 | 5 | SPRING | 4,57 Lei | |
| 15 | N477172 | 6 | LOCK-NUT | 4,57 Lei | |
| 16 | N476177 | 4 | WASHER | 4,57 Lei | |
| 17 | N476091 | 2 | BOLT | 7,37 Lei | |
| 18 | N476105 | 2 | NUT | 6,23 Lei | |
| 19 | N476148 | 1 | SCREW | 6,23 Lei | |
| 20 | N476104 | 4 | WASHER | 5,21 Lei | |
| 21 | N476174 | 4 | WASHER | 4,57 Lei | |
| 22 | N476173 | 4 | SCREW | 4,57 Lei | |
| 23 | N479435 | 2 | SPRING LH | 4,57 Lei | |
| 24 | N474580 | 2 | STOP | 7,37 Lei | |
| 25 | N476131 | 1 | PLATE | 25,54 Lei | |
| 26 | N476161 | 2 | END CAP | 6,23 Lei | |
| 27 | N476120 | 4 | END CAP | 12,71 Lei | |
| 28 | N476128 | 1 | BRACKET | 57,81 Lei | |
| 29 | N476103 | 2 | BOLT | 25,54 Lei | |
| 30 | N476176 | 2 | BOLT | 25,54 Lei | |
| 31 | N476138 | 2 | SCREW | 8,64 Lei | |
| 32 | N477170 | 4 | NUT | 4,57 Lei | |
| 33 | N476132 | 1 | WASHER | 4,57 Lei | |
| 34 | N476136 | 1 | SPRING | 12,71 Lei | |
| 35 | N476135 | 1 | STOP LH | 7,37 Lei | |
| 36 | N474572 | 1 | SCREW | 4,57 Lei | |
| 37 | N476151 | 1 | WASHER | 4,57 Lei | |
| 38 | N476134 | 1 | STOP RH | 7,37 Lei | |
| 39 | N474577 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 40 | N476102 | 2 | SPACER | 4,57 Lei | |
| 41 | N476140 | 2 | LOCK KNOB | 30,87 Lei | |
| 42 | N474583 | 1 | PISTON | 145,09 Lei | |
| 43 | N474576 | 1 | LOCKING PIN | 19,95 Lei | |
| 44 | N477171 | 1 | SPRING RH | 4,57 Lei | |
| 45 | N474566 | 1 | INSERT | 7,37 Lei | |
| 47 | N474579 | 1 | SCREW | 4,57 Lei | |
| 48 | N474567 | 1 | HEX KEY | 7,37 Lei | |
| 50 | N477169 | 1 | LOCK NUT | 4,57 Lei | |
| 51 | N476156 | 1 | END CAP | 13,85 Lei | |
| 52 | N476142 | 2 | NUT | 6,23 Lei | |
| 53 | N474575 | 1 | WIRE | 21,85 Lei | |
| 54 | N474571 | 1 | WIRE | 41,93 Lei | |
| 57 | N476149 | 1 | WASHER SPRING | 4,57 Lei | |
| 58 | N474573 | 1 | LOCK NUT | 4,57 Lei | |
| 59 | N477167 | 3 | SCREW | 4,57 Lei | |
| 61 | N476178 | 1 | LOCK NUT | 7,37 Lei | |
| 62 | N474584 | 2 | BOLT | 6,23 Lei | |
| 63 | N474578 | 1 | SPRING | 4,57 Lei | |
| 64 | N474216 | 1 | WORK STIFFENER ASSY | 570,96 Lei | |
| 66 | N476086 | 1 | OUTER SUPPORT FRAME ASSY | 240,38 Lei | |
| 68 | N476150 | 1 | SCREW | 4,57 Lei | |
| 72 | N474569 | 1 | RELEASE | 8,64 Lei | |
| 73 | N476154 | 1 | EXTENSION STAY INNER | 106,98 Lei | |
| 74 | N476152 | 1 | EXTENSION STAY OUTER | 106,98 Lei | |
| 75 | N476144 | 1 | HANDLE | 57,81 Lei | |
| 76 | N474587 | 4 | SLIDER | 6,23 Lei | |
| 77 | N476147 | 1 | RUBBER | 25,54 Lei | |
| 78 | N474570 | 1 | CAP | 7,37 Lei | |
| 79 | N476158 | 2 | SUPPORT | 88,55 Lei | |
| 81 | N476092 | 2 | RUBBER SEAL | 6,23 Lei | |
| 82 | N474585 | 2 | RAIL | 80,04 Lei | |
| 83 | N474588 | 4 | NUT | 7,37 Lei | |
| 85 | N474589 | 6 | NUT | 7,37 Lei | |
| 88 | N476166 | 1 | STABILISER | 240,38 Lei | |
| 89 | N474568 | 1 | COLLAR | 21,85 Lei | |
| 92 | N476139 | 1 | COVER | 34,05 Lei | |
| 94 | N476122 | 1 | FRAME | 96,56 Lei | |
| 95 | N476137 | 1 | CAP | 6,23 Lei | |
| 97 | N474574 | 2 | WASHER | 4,57 Lei | |
| 98 | N476179 | 2 | BUSH | 12,71 Lei | |
| 99 | N474590 | 4 | WASHER | 4,57 Lei | |
| 101 | N576963 | 2 | WHEEL | 225,26 Lei | |
| 102 | N476169 | 2 | CAP | 37,73 Lei | |
| 104 | N476093 | 1 | INNER SUPPORT TUBE ASSY | 300,47 Lei | |
| 105 | N476170 | 1 | FRAME | 181,55 Lei | |
| 106 | N476162 | 1 | SUPPORT PLATE | 57,81 Lei | |
| 107 | N476163 | 3 | KNOB | 30,87 Lei |
