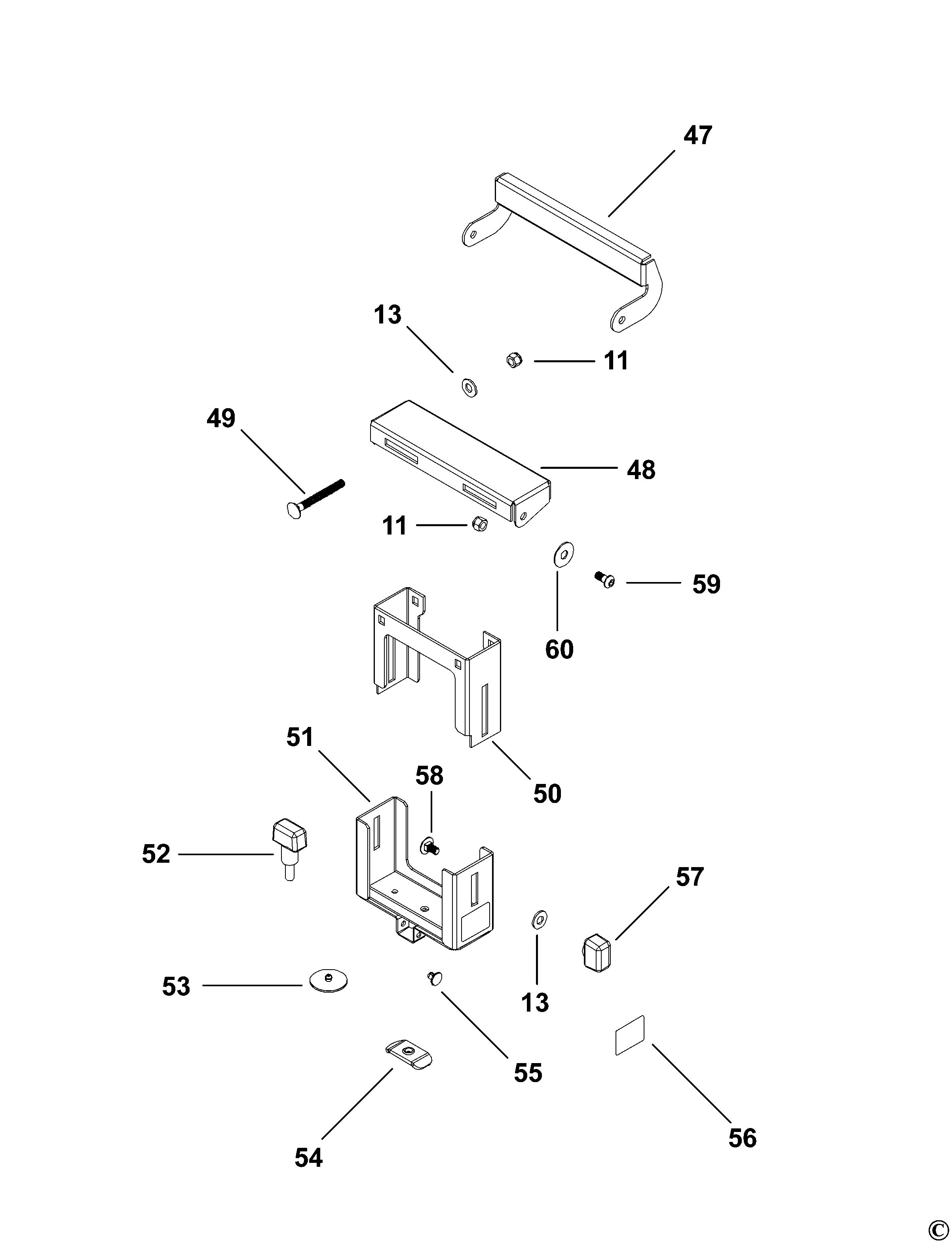

DEWALT SUPPORT TABLE (Type 3)
SKU Produs: DE7029 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 11 | 330021-01 | 4 | NUT, 6KT M6 ISO7040 | 17,4 Lei | |
| 13 | N087248 | 4 | WASHER | 6,4 Lei | |
| 47 | N090263 | 1 | STOP PLATE | 205,7 Lei | |
| 48 | N090261 | 1 | SUPPORT PLATE | 161,6 Lei | |
| 49 | N087382 | 2 | CARRIAGE BOLT | 7,5 Lei | |
| 50 | N087377 | 1 | SUPPORT BRACKET | 26,1 Lei | |
| 51 | N087402 | 1 | BASE BRACKET | 109,5 Lei | |
| 52 | N087376 | 1 | KNOB | 22,4 Lei | |
| 53 | N087374 | 2 | PLASTIC INSERT | 6,4 Lei | |
| 54 | N087375 | 1 | BAR LOCKING | 15,5 Lei | |
| 55 | N087373 | 4 | PLASTIC INSERT | 6,4 Lei | |
| 56 | N217782 | 1 | RATING PLATE | 4,7 Lei | |
| 57 | N087378 | 2 | KNOB | 17,4 Lei | |
| 58 | N087380 | 2 | SCREW | 7,5 Lei | |
| 59 | N087390 | 2 | SCREW | 6,4 Lei | |
| 60 | N087392 | 2 | WASHER PLASTIC | 22,4 Lei |
