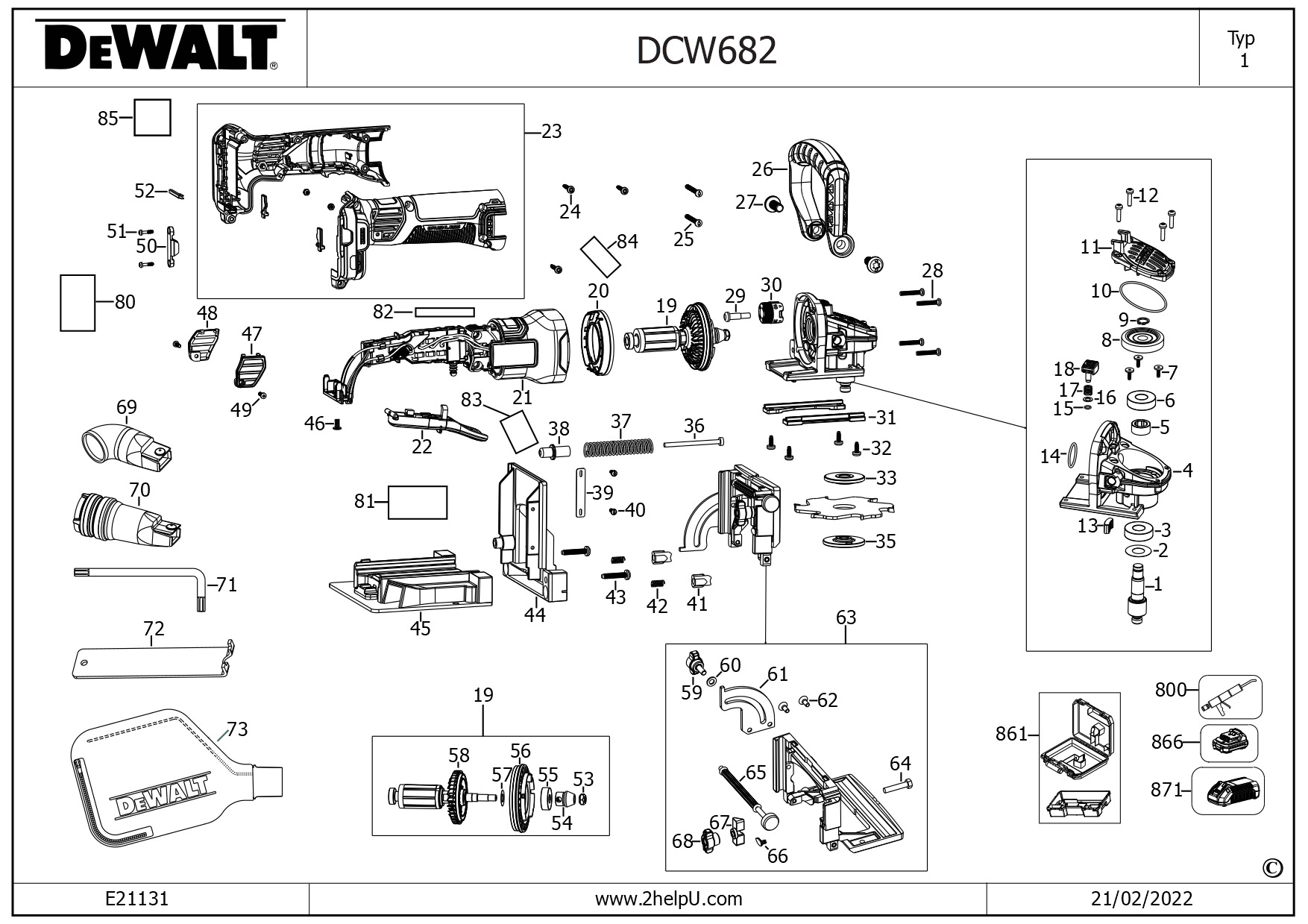

DEWALT JOINTER GROOVER (Type 1)
SKU Produs: DCW682P2 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N863872 | 1 | SPINDLE | 34,05 Lei | |
| 2 | 638229-00 | 1 | SLINGER | 4,57 Lei | |
| 3 | N150961 | 1 | BEARING | 15,12 Lei | |
| 4 | N863859 | 1 | GEARCASE | 130,35 Lei | |
| 5 | N095815 | 1 | SLEEVE | 5,21 Lei | |
| 6 | N150961 | 1 | BEARING | 15,12 Lei | |
| 7 | N118088 | 3 | SCREW , SHOULDER M3X0,5 | 4,57 Lei | |
| 8 | N153126 | 1 | Gear | 25,54 Lei | |
| 9 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 10 | N094024 | 1 | O RING | 4,57 Lei | |
| 11 | N116180 | 1 | GEARCASE COVER | 5,21 Lei | |
| 12 | N122904 | 4 | SCREW M3 5X0,6 | 4,57 Lei | |
| 13 | N489769 | 1 | PLUG | 4,57 Lei | |
| 14 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 15 | N094012 | 1 | O RING | 4,57 Lei | |
| 16 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 17 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 18 | N181767 | 1 | SPINDLE LOCK | 15,12 Lei | |
| 20 | N478435 | 1 | BAFFLE ARES | 5,21 Lei | |
| 21 | NA146296 | 1 | MOTOR SA | 1262,37 Lei | |
| 22 | N471601 | 1 | PADDLE | 15,5 Lei | |
| 23 | NA152438 | 1 | HANDLE SA | 399,45 Lei | |
| 24 | 330019-04 | 3 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 25 | 330065-33 | 2 | SCREW M4X34 T15 | 4,57 Lei | |
| 26 | N863904 | 1 | HANDLE | 25,54 Lei | |
| 27 | 330045-32 | 2 | SCREW | 5,21 Lei | |
| 28 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 29 | 147791-00 | 1 | SCREW | 4,57 Lei | |
| 30 | NA033471 | 1 | DEPTH STOP | 25,54 Lei | |
| 31 | 147736-01 | 2 | PAD | 8,64 Lei | |
| 32 | 330045-05 | 4 | SCREW.TEMP | 4,57 Lei | |
| 33 | 147725-00 | 1 | WASHER | 21,85 Lei | |
| 35 | 151001-00 | 1 | NUT | 19,95 Lei | |
| 36 | 147759-00 | 1 | SHAFT | 7,37 Lei | |
| 37 | 147758-00 | 1 | SPRING | 7,37 Lei | |
| 38 | 147785-00 | 1 | GUIDE | 7,37 Lei | |
| 39 | 147797-01 | 1 | SCALE | 13,85 Lei | |
| 40 | 330045-43 | 2 | SCREW TAPTITE | 4,57 Lei | |
| 41 | 147753-00 | 2 | PIN | 7,37 Lei | |
| 42 | 147809-00 | 2 | SPRING | 4,57 Lei | |
| 43 | 330045-16 | 2 | Screw Metal | 4,57 Lei | |
| 44 | 147741-00 | 1 | SUPPORT | 106,98 Lei | |
| 45 | NA134292 | 1 | BASE SA | 225,26 Lei | |
| 46 | NA105798 | 1 | TERMINAL BLOCK | 15,12 Lei | |
| 47 | N493572 | 1 | SA VENT COVER RIGHT | 13,85 Lei | |
| 48 | N493573 | 1 | SA VENT COVER LEFT | 13,85 Lei | |
| 49 | N042665 | 2 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 50 | N787996 | 1 | INSERT | 4,57 Lei | |
| 51 | N831593 | 2 | SCREW | 4,57 Lei | |
| 52 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 53 | 604484-00 | 1 | NUT M6 | 4,57 Lei | |
| 54 | N153125 | 1 | PINION | 17,02 Lei | |
| 55 | N214432 | 1 | BEARING | 7,37 Lei | |
| 56 | N478436 | 1 | STATOR | 7,37 Lei | |
| 57 | N213812 | 1 | WASHER | 4,57 Lei | |
| 58 | N885205 | 1 | ROTOR SA | 331,47 Lei | |
| 59 | NA034028 | 1 | KNOB | 7,37 Lei | |
| 60 | 330016-07 | 1 | WASHER | 4,57 Lei | |
| 61 | 147795-00 | 1 | QUADRANT | 21,85 Lei | |
| 62 | 098102-10 | 1 | SCREW, FLAT HEAD | 5,21 Lei | |
| 63 | NA169873 | 1 | FENCE SA | 318,26 Lei | |
| 64 | 098022-25 | 1 | SCREW | 4,57 Lei | |
| 65 | 147745-00SV | 1 | PINION | 106,98 Lei | |
| 66 | 147737-00 | 1 | POINTER | 4,57 Lei | |
| 67 | 147749-00 | 1 | CLAMP | 6,23 Lei | |
| 68 | NA034029 | 1 | KNOB | 7,37 Lei | |
| 69 | 151002-00 | 1 | DUST DEFLECTOR | 19,95 Lei | |
| 70 | NA039653 | 1 | DUST PORT | 8,64 Lei | |
| 71 | 152693-00 | 1 | KEY | 8,64 Lei | |
| 72 | 445871-00 | 1 | SPANNER | 13,85 Lei | |
| 73 | N126162 | 1 | DUST BAG | 41,93 Lei | |
| 80 | NA134475 | 1 | LABEL | 13,85 Lei | |
| 81 | NA134480 | 1 | RATING PLATE | 10,29 Lei | |
| 82 | NA134471 | 1 | IDENTITY LABEL | 8,64 Lei | |
| 83 | NA134482 | 1 | LABEL | 12,71 Lei | |
| 84 | NA134484 | 1 | LABEL | 5,21 Lei | |
| 85 | NA134485 | 1 | LABEL | 5,21 Lei | |
| 800 | 286436-00 | 1 | RHEOLUBE 380 | 776,53 Lei | |
| 861 | N475700 | 1 | KITBOX | 145,09 Lei | |
| 861 | NA086054 | 1 | KITBOX | 240,38 Lei | |
| 866 | N394624 | 2 | BATTERY 18V -5.0AH -90WH | 819,98 Lei |
