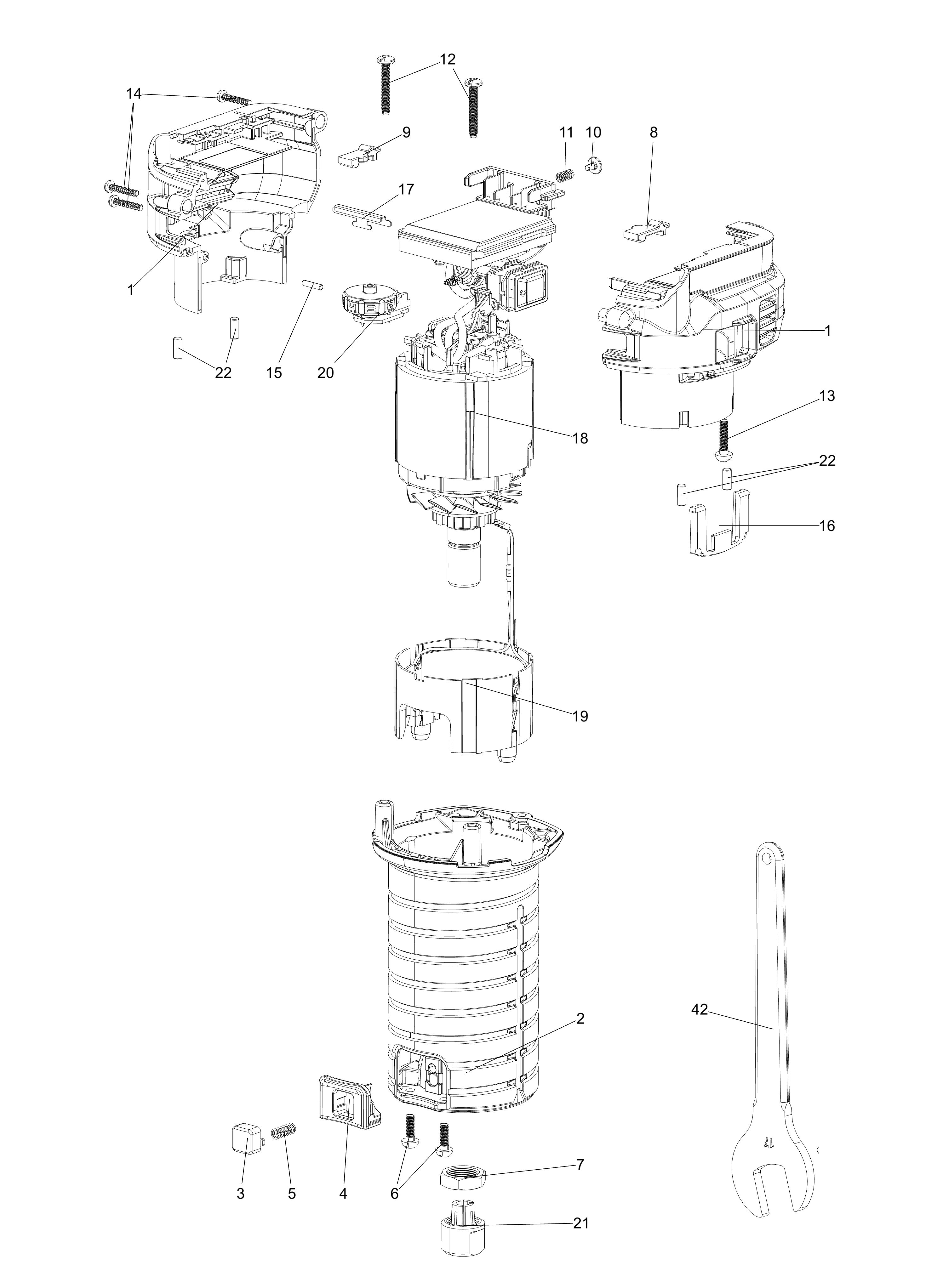

DEWALT ROUTER Type 1
SKU Produs: DCW600N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N567094 | 1 | HOUSING SA | 30,87 Lei | |
| 2 | N661051 | 1 | HOUSING MOTOR | 157,92 Lei | |
| 3 | N038183 | 1 | LOCK BUTTON | 5,21 Lei | |
| 4 | A26131 | 1 | INSERT | 5,21 Lei | |
| 5 | A23489 | 1 | SPRING | 4,57 Lei | |
| 6 | 330065-06 | 2 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 7 | A25248 | 1 | NUT | 13,85 Lei | |
| 8 | N239160 | 1 | BUMPER FOR FOOT COVER | 4,7 Lei | |
| 8 | N728008 | 1 | BUMPER | 4,57 Lei | |
| 9 | N239159 | 1 | BUMPER FOR FOOT ASSY | 4,7 Lei | |
| 9 | N728006 | 1 | BUMPER | 4,57 Lei | |
| 10 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 11 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 12 | 330045-08 | 2 | SCREW | 4,57 Lei | |
| 13 | 330065-07 | 1 | SCREW | 4,57 Lei | |
| 14 | 682211-00 | 3 | SCREW, PLASTITE | 4,57 Lei | |
| 15 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 16 | N569455 | 1 | CLIP | 4,57 Lei | |
| 17 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 18 | NA186171 | 1 | MOTOR SA | 1158,31 Lei | |
| 19 | N580684 | 1 | LED LIGHT | 80,04 Lei | |
| 20 | N550971 | 1 | WHEEL SPEED | 41,93 Lei | |
| 21 | A28462SV | 1 | COLLET | 181,55 Lei | |
| 21 | N693118 | 1 | COLLET ASSEMBLY | 169,36 Lei | |
| 22 | N703257 | 4 | PIN | 4,57 Lei | |
| 23 | N742993 | 1 | HOUSING SA | 530,69 Lei | |
| 24 | N591239 | 1 | COVER | 21,85 Lei | |
| 25 | A23587 | 1 | SCALE | 8,64 Lei | |
| 26 | N042079 | 2 | PIN | 4,57 Lei | |
| 27 | A24452 | 1 | PIN | 6,23 Lei | |
| 28 | A24764 | 1 | ADJUSTER | 19,95 Lei | |
| 29 | 330022-18 | 1 | SCREW | 5,21 Lei | |
| 30 | A24767 | 1 | PAD | 12,71 Lei | |
| 31 | A24771 | 1 | CLAMPING BAR | 17,02 Lei | |
| 32 | A24770 | 1 | PIN | 5,21 Lei | |
| 33 | A27362 | 1 | SPRING | 15,12 Lei | |
| 34 | N028373 | 1 | RETAINER | 4,57 Lei | |
| 35 | A27941 | 1 | BASEPLATE | 19,95 Lei | |
| 36 | N029178 | 4 | SCREW | 4,57 Lei | |
| 37 | N587924 | 4 | PIN | 4,57 Lei | |
| 38 | N693104 | 1 | ADJUSTER HEIGHT | 96,56 Lei | |
| 39 | A28678SV | 1 | ADAPTOR | 181,55 Lei | |
| 40 | N092764 | 1 | BASE SA | 30,87 Lei | |
| 41 | N026733 | 1 | GUIDE SA | 52,22 Lei | |
| 42 | A27895 | 1 | WRENCH SPECIAL | 34,05 Lei | |
| 700 | N589072 | 1 | RATING PLATE | 4,57 Lei | |
| 701 | N589073 | 1 | WARNING LABEL | 4,5 Lei | |
| 702 | N589075 | 1 | WARNING LABEL | 4,57 Lei | |
| 703 | N589077 | 1 | BRAND LABEL | 4,57 Lei | |
| 704 | N589078 | 1 | LABEL | 4,57 Lei |
