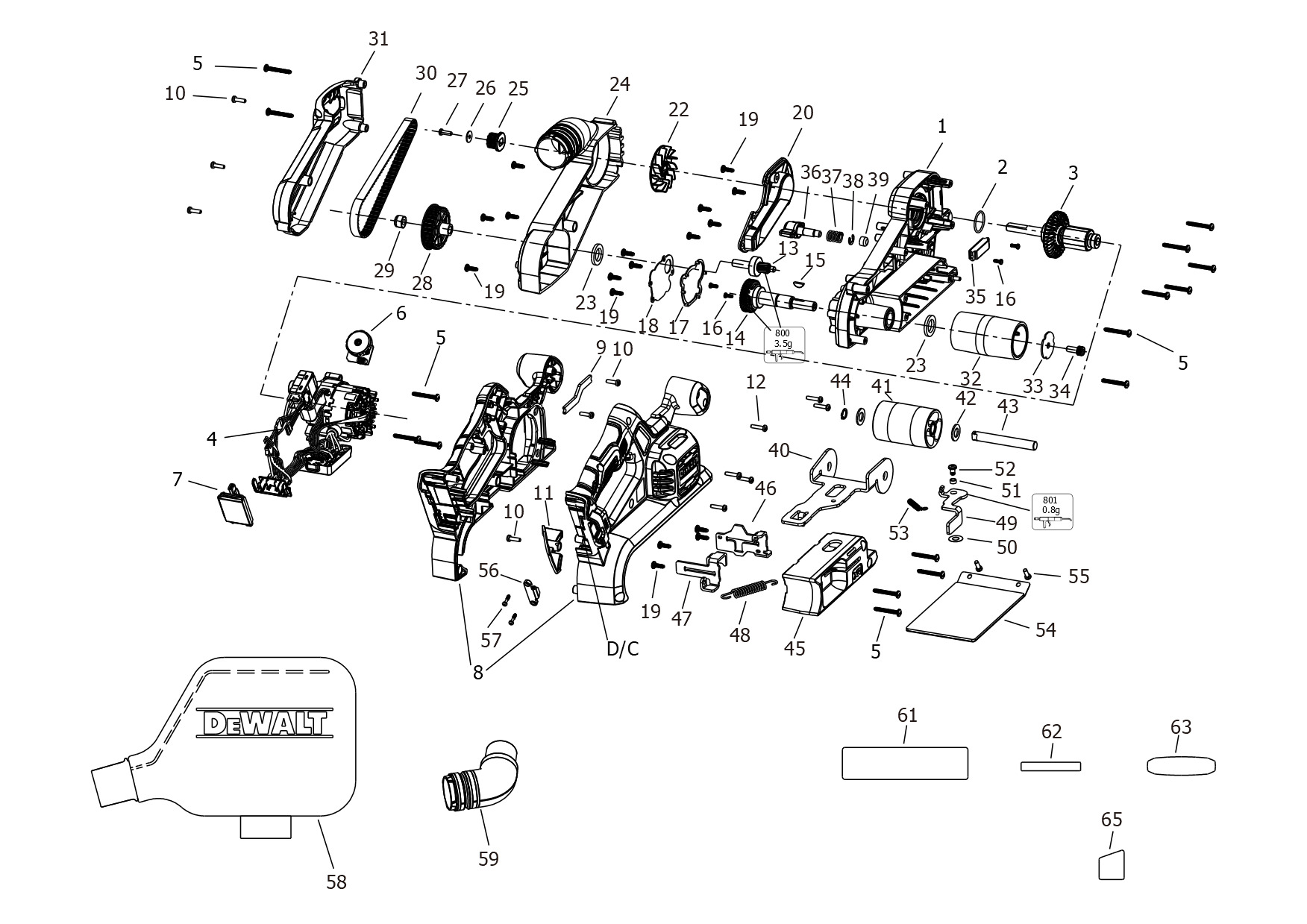

DEWALT BELT SANDER (Type 1)
SKU Produs: DCW220N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | NA255980 | 1 | GEARCASE SA | 218,19 Lei | |
| 2 | N119639 | 1 | O RING ,RUBBER | 4,57 Lei | |
| 3 | NA255981 | 1 | ROTOR SA | 186,17 Lei | |
| 4 | NA258250 | 1 | STATOR SA | 620,13 Lei | |
| 5 | 330045-09 | 16 | SCREW, METAL THREAD FORM M4 X 30 T20 | 4,57 Lei | |
| 6 | NA048819 | 1 | DIAL PLATE | 34,65 Lei | |
| 7 | NA162518 | 1 | PCB SA | 99,86 Lei | |
| 8 | NA187796 | 1 | HOUSING SA | 99,86 Lei | |
| 9 | NA150762 | 1 | BRACKET | 5,15 Lei | |
| 10 | 330019-02 | 6 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 11 | NA118353 | 1 | BAFFLE | 3,78 Lei | |
| 12 | 330019-03 | 6 | Screw M3.5X16 T15 | 4,57 Lei | |
| 13 | NA255983 | 1 | GEAR & SHAFT | 58,17 Lei | |
| 14 | NA255984 | 1 | GEAR & SHAFT | 119,91 Lei | |
| 15 | NA005986 | 1 | WOODRUFF KEY | 11,45 Lei | |
| 16 | 330045-43 | 4 | SCREW TAPTITE | 4,57 Lei | |
| 17 | NA147483 | 1 | GASKET | 5,15 Lei | |
| 18 | NA005994 | 1 | COVER | 5,15 Lei | |
| 19 | 330045-45 | 17 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 20 | N920074 | 1 | BAFFLE | 10,5 Lei | |
| 22 | NA273130 | 1 | FAN | 7,14 Lei | |
| 23 | NA091406 | 2 | FELT SEAL | 4,31 Lei | |
| 24 | N911167 | 1 | COVER LH | 25,52 Lei | |
| 25 | N913014 | 1 | PULLEY SA | 5,15 Lei | |
| 26 | NA262558 | 1 | WASHER | 3,78 Lei | |
| 27 | NA048473 | 1 | SCREW | 3,78 Lei | |
| 28 | NA005991 | 1 | PULLEY | 28,14 Lei | |
| 29 | N549053 | 1 | NUT | 4,57 Lei | |
| 30 | N880479 | 1 | BELT | 43,16 Lei | |
| 31 | N911170 | 1 | BELT COVER | 16,49 Lei | |
| 32 | N911726 | 1 | DRIVE ROLLER | 66,15 Lei | |
| 33 | NA005989 | 1 | PLATE | 3,78 Lei | |
| 34 | 641208-00 | 1 | SCREW | 3,78 Lei | |
| 35 | NA006025 | 1 | PLATE | 16,49 Lei | |
| 36 | NA006007 | 1 | KNOB | 14,07 Lei | |
| 37 | NA006005 | 1 | SPRING | 3,78 Lei | |
| 38 | NA089076 | 1 | LOCKING RING | 3,78 Lei | |
| 39 | NA071738 | 1 | CAP | 3,78 Lei | |
| 40 | NA006014 | 1 | BRACKET | 34,65 Lei | |
| 41 | NA255985 | 1 | ROLLER SA | 88,41 Lei | |
| 42 | N506930 | 2 | WASHER | 4,57 Lei | |
| 43 | NA006016 | 1 | SHAFT | 16,49 Lei | |
| 44 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 45 | NA006003 | 1 | COVER | 79,8 Lei | |
| 46 | NA048300 | 1 | FRONT BRACKET | 14,07 Lei | |
| 47 | NA064063 | 1 | SUPPORT PLATE | 12,5 Lei | |
| 48 | NA006361 | 1 | SPRING | 4,31 Lei | |
| 49 | NA006020 | 1 | LEVER | 11,45 Lei | |
| 50 | NA079157 | 1 | WASHER | 3,78 Lei | |
| 51 | NA006022 | 1 | SLEEVE | 5,15 Lei | |
| 52 | N506853 | 1 | SCREW | 4,57 Lei | |
| 53 | NA006363 | 1 | SPRING | 3,78 Lei | |
| 54 | NA255986 | 1 | COVER | 34,65 Lei | |
| 55 | N510972 | 2 | SCREW | 3,78 Lei | |
| 56 | N787996 | 1 | INSERT | 4,57 Lei | |
| 57 | N831593 | 2 | SCREW | 4,57 Lei | |
| 59 | NA278256 | 1 | CONNECTOR | 11,45 Lei | |
| 61 | NA168673 | 1 | RATING LABEL | 4,31 Lei | |
| 62 | NA168675 | 1 | IDENTITY LABEL | 3,78 Lei | |
| 63 | NA164445 | 1 | LABEL | 3,78 Lei | |
| 65 | NA180184 | 1 | LABEL | 3,78 Lei | |
| 800 | 808386-00 | 1 | GREASE 100 GMS | 190,3 Lei | |
| 801 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei |
