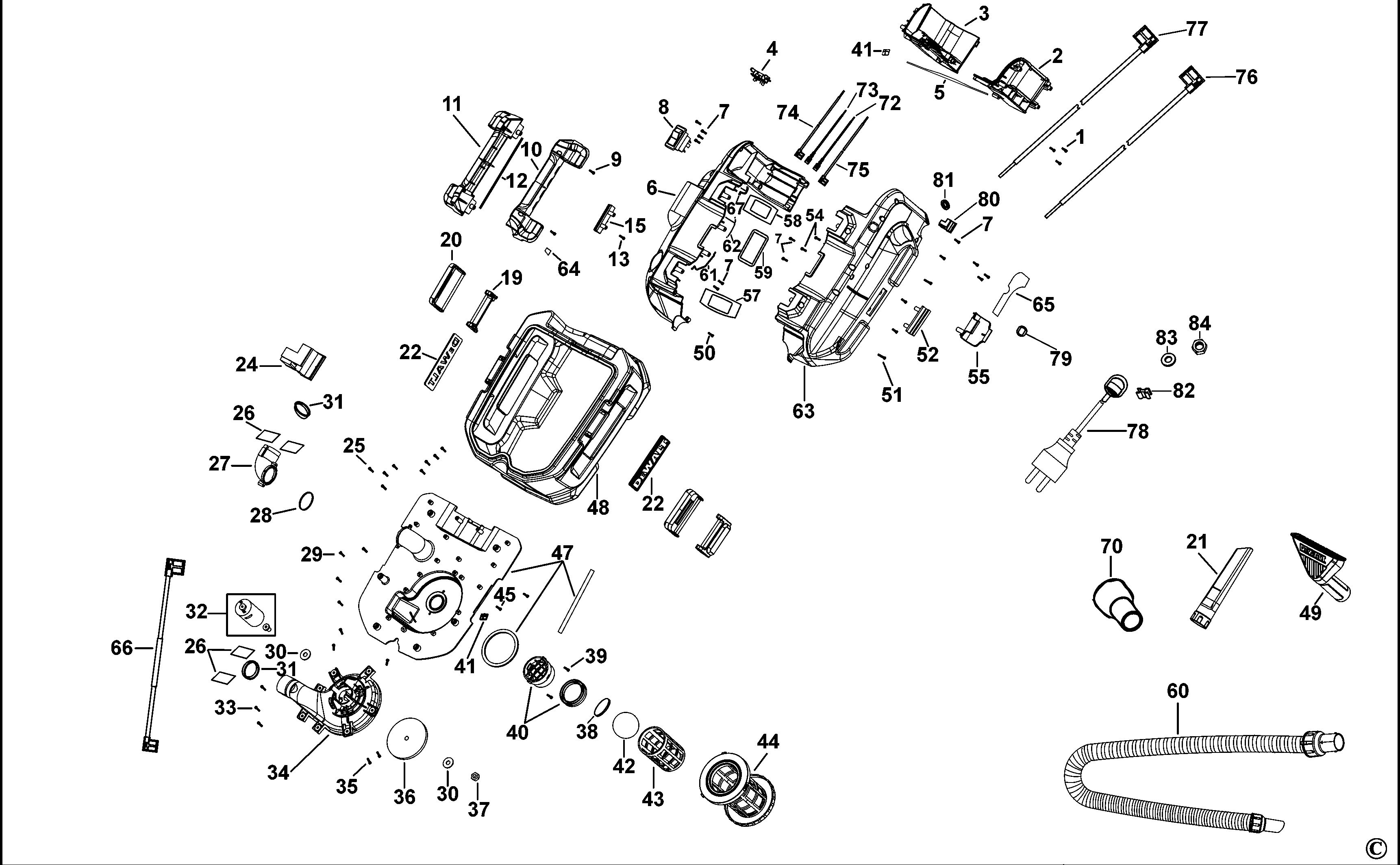

DEWALT WET DRY VACUUM (Type 1)
SKU Produs: DCV582 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 1004693-76 | 3 | SCREW | 4,57 Lei | |
| 2 | 1004693-77 | 1 | HOUSING LH | 21,85 Lei | |
| 3 | 1004693-78 | 1 | HOUSING RH | 21,85 Lei | |
| 4 | 5140128-32 | 1 | TERMINAL BLOCK | 17,02 Lei | |
| 5 | 1004694-33 | 1 | SEAL | 6,23 Lei | |
| 6 | 5140128-34 | 1 | CLAMSHELL RH | 130,35 Lei | |
| 7 | 5140128-35 | 19 | SCREW | 5,21 Lei | |
| 8 | 1004693-82 | 1 | SWITCH | 57,81 Lei | |
| 9 | 5140128-36 | 5 | SCREW | 4,57 Lei | |
| 10 | 5140136-86 | 1 | HANDLE LH | 25,54 Lei | |
| 11 | 5140136-87 | 1 | HANDLE RH | 30,87 Lei | |
| 12 | 1004694-34 | 2 | SEAL | 4,57 Lei | |
| 13 | 5140128-35 | 4 | SCREW | 5,21 Lei | |
| 15 | 5140128-39 | 1 | INSERT | 8,64 Lei | |
| 19 | 5140128-40 | 2 | LATCH | 13,85 Lei | |
| 20 | 5140128-41 | 2 | LATCH | 12,71 Lei | |
| 21 | N195974 | 1 | TOOL CREVICE | 13,85 Lei | |
| 22 | 5140128-43 | 2 | BRAND LABEL | 17,02 Lei | |
| 26 | 1004694-43 | 1 | SEAL | 19,95 Lei | |
| 27 | 5140136-89 | 1 | DEFLECTOR | 13 Lei | |
| 28 | 5140128-46 | 1 | O RING | 4,57 Lei | |
| 30 | 5140128-47 | 2 | WASHER | 4,57 Lei | |
| 31 | 1004694-35 | 2 | SEAL | 5,21 Lei | |
| 32 | 1004694-31 | 1 | MOTOR SA | 130,35 Lei | |
| 33 | 5140128-49 | 7 | SCREW | 6,23 Lei | |
| 34 | 5140136-90 | 1 | HOLDER | 34,05 Lei | |
| 35 | 5140128-51 | 2 | SCREW | 4,57 Lei | |
| 36 | 1004694-02 | 1 | FAN | 19,95 Lei | |
| 37 | 1004694-03 | 1 | NUT | 4,57 Lei | |
| 38 | 1004694-36 | 1 | FILTER | 4,57 Lei | |
| 39 | 5140128-53 | 2 | SCREW | 4,57 Lei | |
| 40 | 1004694-04 | 1 | SUPPORT SA | 17,02 Lei | |
| 41 | 1004694-37 | 2 | HOLDER | 7,37 Lei | |
| 42 | 5140128-55 | 1 | FLOAT | 30,87 Lei | |
| 43 | 5140128-56 | 1 | CAGE | 15,12 Lei | |
| 44 | N199372 | 1 | FILTER SA | 169,36 Lei | |
| 45 | 5140128-58 | 2 | SCREW | 4,57 Lei | |
| 47 | 5140136-92 | 1 | BASE SA | 130,35 Lei | |
| 48 | 5140128-60 | 1 | TANK | 225,26 Lei | |
| 49 | N195953 | 1 | NOZZLE | 19,95 Lei | |
| 50 | 5140128-62 | 5 | SCREW | 5,21 Lei | |
| 52 | 5140128-63 | 1 | INSERT | 7,5 Lei | |
| 54 | 1004694-16 | 2 | SCREW | 5,21 Lei | |
| 55 | 5140128-64 | 1 | CLIP | 7,37 Lei | |
| 57 | 1004694-38 | 2 | SEAL | 4,57 Lei | |
| 58 | 1004694-39 | 2 | SEAL | 6,23 Lei | |
| 59 | 1004694-40 | 1 | SEAL | 4,57 Lei | |
| 60 | 5140128-68 | 1 | HOSE SA | 80,04 Lei | |
| 61 | 1004696-54 | 1 | SEAL | 4,57 Lei | |
| 62 | 1004696-55 | 1 | SEAL | 4,57 Lei | |
| 63 | 1004696-57 | 1 | CLAMSHELL LH | 96,56 Lei | |
| 64 | N244354 | 1 | LABEL | 5,21 Lei | |
| 66 | 5140128-76 | 1 | LEAD SA | 25,54 Lei | |
| 67 | 1004696-56 | 1 | SEAL | 4,57 Lei | |
| 70 | N425459 | 1 | ADAPTOR | 6,23 Lei | |
| 70 | N425498 | 1 | RATING PLATE | 4,57 Lei | |
| 72 | 1004694-20 | 1 | LEADWIRE | 7,37 Lei | |
| 73 | 1004694-21 | 1 | LEADWIRE | 7,37 Lei | |
| 74 | 1004694-22 | 1 | LEADWIRE | 10,5 Lei | |
| 75 | 1004694-23 | 1 | LEADWIRE | 10,5 Lei | |
| 76 | 1004694-24 | 1 | LEAD BROWN | 15,5 Lei | |
| 77 | 1004694-25 | 1 | LEAD BLUE | 15,5 Lei | |
| 78 | 1004694-27 | 1 | CORDSET (EURO) | 52,22 Lei | |
| 79 | 1004696-58 | 1 | BUSHING | 4,57 Lei | |
| 80 | 1004694-32 | 1 | PCB SA | 584,2 Lei | |
| 81 | 1004694-41 | 1 | PROTECTOR | 7,37 Lei | |
| 82 | 1004694-42 | 1 | CORD CLAMP | 4,57 Lei | |
| 83 | 1004696-59 | 1 | SHIM | 5,21 Lei | |
| 84 | 1004696-60 | 1 | NUT | 5,21 Lei |
