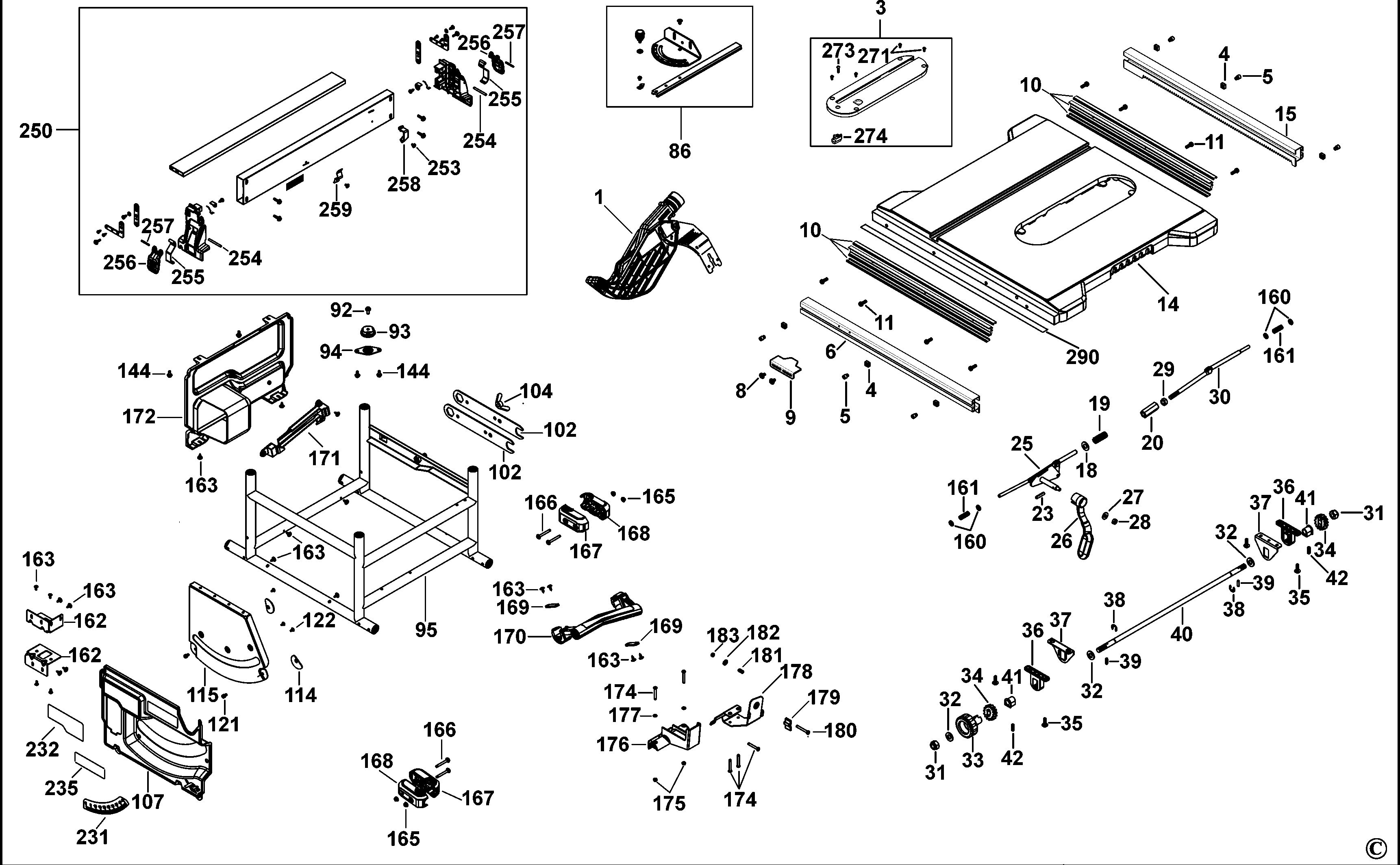

DEWALT TABLE SAW (Type 3)
SKU Produs: DCS7485N /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N475526 | 1 | GUARD SA | 318,26 Lei | |
| 2 | 1004549-04 | 1 | O RING | 4,57 Lei | |
| 3 | N459141 | 1 | PLATE SA | 157,92 Lei | |
| 4 | 5140032-03 | 6 | NUT M6 | 4,57 Lei | |
| 5 | 5140032-02 | 6 | PIN | 4,57 Lei | |
| 6 | N433458 | 1 | RAIL | 148,5 Lei | |
| 8 | 1004549-00 | 2 | SCREW.SPECIAL | 4,57 Lei | |
| 9 | 1004708-08 | 1 | INDICATOR | 17,02 Lei | |
| 10 | 5140179-60 | 2 | RAIL SA | 120,82 Lei | |
| 11 | 1002765-00 | 8 | SCREW.SPECIAL | 4,57 Lei | |
| 14 | N433468 | 1 | TABLE | 1262,37 Lei | |
| 15 | N433459 | 1 | RAIL | 157,92 Lei | |
| 17 | 5140179-65 | 1 | ROLL PIN | 7,37 Lei | |
| 18 | 5140032-15 | 1 | WASHER M8 | 4,57 Lei | |
| 19 | 5140134-75 | 1 | SPRING | 8,64 Lei | |
| 20 | 5140032-17 | 1 | ADJUSTER | 15,12 Lei | |
| 23 | 5140032-21 | 1 | PIN | 4,57 Lei | |
| 25 | 5140179-62 | 1 | SHAFT SA | 130,35 Lei | |
| 26 | N440620 | 1 | LOCK HANDLE | 25,54 Lei | |
| 27 | 5140032-24 | 1 | WASHER M6 | 4,57 Lei | |
| 28 | 5140032-25 | 1 | NUT M6 | 4,57 Lei | |
| 29 | 429901-00 | 1 | LOCK NUT | 4,57 Lei | |
| 30 | 1004708-11 | 1 | SHAFT SA | 41,93 Lei | |
| 31 | 429901-00 | 2 | LOCK NUT | 4,57 Lei | |
| 32 | 5140032-27 | 3 | WASHER M10 | 4,57 Lei | |
| 33 | 5140032-28 | 1 | FENCE KNOB | 17,02 Lei | |
| 34 | 5140032-29 | 2 | PINION GEAR | 13,85 Lei | |
| 35 | 1002767-00 | 4 | SCREW.SPECIAL | 4,57 Lei | |
| 36 | 5140032-31 | 2 | BRACKET | 10,29 Lei | |
| 37 | 5140118-01 | 2 | GUARD | 57,81 Lei | |
| 38 | 5140032-33 | 2 | LOCKING RING | 4,57 Lei | |
| 39 | 5140032-34 | 2 | PIN | 4,57 Lei | |
| 40 | N697158 | 1 | SHAFT | 34,05 Lei | |
| 41 | 5140032-36 | 2 | BEARING BLOCK | 6,23 Lei | |
| 42 | 5140032-37 | 2 | SPRING | 4,57 Lei | |
| 48 | 5140179-71 | 1 | GUARD | 21,85 Lei | |
| 49 | 1002769-00 | 4 | SCREW.SPECIAL | 7,37 Lei | |
| 51 | 5140135-60 | 3 | SCREW.SPECIAL | 4,57 Lei | |
| 53 | 1004549-07 | 1 | WHEEL SA | 41,93 Lei | |
| 54 | N434678 | 1 | SHAFT | 37,73 Lei | |
| 55 | 5140032-50 | 1 | KEY | 4,57 Lei | |
| 56 | 5140118-05 | 1 | BEVEL GEAR | 15,12 Lei | |
| 57 | 5140032-52 | 1 | RING | 4,57 Lei | |
| 58 | 429898-00 | 1 | NUT | 4,57 Lei | |
| 59 | 1002773-00 | 1 | SCREW.SPECIAL | 4,57 Lei | |
| 60 | N436291 | 1 | HANDLE | 34,05 Lei | |
| 62 | 5140032-57 | 1 | WASHER LOCK | 7,37 Lei | |
| 64 | 1002774-00 | 1 | RING | 5,21 Lei | |
| 65 | 1002775-00 | 21 | SCREW.SPECIAL | 4,57 Lei | |
| 66 | 5140135-25 | 1 | BRACKET SA | 80,04 Lei | |
| 67 | 1002776-00 | 4 | SCREW.SPECIAL | 7,37 Lei | |
| 68 | N434812 | 1 | GUARD LOWER | 389,28 Lei | |
| 69 | 1002778-00 | 1 | WASHER PLASTIC | 5,21 Lei | |
| 70 | N434696 | 1 | GUARD | 17,02 Lei | |
| 71 | 5140135-30 | 1 | BRACKET SA | 80,04 Lei | |
| 72 | 1002779-00 | 2 | SCREW.SPECIAL | 7,37 Lei | |
| 77 | 429989-94 | 1 | NUT | 7,37 Lei | |
| 79 | N434670 | 1 | SHAFT | 41,93 Lei | |
| 80 | 5140032-72 | 2 | WASHER THRUST | 5,21 Lei | |
| 81 | 5140032-73 | 1 | BLOCK | 25,54 Lei | |
| 82 | N434666 | 1 | SHAFT | 34,05 Lei | |
| 83 | 5140032-75 | 1 | WASHER BOW | 4,57 Lei | |
| 84 | N434667 | 1 | SHAFT | 41,93 Lei | |
| 85 | 5140032-77 | 2 | PLATE | 4,57 Lei | |
| 86 | N435108 | 1 | MITRE FENCE | 200,99 Lei | |
| 92 | 5140135-74 | 4 | SCREW.SPECIAL | 4,57 Lei | |
| 93 | 5140032-84 | 4 | BUMPER | 4,57 Lei | |
| 94 | 5140032-85 | 4 | PLATE | 5,21 Lei | |
| 95 | N460151 | 1 | CAGE | 361,33 Lei | |
| 101 | N464191 | 1 | WASHER BOW | 21,85 Lei | |
| 102 | N436199 | 2 | SPANNER | 37,73 Lei | |
| 104 | 5140032-95 | 1 | WING NUT | 8,64 Lei | |
| 107 | N435982 | 1 | PANEL FRONT | 80,04 Lei | |
| 114 | N441179 | 2 | CAM | 8,64 Lei | |
| 115 | N442868 | 1 | SUPPORT PLATE | 120,82 Lei | |
| 120 | 5140135-17 | 2 | SCREW | 4,57 Lei | |
| 121 | 5140135-91 | 2 | SCREW | 6,23 Lei | |
| 122 | 5140135-89 | 3 | SCREW | 4,57 Lei | |
| 123 | 5140033-40 | 2 | DOWEL | 4,57 Lei | |
| 124 | 5140179-72 | 1 | PLATE | 12,71 Lei | |
| 126 | 5140179-69 | 1 | BAR | 15,12 Lei | |
| 129 | 1004695-90 | 1 | DUST PORT | 21,85 Lei | |
| 131 | 5140179-73 | 1 | PLATE | 6,23 Lei | |
| 132 | 5140179-70 | 1 | BAR | 15,12 Lei | |
| 133 | 5140179-68 | 1 | BAR | 25,54 Lei | |
| 137 | 5140033-42 | 2 | WASHER | 4,57 Lei | |
| 144 | N435910 | 28 | SCREW | 5,21 Lei | |
| 148 | 5140179-66 | 1 | SCREW.SPECIAL | 5,21 Lei | |
| 150 | N436310 | 1 | PLATE | 17,02 Lei | |
| 152 | N464932 | 1 | LOCK NUT | 5,21 Lei | |
| 160 | 5140135-36 | 4 | WASHER | 4,57 Lei | |
| 161 | 5140135-37 | 2 | SPRING | 4,57 Lei | |
| 162 | N452849 | 2 | BRACKET | 17,02 Lei | |
| 163 | 5140032-80 | 19 | SCREW | 4,57 Lei | |
| 164 | N437343 | 1 | GUARD | 25,54 Lei | |
| 165 | 5140095-74 | 8 | NUT M5 | 4,57 Lei | |
| 166 | 5140135-64 | 8 | SCREW.SPECIAL | 4,57 Lei | |
| 167 | N444103 | 4 | FOOT | 25,54 Lei | |
| 168 | N444104 | 4 | FOOT | 25,54 Lei | |
| 169 | N441177 | 2 | PLATE | 4,57 Lei | |
| 170 | N446306 | 1 | HANDLE | 88,55 Lei | |
| 171 | 5140179-76 | 1 | BRACKET | 21,85 Lei | |
| 172 | N437337 | 1 | PANEL | 106,98 Lei | |
| 173 | N434671 | 1 | COVER | 57,81 Lei | |
| 174 | 5140135-79 | 5 | SCREW | 4,57 Lei | |
| 175 | 5140032-13 | 2 | NUT M5 | 4,57 Lei | |
| 176 | N438026 | 1 | BRACKET | 41,93 Lei | |
| 177 | 1004708-12 | 2 | WASHER | 4,57 Lei | |
| 178 | N450979 | 1 | BRACKET | 57,81 Lei | |
| 179 | N450980 | 1 | KNOB | 7,37 Lei | |
| 180 | N451161 | 1 | BOLT | 6,23 Lei | |
| 180 | N451206 | 1 | RATING PLATE | 4,57 Lei | |
| 181 | 5140135-73 | 1 | SPRING | 4,57 Lei | |
| 182 | N435470 | 1 | WASHER | 4,57 Lei | |
| 183 | 5140032-13 | 2 | NUT M5 | 4,57 Lei | |
| 184 | N447488 | 1 | SCREW | 5,21 Lei | |
| 185 | N440766 | 1 | INDICATOR | 8,64 Lei | |
| 186 | N454261 | 1 | WASHER LOCK | 4,57 Lei | |
| 186 | N454413 | 1 | WARNING LABEL | 4,5 Lei | |
| 187 | 5140179-78 | 1 | DAMPER | 8,64 Lei | |
| 188 | N461705 | 1 | KNOB SA | 57,81 Lei | |
| 190 | 5140179-63 | 1 | SCREW | 4,57 Lei | |
| 191 | 5140179-64 | 1 | SPACER | 6,23 Lei | |
| 192 | N437875 | 1 | RIVING KNIFE | 106,98 Lei | |
| 193 | N448945 | 2 | SCREW | 4,57 Lei | |
| 194 | 1004708-13 | 1 | COVER | 4,57 Lei | |
| 195 | 1004708-14 | 1 | PISTON | 8,64 Lei | |
| 196 | N448939 | 2 | SCREW | 7,37 Lei | |
| 197 | N448940 | 1 | SPRING | 4,57 Lei | |
| 198 | N434803 | 1 | MOUNT | 96,56 Lei | |
| 199 | 5140135-11 | 3 | SCREW.SPECIAL | 4,57 Lei | |
| 213 | N441334 | 1 | SUPPORT | 200,99 Lei | |
| 231 | N441023 | 1 | LABEL | 19,95 Lei | |
| 250 | N455463 | 1 | FENCE SA | 497,78 Lei | |
| 253 | 5140134-61 | 2 | SCREW | 4,57 Lei | |
| 254 | 5140134-58 | 2 | PIN | 4,57 Lei | |
| 255 | 5140134-57 | 2 | SPRING | 17,02 Lei | |
| 256 | 5140134-56 | 2 | PADDLE | 8,64 Lei | |
| 257 | 1004696-26 | 2 | PIN | 4,57 Lei | |
| 258 | 5140134-62 | 1 | STRAP | 5,21 Lei | |
| 259 | 5140134-60 | 1 | CLIP | 6,23 Lei | |
| 271 | 5140033-53 | 4 | SCREW | 4,57 Lei | |
| 273 | 5140033-54 | 1 | SCREW | 4,57 Lei | |
| 274 | 5140033-55 | 1 | CAM | 6,23 Lei | |
| 280 | 5140033-44 | 1 | PUSHROD | 30,87 Lei | |
| 290 | N458905 | 1 | SCALE | 25,54 Lei | |
| 300 | 330019-24 | 4 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 301 | N436880 | 1 | END CAP | 17,02 Lei | |
| 302 | 330019-12 | 2 | SCREW | 4,57 Lei | |
| 303 | N448564 | 1 | CORDCLAMP | 5,21 Lei | |
| 305 | N436481 | 1 | FIELDCASE | 17,02 Lei | |
| 305 | N436523 | 1 | RATING PLATE | 4,57 Lei | |
| 307 | N440777 | 1 | BAFFLE | 41,93 Lei | |
| 308 | 330019-12 | 4 | SCREW | 4,57 Lei | |
| 309 | N469850 | 1 | ROTOR SA | 383,69 Lei | |
| 310 | N453643 | 1 | O RING | 4,57 Lei | |
| 312 | N434675 | 1 | GEARCASE | 88,55 Lei | |
| 313 | N442722 | 1 | GASKET | 5,21 Lei | |
| 314 | N469847 | 1 | ARBOR SA | 195,02 Lei | |
| 315 | 330045-14 | 3 | SCREW M5X16 T25 | 4,57 Lei | |
| 316 | 330019-13 | 5 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 317 | N435741 | 1 | HOUSING UPPER | 25,54 Lei | |
| 318 | N440456 | 1 | PIN | 7,37 Lei | |
| 322 | N448766 | 1 | SPRING | 4,57 Lei | |
| 323 | N445218 | 1 | PADDLE | 12,71 Lei | |
| 324 | N435742 | 1 | HOUSING LOWER | 25,54 Lei | |
| 325 | N449833 | 1 | CORD CLAMP | 4,57 Lei | |
| 326 | 330019-03 | 1 | Screw M3.5X16 T15 | 4,57 Lei | |
| 327 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 328 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 330 | N471558 | 1 | LABEL | 4,57 Lei | |
| 331 | N445217 | 1 | HOUSING SWITCH | 19,95 Lei | |
| 332 | N474607 | 1 | STATOR SA | 889,22 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 866 | N473851 | 1 | BATTERY 3 X18V-6.0AH-108WH | 1158,31 Lei | |
| 867 | N462141 | 1 | SAFETY CAP | 41,93 Lei | |
| 871 | N473855 | 1 | CHARGER GB | 667,9 Lei |
