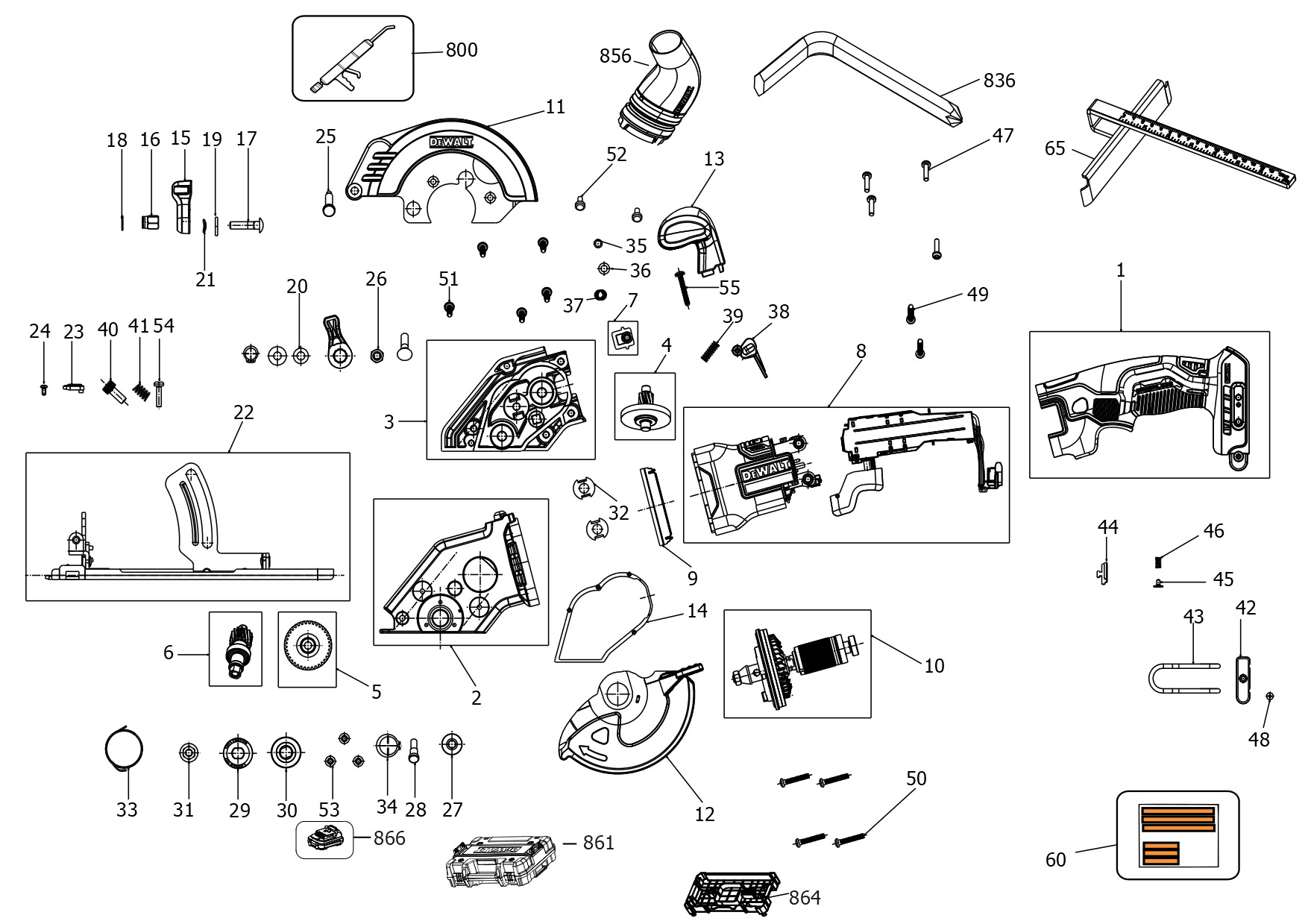

DEWALT CIRCULAR SAW (Type 1)
SKU Produs: DCS571E1T /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 2 | N729374 | 1 | GEARCASE SA | 120,82 Lei | |
| 5 | N729377 | 1 | GEAR SA | 120,82 Lei | |
| 8 | N748000 | 1 | CONTROL MODULE SA | 980,83 Lei | |
| 9 | N478435 | 1 | BAFFLE ARES | 5,21 Lei | |
| 11 | N729783 | 1 | GUARD UPPER | 96,56 Lei | |
| 13 | N620137 | 1 | HANDLE | 13,85 Lei | |
| 15 | N594277 | 2 | LEVER | 6,23 Lei | |
| 16 | N594297 | 2 | SCREW | 12,71 Lei | |
| 17 | N625602 | 2 | CARRIAGE BOLT | 4,57 Lei | |
| 18 | 444793-00 | 2 | RETAINING RING | 4,57 Lei | |
| 19 | N620480 | 2 | WASHER | 4,57 Lei | |
| 20 | N620512 | 1 | WASHER | 4,57 Lei | |
| 21 | N690988 | 1 | WASHER LOCK | 4,57 Lei | |
| 24 | N684206 | 1 | SCREW | 4,57 Lei | |
| 25 | N620507 | 1 | BOLT | 4,57 Lei | |
| 26 | 330015-01 | 2 | NUT | 4,57 Lei | |
| 27 | N618548 | 1 | BUMPER | 4,57 Lei | |
| 28 | N618549 | 1 | SCREW | 4,57 Lei | |
| 29 | N826542 | 1 | OUTER FLANGE | 6,23 Lei | |
| 30 | N618552 | 1 | Inner Flange | 5,21 Lei | |
| 31 | N618550 | 1 | BLADE BOLT | 4,57 Lei | |
| 32 | N595838 | 2 | WASHER | 4,57 Lei | |
| 33 | N594267 | 1 | SPRING | 4,57 Lei | |
| 34 | N683934 | 1 | CIRCLIP | 4,57 Lei | |
| 35 | N094012 | 1 | O RING | 4,57 Lei | |
| 36 | N447838 | 1 | WASHER BEARING BLOCK | 4,57 Lei | |
| 37 | N092954 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 38 | N580687 | 1 | LEVER LOCK-OFF | 5,21 Lei | |
| 39 | N594299 | 1 | SPRING | 7,37 Lei | |
| 41 | N640319 | 1 | SPRING | 4,57 Lei | |
| 44 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 45 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 46 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 47 | 330019-03 | 4 | Screw M3.5X16 T15 | 4,57 Lei | |
| 48 | N640278 | 1 | SCREW | 4,57 Lei | |
| 49 | 330065-33 | 2 | SCREW M4X34 T15 | 4,57 Lei | |
| 50 | 330065-31 | 4 | SCREW | 4,57 Lei | |
| 51 | 330045-07 | 5 | SCREW | 4,57 Lei | |
| 52 | 330045-44 | 2 | SCREW, METAL THD FORM, M4X8 T20 | 4,57 Lei | |
| 53 | N514767 | 3 | SCREW | 4,57 Lei | |
| 54 | N093602 | 1 | SCREW | 4,57 Lei | |
| 55 | N682812 | 1 | SCREW | 4,57 Lei | |
| 65 | N633323 | 1 | FENCE | 21,85 Lei | |
| 800 | 583534-00 | 1 | RHEOLUBE 380-G1 | 1087,42 Lei | |
| 856 | N594300 | 1 | DUST PORT | 15,12 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 866 | NA132874 | 2 | BATTERY 18V – 1.6AH – 28.8WH | 713,77 Lei |
