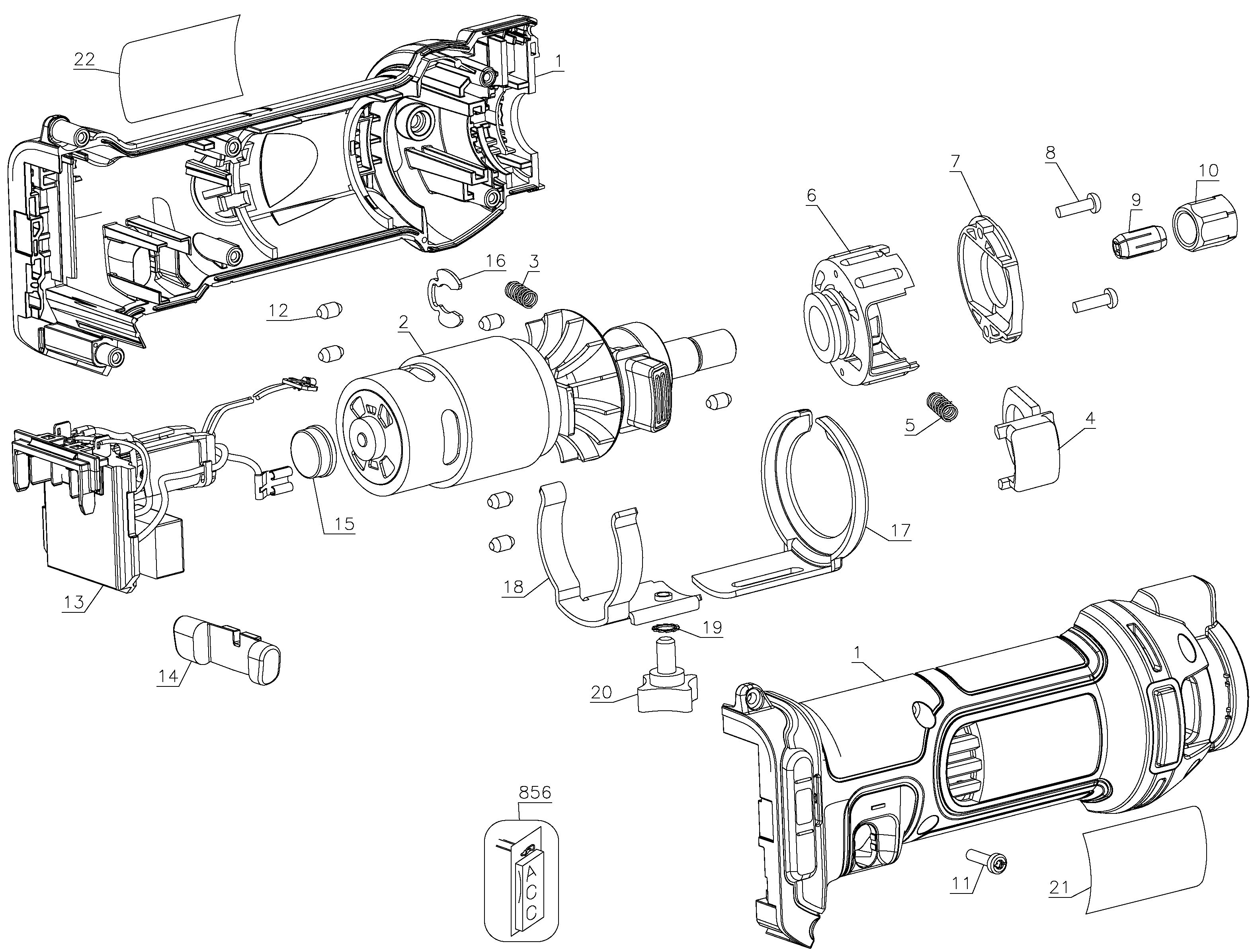

DEWALT CUT OUT TOOL Type 1
SKU Produs: DCS551N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N401270 | 1 | CLAMSHELL SET | 106,98 Lei | |
| 2 | N403289 | 1 | MOTOR SA | 225,26 Lei | |
| 3 | 389461-00 | 1 | COMP. SPRING, Not Stkd | 4,57 Lei | |
| 4 | 623263-00 | 1 | COLLET LOCK | 41,93 Lei | |
| 5 | 392448-00 | 1 | COMP. SPRING, Not Stkd | 4,57 Lei | |
| 6 | 623315-00 | 1 | COLLET GRIP | 12,71 Lei | |
| 7 | 389458-00 | 1 | TOP | 17,02 Lei | |
| 8 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 9 | 389243-00 | 1 | COLLET | 21,85 Lei | |
| 9 | 389244-00 | 1 | 1/4 COLLET | 37,73 Lei | |
| 10 | 389245-00 | 1 | COLLET NUT | 80,04 Lei | |
| 11 | 330019-03 | 6 | Screw M3.5X16 T15 | 4,57 Lei | |
| 12 | 145312-00 | 6 | RUBBER PLUG | 4,57 Lei | |
| 13 | N401271 | 1 | ELECTRONIC AND SWITCH | 307,21 Lei | |
| 14 | N324203 | 1 | ACTUATOR | 5,21 Lei | |
| 16 | 626734-00 | 1 | RETAINER | 4,57 Lei | |
| 17 | 389459-00 | 1 | GUIDE, | 21,85 Lei | |
| 18 | 389460-00 | 1 | GUIDE BASE | 15,12 Lei | |
| 19 | 045687-00 | 1 | WASHER SPECIAL | 4,57 Lei | |
| 20 | 396992-01 | 1 | KNOB | 5,21 Lei | |
| 21 | N378178 | 1 | RATING PLATE | 4,7 Lei | |
| 22 | N396412 | 1 | BRAND LABEL | 5,21 Lei | |
| 856 | N432592 | 1 | ACCESSORY KIT | 41,93 Lei |
