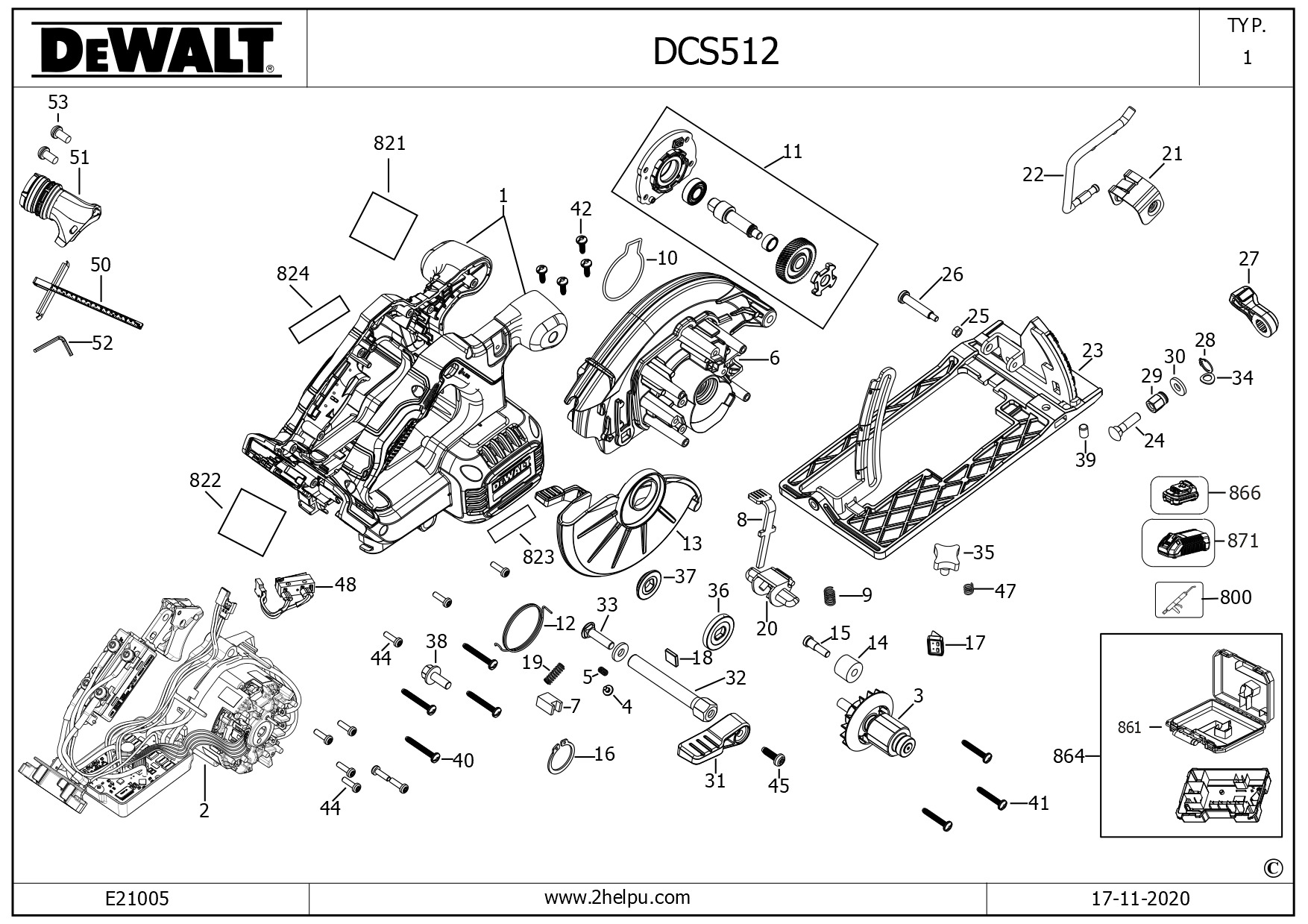

DEWALT CORDLESS CIRCULAR SAW (Type 1)
SKU Produs: DCS512NT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N875820 | 1 | CLAMSHELL SET | 96,56 Lei | |
| 2 | NA045470 | 1 | MOTOR SA | 570,96 Lei | |
| 3 | NA013219 | 1 | ROTOR SA | 375,31 Lei | |
| 4 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 5 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 6 | NA048272 | 1 | GEARCASE SA | 157,92 Lei | |
| 7 | N786812 | 1 | SEAL | 4,57 Lei | |
| 8 | N785962 | 1 | SPINDLE LOCK | 5,21 Lei | |
| 9 | N640319 | 2 | SPRING | 4,57 Lei | |
| 10 | N785935 | 1 | O RING | 7,37 Lei | |
| 11 | NA045478 | 1 | HUB | 96,56 Lei | |
| 12 | N786817 | 1 | SPRING | 8,64 Lei | |
| 13 | N811996 | 1 | GUARD LOWER | 19,95 Lei | |
| 14 | N618548 | 1 | BUMPER | 4,57 Lei | |
| 15 | N618549 | 1 | SCREW | 4,57 Lei | |
| 16 | N785959 | 1 | CIRCLIP | 4,57 Lei | |
| 17 | N363247 | 1 | LED LIGHT | 25,54 Lei | |
| 18 | N717012 | 1 | MAGNET | 7,37 Lei | |
| 19 | N594299 | 1 | SPRING | 7,37 Lei | |
| 20 | N803935 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 21 | N843039 | 1 | BRACKET | 8,64 Lei | |
| 22 | N843040 | 1 | HOOK | 12,71 Lei | |
| 23 | NA048269 | 1 | SHOE SA | 169,36 Lei | |
| 24 | N625602 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 25 | 330015-01 | 1 | NUT | 4,57 Lei | |
| 26 | N620507 | 1 | BOLT | 4,57 Lei | |
| 27 | N594277 | 1 | LEVER | 6,23 Lei | |
| 28 | 444793-00 | 1 | RETAINING RING | 4,57 Lei | |
| 29 | N594297 | 1 | SCREW | 12,71 Lei | |
| 30 | N620480 | 2 | WASHER | 4,57 Lei | |
| 31 | N419350 | 1 | LEVER | 5,21 Lei | |
| 32 | N819291 | 1 | SHAFT | 34,05 Lei | |
| 33 | 098128-85 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 34 | N690988 | 1 | WASHER LOCK | 4,57 Lei | |
| 35 | 396992-02 | 1 | KNOB | 4,57 Lei | |
| 36 | N786815 | 1 | Inner Flange | 6,23 Lei | |
| 37 | NA045877 | 1 | WASHER OUTER CLAMP | 7,37 Lei | |
| 38 | N618550 | 1 | BLADE BOLT | 4,57 Lei | |
| 39 | 389515-00 | 1 | SCREW | 4,57 Lei | |
| 40 | 330045-09 | 4 | SCREW, METAL THREAD FORM M4 X 30 T20 | 4,57 Lei | |
| 41 | 330045-08 | 3 | SCREW | 4,57 Lei | |
| 42 | 330045-45 | 4 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 43 | 330019-10 | 1 | SCREW | 4,57 Lei | |
| 44 | 330019-02 | 8 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 45 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 47 | 058287-00 | 1 | SPRING, CPRSN | 4,57 Lei | |
| 48 | N856492 | 1 | SWITCH | 19,95 Lei | |
| 50 | N633323 | 1 | FENCE | 21,85 Lei | |
| 51 | N786821 | 1 | DUST PORT | 15,12 Lei | |
| 52 | N811994 | 1 | HEX KEY | 5,21 Lei | |
| 53 | 648197-00 | 2 | SCREW | 4,57 Lei | |
| 800 | 870889-03 | 1 | GREASE,SACHET 20G,RENOLIT PARAGON EP 1/ | 30,87 Lei | |
| 821 | N875921 | 1 | RATING PLATE | 4,57 Lei | |
| 822 | N878256 | 1 | LABEL | 4,57 Lei | |
| 823 | N916769 | 1 | BRAND LABEL | 4,57 Lei | |
| 824 | N878258 | 1 | WARNING LABEL | 4,57 Lei | |
| 861 | N475700 | 1 | KITBOX | 145,09 Lei | |
| 864 | NA013369 | 1 | KITBOX | 200,99 Lei |
