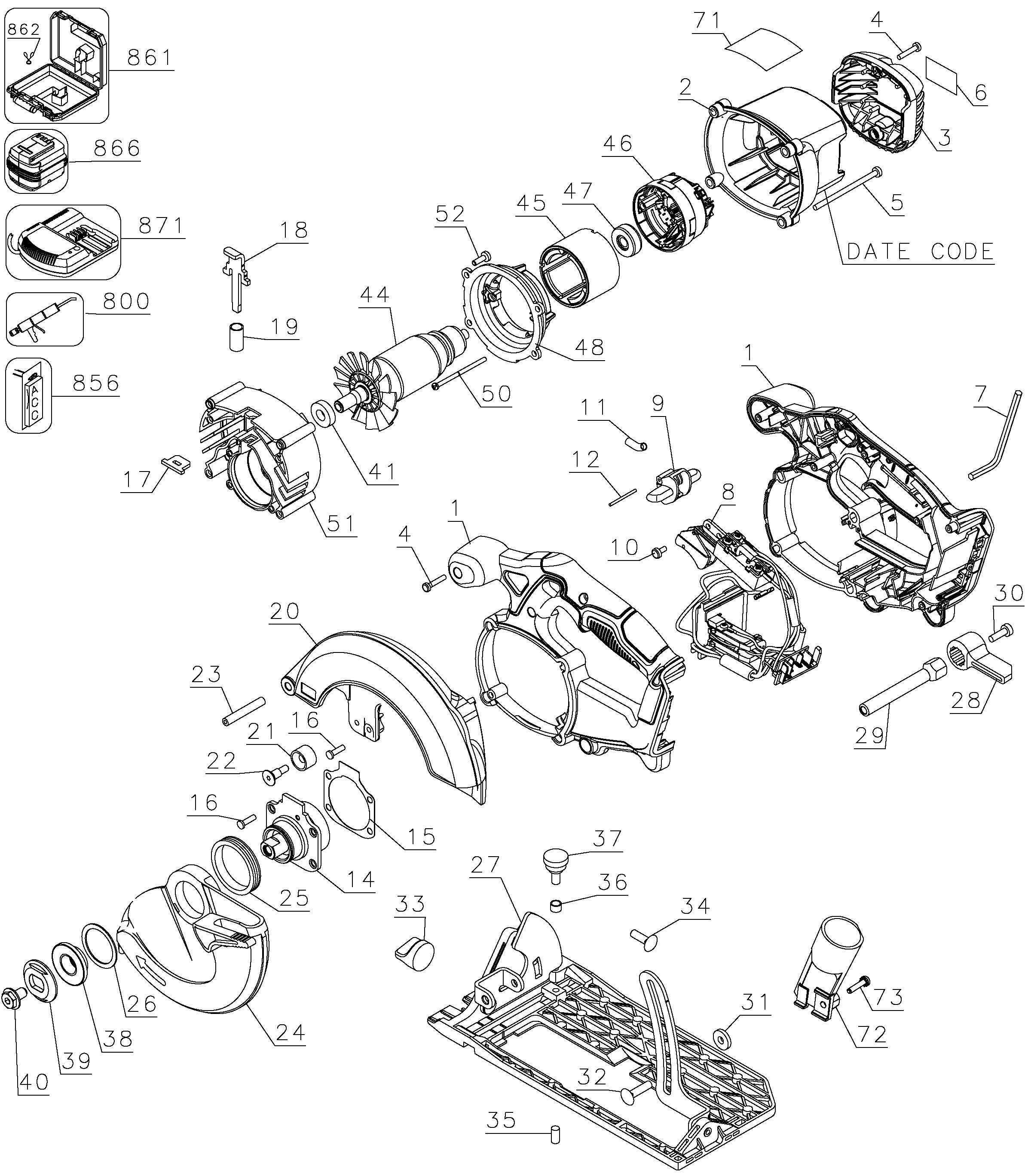

DEWALT 18V CIRCULAR SAW BARE W/K Type 2
SKU Produs: DCS391KN
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | 104,4 Lei | |
| 1 | NA065755 | 1 | CLAMSHELL SET | 130,35 Lei | |
| 2 | N054423 | 1 | MOTOR COVER | 30,1 Lei | |
| 2 | NA171945 | 1 | MOTOR COVER | 106,98 Lei | |
| 3 | N173219 | 1 | END CAP | 21,85 Lei | |
| 4 | 330019-04 | 8 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 5 | 398987-00 | 4 | SCREW | 4,57 Lei | |
| 6 | N094673 | 1 | LABEL ID DCS391 (EURO) CIRC SAW | 4,57 Lei | |
| 7 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 8 | N414115 | 1 | SWITCH SA | 181,55 Lei | |
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | 20,4 Lei | |
| 10 | 330019-40 | 1 | SCREW DW007K | 4,57 Lei | |
| 11 | 389120-00 | 1 | SPRING DW007K | 4,57 Lei | |
| 12 | 388531-00 | 1 | PIN DW007K | 5,21 Lei | |
| 14 | 659417-00SV | 1 | SPINDLE SA | 96,56 Lei | |
| 15 | 605081-01 | 1 | GASKET | 5,21 Lei | |
| 16 | 613783-00 | 8 | SCREW | 4,57 Lei | |
| 17 | 605094-00 | 1 | WIPER, RUBBER | 4,57 Lei | |
| 18 | 629444-00 | 1 | SPINDLE LOCK | 7,37 Lei | |
| 20 | N086228 | 1 | GUARD UPPER | 109,5 Lei | |
| 22 | 610134-00 | 1 | SCREW | 4,57 Lei | |
| 23 | 614048-00 | 1 | SPIRAL PIN | 4,57 Lei | |
| 24 | 611925-00 | 1 | GUARD LOWER | 57,81 Lei | |
| 25 | N035365 | 1 | SPRING | 5,21 Lei | |
| 26 | 150383-00 | 1 | RETAINER | 5,21 Lei | |
| 27 | N491713 | 1 | SHOE SA | 200,99 Lei | |
| 28 | 605105-00 | 1 | LEVER | 7,37 Lei | |
| 29 | 618901-00 | 1 | SHAFT | 19,95 Lei | |
| 30 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 31 | N112241 | 1 | WASHER | 4,57 Lei | |
| 32 | 098128-85 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 33 | 395889-00 | 1 | SA KNOB | 4,57 Lei | |
| 34 | N022876 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 35 | 381069-00 | 1 | SCREW DW007K | 4,57 Lei | |
| 36 | 058287-00 | 1 | SPRING, CPRSN | 4,57 Lei | |
| 37 | 396992-02 | 1 | KNOB | 4,57 Lei | |
| 38 | 610046-00 | 1 | WASHER INNER CLAMP | 15,12 Lei | |
| 39 | N621119 | 1 | WASHER, CLAMP OUTER | 15,12 Lei | |
| 40 | 648697-00 | 1 | BLADE BOLT | 5,21 Lei | |
| 41 | 330003-64 | 1 | BEARING, BALL | 30,87 Lei | |
| 44 | N415907 | 1 | P58 TURBO CIRC SA ARMATURE SERVICE KIT | 181,55 Lei | |
| 45 | N436044 | 1 | SSA MAGNET RING | 52,22 Lei | |
| 46 | N412223 | 1 | BRUSH HOLDER SA | 52,22 Lei | |
| 47 | N330639 | 1 | BEARING | 17,02 Lei | |
| 48 | N333139 | 1 | 4P58 CIRC SAW BAFFLE | 13,85 Lei | |
| 50 | N389143 | 2 | SCREW, PLASTIC THD FORM | 4,57 Lei | |
| 51 | N068175SV | 1 | GEARCASE SA | 130,35 Lei | |
| 52 | 330045-45 | 4 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 72 | N104672 | 1 | DUST PORT | 21,85 Lei | |
| 73 | N106370 | 1 | SCREW | 7,37 Lei | |
| 856 | 381091-01 | 1 | FENCE DW936 | 17,02 Lei | |
| 861 | N153976 | 1 | kitbox for DCS390KN-EC and DCS373KN-EC | 240,38 Lei | |
| 862 | 605265-00 | 1 | spring clip from DC390KN-EC | 4,57 Lei |
