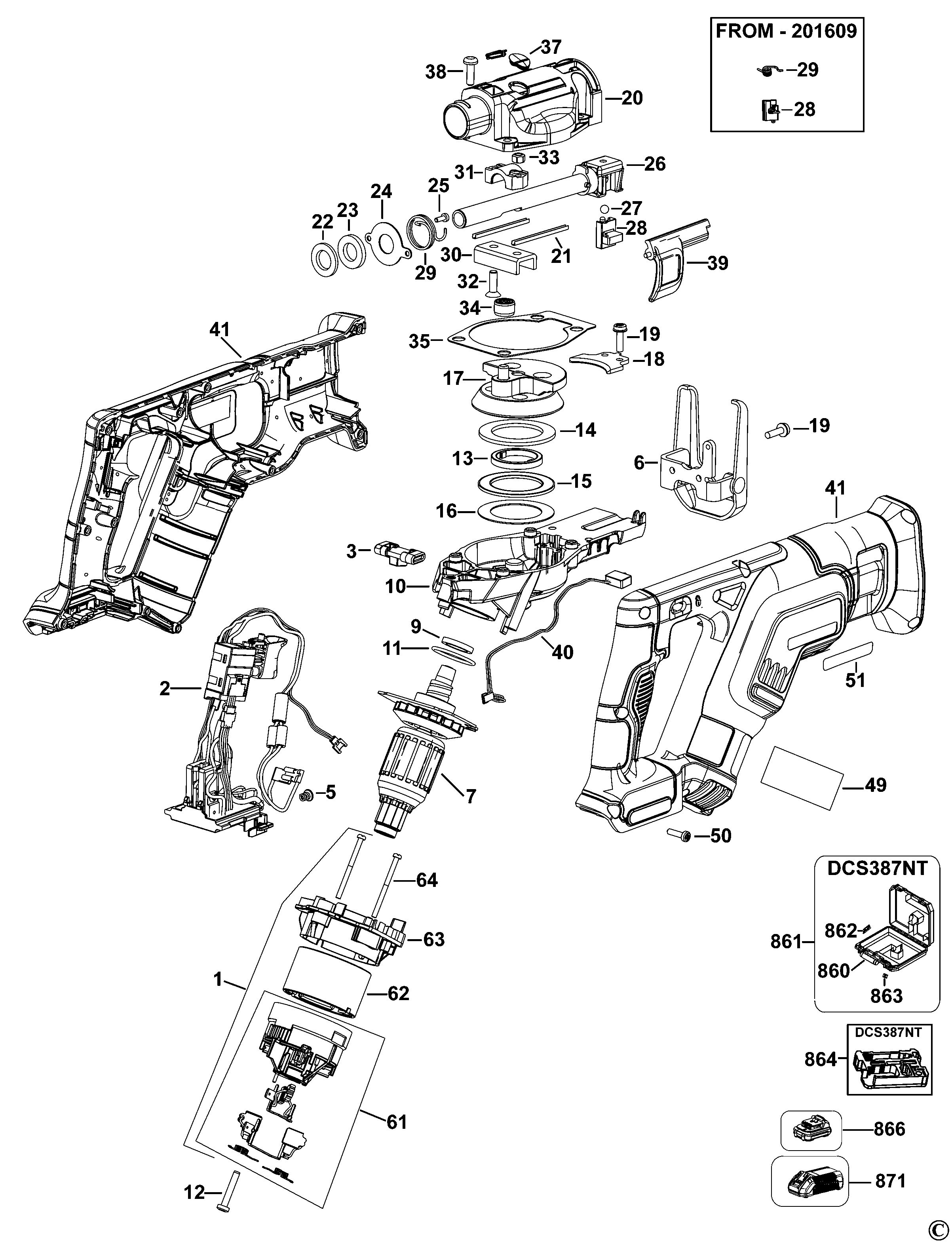

DEWALT CORDLESS RECIPROCATING SAW (Type 1)
SKU Produs: DCS387 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N406590 | 1 | BAFFLE SA | 106,98 Lei | |
| 2 | N406591 | 1 | ELECTRONIC AND SWITCH | 276,84 Lei | |
| 3 | N060864 | 1 | BUTTON LOCK-OFF | 7,37 Lei | |
| 5 | N117271SV | 1 | SPRING | 5,21 Lei | |
| 6 | N226256 | 1 | SHOE SA | 52,22 Lei | |
| 7 | N406598 | 1 | ARMATURE SA | 169,36 Lei | |
| 9 | N143636 | 1 | FELT SEAL | 6,23 Lei | |
| 10 | N435110 | 1 | GEARCASE SA | 120,82 Lei | |
| 11 | N129171 | 1 | O RING | 4,57 Lei | |
| 12 | N130874 | 3 | SCREW | 4,57 Lei | |
| 13 | N143177 | 1 | SPACER | 6,23 Lei | |
| 14 | N124072 | 1 | WASHER THRUST | 25,54 Lei | |
| 15 | N115646 | 1 | THRUST BEARING | 17,02 Lei | |
| 16 | N115647 | 1 | WASHER THRUST | 15,12 Lei | |
| 17 | N406599 | 1 | GEAR SA | 169,36 Lei | |
| 18 | N115642 | 1 | THRUST PLATE | 7,37 Lei | |
| 19 | 142940-00 | 4 | SCREW | 4,57 Lei | |
| 20 | N195829 | 1 | GEARCASE COVER SA | 70,39 Lei | |
| 21 | 621979-00 | 2 | STRIP | 4,57 Lei | |
| 22 | 618733-00 | 1 | SEAL | 7,37 Lei | |
| 23 | 618477-00 | 1 | FELT SEAL | 4,57 Lei | |
| 24 | N020720 | 1 | COVERPLATE | 5,21 Lei | |
| 25 | 330045-43 | 1 | SCREW TAPTITE | 4,57 Lei | |
| 26 | N026647 | 1 | SHAFT SA | 200,99 Lei | |
| 27 | 000903-00 | 1 | BALL | 37,73 Lei | |
| 28 | 622647-00 | 1 | SLIDER | 21,85 Lei | |
| 28 | N252639 | 1 | SLIDER | 30,87 Lei | |
| 29 | 622659-00 | 1 | SPRING TORSION | 4,57 Lei | |
| 29 | N426742 | 1 | SPRING | 6,23 Lei | |
| 30 | 658115-00 | 1 | YOKE | 25,54 Lei | |
| 31 | 617000-00 | 1 | SADDLE | 19,95 Lei | |
| 32 | N191614 | 2 | SCREW | 5,21 Lei | |
| 33 | N191590 | 2 | LOCK NUT | 4,57 Lei | |
| 34 | N021857 | 1 | BEARING | 25,54 Lei | |
| 34 | N021905 | 1 | BALL STEEL | 4,57 Lei | |
| 35 | N115641 | 1 | GASKET | 6,23 Lei | |
| 37 | N131037 | 2 | COVER | 4,57 Lei | |
| 38 | 144457-02 | 4 | SCREW | 4,57 Lei | |
| 39 | N412063 | 1 | LEVER SA | 25,54 Lei | |
| 40 | N348279 | 1 | SA LED WITH OVERMOLD | 25,54 Lei | |
| 41 | N406597 | 1 | CLAMSHELL SET | 145,09 Lei | |
| 49 | N388374 | 1 | RATING PLATE | 4,57 Lei | |
| 50 | 330019-03 | 11 | Screw M3.5X16 T15 | 4,57 Lei | |
| 51 | N393845 | 1 | BRAND LABEL | 12,71 Lei | |
| 61 | N412223 | 1 | BRUSH HOLDER SA | 52,22 Lei | |
| 62 | N278999 | 1 | MAGNET | 42,9 Lei | |
| 63 | N408888 | 1 | BAFFLE FAN | 12,71 Lei | |
| 64 | N388976 | 2 | SCREW | 4,57 Lei | |
| 860 | H1400196008 | 2 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 2 | HANDLE | 17,02 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | MP16890 | 1 | INSERT (service) | 57,81 Lei |
