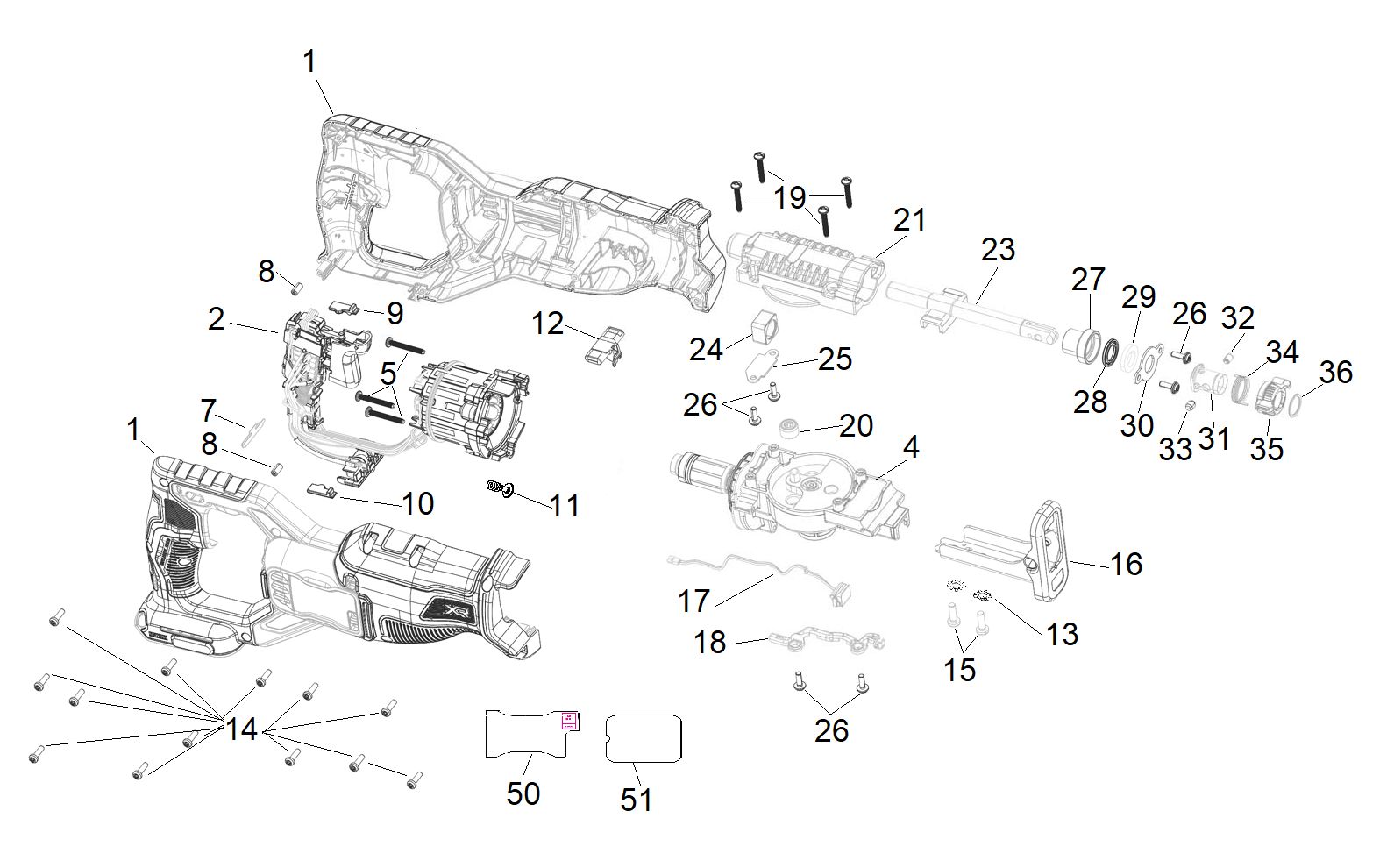

DEWALT RECIPROCATING SAW (Type 1)
SKU Produs: DCS382NT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N934978 | 1 | HOUSING SA | 213,19 Lei | |
| 2 | N911009 | 1 | STATOR SA | 819,98 Lei | |
| 4 | N842864 | 1 | GEARCASE SA | 307,21 Lei | |
| 5 | 330045-09 | 3 | SCREW, METAL THREAD FORM M4 X 30 T20 | 4,57 Lei | |
| 7 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 8 | N487311 | 2 | RUBBER PIN | 4,57 Lei | |
| 9 | N728013 | 1 | ANTIVIBE RAIL INSERT ASS SIDE | 4,57 Lei | |
| 10 | N728012 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 11 | N453948 | 1 | SPRING | 25,54 Lei | |
| 12 | N454084 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 13 | 605111-00 | 2 | WASHER LOCK | 4,57 Lei | |
| 14 | 330019-02 | 13 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 15 | N242699 | 2 | SCREW | 4,57 Lei | |
| 16 | N743848 | 1 | SHOE SA | 41,93 Lei | |
| 17 | N678311 | 1 | LED | 21,85 Lei | |
| 18 | N677736 | 1 | GUIDE | 4,57 Lei | |
| 19 | 330045-08 | 4 | SCREW | 4,57 Lei | |
| 20 | N854485 | 1 | BEARING | 37,73 Lei | |
| 21 | N842865 | 1 | GEARCASE COVER SA | 57,81 Lei | |
| 23 | N702130 | 1 | SHAFT | 120,82 Lei | |
| 24 | N934980 | 1 | BEARING | 15,12 Lei | |
| 25 | N688243 | 1 | PLATE | 4,57 Lei | |
| 26 | N840182 | 6 | SCREW | 4,57 Lei | |
| 27 | N934979 | 1 | BEARING | 17,02 Lei | |
| 28 | N894461 | 1 | SEAL | 12,71 Lei | |
| 29 | N894472 | 1 | FELT SEAL | 7,37 Lei | |
| 30 | N633163 | 1 | RETAINING PLATE | 4,57 Lei | |
| 31 | N697113 | 1 | SLEEVE | 34,05 Lei | |
| 32 | N694246 | 1 | PIN | 7,37 Lei | |
| 33 | N694240 | 1 | PIN | 7,37 Lei | |
| 34 | N697114 | 1 | SPRING TORSION | 4,57 Lei | |
| 35 | N744647 | 1 | COLLAR | 30,87 Lei | |
| 36 | N697540 | 1 | RING | 4,57 Lei | |
| 50 | N915491 | 1 | RATING PLATE | 37,73 Lei | |
| 51 | NA007584 | 1 | WARNING LABEL | 41,93 Lei | |
| 862 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei |
