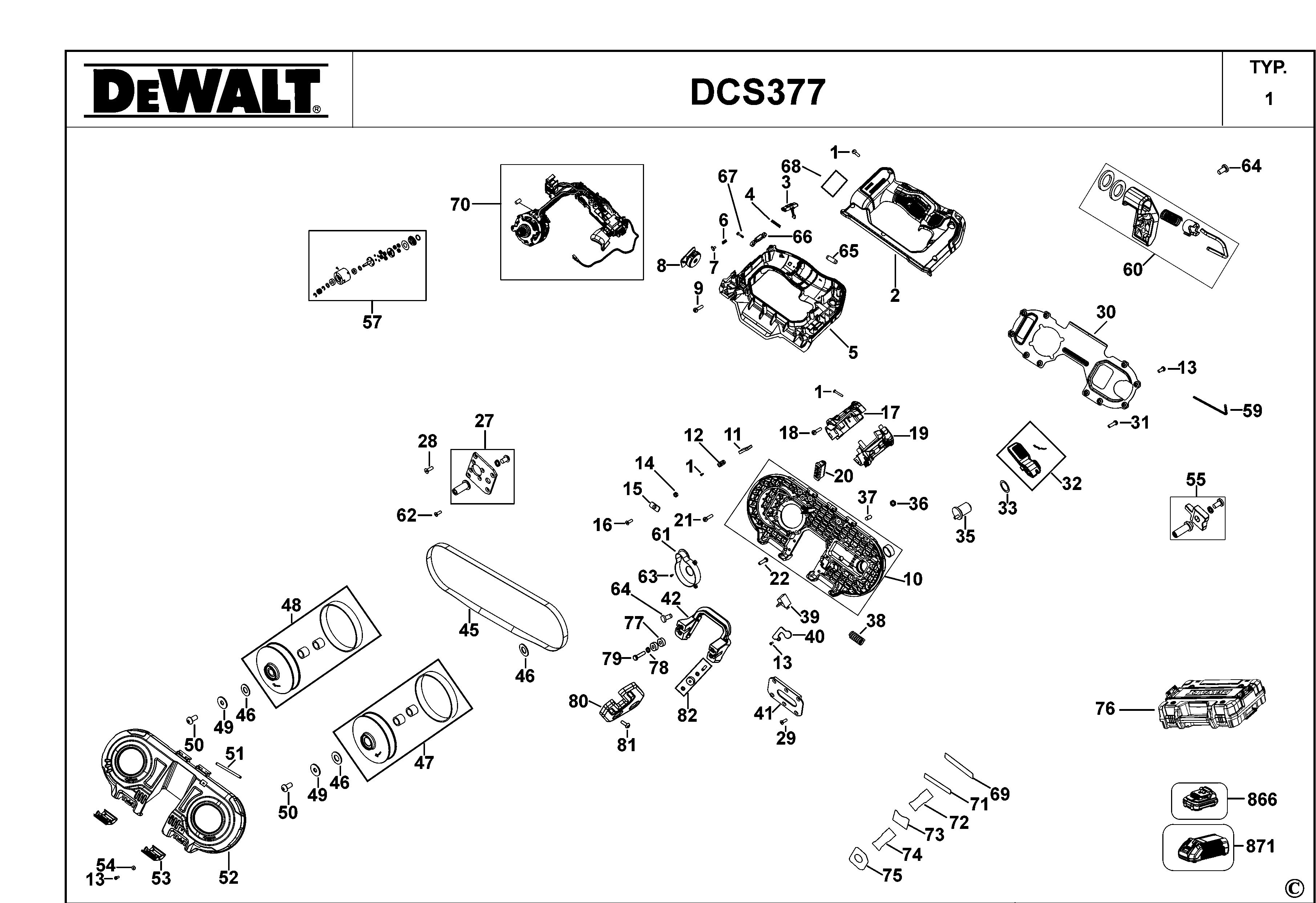

DEWALT BANDSAW (Type 1)
SKU Produs: DCS377NT /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N864841 | 14 | SCREW | 4,57 Lei | |
| 2 | N855008 | 1 | CLAMSHELL HALF | 70,39 Lei | |
| 3 | N823374 | 1 | SWITCH LOCK OFF | 13,85 Lei | |
| 4 | N824141 | 1 | SPRING | 4,57 Lei | |
| 5 | N855009 | 1 | CLAMSHELL HALF | 96,56 Lei | |
| 6 | N461735 | 1 | TERMINAL BLOCK SPRING | 4,57 Lei | |
| 7 | N122099 | 1 | BLOCK | 4,57 Lei | |
| 8 | N812341 | 1 | SPEED REGULATOR | 96,56 Lei | |
| 9 | N864842 | 5 | SCREW | 4,57 Lei | |
| 10 | N912915 | 1 | BASE SA | 276,84 Lei | |
| 11 | N825617 | 1 | BRUSH | 7,37 Lei | |
| 12 | N850559 | 1 | COVER | 4,57 Lei | |
| 13 | N864843 | 13 | SCREW | 4,57 Lei | |
| 14 | N865171 | 1 | LOCK NUT | 4,57 Lei | |
| 15 | N850565 | 1 | BAFFLE | 8,64 Lei | |
| 16 | N864845 | 1 | SCREW | 4,57 Lei | |
| 17 | N855005 | 1 | CLAMSHELL HALF | 25,54 Lei | |
| 18 | N864848 | 4 | SCREW | 4,57 Lei | |
| 19 | N855007 | 1 | CLAMSHELL HALF | 25,54 Lei | |
| 20 | N816041 | 1 | INSERT | 30,87 Lei | |
| 21 | N864850 | 2 | SCREW | 4,57 Lei | |
| 22 | N864851 | 4 | SCREW | 4,57 Lei | |
| 27 | N901812 | 1 | PLATE SA | 57,81 Lei | |
| 28 | N271627 | 4 | SCREW | 7,37 Lei | |
| 29 | N864852 | 6 | SCREW | 4,57 Lei | |
| 30 | N777949 | 1 | PLATE | 88,55 Lei | |
| 31 | N271607 | 1 | SCREW | 4,57 Lei | |
| 32 | N901815 | 1 | LEVER SA | 25,54 Lei | |
| 33 | N271602 | 1 | WASHER BOW | 6,23 Lei | |
| 35 | N271606 | 1 | CAM | 34,05 Lei | |
| 36 | N271603 | 1 | NUT M6 | 4,57 Lei | |
| 37 | N271604 | 1 | SCREW | 4,57 Lei | |
| 38 | N851382 | 2 | SPRING | 10,29 Lei | |
| 39 | N803480 | 1 | LED LIGHT | 34,05 Lei | |
| 40 | N850560 | 1 | COVER | 6,23 Lei | |
| 41 | N850567 | 1 | PLATE | 30,87 Lei | |
| 42 | N787885 | 1 | BEARING HOLDER | 120,82 Lei | |
| 45 | N770337 | 1 | BLADE | 289,04 Lei | |
| 46 | N271623 | 3 | WASHER NYLON | 5,21 Lei | |
| 48 | N825527 | 1 | WHEEL FRICTION | 169,36 Lei | |
| 49 | N271624 | 2 | WASHER | 4,57 Lei | |
| 50 | N271626 | 2 | SCREW | 6,23 Lei | |
| 51 | N854134 | 2 | PIN | 8,64 Lei | |
| 52 | N777950 | 1 | COVER | 80,04 Lei | |
| 53 | N854111 | 2 | LATCH | 21,85 Lei | |
| 54 | N884441 | 2 | WASHER | 4,57 Lei | |
| 55 | N901816 | 1 | BLOCK SA | 88,55 Lei | |
| 57 | N825644 | 1 | GEARBOX SA | 383,69 Lei | |
| 59 | N272127 | 1 | HEX KEY 3 MM | 15,12 Lei | |
| 60 | N825470 | 1 | HOOK SA | 88,55 Lei | |
| 61 | N850562 | 1 | DUST GUARD | 13,85 Lei | |
| 62 | N864855 | 4 | SCREW | 4,57 Lei | |
| 63 | N864857 | 2 | SCREW | 4,57 Lei | |
| 64 | N864858 | 2 | SCREW | 4,57 Lei | |
| 65 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 66 | N787996 | 1 | INSERT | 4,57 Lei | |
| 67 | N764969 | 2 | SCREW | 4,57 Lei | |
| 67 | N831593 | 2 | SCREW | 4,57 Lei | |
| 69 | N883320 | 1 | LABEL | 5,21 Lei | |
| 70 | N899536 | 1 | MOTOR AND SWITCH SA | 980,83 Lei | |
| 71 | N883905 | 1 | BRAND LABEL | 5,21 Lei | |
| 72 | N883904 | 1 | WARNING LABEL | 5,21 Lei | |
| 73 | N864186 | 1 | WARNING LABEL | 5,21 Lei | |
| 74 | N868320 | 1 | RATING PLATE | 5,21 Lei | |
| 75 | N883909 | 1 | LABEL | 5,21 Lei | |
| 76 | N850243 | 1 | KITBOX | 412,91 Lei | |
| 77 | N854980 | 8 | BEARING | 17,02 Lei | |
| 78 | N271660 | 4 | WASHER LOCK | 4,57 Lei | |
| 79 | N862006 | 4 | SCREW | 4,57 Lei | |
| 80 | N816039 | 1 | FENCE | 37,73 Lei | |
| 81 | N864853 | 2 | SCREW | 4,57 Lei | |
| 82 | N912646 | 1 | BEARING SA | 34,05 Lei |
