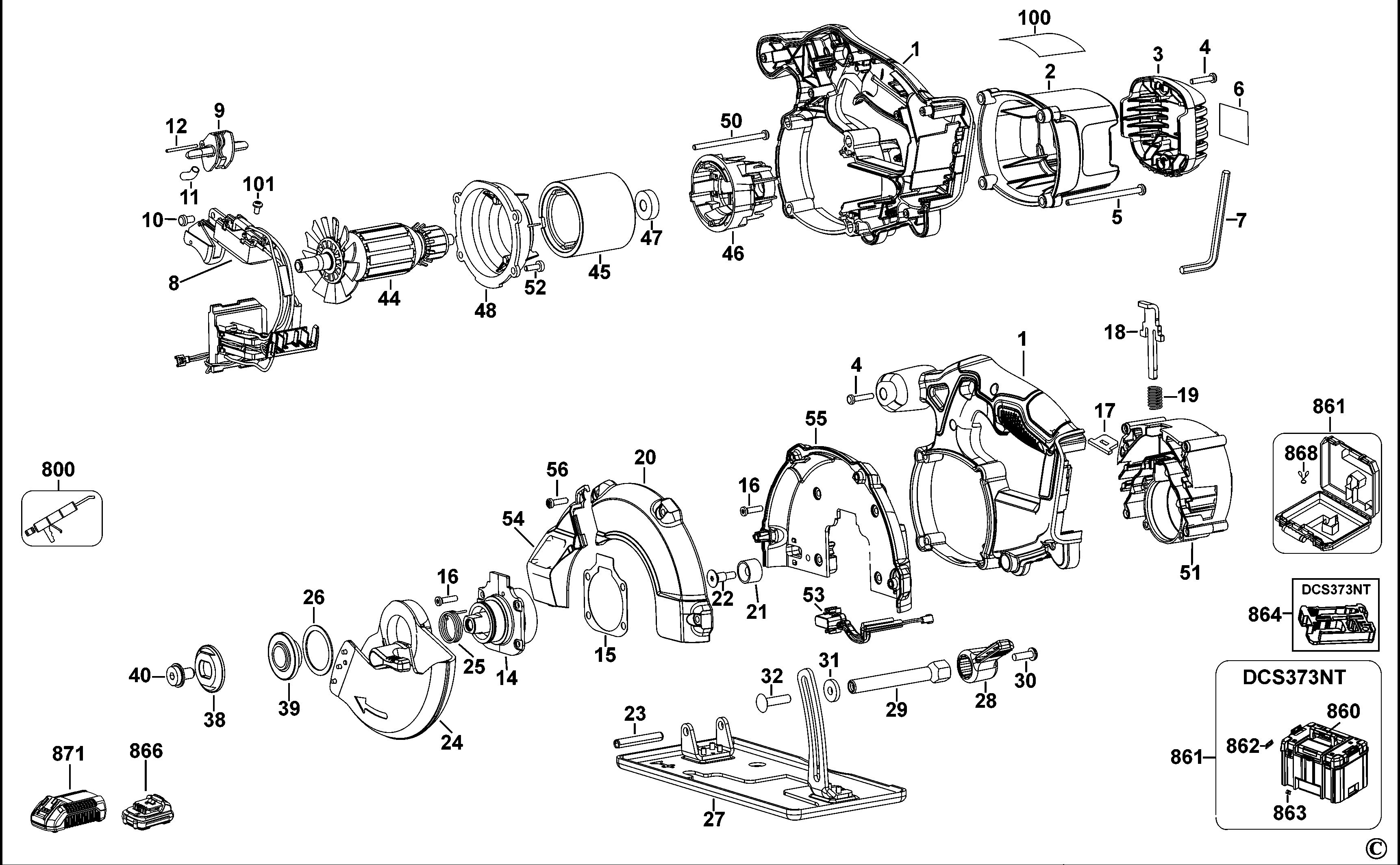

DEWALT CORDLESS CIRCULAR SAW (Type 2)
SKU Produs: DCS373 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N064324 | 1 | CLAMSHELL SET | 104,4 Lei | |
| 1 | NA065755 | 1 | CLAMSHELL SET | 130,35 Lei | |
| 2 | N054423 | 1 | MOTOR COVER | 30,1 Lei | |
| 2 | NA171945 | 1 | MOTOR COVER | 106,98 Lei | |
| 3 | N173219 | 1 | END CAP | 21,85 Lei | |
| 4 | 90611830 | 8 | SCREW | 4,57 Lei | |
| 5 | 398987-00 | 4 | SCREW | 4,57 Lei | |
| 7 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 9 | 605107-00 | 1 | BUTTON LOCK-OFF | 20,4 Lei | |
| 10 | 330019-40 | 1 | SCREW DW007K | 4,57 Lei | |
| 11 | 389120-00 | 1 | SPRING DW007K | 4,57 Lei | |
| 12 | 388531-00 | 1 | PIN DW007K | 5,21 Lei | |
| 14 | 659417-00SV | 1 | SPINDLE SA | 96,56 Lei | |
| 15 | 605081-01 | 1 | GASKET | 5,21 Lei | |
| 16 | 613783-00 | 8 | SCREW | 4,57 Lei | |
| 17 | 605094-00 | 1 | WIPER, RUBBER | 4,57 Lei | |
| 18 | 629444-00 | 1 | SPINDLE LOCK | 7,37 Lei | |
| 19 | 58698-00 | 1 | SPRING | 4,7 Lei | |
| 20 | N095981 | 1 | GUARD UPPER | 80,04 Lei | |
| 22 | 610134-00 | 1 | SCREW | 4,57 Lei | |
| 23 | 614048-00 | 1 | SPIRAL PIN | 4,57 Lei | |
| 24 | N275619 | 1 | GUARD LOWER | 57,81 Lei | |
| 25 | N035365 | 1 | SPRING | 5,21 Lei | |
| 26 | 150383-00 | 1 | RETAINER | 5,21 Lei | |
| 27 | N132583 | 1 | SHOE SA | 130,35 Lei | |
| 28 | 605105-00 | 1 | LEVER | 7,37 Lei | |
| 29 | 618901-00 | 1 | SHAFT | 19,95 Lei | |
| 30 | 330045-14 | 1 | SCREW M5X16 T25 | 4,57 Lei | |
| 31 | 142013-00 | 1 | SPACER | 4,57 Lei | |
| 32 | 098128-85 | 1 | CARRIAGE BOLT | 4,57 Lei | |
| 38 | N621119 | 1 | WASHER, CLAMP OUTER | 15,12 Lei | |
| 39 | 610046-00 | 1 | WASHER INNER CLAMP | 15,12 Lei | |
| 40 | 648697-00 | 1 | BLADE BOLT | 5,21 Lei | |
| 45 | N436044 | 1 | SSA MAGNET RING | 52,22 Lei | |
| 46 | N412223 | 1 | BRUSH HOLDER SA | 52,22 Lei | |
| 47 | N330639 | 1 | BEARING | 17,02 Lei | |
| 48 | N333139 | 1 | 4P58 CIRC SAW BAFFLE | 13,85 Lei | |
| 50 | N389143 | 4 | SCREW, PLASTIC THD FORM | 4,57 Lei | |
| 51 | N225696 | 1 | GEARCASE SA | 195,02 Lei | |
| 52 | 330045-45 | 4 | SCREW TAPTITE M4x12, SLT/T20 | 4,57 Lei | |
| 53 | N148981 | 1 | LED LIGHT | 34,05 Lei | |
| 54 | N218112 | 1 | WINDOW | 41,93 Lei | |
| 55 | N095980 | 1 | GUARD UPPER | 120,82 Lei | |
| 56 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 101 | 384127-01 | 4 | SCREW, MACHINE PAN HD | 4,57 Lei | |
| 800 | 870889-02 | 1 | RENOLIT PARAGON EP 1/2 | 52,22 Lei | |
| 860 | H1400196008 | 1 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 1 | HANDLE | 17,02 Lei | |
| 861 | N153976 | 1 | kitbox for DCS390KN-EC and DCS373KN-EC | 240,38 Lei | |
| 861 | N445186 | 1 | KITBOX | 307,21 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | MP16983 | 1 | INSERT (service) | 57,81 Lei | |
| 868 | 605265-00 | 1 | spring clip from DC390KN-EC | 4,57 Lei |
