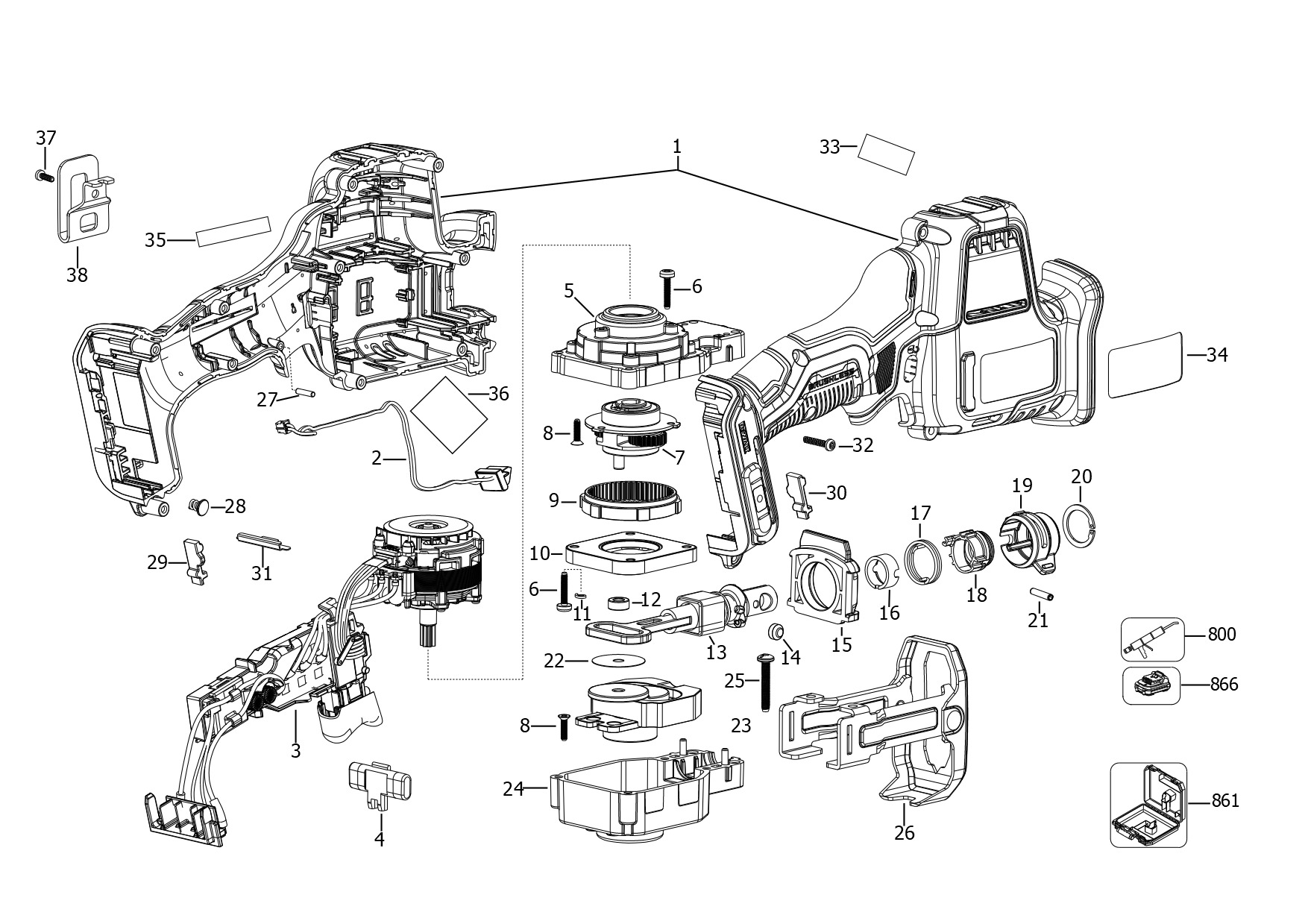

DEWALT RECIPROCATING SAW (Type 1)
SKU Produs: DCS369E1T /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N719661 | 1 | CLAMSHELL SET | 73,19 Lei | |
| 2 | N683436 | 1 | LED LIGHT | 18,06 Lei | |
| 3 | N774470 | 1 | MOTOR SA | 451,79 Lei | |
| 4 | N650938 | 1 | BUTTON LOCK-OFF | 4,57 Lei | |
| 5 | N658536 | 1 | GEARCASE | 57,81 Lei | |
| 6 | 330045-53 | 8 | SCREW | 4,57 Lei | |
| 7 | N773353 | 1 | CARRIER SA | 130,52 Lei | |
| 8 | N691339 | 7 | SCREW | 4,57 Lei | |
| 9 | N677836 | 1 | Gear | 11,45 Lei | |
| 10 | N658540 | 1 | PLATE THRUST | 25,54 Lei | |
| 11 | N760370 | 4 | WASHER LOCK | 4,7 Lei | |
| 12 | N658544 | 1 | SLEEVE BEARING | 8,51 Lei | |
| 13 | N773357 | 1 | SHAFT SA | 88,55 Lei | |
| 14 | N690767 | 1 | PIN | 6,09 Lei | |
| 15 | N688751 | 1 | RUBBER BOOT | 5,15 Lei | |
| 16 | N690774 | 1 | SLEEVE | 8,51 Lei | |
| 17 | N690789 | 1 | SPRING | 3,78 Lei | |
| 18 | N690518 | 1 | CAM | 16,49 Lei | |
| 19 | NA292003 | 1 | COLLAR | 16,49 Lei | |
| 20 | N690786 | 1 | CIRCLIP | 3,78 Lei | |
| 21 | N096408 | 1 | SPIROL PIN | 4,57 Lei | |
| 22 | N658550 | 1 | WASHER | 3,78 Lei | |
| 23 | N773358 | 1 | ECCENTRIC SA | 119,91 Lei | |
| 24 | N773359 | 1 | GEARCASE COVER SA | 66,15 Lei | |
| 25 | 330045-08 | 1 | SCREW | 4,57 Lei | |
| 26 | N628892 | 1 | SHOE SA | 43,16 Lei | |
| 27 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 28 | NA105798 | 1 | TERMINAL BLOCK | 15,12 Lei | |
| 29 | N728008 | 1 | BUMPER | 4,57 Lei | |
| 30 | N728006 | 1 | BUMPER | 4,57 Lei | |
| 31 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 32 | 682211-00 | 10 | SCREW, PLASTITE | 4,57 Lei | |
| 33 | N719768 | 1 | LABEL | 3,78 Lei | |
| 34 | NA049837 | 1 | RATING LABEL | 4,57 Lei | |
| 35 | N719761 | 1 | BRAND LABEL | 4,57 Lei | |
| 37 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 38 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 800 | N017298 | 1 | GREASE | 213,19 Lei | |
| 861 | N704163 | 1 | KITBOX | 157,92 Lei | |
| 866 | NA132874 | 1 | BATTERY 18V – 1.6AH – 28.8WH | 713,77 Lei |
