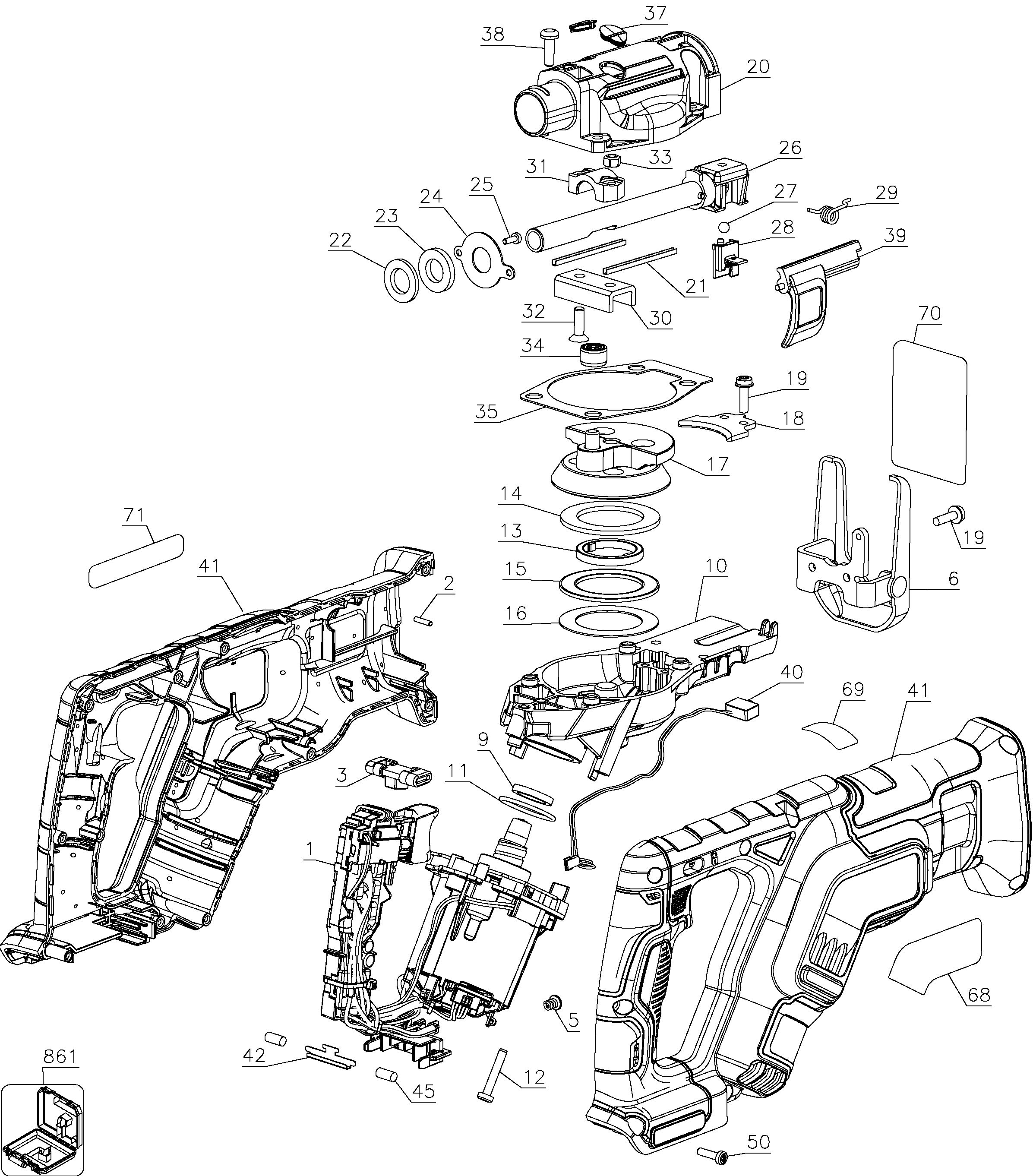

DEWALT 18v XR COMPACT BL RECIPRO Type 1
SKU Produs: DCS367N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N521971 | 1 | MOTOR AND SWITCH SA | 767,8 Lei | |
| 2 | N071836 | 1 | ROLL PIN 2.5 X 10.9 | 4,57 Lei | |
| 3 | N454084 | 1 | BUTTON LOCK-OFF | 5,21 Lei | |
| 5 | N453948 | 1 | SPRING | 25,54 Lei | |
| 6 | N226256 | 1 | SHOE SA | 52,22 Lei | |
| 9 | N143636 | 1 | FELT SEAL | 6,23 Lei | |
| 10 | N435110 | 1 | GEARCASE SA | 120,82 Lei | |
| 11 | N129171 | 1 | O RING | 4,57 Lei | |
| 12 | N130874 | 3 | SCREW | 4,57 Lei | |
| 13 | N143177 | 1 | SPACER | 6,23 Lei | |
| 14 | N124072 | 1 | WASHER THRUST | 25,54 Lei | |
| 15 | N115646 | 1 | THRUST BEARING | 17,02 Lei | |
| 16 | N115647 | 1 | WASHER THRUST | 15,12 Lei | |
| 17 | N406599 | 1 | GEAR SA | 169,36 Lei | |
| 18 | N115642 | 1 | THRUST PLATE | 7,37 Lei | |
| 19 | 142940-00 | 4 | SCREW | 4,57 Lei | |
| 20 | N195829 | 1 | GEARCASE COVER SA | 70,39 Lei | |
| 21 | 621979-00 | 2 | STRIP | 4,57 Lei | |
| 22 | 618733-00 | 1 | SEAL | 7,37 Lei | |
| 23 | 618477-00 | 1 | FELT SEAL | 4,57 Lei | |
| 24 | N020720 | 1 | COVERPLATE | 5,21 Lei | |
| 25 | 330045-43 | 1 | SCREW TAPTITE | 4,57 Lei | |
| 26 | N026647 | 1 | SHAFT SA | 200,99 Lei | |
| 27 | 000903-00 | 1 | BALL | 37,73 Lei | |
| 28 | N252639 | 1 | SLIDER | 30,87 Lei | |
| 29 | N426742 | 1 | SPRING | 6,23 Lei | |
| 30 | 658115-00 | 1 | YOKE | 25,54 Lei | |
| 31 | 617000-00 | 1 | SADDLE | 19,95 Lei | |
| 32 | N191614 | 2 | SCREW | 5,21 Lei | |
| 33 | N191590 | 2 | LOCK NUT | 4,57 Lei | |
| 34 | N021857 | 1 | BEARING | 25,54 Lei | |
| 34 | N021905 | 1 | BALL STEEL | 4,57 Lei | |
| 35 | N115641 | 1 | GASKET | 6,23 Lei | |
| 37 | N131037 | 2 | COVER | 4,57 Lei | |
| 38 | 144457-02 | 4 | SCREW | 4,57 Lei | |
| 39 | N412063 | 1 | LEVER SA | 25,54 Lei | |
| 40 | N348279 | 1 | SA LED WITH OVERMOLD | 25,54 Lei | |
| 42 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 45 | 949638-02 | 2 | SMALL RUBBER | 4,57 Lei | |
| 50 | 330019-02 | 11 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 68 | N534028 | 1 | LABEL RATING DCS367 (EU/ANZ) | 4,57 Lei | |
| 69 | N454095 | 1 | ID LABEL DCS367 | 4,57 Lei | |
| 70 | 632151-00 | 1 | POSITION LABEL | 4,57 Lei | |
| 71 | N454100 | 1 | LABEL ID, BRUSHLESS RECIP DCS367 EU / AN | 4,57 Lei |
