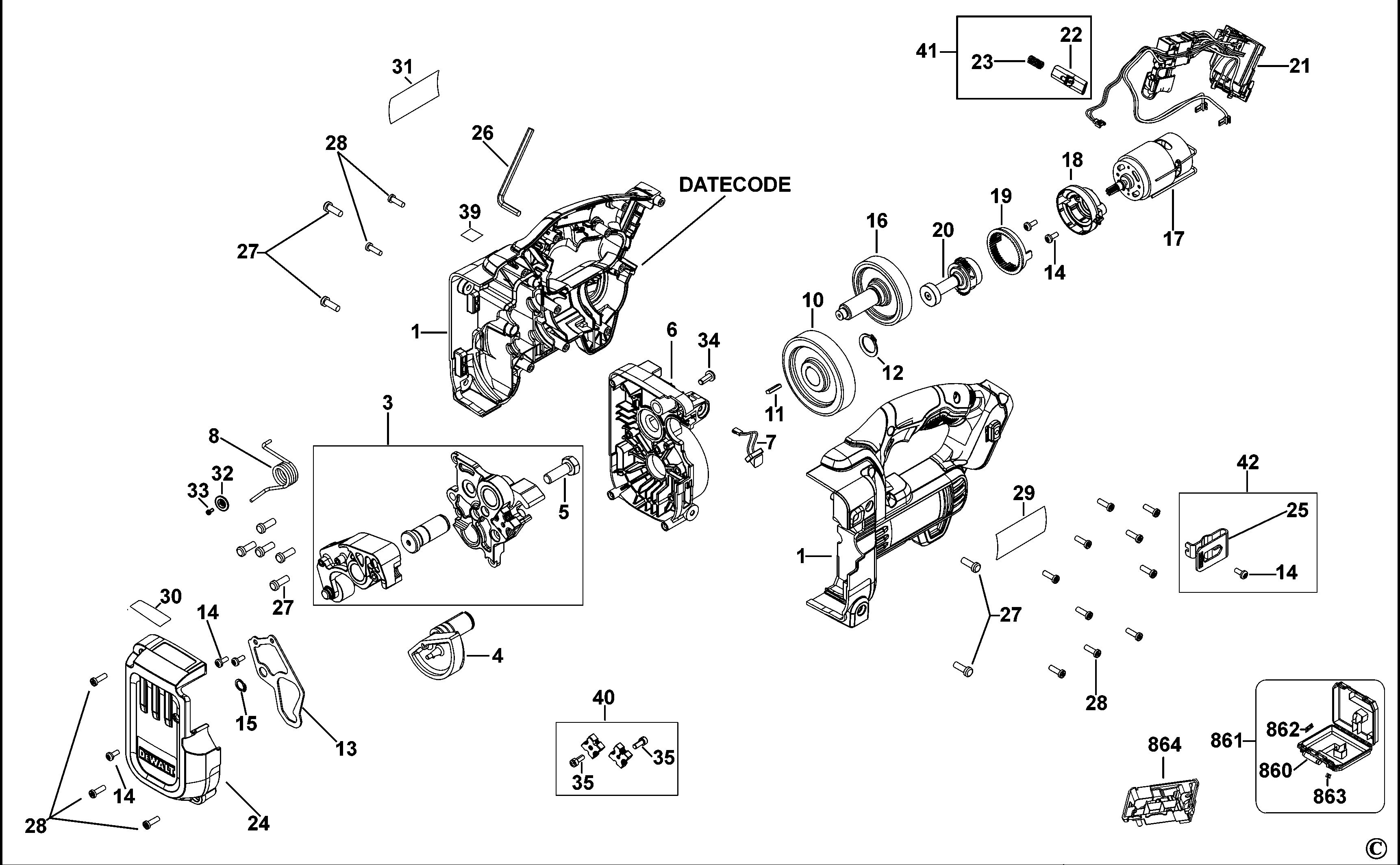

DEWALT THREADED ROD CUTTER (Type 1)
SKU Produs: DCS350N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N420220 | 1 | SERVICE ASSY HOUSINGS DCS350 | 307,21 Lei | |
| 3 | N471685 | 1 | SA JAWS DCS350 EU, SERVICE | 1786,07 Lei | |
| 4 | N441241 | 1 | CAM SPINDLE DCS350, SERVICE | 307,21 Lei | |
| 5 | N433562 | 1 | SCREW M10X30 PATCH | 10,29 Lei | |
| 6 | N441237 | 1 | GEARCASE DCS350, SERVICE | 96,56 Lei | |
| 7 | N420221 | 1 | LED DCS350, SERVICE | 57,81 Lei | |
| 8 | N453041 | 1 | RETURN SPRING | 7,37 Lei | |
| 10 | N441238 | 1 | GEAR DCS350, SERVICE | 169,36 Lei | |
| 11 | N400513 | 1 | Key Stock (3x5x16) | 5,21 Lei | |
| 12 | 861349-00 | 1 | CIRCLIP | 4,57 Lei | |
| 13 | N441239 | 1 | RETURN PLATE DCS350, SERVICE | 52,22 Lei | |
| 14 | 330045-69 | 6 | SCREW | 10,29 Lei | |
| 15 | 860079-02 | 1 | RING,SPRING SHAFT D10 UNI7435 | 4,57 Lei | |
| 16 | N427318 | 1 | SA 1st REDUCTION DCS350, SERVICE | 300,47 Lei | |
| 17 | N427320 | 1 | SA MOTOR+PINION DCS350,SERVICE | 240,38 Lei | |
| 18 | N390059 | 1 | Motor Mount | 17,02 Lei | |
| 19 | N441240 | 1 | GEAR DCS350, SERVICE | 57,81 Lei | |
| 20 | N427319 | 1 | SA 2st REDUCTION DCS350, SERVICE | 252,58 Lei | |
| 21 | N420219 | 1 | SERVICE ASSY ELEC CTRL EU DCS350 | 349,13 Lei | |
| 22 | N400521 | 1 | Forward/Reverse Bar DCS350 | 6,23 Lei | |
| 23 | N411702 | 1 | SPRING | 5,21 Lei | |
| 24 | N454243 | 1 | Gear case cover DCS350 | 37,73 Lei | |
| 25 | N086039 | 1 | BELT HOOK | 12,71 Lei | |
| 26 | 098000-11 | 1 | HEX KEY 5mm | 5,21 Lei | |
| 27 | 90614124-06 | 9 | SCREW | 4,57 Lei | |
| 28 | 330019-12 | 15 | SCREW | 4,57 Lei | |
| 29 | N423498 | 1 | BRAND LABEL DCS350 EU | 10,29 Lei | |
| 30 | N442483 | 1 | LABEL PERFORM PROTECT 43x16 | 6,23 Lei | |
| 31 | N394300 | 1 | RATING LANEL DCS350 XJ | 22,4 Lei | |
| 32 | N447901 | 1 | RETAINER WASHER | 7,37 Lei | |
| 33 | 330019-01 | 1 | Screw M3.5 X9.5 | 4,57 Lei | |
| 34 | N453340 | 1 | SCREW M5X14 | 5,21 Lei | |
| 35 | 911281-00 | 2 | SCREW,SOCKET M.6X16 UNI 5931 | 4,57 Lei | |
| 39 | N437589 | 1 | FORWARD/RESET LABEL | 6,23 Lei | |
| 40 | N473494 | 1 | SERVICE ASSY CUTTERS EUR DCS350, SERVIC | 318,26 Lei | |
| 41 | N420224 | 1 | SERVICE ASSY FWD/REV BAR DCS350 | 25,54 Lei | |
| 42 | N420222 | 1 | BELT HOOK KIT DCS350, SERVICE | 52,22 Lei | |
| 860 | H1400196008 | 2 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 2 | HANDLE | 17,02 Lei | |
| 861 | N279261 | 1 | KITBOX DWST1-17807 | 240,38 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 1 | LATCH (Better Latch - C) | 13,85 Lei | |
| 864 | MP17152 | 1 | INSERT | 57,81 Lei |
