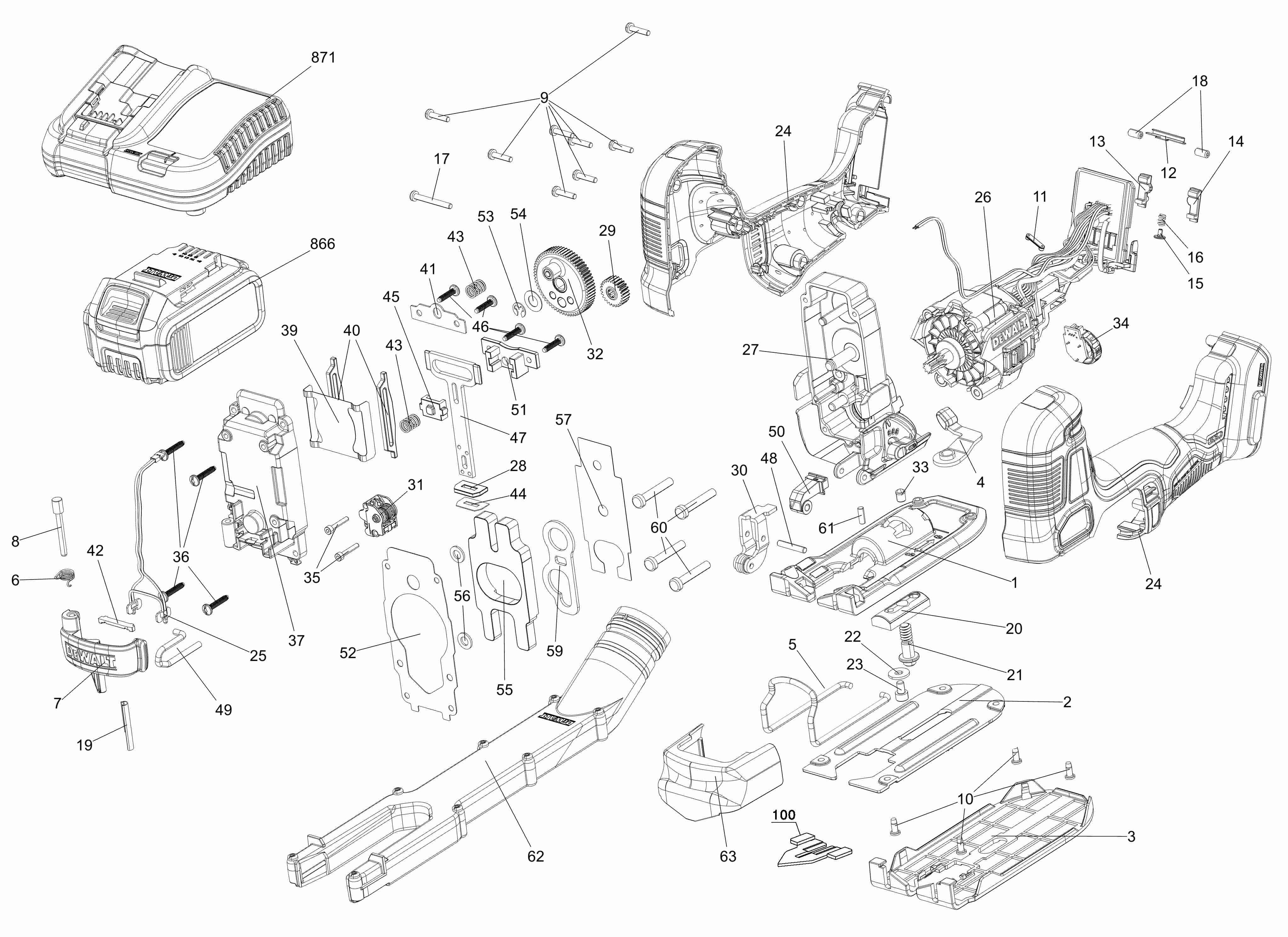

DEWALT XR 18V BL JIGSAW BG BARE Type 1
SKU Produs: DCS335N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N527629 | 1 | SHOE | 57,81 Lei | |
| 2 | N555231 | 1 | STEEL SHOE | 41,93 Lei | |
| 3 | N548480 | 1 | SOLE PLATE | 15,12 Lei | |
| 4 | N536524 | 1 | LEVER | 25,54 Lei | |
| 5 | N523099 | 1 | GUARD | 30,87 Lei | |
| 6 | N515119 | 1 | SPRING BLADE CLAMP LEVER | 4,57 Lei | |
| 7 | N565505 | 1 | BLADE CLAMP | 25,54 Lei | |
| 8 | N524855 | 1 | BLADE CLAMP LEVER PIN | 17,02 Lei | |
| 9 | 330019-03 | 8 | Screw M3.5X16 T15 | 4,57 Lei | |
| 10 | N056875 | 4 | SCREW M4X10 | 4,57 Lei | |
| 11 | N261987 | 1 | CAP | 4,57 Lei | |
| 12 | N467560 | 1 | STRIKE PLATE | 4,57 Lei | |
| 13 | N438438 | 1 | ANTIVIBE RAIL INSERT COVER SIDE | 4,57 Lei | |
| 14 | N438439 | 1 | ANTIVIBE RAIL INSERT ASSEMBLY SIDE | 4,57 Lei | |
| 15 | N091479 | 1 | SPRING GUIDE | 4,57 Lei | |
| 16 | N102647 | 1 | COIL TERMINAL BLOCK SPRING | 4,57 Lei | |
| 17 | 330019-06 | 1 | SCREW, PLSTC THD FORM, M3.5x32 T15 | 4,57 Lei | |
| 18 | N487311 | 2 | RUBBER PIN | 4,57 Lei | |
| 19 | N548918 | 1 | CLAMP LEVER WEAR PLATE | 4,57 Lei | |
| 20 | N516006 | 1 | CLAMPING BAR | 17,02 Lei | |
| 21 | 582826-00 | 1 | BOLT | 6,23 Lei | |
| 22 | N595377 | 1 | WASHER M5x14,5x1,5 | 4,57 Lei | |
| 23 | N595379 | 1 | M5X8 Socket Head Cap Screw | 4,57 Lei | |
| 24 | N577780 | 1 | SA HANDLESET BODY GRIP JIGSAW | 106,98 Lei | |
| 25 | N518314 | 1 | SA JIGSAW LED AND WIRES | 25,54 Lei | |
| 26 | N632686 | 1 | MOTOR AND SWITCH SA | 1003,6 Lei | |
| 27 | N723994 | 1 | GEARCASE SA | 106,98 Lei | |
| 28 | N723984 | 1 | SEAL SA | 13,85 Lei | |
| 30 | N723988 | 1 | SA Support Bracket Service | 41,93 Lei | |
| 31 | N723991 | 1 | BLADE CLAMP | 96,56 Lei | |
| 32 | N723993 | 1 | GEAR SA | 106,98 Lei | |
| 33 | 584686-00 | 1 | PLUNGER | 8,64 Lei | |
| 34 | N573899 | 1 | WHEEL SPEED | 41,93 Lei | |
| 35 | 582837-00 | 2 | BOLT | 4,57 Lei | |
| 36 | 330045-07 | 4 | SCREW | 4,57 Lei | |
| 37 | N561929 | 1 | GEARCASE COVER | 57,81 Lei | |
| 39 | N539623 | 1 | Upper Bearing Rail Wear | 5,21 Lei | |
| 40 | N539622 | 2 | Upper Bearing Rails | 5,21 Lei | |
| 41 | N539624 | 1 | UPPER BEARING RAIL COVER | 4,57 Lei | |
| 42 | N543121 | 1 | LED RETAINER | 4,57 Lei | |
| 43 | N543918 | 1 | COMPRESSION SPRING | 4,57 Lei | |
| 44 | N579198 | 1 | SEAL | 4,57 Lei | |
| 45 | N573337 | 1 | BEARING LOWER STEEL | 8,64 Lei | |
| 46 | 330045-06 | 4 | SCREW, METAL THD FRM,M4X16 T20 | 4,57 Lei | |
| 47 | N499406 | 1 | RECIP SHAFT | 57,81 Lei | |
| 48 | 330041-29 | 1 | PIN, ROLLER | 4,57 Lei | |
| 49 | N547459 | 1 | PINCH GUARD | 5,21 Lei | |
| 50 | N504498 | 1 | BLOWER NOZZLE | 4,57 Lei | |
| 51 | N500477 | 1 | LOWER BEARING RAIL | 10,29 Lei | |
| 52 | N514407 | 1 | GASKET | 4,57 Lei | |
| 53 | 571181-00 | 1 | E CLIP | 4,57 Lei | |
| 54 | 582829-00 | 1 | WASHER | 4,57 Lei | |
| 55 | N499205 | 1 | CONNTERWEIGHT | 30,87 Lei | |
| 56 | N563127 | 2 | WASHER M6 | 4,57 Lei | |
| 57 | N509093 | 1 | WEAR PAD | 5,21 Lei | |
| 59 | N509087 | 1 | ORBITAL ACTION LINK | 6,23 Lei | |
| 60 | 330019-21 | 4 | SCREW.PLSTC THD FORM, M5X32 T25 | 4,57 Lei | |
| 61 | N516272 | 1 | ROLLER PIN 4X14 | 4,57 Lei | |
| 62 | N564892 | 1 | DUST PORT | 25,54 Lei | |
| 63 | N575480 | 1 | FRONT DUST SHIELD | 7,37 Lei | |
| 100 | 402140-00 | 1 | GUIDE, BLADE | 6,23 Lei | |
| 864 | N577616 | 1 | KITBOX TRAY FOR DCS334 DCS335 | 57,81 Lei | |
| 900 | N515469 | 1 | LEVER | 15,12 Lei | |
| 900 | N562695 | 1 | Bevel Wear Plate | 4,57 Lei |
