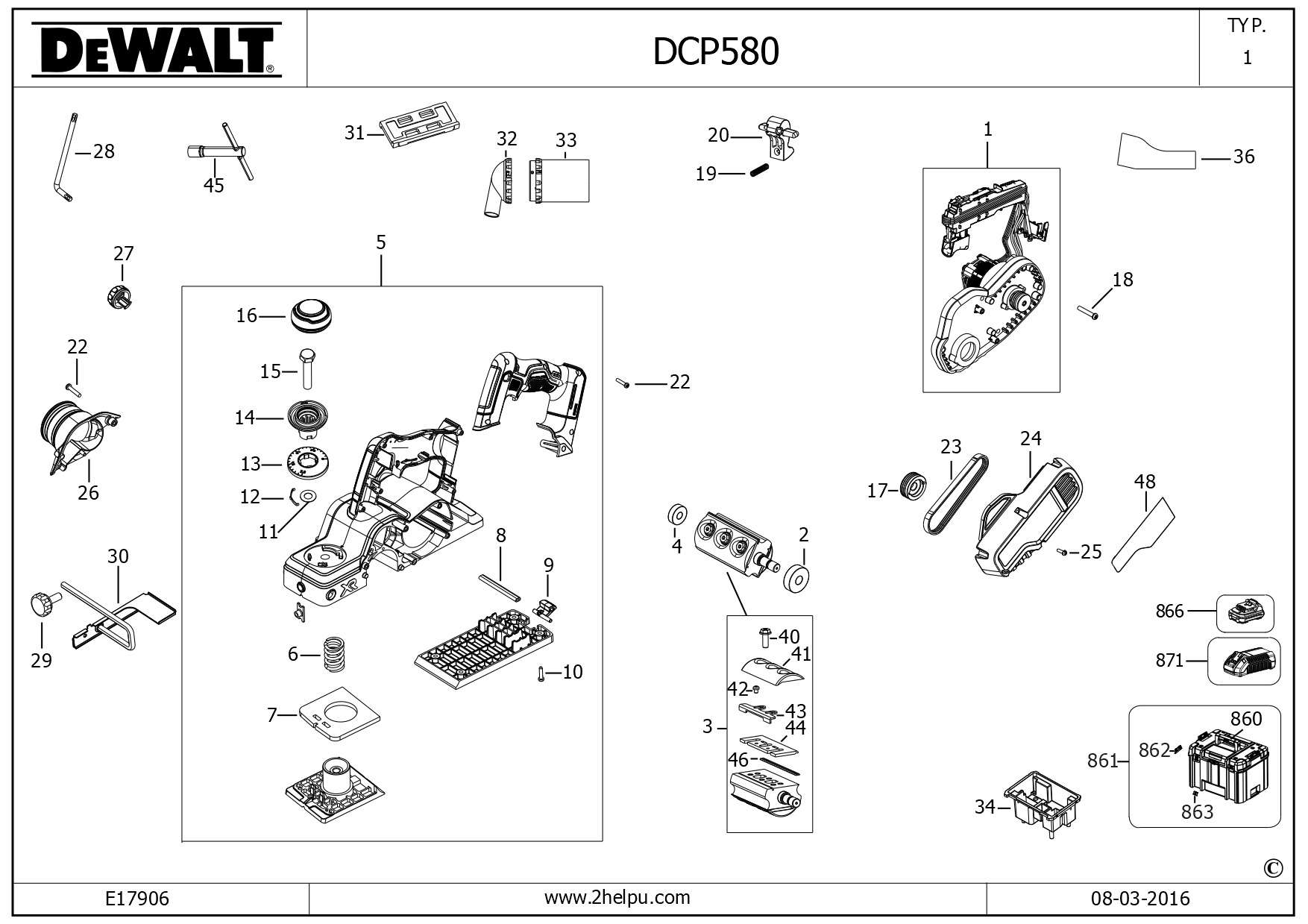

DEWALT PLANER (Type 1)
SKU Produs: DCP580 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N774128 | 1 | MOTOR AND SWITCH SA | 530,69 Lei | |
| 2 | N525396 | 1 | BEARING | 15,12 Lei | |
| 3 | N467508 | 1 | DRUM SA | 331,47 Lei | |
| 4 | 605040-06 | 1 | BEARING,BALL | 13,85 Lei | |
| 5 | N467614 | 1 | FSO SHOE | 318,26 Lei | |
| 7 | N443822 | 1 | SEAL | 4,57 Lei | |
| 8 | N437006 | 2 | SLEEVE | 4,57 Lei | |
| 9 | N442562 | 1 | INSERT | 4,57 Lei | |
| 10 | N017839 | 4 | SCREW | 4,57 Lei | |
| 11 | 663253-00 | 1 | WASHER | 4,57 Lei | |
| 12 | 663254-00 | 1 | LEAF SPRING | 15,12 Lei | |
| 13 | N445570 | 1 | SCALE | 17,02 Lei | |
| 14 | N413906 | 1 | HANDLE | 8,64 Lei | |
| 15 | N424992 | 1 | BOLT | 4,57 Lei | |
| 16 | N413909 | 1 | KNOB | 17,02 Lei | |
| 17 | N442576 | 1 | PULLEY | 72 Lei | |
| 18 | 562097-10 | 5 | SCREW | 4,57 Lei | |
| 19 | N446842 | 1 | SPRING | 4,57 Lei | |
| 20 | N416042 | 1 | BUTTON LOCK-OFF | 6,23 Lei | |
| 22 | 682211-00 | 10 | SCREW, PLASTITE | 4,57 Lei | |
| 23 | N421858 | 1 | BELT | 52,22 Lei | |
| 24 | N413908 | 1 | BELT COVER | 17,02 Lei | |
| 25 | N469371 | 2 | SCREW | 4,57 Lei | |
| 26 | N416443 | 1 | DUST PORT | 12,71 Lei | |
| 27 | N420026 | 1 | CAP | 5,21 Lei | |
| 28 | N444089 | 1 | WRENCH SPECIAL | 14,2 Lei | |
| 29 | N434189 | 1 | SCREW | 6,23 Lei | |
| 30 | N425643 | 1 | FENCE | 37,73 Lei | |
| 31 | 663315-00 | 1 | GAUGE | 10,29 Lei | |
| 32 | N455892 | 1 | DEFLECTOR | 34,05 Lei | |
| 33 | N455893 | 1 | BAG SA | 80,04 Lei | |
| 34 | N439783 | 1 | INSERT DCP580 | 57,81 Lei | |
| 36 | NA049830 | 1 | RATING LABEL | 5,21 Lei | |
| 40 | N424801 | 6 | BOLT | 4,57 Lei | |
| 41 | 663290-00 | 2 | BLADE CLAMP | 19,95 Lei | |
| 42 | N444264 | 4 | SCREW | 4,57 Lei | |
| 43 | N424765 | 2 | ADJUSTER | 5,21 Lei | |
| 44 | N556874 | 2 | RETAINER | 26,1 Lei | |
| 45 | N460300 | 1 | WRENCH SPECIAL | 26,1 Lei | |
| 48 | N452957 | 1 | BRAND LABEL | 4,57 Lei | |
| 860 | H1400196008 | 1 | HANDLE | 24,9 Lei | |
| 860 | H1400198008 | 1 | HANDLE | 17,02 Lei | |
| 861 | N445186 | 1 | KITBOX | 307,21 Lei | |
| 862 | N409477 | 1 | LATCH | 8,64 Lei | |
| 863 | P910190 | 2 | LATCH (Better Latch - C) | 13,85 Lei |
