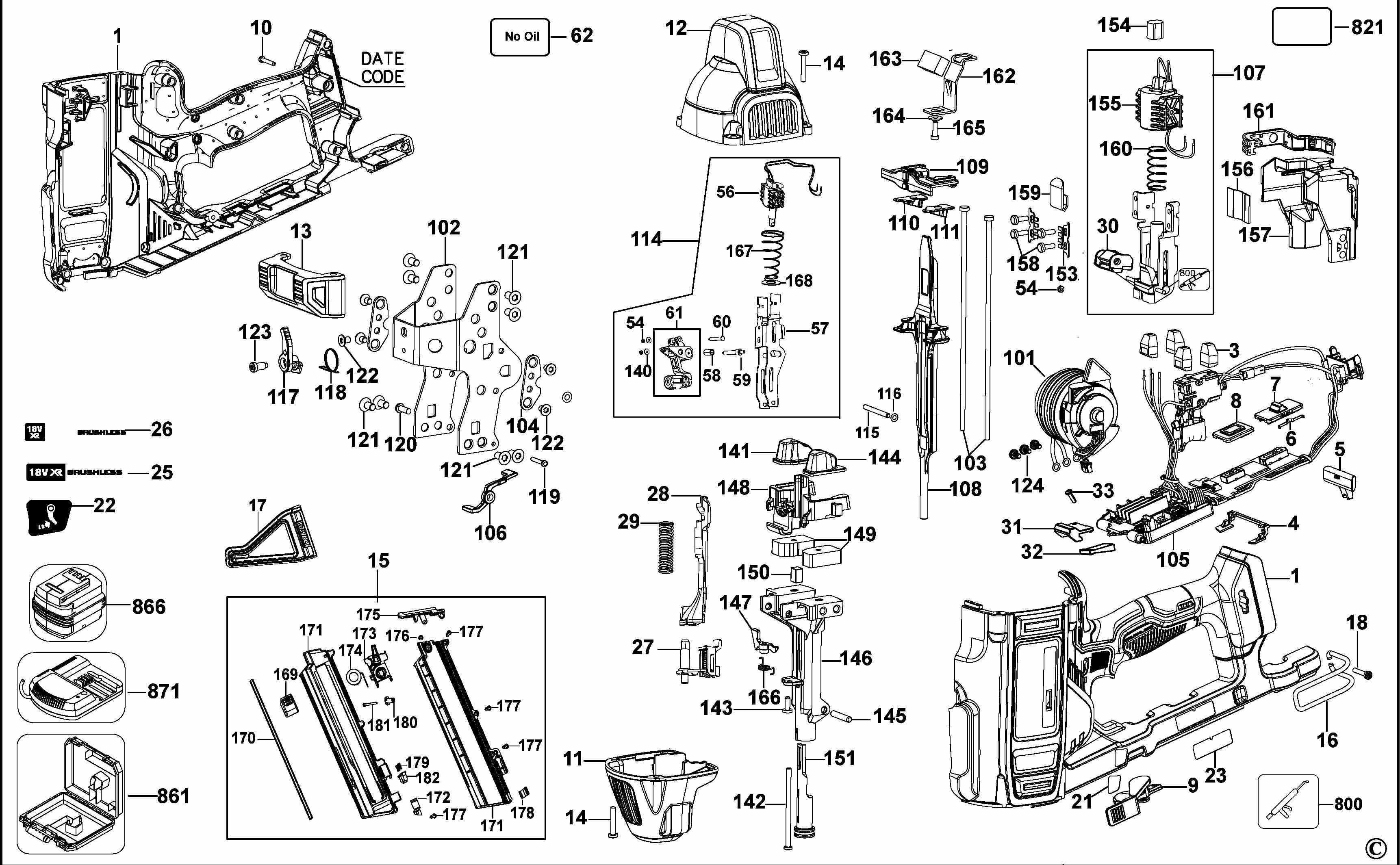

DEWALT NAILER (Type 2)
SKU Produs: DCN890 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N534155 | 1 | SERVICE PACKED CCN HOUSINGS PRINTED | 218,1 Lei | |
| 3 | 650974-00 | 4 | WIRE NUT HIGH TECH | 5,3 Lei | |
| 4 | N447434 | 1 | LIGHT PIPE CCN | 7,5 Lei | |
| 5 | N039287 | 1 | TRIGGER LOCK OFF (UP26) | 4,7 Lei | |
| 6 | N014681 | 2 | LEAF SPRING | 4,7 Lei | |
| 7 | N403393 | 1 | SELECTOR CAP | 6,4 Lei | |
| 8 | N463655 | 1 | MODE SELECT CAP | 7,5 Lei | |
| 9 | N401889 | 1 | MAGAZINE CAM | 5,3 Lei | |
| 10 | 330019-24 | 9 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,7 Lei | |
| 11 | N389136 | 1 | NOSE COVER | 22,4 Lei | |
| 12 | N388647 | 1 | HOUSING END CAP | 59,2 Lei | |
| 13 | N454225 | 1 | REMOVABLE TOP STAND | 10,5 Lei | |
| 14 | 330019-13 | 6 | SCREW,PLSTC THD FORM M4X19 T20 | 4,7 Lei | |
| 15 | N534148 | 1 | SERVICE PACKED 30 PIN MAGAZINE | 339,2 Lei | |
| 16 | N412549 | 1 | RAFTER HOOK CCN | 15,5 Lei | |
| 17 | N398048 | 1 | MAGAZINE SUPPORT LEG | 20,4 Lei | |
| 18 | 330019-52 | 1 | SCREW | 4,7 Lei | |
| 21 | N475982 | 1 | LABEL OPERATIONAL BATTERY INDICATOR | 7,5 Lei | |
| 22 | N475980 | 1 | LABEL OPERATIONAL STALL INDICATOR | 7,5 Lei | |
| 23 | N475979 | 1 | LABEL OPERATIONAL SPEED SELECT | 8,8 Lei | |
| 25 | N475978 | 1 | LABEL IDENTIFICATION EURO 18V COVER | 15,5 Lei | |
| 26 | N475977 | 1 | LABEL IDENTIFICATION EURO 18V ASSY | 15,5 Lei | |
| 27 | N541801 | 1 | SERVICE PACKED SA UPPER TRIP | 123,6 Lei | |
| 28 | N404477 | 1 | HAMMER LOCK PLASTIC | 13 Lei | |
| 29 | N384840 | 1 | SPRING CONTACT TRIP | 4,7 Lei | |
| 30 | N608536 | 1 | SERVICE PACKED SA KNOCKOVER | 42,9 Lei | |
| 31 | N607133 | 1 | BRUSH HOLDER 2 | 7,2 Lei | |
| 32 | N481219 | 1 | 21PL DEBRIS BRUSH | 13 Lei | |
| 33 | 330065-25 | 1 | SCREW PLSTC THD FORM M3X9 T10 | 4,7 Lei | |
| 54 | 391814-00 | 3 | GROMMET | 4,7 Lei | |
| 56 | N516575 | 1 | PRIMARY ACTIVATION SOLENOID AND PLUNGER | 148,5 Lei | |
| 58 | N465069 | 1 | SLEEVE | 20,4 Lei | |
| 58 | N465161 | 1 | TERMINAL BLOCK | 15,5 Lei | |
| 61 | N604230 | 1 | SERVICE PACK. SA SPRING BEAM + PINCH ROL | 543 Lei | |
| 62 | N569936 | 1 | 1 Inch Magazine No Oil Label DCN891 | 10,5 Lei | |
| 101 | N534153 | 1 | SERVICE PACKED CCN SA MOTOR | 730,3 Lei | |
| 102 | N527636 | 1 | FRAME G2 | 199,6 Lei | |
| 103 | N339981 | 2 | RAIL | 53,4 Lei | |
| 104 | N463410 | 2 | MOTOR LOCATOR LEFT | 8,8 Lei | |
| 106 | N391224 | 1 | CONTACT TRIP LINKAGE | 5,3 Lei | |
| 107 | N534184 | 1 | SERVICE PACKED SA RETURN | 314,3 Lei | |
| 108 | N534154 | 1 | SERVICE PACKED CCN PROFILE | 767,8 Lei | |
| 109 | N339980 | 1 | UPPER BUMPER RETAINER | 10 Lei | |
| 110 | N339985 | 1 | UPPER RIGHT BUMPER | 4,7 Lei | |
| 111 | N339986 | 1 | UPPER LEFT BUMPER | 4,7 Lei | |
| 114 | N534149 | 1 | SERVICE PACKED CCN SA ACTIVATION | 767,8 Lei | |
| 115 | N389357 | 1 | DOWEL PIN PTO | 7,5 Lei | |
| 116 | N468984 | 2 | O-RING ID 4MM | 4,7 Lei | |
| 117 | N465817 | 1 | LEVER, STALL RELEASE | 6,4 Lei | |
| 118 | N086806 | 1 | TORSION SPRING | 6,4 Lei | |
| 119 | 330019-24 | 1 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,7 Lei | |
| 120 | N114100 | 1 | LATCH LOCK | 5,3 Lei | |
| 121 | N477247 | 8 | SCREW, FLAT HEAD M6X1 | 4,7 Lei | |
| 122 | N093608 | 5 | SCREW, FLAT HD M5X8 | 4,7 Lei | |
| 123 | N113536 | 1 | SCREW, STALL RELEASE | 4,7 Lei | |
| 124 | N400753 | 3 | SCREW,MACHINE W/ EXTERNAL LOCK WASHER | 4,7 Lei | |
| 140 | 330016-25 | 2 | WASHER, PLAIN 8.25X4.25X0.607 | 4,7 Lei | |
| 141 | N744341 | 1 | FS- LOWER RIGHT BUMPER V2 | 17,4 Lei | |
| 142 | N339966 | 1 | GUIDE ROD CONTACT TRIP | 38,6 Lei | |
| 143 | N489384 | 1 | PIN, LOWER TRIP RELEASE | 14,2 Lei | |
| 144 | N744342 | 1 | FS- LOWER LEFT BUMPER V2 | 17,4 Lei | |
| 145 | N563121 | 1 | PIN | 17,4 Lei | |
| 146 | N598707 | 1 | BRUSH NOSE MACHINED, GH | 325,7 Lei | |
| 147 | N384734 | 1 | LEVER LOWER TRIP RELEASE | 72 Lei | |
| 148 | N340040 | 1 | LOWER BUMPER RETAINER | 22,4 Lei | |
| 149 | N718794 | 2 | FS BUMPER DAMPNER | 17,4 Lei | |
| 150 | N446748 | 1 | MAGNET LIFTER CONCRETE NAILER | 15,5 Lei | |
| 151 | N534151 | 1 | SERVICE PACKED SA LOWER CONTACT TRIP FI | 161,6 Lei | |
| 153 | N471559 | 2 | SOLENOID LOCKING PLATE CCN | 5,3 Lei | |
| 154 | N494853 | 1 | RETURN SOLENOID PLUNGER DAMPER | 8,8 Lei | |
| 155 | N516576 | 1 | SECONDARY RETURN SOLENOID AND PLUNGER | 161,6 Lei | |
| 156 | N463179 | 1 | GAP PAD | 42,9 Lei | |
| 157 | N387436 | 1 | RAIL LOCATOR, MACH | 123,6 Lei | |
| 157 | N589347 | 1 | RAIL LOCATOR MACH, FOR HPS | 199,6 Lei | |
| 158 | 330045-45 | 8 | SCREW TAPTITE M4x12, SLT/T20 | 4,7 Lei | |
| 159 | N494832 | 1 | UPPER SKID PLATE, CCN | 4,7 Lei | |
| 160 | N405418 | 1 | RETURN RESET SPRING | 7,5 Lei | |
| 161 | N461432 | 1 | CCN SOLENOID WIRE TRAP | 13 Lei | |
| 162 | N454679 | 1 | REBOUND PLATE | 6,4 Lei | |
| 163 | N454680 | 1 | REBOUND DAMPER | 8,8 Lei | |
| 164 | 941633-00 | 1 | WASHER | 4,7 Lei | |
| 165 | 330019-02 | 1 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,7 Lei | |
| 166 | N393391 | 1 | TORSION SPRING RELEASE | 4,7 Lei | |
| 167 | N219872 | 1 | SOLENOID SPRING CDFN | 4,7 Lei | |
| 168 | N114861 | 1 | SOLENOID WASHER | 4,7 Lei | |
| 169 | N061505 | 1 | CAP, LATCH (SUBC) | 7,5 Lei | |
| 170 | N405025 | 1 | RETAINING GUARD 30 PIN | 15,5 Lei | |
| 170 | N405038 | 1 | RATING PLATE | 4,5 Lei | |
| 170 | N405039 | 1 | RATING PLATE | 4,5 Lei | |
| 170 | N405040 | 1 | RATING PLATE | 4,5 Lei | |
| 170 | N405041 | 1 | RATING PLATE | 4,5 Lei | |
| 171 | N534257 | 1 | SERVICE PACKED CCN MAGAZINE HOUSINGS | 90,6 Lei | |
| 172 | N114100 | 1 | LATCH LOCK | 5,3 Lei | |
| 173 | N339965 | 1 | CONCRETE PUSHER (MOULD) | 17,4 Lei | |
| 174 | N395217 | 1 | SPRING AND HUB | 22,4 Lei | |
| 175 | N600879 | 1 | MAGAZINE RAMPED INTERFACE, GH | 59,2 Lei | |
| 176 | N123971 | 1 | SCREW, MACH, M4X4.75 T20 | 4,7 Lei | |
| 177 | 330019-02 | 5 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,7 Lei | |
| 178 | N464365 | 1 | MAGAZINE END CLIP | 4,7 Lei | |
| 179 | N466546 | 2 | LATCH PUSHER SPRING | 4,7 Lei | |
| 180 | N061506 | 1 | PIN, LATCH (MOULD) | 13 Lei | |
| 181 | 330019-62 | 1 | SCREW | 4,7 Lei | |
| 182 | N464508 | 1 | MAGAZINE LATCH PUSHER | 6,4 Lei | |
| 800 | N017298 | 1 | GREASE | 384 Lei | |
| 821 | N636350 | 1 | LABEL RATING DCN890-XJ TY02 | 10,5 Lei | |
| 861 | N466963 | 1 | SA KITBOX CONCRETE NAILER (MOULD) | 185,8 Lei |
