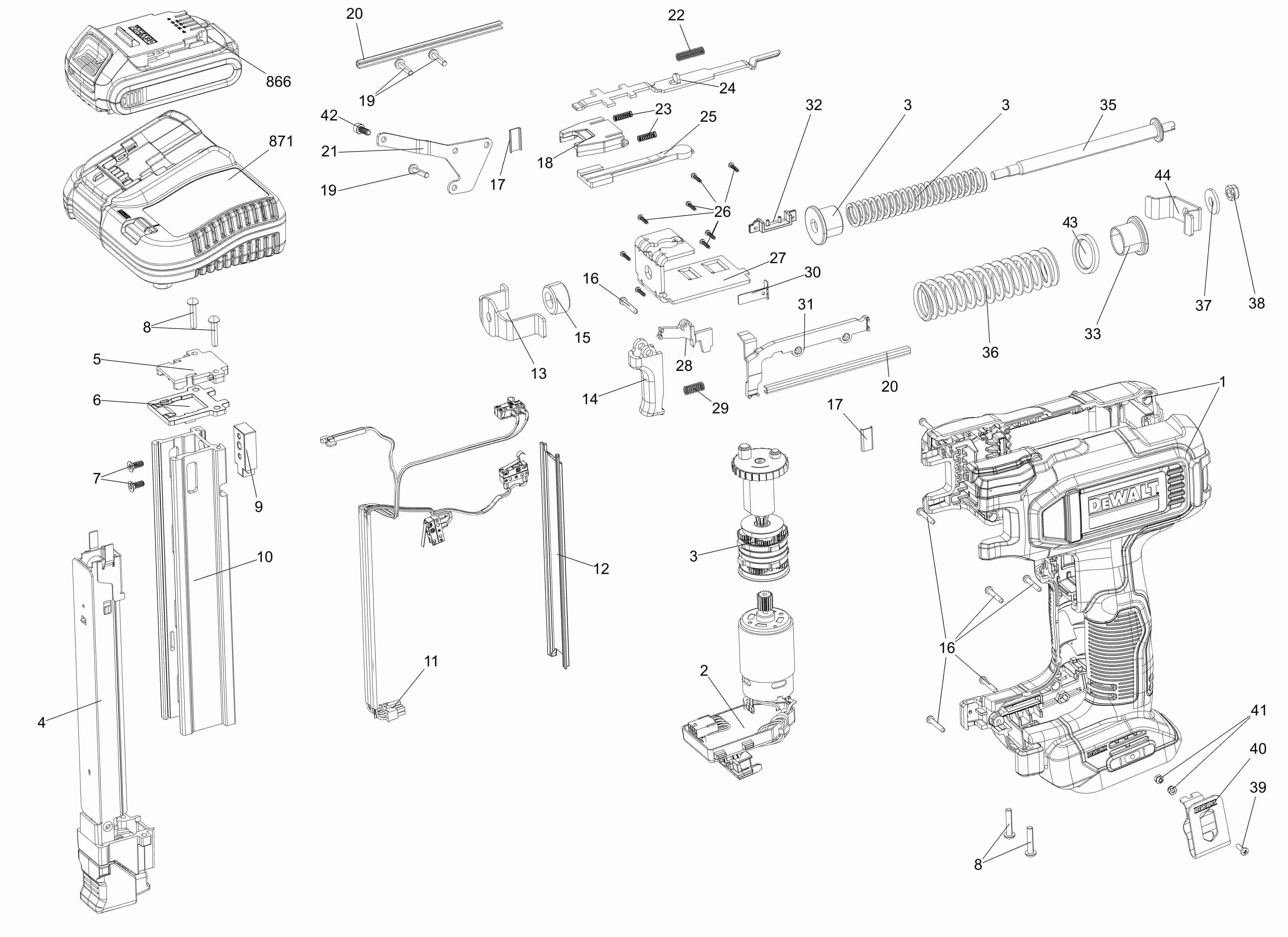

DEWALT 18V CORDLESS ELECTRICIAN (Type 10)
SKU Produs: DCN701N /Type: 10
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N599051 | 1 | CLAMSHELL SET | 148,5 Lei | |
| 2 | N730215 | 1 | MOTOR SA | 483,2 Lei | |
| 3 | N730216 | 1 | TRANSMISSION SA | 433,24 Lei | |
| 4 | N730217 | 1 | MAGAZINE SA | 318,26 Lei | |
| 5 | N533166 | 1 | COVER | 88,55 Lei | |
| 6 | N533165 | 1 | NOSE | 96,56 Lei | |
| 7 | N569458 | 2 | SCREW | 4,57 Lei | |
| 8 | N639188 | 4 | SCREW MACHINE M4X20 SCS | 4,57 Lei | |
| 9 | N533168 | 1 | FRAME | 41,93 Lei | |
| 10 | N563367 | 1 | MAGAZINE | 200,99 Lei | |
| 11 | N533246 | 1 | LEAD SWITCH SA | 213,19 Lei | |
| 12 | N532167 | 1 | COVER | 7,37 Lei | |
| 13 | N543472 | 1 | STRAP | 12,71 Lei | |
| 14 | N537095 | 1 | TRIGGER | 12,71 Lei | |
| 15 | N488350 | 1 | BUMPER | 37,73 Lei | |
| 16 | 330019-24 | 10 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 17 | N564273 | 2 | LUG | 12,71 Lei | |
| 18 | N502991 | 1 | GUIDE | 8,64 Lei | |
| 19 | 330019-03 | 3 | Screw M3.5X16 T15 | 4,57 Lei | |
| 20 | N501234 | 2 | GUIDE | 15,12 Lei | |
| 21 | N621099 | 1 | BUSHING STRAP - EXTENDED | 8,64 Lei | |
| 22 | N540704 | 1 | SPRING | 4,57 Lei | |
| 23 | N541874 | 2 | SPRING | 4,57 Lei | |
| 24 | N502993 | 1 | CONTACT | 30,87 Lei | |
| 25 | N518282 | 1 | DRIVER | 88,55 Lei | |
| 26 | N529622 | 8 | SCREW | 4,57 Lei | |
| 27 | N501233 | 1 | CARRIAGE | 57,81 Lei | |
| 28 | N541049 | 1 | COVER | 5,21 Lei | |
| 29 | N560608 | 1 | SPRING | 4,57 Lei | |
| 30 | N508582 | 1 | PAWL | 8,64 Lei | |
| 31 | N550776 | 1 | COVER | 6,23 Lei | |
| 32 | N537032 | 1 | COVER | 8,64 Lei | |
| 33 | N594637 | 2 | SEAT | 41,93 Lei | |
| 34 | N576700 | 1 | SPRING | 19,95 Lei | |
| 35 | N601236 | 1 | Drive Shaft | 106,98 Lei | |
| 36 | N576701 | 1 | SPRING | 37,73 Lei | |
| 37 | 330016-18 | 1 | WASHER | 4,57 Lei | |
| 38 | 330021-07 | 1 | NUT | 4,57 Lei | |
| 39 | N042665 | 1 | BELT HOOK SCREW M3 | 4,57 Lei | |
| 40 | N268241 | 1 | HOOK SA | 13,85 Lei | |
| 41 | 330021-11 | 1 | NUT STOP ELASTIC M3 X 0.5 | 4,57 Lei | |
| 42 | N660764 | 1 | SCREW MACHINE M4X10 SCS | 4,57 Lei | |
| 43 | N697536 | 1 | DAMPER | 21,85 Lei | |
| 44 | N656554 | 1 | REAR BOOTSTRAP | 7,37 Lei |
