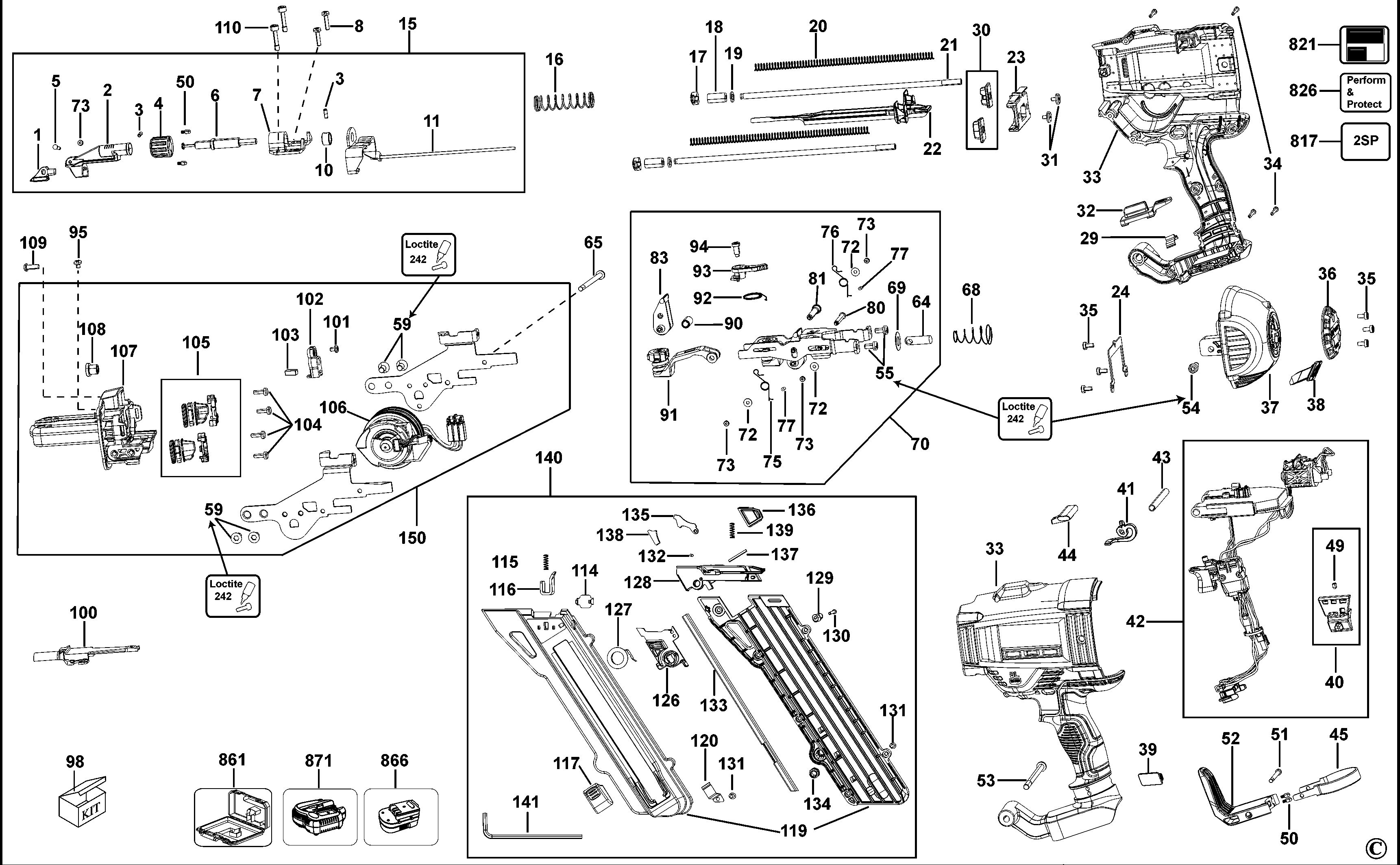

DEWALT CORDLESS NAILER (Type 2)
SKU Produs: DCN693 TYPE 2 /Type: 2
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N324439 | 1 | TIP | 21,85 Lei | |
| 2 | N324459 | 1 | ADJUSTER | 240,38 Lei | |
| 3 | N153045 | 2 | PIN, COILED | 4,57 Lei | |
| 4 | N402075 | 1 | DEPTH KNOB YELLOW (MOULD) | 25,54 Lei | |
| 5 | N330659 | 1 | PIN | 13,85 Lei | |
| 6 | N392751 | 1 | SHAFT | 41,93 Lei | |
| 7 | N034374 | 1 | TRIP SUPPORT AND STOP | 15,12 Lei | |
| 8 | N432422 | 2 | SCREW, MACH, M4X17 T20 TAMPERPROOF | 4,57 Lei | |
| 10 | N044294 | 1 | RETAINING SLEEVE | 7,37 Lei | |
| 11 | N380152 | 1 | SA TRIP ROD AND UPPER (SERVICE) | 80,04 Lei | |
| 15 | N469513 | 1 | DEPTH STOP SA | 318,26 Lei | |
| 16 | N061508 | 1 | SPRING, TRIP | 4,57 Lei | |
| 17 | N192671 | 2 | SPRING RAIL CLIP | 4,57 Lei | |
| 18 | N088831 | 2 | SPRING BUMPER | 12,71 Lei | |
| 19 | N088833 | 2 | WASHER, HARDENED | 4,57 Lei | |
| 20 | N233943 | 1 | SA PACKED RETURN SPRING (SERVICE) | 120,82 Lei | |
| 21 | N036350 | 2 | RAIL | 57,81 Lei | |
| 22 | N469512 | 1 | PROFILE | 570,96 Lei | |
| 24 | N121870 | 1 | ENDCAP RETAINER PLATE | 6,23 Lei | |
| 29 | N087259 | 1 | DETENT | 4,57 Lei | |
| 30 | N469514 | 1 | SA PACKED MCN UPPER BUMBERS (SERVICE) | 10,29 Lei | |
| 31 | N088832 | 2 | SCREW M3.5X6 PAN | 15,12 Lei | |
| 34 | 330019-24 | 8 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 35 | N123731 | 6 | SCREW, FORM M4X8 | 6,23 Lei | |
| 36 | N365479 | 1 | COVER | 19,95 Lei | |
| 36 | N377778 | 1 | CARTON SLEEVE | 36,8 Lei | |
| 38 | N130853 | 1 | LED WINDOW (MOULD X) | 7,37 Lei | |
| 41 | N055786 | 1 | ACTUATOR SPRING | 8,64 Lei | |
| 42 | N648765 | 1 | SWITCH | 776,53 Lei | |
| 43 | N439401 | 1 | FRAME STANDOFF | 8,64 Lei | |
| 44 | N039287 | 1 | TRIGGER LOCK OFF (UP26) | 4,57 Lei | |
| 45 | N080411 | 1 | BAND, RAFTER HOOK | 15,12 Lei | |
| 49 | N380148 | 1 | SA PLASTIC DETENT PIN KIT (SERVICE) | 10,29 Lei | |
| 50 | 326467-00 | 4 | DETENT | 4,57 Lei | |
| 52 | N080410 | 1 | RAFTER HOOK (MOULD) | 19,95 Lei | |
| 53 | N123751 | 1 | SCREW, MACH, M6X80 | 7,37 Lei | |
| 54 | N093611 | 2 | SCREW SHOULDER M5 | 7,37 Lei | |
| 55 | N666247 | 2 | SCREW, FLAT HD, M5X8 WITH PATCH | 5,21 Lei | |
| 59 | N477247 | 1 | SCREW, FLAT HEAD M6X1 | 4,57 Lei | |
| 64 | N126788 | 1 | SA SOLENOID | 120,82 Lei | |
| 65 | N093607 | 1 | SCREW | 6,4 Lei | |
| 68 | N219872 | 1 | SOLENOID SPRING CDFN | 4,57 Lei | |
| 69 | N114861 | 1 | SOLENOID WASHER | 4,57 Lei | |
| 70 | N473189 | 1 | SA G2 ACTIVATION (SERVICE) | 570,96 Lei | |
| 72 | 330016-25 | 3 | WASHER, PLAIN 8.25X4.25X0.607 | 4,57 Lei | |
| 73 | 391814-00 | 3 | GROMMET | 4,57 Lei | |
| 75 | N613043 | 1 | PTO TORSION SPRING, LEFT SHOT PEENED(SUB | 13,85 Lei | |
| 77 | N235059 | 2 | TORSION SPRING ISOLATOR | 4,57 Lei | |
| 80 | N083553 | 1 | SOLENOID PIN | 5,21 Lei | |
| 81 | N034920 | 1 | CARRIER PIN | 21,85 Lei | |
| 83 | N233950 | 1 | SA PACKED PINCH ROLLER CARRIER (SERVICE) | 169,36 Lei | |
| 90 | N259819 | 1 | SLEEVE SERVICE | 6,23 Lei | |
| 91 | N234259 | 1 | SA PINCH ROLLER SPRING ARM (SERVICE) | 157,92 Lei | |
| 92 | N086806 | 1 | TORSION SPRING | 6,23 Lei | |
| 93 | N086157 | 1 | LEVER, STALL RELEASE (MOULD X) | 8,64 Lei | |
| 94 | N113536 | 1 | SCREW, STALL RELEASE | 4,57 Lei | |
| 95 | N123971 | 1 | SCREW, MACH, M4X4.75 T20 | 4,57 Lei | |
| 98 | N473973 | 1 | SA MCN MAINTENANCE KIT (SERVICE) | 389,28 Lei | |
| 100 | N469515 | 1 | INSERT | 181,55 Lei | |
| 101 | 949894-06 | 1 | FILLISTER HEAD SCREW | 4,57 Lei | |
| 102 | N390881 | 1 | HOLDER HOME MAGNET (MOULD) | 5,21 Lei | |
| 103 | N089554 | 1 | MAGNET LIFTER | 30,87 Lei | |
| 104 | 324006-01 | 4 | SCREW, TAPTITE M4X16 | 4,5 Lei | |
| 107 | N481055 | 1 | BACKBONE, MACH GEN 3 | 96,56 Lei | |
| 108 | N061668 | 1 | BUSHING, TRIP | 17,02 Lei | |
| 109 | 330019-11 | 2 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 110 | N061605 | 2 | BOLT, MAGAZINE | 6,23 Lei | |
| 114 | N034726 | 1 | DRY-FIRE LOCK RETAINER | 4,57 Lei | |
| 115 | N061545 | 1 | DRY-FIRE LOCK SPRING | 4,57 Lei | |
| 116 | N307220 | 1 | DRYFIRE LOCK, 24 DEG | 8,64 Lei | |
| 117 | N061505 | 1 | CAP, LATCH (SUBC) | 7,37 Lei | |
| 119 | N472115 | 1 | HOUSING | 106,98 Lei | |
| 120 | N114100 | 1 | LATCH LOCK | 5,21 Lei | |
| 126 | N331500 | 1 | PUSHER | 21,85 Lei | |
| 127 | N128653 | 1 | SA SPRING AND HUB | 25,54 Lei | |
| 128 | N326139 | 1 | MAGAZINE INTERFACE | 213,19 Lei | |
| 129 | N061506 | 1 | PIN, LATCH (MOULD) | 12,71 Lei | |
| 131 | 330065-06 | 3 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 133 | N034743 | 1 | NAIL LINER | 17,02 Lei | |
| 133 | N365856 | 1 | LINER | 21,85 Lei | |
| 134 | 330021-07 | 1 | NUT | 4,57 Lei | |
| 135 | N401907 | 1 | LIFTER | 30,87 Lei | |
| 136 | N359639 | 1 | SUPPORT | 37,73 Lei | |
| 137 | 590312-00 | 1 | PIN | 4,57 Lei | |
| 138 | N401903 | 1 | SHOCK ABSORBER | 7,37 Lei | |
| 140 | N472116 | 1 | MAGAZINE | 570,96 Lei | |
| 141 | N061664 | 1 | WRENCH, HEX | 5,21 Lei | |
| 861 | N665736 | 1 | SA KITBOX CDFN (MOULD) | 200,99 Lei | |
| 866 | N394624 | 2 | BATTERY 18V -5.0AH -90WH | 819,98 Lei | |
| 871 | N450536 | 1 | CHARGER SA | 408,7 Lei |
