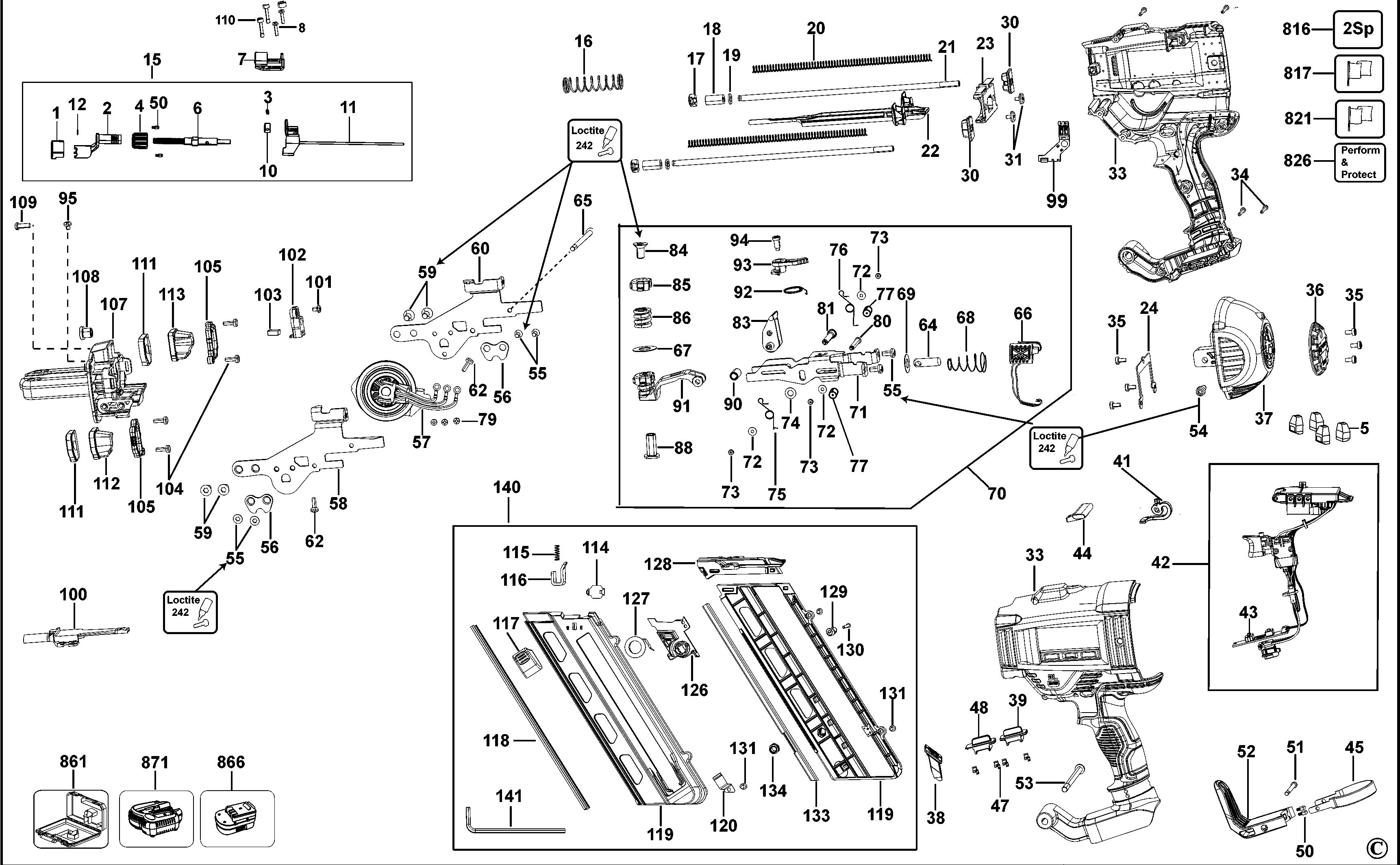

DEWALT CORDLESS NAILER (Type 3)
SKU Produs: DCN692 /Type: 3
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N116163 | 1 | NOMAR COVER CDFN | 10,29 Lei | |
| 2 | N604786 | 1 | SA BARREL AND STAMPING | 57,81 Lei | |
| 3 | N506583 | 1 | PIN, COILED M3 X 12 | 4,57 Lei | |
| 4 | N402075 | 1 | DEPTH KNOB YELLOW (MOULD) | 25,54 Lei | |
| 5 | 650974-00 | 4 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 6 | N535992 | 1 | INNER SHAFT | 34,05 Lei | |
| 7 | N034374 | 1 | TRIP SUPPORT AND STOP | 15,12 Lei | |
| 8 | N432422 | 2 | SCREW, MACH, M4X17 T20 TAMPERPROOF | 4,57 Lei | |
| 10 | N044294 | 1 | RETAINING SLEEVE | 7,37 Lei | |
| 11 | N380152 | 1 | SA TRIP ROD AND UPPER (SERVICE) | 80,04 Lei | |
| 12 | N536265 | 1 | HOG RING | 4,57 Lei | |
| 15 | N601072 | 1 | SERVICE KIT SA CONTACT TRIP TY03 | 200,99 Lei | |
| 16 | N061508 | 1 | SPRING, TRIP | 4,57 Lei | |
| 17 | N192671 | 2 | SPRING RAIL CLIP | 4,57 Lei | |
| 18 | N088831 | 2 | SPRING BUMPER | 12,71 Lei | |
| 19 | N088833 | 2 | WASHER, HARDENED | 4,57 Lei | |
| 20 | N233943 | 1 | SA PACKED RETURN SPRING (SERVICE) | 120,82 Lei | |
| 21 | N036350 | 2 | RAIL | 57,81 Lei | |
| 22 | N601077 | 1 | SERVICE KIT HI-CLEARANCE PROFILE COATED | 383,69 Lei | |
| 24 | N121870 | 1 | ENDCAP RETAINER PLATE | 6,23 Lei | |
| 30 | N469514 | 1 | SA PACKED MCN UPPER BUMBERS (SERVICE) | 10,29 Lei | |
| 31 | N088832 | 2 | SCREW M3.5X6 PAN | 15,12 Lei | |
| 33 | N601074 | 1 | SERVICE KIT SA GEN 3 HOUSING W/PAD PRINT | 130,35 Lei | |
| 34 | 330019-24 | 8 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 35 | N123731 | 6 | SCREW, FORM M4X8 | 6,23 Lei | |
| 36 | N061544 | 1 | HOUSING END CAP COVER-BLACK (MOULD) | 17,02 Lei | |
| 37 | N586670 | 1 | HOUSING END CAP | 80,04 Lei | |
| 38 | N497221 | 1 | STALL INDICATOR LENS | 5,21 Lei | |
| 39 | N515453 | 1 | MODE SELECT CAP | 12,71 Lei | |
| 41 | N055786 | 1 | ACTUATOR SPRING | 8,64 Lei | |
| 42 | N512734 | 1 | SSA MODULE SERV.KIT FOR FRAMING NAILER | 750,36 Lei | |
| 44 | N039287 | 1 | TRIGGER LOCK OFF (UP26) | 4,57 Lei | |
| 45 | N501977 | 1 | BAND, RAFTER HOOK | 15,12 Lei | |
| 47 | N388602 | 4 | DETENT SPRING | 6,23 Lei | |
| 48 | N485355 | 1 | SPEED SELECT CAP | 8,64 Lei | |
| 50 | 326467-00 | 4 | DETENT | 4,57 Lei | |
| 51 | N093728 | 1 | M4x35 T15 | 5,21 Lei | |
| 52 | N496890 | 1 | WINDOWED RAFTER HOOK | 7,37 Lei | |
| 52 | N497010 | 1 | FORWARD/RESET LABEL | 5,1 Lei | |
| 53 | N123751 | 1 | SCREW, MACH, M6X80 | 7,37 Lei | |
| 54 | N093611 | 2 | SCREW SHOULDER M5 | 7,37 Lei | |
| 55 | N093608 | 6 | SCREW, FLAT HD M5X8 | 4,7 Lei | |
| 56 | N506404 | 2 | MOTOR LOCATOR | 5,21 Lei | |
| 57 | N601145 | 1 | SERVICE KIT SA MOTOR,OR,GEN 3 FRAMER | 889,22 Lei | |
| 58 | N675837 | 1 | GEN 3 LEFT FRAME | 41,93 Lei | |
| 59 | N477247 | 4 | SCREW, FLAT HEAD M6X1 | 4,57 Lei | |
| 60 | N495030 | 1 | GEN 3 RIGHT FRAME | 41,93 Lei | |
| 62 | 330019-11 | 2 | SCREW PLSTC THD FORM M4.55X13 T20 | 4,57 Lei | |
| 64 | N126788 | 1 | SA SOLENOID | 120,82 Lei | |
| 65 | N439516 | 1 | SCREW, SHOULDER, M5X75 | 7,37 Lei | |
| 66 | N233949 | 1 | SA PACKED SOLENOID (SERVICE) | 96,56 Lei | |
| 66 | N519574 | 1 | SOLENOID AND PLUNGER | 145,09 Lei | |
| 67 | N114861 | 1 | SOLENOID WASHER | 4,57 Lei | |
| 68 | N219872 | 1 | SOLENOID SPRING CDFN | 4,57 Lei | |
| 69 | N114861 | 1 | SOLENOID WASHER | 4,57 Lei | |
| 70 | N601142 | 1 | SERVICE KIT SA ACTIVATION G3, RIDGED | 713,77 Lei | |
| 71 | N586801 | 1 | RIDGED CARRIAGE | 120,82 Lei | |
| 72 | 330016-25 | 3 | WASHER, PLAIN 8.25X4.25X0.607 | 4,57 Lei | |
| 73 | 391814-00 | 3 | GROMMET | 4,57 Lei | |
| 74 | N114961 | 1 | SOLENOID WASHER 1 | 4,57 Lei | |
| 75 | N613043 | 1 | PTO TORSION SPRING, LEFT SHOT PEENED(SUB | 13,85 Lei | |
| 77 | N235059 | 2 | TORSION SPRING ISOLATOR | 4,57 Lei | |
| 79 | N400753 | 3 | SCREW,MACHINE W/ EXTERNAL LOCK WASHER | 4,57 Lei | |
| 80 | N083553 | 1 | SOLENOID PIN | 5,21 Lei | |
| 81 | N496675 | 1 | COATED CARRIER PIN | 25,54 Lei | |
| 83 | N233950 | 1 | SA PACKED PINCH ROLLER CARRIER (SERVICE) | 169,36 Lei | |
| 84 | N477247 | 1 | SCREW, FLAT HEAD M6X1 | 4,57 Lei | |
| 85 | N547209 | 1 | SPRING CAP G3 | 57,81 Lei | |
| 86 | N309239 | 1 | PINCH ROLLER SPRING | 34,05 Lei | |
| 88 | N035104 | 1 | SPRING KEEPER | 25,54 Lei | |
| 90 | N465069 | 1 | SLEEVE | 19,95 Lei | |
| 90 | N465161 | 1 | TERMINAL BLOCK | 15,12 Lei | |
| 91 | N601076 | 1 | SERVICE KIT SA SPRING BEAM G3 | 213,19 Lei | |
| 92 | N086806 | 1 | TORSION SPRING | 6,23 Lei | |
| 93 | N086157 | 1 | LEVER, STALL RELEASE (MOULD X) | 8,64 Lei | |
| 94 | N113536 | 1 | SCREW, STALL RELEASE | 4,57 Lei | |
| 95 | N123971 | 1 | SCREW, MACH, M4X4.75 T20 | 4,57 Lei | |
| 99 | N497012 | 1 | WIRE TRAP, FRAMER GEN 3 | 4,57 Lei | |
| 99 | N601147 | 1 | SERVICE KIT WIRE TRAP, FRAMER GEN 3 | 25,54 Lei | |
| 100 | N233939 | 1 | SA PACKED NOSE INSERT ROUND (SERVICE) | 157,92 Lei | |
| 101 | 949894-06 | 1 | FILLISTER HEAD SCREW | 4,57 Lei | |
| 102 | N390881 | 1 | HOLDER HOME MAGNET (MOULD) | 5,21 Lei | |
| 103 | N089554 | 1 | MAGNET LIFTER | 30,87 Lei | |
| 104 | 324006-15 | 4 | SCREW ,TAPTITE M4X20 ANU LOCK | 4,57 Lei | |
| 105 | N082940 | 2 | BUMPER RETAINER | 7,37 Lei | |
| 107 | N481055 | 1 | BACKBONE, MACH GEN 3 | 96,56 Lei | |
| 108 | N061668 | 1 | BUSHING, TRIP | 17,02 Lei | |
| 109 | 330019-13 | 2 | SCREW,PLSTC THD FORM M4X19 T20 | 4,57 Lei | |
| 110 | N061605 | 2 | BOLT, MAGAZINE | 6,23 Lei | |
| 111 | N133209 | 2 | BUMPER DAMPER | 5,21 Lei | |
| 112 | N207633 | 1 | LOWER LEFT BUMPER | 22,4 Lei | |
| 112 | N233940 | 1 | SA PACKED LWR RH + LH BUMPERS (SERVICE) | 34,05 Lei | |
| 113 | N207632 | 1 | LOWER RIGHT BUMPER | 22,4 Lei | |
| 113 | N233940 | 1 | SA PACKED LWR RH + LH BUMPERS (SERVICE) | 34,05 Lei | |
| 114 | N034726 | 1 | DRY-FIRE LOCK RETAINER | 4,57 Lei | |
| 115 | N061545 | 1 | DRY-FIRE LOCK SPRING | 4,57 Lei | |
| 116 | N307220 | 1 | DRYFIRE LOCK, 24 DEG | 8,64 Lei | |
| 117 | N061505 | 1 | CAP, LATCH (SUBC) | 7,37 Lei | |
| 118 | N034716 | 1 | RETAINING GUARD | 15,12 Lei | |
| 119 | N380178 | 1 | SA MAGAZINE PARTS (SERVICE) | 96,56 Lei | |
| 120 | N114100 | 1 | LATCH LOCK | 5,21 Lei | |
| 126 | N054935 | 1 | SA PUSHER (MOULD) | 17,02 Lei | |
| 127 | N128653 | 1 | SA SPRING AND HUB | 25,54 Lei | |
| 128 | N397144 | 1 | MAGAZINE INTERFACE NOTCHED | 169,36 Lei | |
| 129 | N061506 | 1 | PIN, LATCH (MOULD) | 12,71 Lei | |
| 130 | 330019-62 | 1 | SCREW | 4,57 Lei | |
| 131 | 330065-06 | 3 | SCREW PLSTC THD FROM M4X12 T20 | 4,57 Lei | |
| 133 | N034743 | 1 | NAIL LINER | 17,02 Lei | |
| 134 | 330021-07 | 1 | NUT | 4,57 Lei | |
| 140 | N260859 | 1 | SA PACKED SA MAGAZINE (SERVICE) | 451,79 Lei | |
| 141 | N061664 | 1 | WRENCH, HEX | 5,21 Lei | |
| 821 | N561840 | 1 | LABEL RATING DCN692 EANZ TY03 | 13 Lei | |
| 861 | N137841 | 1 | SA KITBOX, NAILER (MOULD) | 200,99 Lei |
