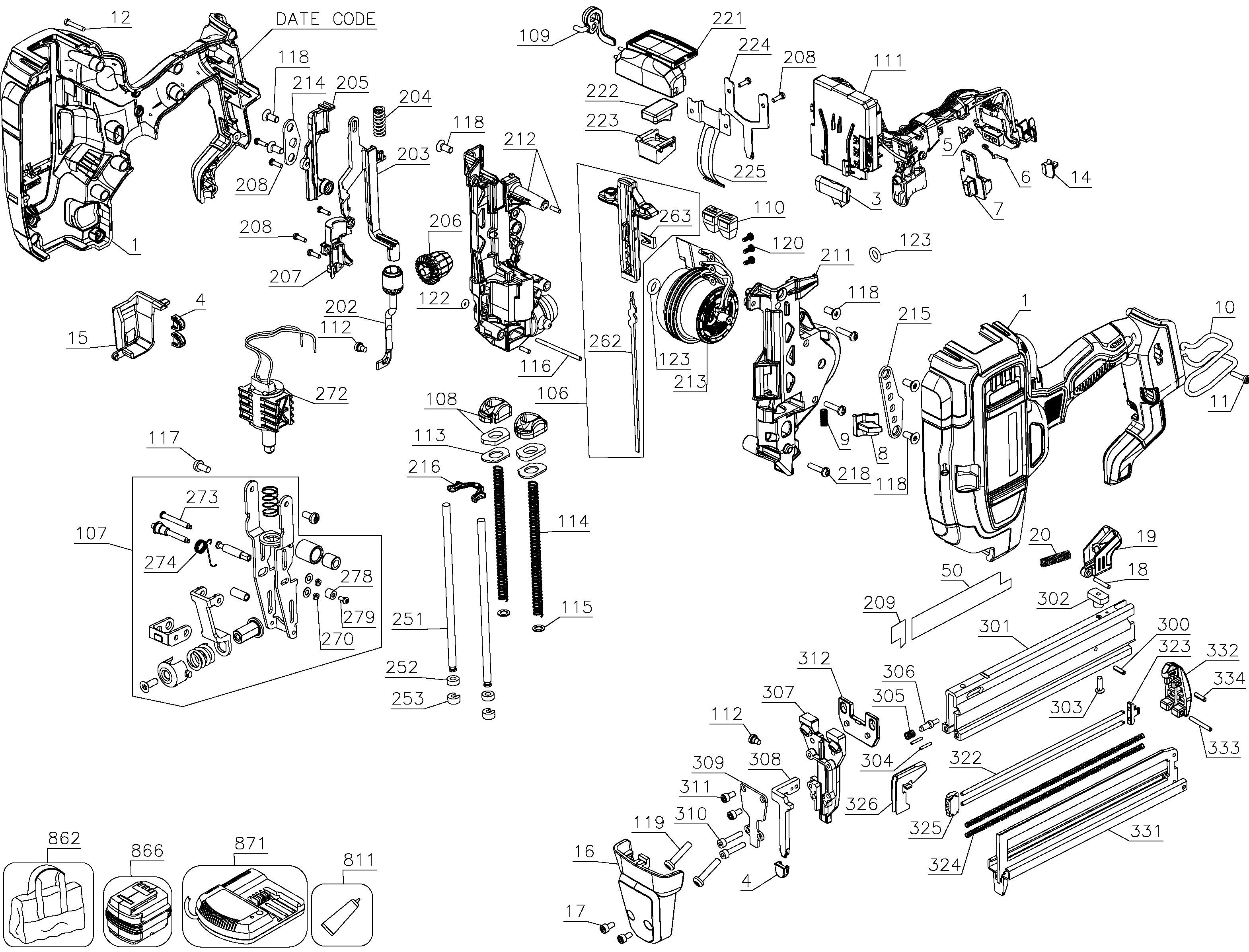

DEWALT 18V 18GA NARROW CROWN STA Type 1
SKU Produs: DCN681N
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N534481 | 1 | CLAMSHELL SET | 169,36 Lei | |
| 3 | N468738 | 1 | BUTTON LOCK-OFF | 7,37 Lei | |
| 4 | N569446 | 1 | NO MAR TIP | 7,37 Lei | |
| 5 | N471571 | 1 | LIGHT LENS RIGHT | 12,71 Lei | |
| 6 | N388602 | 1 | DETENT SPRING | 6,23 Lei | |
| 7 | N466948 | 1 | SELECTOR | 15,12 Lei | |
| 8 | N505465 | 1 | SA STALL RELEASE BUTTON BULK (SERVICE) | 37,73 Lei | |
| 9 | N411486 | 1 | SPRING | 4,57 Lei | |
| 10 | N410943 | 1 | HOOK | 17,02 Lei | |
| 11 | 330019-52 | 1 | SCREW | 4,57 Lei | |
| 12 | 330019-24 | 12 | SCREW, PLSTC THD FORM, M3*19, T10 | 4,57 Lei | |
| 14 | N468840 | 1 | LIGHT LENS LEFT | 12,71 Lei | |
| 15 | N468119 | 1 | SHROUD | 17,02 Lei | |
| 16 | N487228 | 1 | COVER | 17,02 Lei | |
| 18 | N474517 | 1 | PIN | 7,37 Lei | |
| 19 | N465295 | 1 | LATCH | 4,57 Lei | |
| 50 | N502010 | 1 | RATING PLATE | 6,23 Lei | |
| 106 | N532144 | 1 | DRIVER SA | 213,19 Lei | |
| 107 | N568371 | 1 | CARRIAGE SA | 307,21 Lei | |
| 108 | N446577 | 2 | SA PACKED BUMPER PARTS DCN66# (SERVICE) | 52,22 Lei | |
| 109 | N532613 | 1 | ACTUATOR | 10,29 Lei | |
| 110 | 650974-00 | 2 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 111 | N532130 | 1 | ELECTRONIC AND SWITCH | 530,69 Lei | |
| 112 | N499064 | 1 | SCREW | 4,57 Lei | |
| 113 | N376891 | 2 | BUMPER PLATE | 4,57 Lei | |
| 114 | N446578 | 1 | SA PACKED SPRINGS FOR DCN66# (SERVICE) | 96,56 Lei | |
| 115 | N383361 | 2 | RETURN RAIL WASHER | 4,57 Lei | |
| 116 | N410969 | 1 | DOWELL PIN 3MM | 4,57 Lei | |
| 116 | N411034 | 1 | CHARGER 10.8V - 18V | 246,5 Lei | |
| 117 | N491757 | 2 | SCREW | 4,57 Lei | |
| 118 | N386788 | 10 | SCREW, FLAT HEAD, MAGFORM | 4,57 Lei | |
| 119 | N383360 | 2 | SCREW, MAGFORM | 4,57 Lei | |
| 120 | N403241 | 3 | SCREW M3 SEMS | 4,57 Lei | |
| 122 | N439188 | 1 | O-RING ID 2.0MM | 4,57 Lei | |
| 123 | N407991 | 1 | O-RING | 4,57 Lei | |
| 202 | N561939 | 1 | TRIP SA | 106,98 Lei | |
| 203 | N587377 | 1 | REAR CONTACT TRIP 16GA (MOULD) | 13,85 Lei | |
| 205 | N378116 | 1 | SA REAR CONTACT TRIP COVER (MOULD) | 12,71 Lei | |
| 206 | N367663 | 1 | SA DEPTH ADJUST KNOB (MOULD) | 19,95 Lei | |
| 207 | N367666 | 1 | SA DEPTH ADJUST COVER (MOULD) | 17,02 Lei | |
| 208 | N379045 | 7 | SCREW M3 MAGFORM | 4,57 Lei | |
| 209 | N496809 | 1 | LABEL DEPTH ADJUST DCN680 | 7,37 Lei | |
| 211 | N377231 | 1 | LEFT FRAME PACKED | 181,55 Lei | |
| 212 | NA093070 | 1 | FRAME RH | 145,09 Lei | |
| 213 | N590301 | 1 | MOTOR SA | 399,45 Lei | |
| 214 | N378063 | 1 | MOTOR LOCATOR RIGHT FRAME | 5,21 Lei | |
| 215 | N377923 | 1 | MOTOR LOCATOR LEFT FRAME | 8,64 Lei | |
| 216 | N376266 | 1 | SA RAIL RETAINER (MOULD) | 5,3 Lei | |
| 218 | 613619-00 | 3 | SCREW, FORM | 4,57 Lei | |
| 221 | N378032 | 1 | BACK BUMPER SUPPORT | 106,98 Lei | |
| 222 | N515311 | 1 | BUMPER | 30,87 Lei | |
| 223 | N515810 | 1 | RETAINER | 7,37 Lei | |
| 224 | N367683 | 1 | SKID PAD | 6,23 Lei | |
| 225 | N455371 | 1 | PROFILE LIFTER SPRING | 34,05 Lei | |
| 251 | N439725 | 2 | 16GA RETURN RAIL | 19,95 Lei | |
| 252 | N378014 | 2 | SPRING BUMPER | 4,57 Lei | |
| 253 | N402150 | 2 | SA SPRING RAIL CLIP | 4,57 Lei | |
| 253 | N402315 | 2 | RATING PLATE | 4,57 Lei | |
| 253 | N402317 | 2 | RATING PLATE | 4,57 Lei | |
| 253 | N402318 | 2 | RATING PLATE | 4,57 Lei | |
| 263 | 392206-00 | 1 | CLIP | 4,57 Lei | |
| 270 | 391814-00 | 2 | GROMMET | 4,57 Lei | |
| 272 | N446579 | 1 | SA PACKED SOLENOID DCN66# (SERVICE) | 88,55 Lei | |
| 273 | 633207-00 | 1 | PIN | 7,37 Lei | |
| 274 | N377077 | 1 | 16GA PTO TORSION SPRING | 5,21 Lei | |
| 278 | N377076 | 1 | RETAINING SLEEVE | 7,37 Lei | |
| 279 | N491759 | 1 | SCREW M3X0.50X6 MM | 4,5 Lei | |
| 279 | N915746 | 1 | SCREW | 4,57 Lei | |
| 301 | N465293 | 1 | MAGAZINE | 96,56 Lei | |
| 302 | N474281 | 1 | CONNECTOR | 17,02 Lei | |
| 306 | N464383 | 1 | PLUNGER | 6,23 Lei | |
| 307 | N468114 | 1 | NOSE | 157,92 Lei | |
| 308 | N465291 | 1 | CONTACT | 21,85 Lei | |
| 309 | N468118 | 1 | STRAP | 8,64 Lei | |
| 312 | N468113 | 1 | BACKPLATE | 41,93 Lei | |
| 326 | N465300 | 1 | PUSHER | 19,95 Lei | |
| 331 | N466964 | 1 | MAGAZINE | 106,98 Lei | |
| 999 | N407991 | 1 | O-RING | 4,57 Lei |
