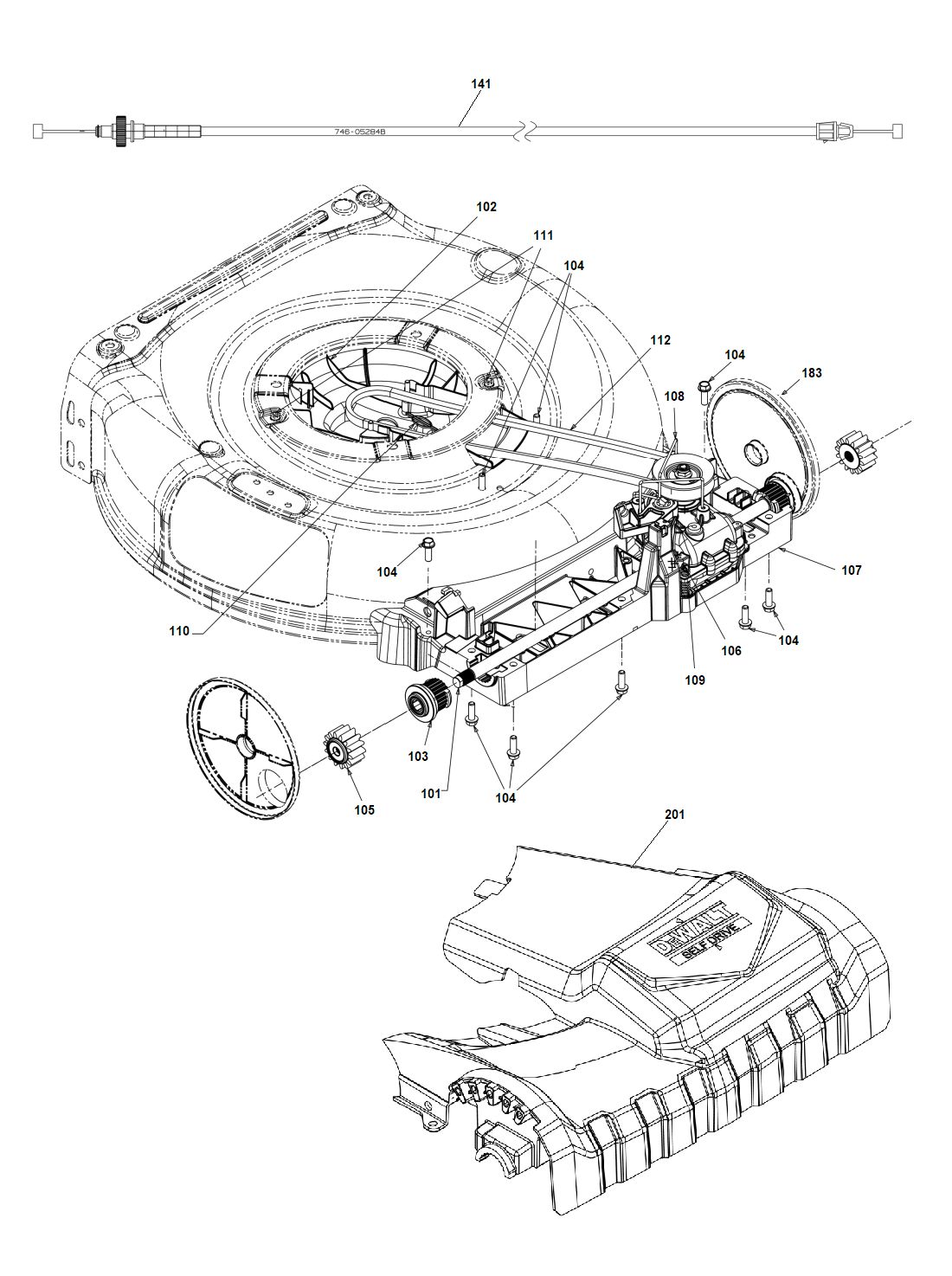

DEWALT CORDLESS MOWER (Type 1)
SKU Produs: DCMWSP564N /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | 330019-04 | 8 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 2 | BD-N854821 | 1 | COVER RH | 34,65 Lei | |
| 3 | BD-N854820 | 1 | COVER LH | 34,65 Lei | |
| 5 | BD-N852311 | 1 | HOUSING | 43,16 Lei | |
| 6 | BD-N816201 | 1 | HANDLE | 677,67 Lei | |
| 7 | BD-N846742 | 1 | LEVER | 43,16 Lei | |
| 8 | BD-N846741 | 1 | LEVER | 43,16 Lei | |
| 9 | BD-N925875 | 1 | HOUSING | 107,73 Lei | |
| 10 | 330019-04 | 7 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 11 | N851699 | 1 | HOUSING LOWER | 37,73 Lei | |
| 12 | N533427 | 3 | PIN | 4,57 Lei | |
| 13 | N835302 | 1 | CAM | 5,21 Lei | |
| 14 | N516531 | 1 | CONNECTING ROD | 8,64 Lei | |
| 15 | N534693 | 1 | SPRING | 4,57 Lei | |
| 16 | N535718 | 1 | PIN | 4,57 Lei | |
| 17 | N529982 | 1 | CATCH | 5,21 Lei | |
| 18 | N531187 | 1 | SPRING | 4,57 Lei | |
| 19 | N535718 | 1 | PIN | 4,57 Lei | |
| 20 | N534932 | 1 | SPRING TORSION | 4,57 Lei | |
| 21 | N516529 | 1 | HANDLE | 10,29 Lei | |
| 22 | N839423 | 1 | HANDLE | 37,73 Lei | |
| 23 | N516878 | 2 | PIN | 4,57 Lei | |
| 24 | N851698 | 1 | HOUSING | 57,81 Lei | |
| 25 | N534694 | 2 | SPRING | 4,57 Lei | |
| 26 | N572300 | 1 | BUTTON | 15,12 Lei | |
| 27 | N835578 | 1 | SAFETY KEY | 5,21 Lei | |
| 27 | N892640 | 1 | PARTS PACK | 317,1 Lei | |
| 28 | N892640 | 1 | PARTS PACK | 317,1 Lei | |
| 29 | NA074187 | 1 | HANDLE SA | 252,58 Lei | |
| 30 | N892640 | 1 | PARTS PACK | 317,1 Lei | |
| 31 | BD-N815447 | 1 | HANDLE RH | 253,89 Lei | |
| 32 | N642431 | 2 | KNOB | 7,37 Lei | |
| 33 | 90564730 | 2 | SPRING | 4,57 Lei | |
| 35 | 90101536 | 2 | SPRING COMPRESSION | 4,57 Lei | |
| 36 | N514100 | 2 | PIN | 7,37 Lei | |
| 37 | N566731 | 2 | INSERT | 7,37 Lei | |
| 38 | N535178 | 2 | SPACER | 5,21 Lei | |
| 39 | 710-04261-CM | 14 | SCREW | 18,06 Lei | |
| 40 | BD-N808271 | 1 | BRACKET RH | 107,73 Lei | |
| 41 | 710-04261-CM | 8 | SCREW | 18,06 Lei | |
| 42 | BD-N812266 | 2 | MOUNT | 79,8 Lei | |
| 43 | BD-N808269 | 1 | BRACKET LH | 107,73 Lei | |
| 44 | N855073 | 1 | HOUSING SWITCH | 15,12 Lei | |
| 45 | N597886 | 1 | PIN | 4,57 Lei | |
| 46 | N591385 | 1 | SPRING | 4,57 Lei | |
| 47 | N844401 | 1 | ACTUATOR | 4,57 Lei | |
| 48 | N601444 | 1 | SCREW | 4,57 Lei | |
| 50 | 330019-03 | 3 | Screw M3.5X16 T15 | 4,57 Lei | |
| 51 | BD-N876073 | 1 | HANDLE LH | 317,1 Lei | |
| 52 | N822066 | 1 | LID | 79,8 Lei | |
| 53 | N822082 | 1 | PANEL | 28,14 Lei | |
| 54 | N557735 | 2 | PIN | 7,14 Lei | |
| 55 | N838630 | 1 | HOUSING MOTOR | 341,25 Lei | |
| 56 | 330019-03 | 6 | Screw M3.5X16 T15 | 4,57 Lei | |
| 57 | N857602 | 1 | HOUSING | 13,85 Lei | |
| 58 | N802708 | 1 | RAIL | 17,02 Lei | |
| 60 | NA575573 | 1 | CONTROL MODULE SA | 589,89 Lei | |
| 61 | NA359083 | 1 | MOTOR SA | 1,38 Lei | |
| 62 | 330019-12 | 2 | SCREW | 4,57 Lei | |
| 64 | 330019-12 | 8 | SCREW | 4,57 Lei | |
| 65 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 66 | N592599 | 1 | CLAMP | 4,57 Lei | |
| 67 | 329301-00 | 2 | CLAMP, CORD CORNER | 4,57 Lei | |
| 68 | 330019-02 | 2 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 69 | 732-1014C-CM | 1 | SPRING TORSION | 18,06 Lei | |
| 69 | 747-0710A-CM | 1 | PIN | 18,06 Lei | |
| 69 | 787-01779-CM | 1 | BRACKET | 18,06 Lei | |
| 70 | N820908 | 1 | WIRE HARNESS | 47,78 Lei | |
| 71 | N590958 | 1 | CONNECTOR | 13,85 Lei | |
| 72 | N590957 | 2 | CONNECTOR | 10,29 Lei | |
| 73 | N833650 | 1 | PCB | 43,16 Lei | |
| 74 | N850094 | 1 | LABEL | 4,31 Lei | |
| 75 | N820909 | 1 | TERMINAL BLOCK | 96,56 Lei | |
| 76 | N836436 | 1 | MICRO SWITCH | 25,54 Lei | |
| 77 | N836437 | 1 | WIRE HARNESS | 145,09 Lei | |
| 78 | 650974-00 | 2 | WIRE NUT HIGH TECH | 5,21 Lei | |
| 79 | N680521 | 3 | NUT | 10,5 Lei | |
| 100 | N736727 | 1 | SWITCH | 80,04 Lei | |
| 101 | 618P07464D-DW | 1 | TRANSMISSION SA | 321,72 Lei | |
| 102 | 931-04535C-DW | 1 | BAFFLE | 73,19 Lei | |
| 103 | 941-00019-CM | 2 | BEARING SA | 21,11 Lei | |
| 104 | 710-0895-CM | 9 | SCREW | 18,06 Lei | |
| 105 | 717-05432-CM | 2 | Gear | 21,11 Lei | |
| 106 | 731-07355-CM | 1 | SPRING | 18,06 Lei | |
| 107 | 731-26715-DW | 1 | TRAY | 130,52 Lei | |
| 108 | 732-04675A-CM | 1 | WIRE | 18,06 Lei | |
| 109 | 732-04704-CM | 1 | SPRING | 18,06 Lei | |
| 111 | 738-04502-CM | 2 | SCREW | 18,06 Lei | |
| 112 | 954-04260-CM | 1 | V-BELT | 99,86 Lei | |
| 121 | 710-04683C-CM | 3 | SCREW | 21,11 Lei | |
| 122 | 710-04995A-CM | 5 | SCREW | 21,11 Lei | |
| 123 | 710-05108-CM | 6 | SCREW | 18,06 Lei | |
| 131 | 710-05108-CM | 1 | SCREW | 18,06 Lei | |
| 132 | 731-07203-CM | 1 | SHIELD | 25,52 Lei | |
| 133 | 631P08141 | 1 | BAFFLE | 390,29 Lei | |
| 134 | 787-01871B-DW | 1 | CUTTER DECK | 310,17 Lei | |
| 135 | 732-05061B-CM | 1 | SPRING | 18,06 Lei | |
| 136 | 732-05062B-CM | 1 | SPRING | 18,06 Lei | |
| 137 | 747-05183-CM | 1 | ROD | 18,06 Lei | |
| 141 | 946-05284B-CM | 1 | CABLE | 107,73 Lei | |
| 151 | 687-06020-DW | 1 | ADAPTOR | 66,15 Lei | |
| 152 | 710-1044-CM | 1 | BLADE BOLT | 21,11 Lei | |
| 154 | 748-06644-DW | 1 | ADAPTOR | 34,65 Lei | |
| 155 | 742P05642-DW | 1 | BLADE | 119,91 Lei | |
| 161 | 911-04150-CM | 1 | AXLE FRONT | 198,66 Lei | |
| 162 | 611-05629-DW | 1 | AXLE REAR | 310,17 Lei | |
| 163 | 712-04217-CM | 4 | NUT | 18,06 Lei | |
| 171 | 647-04271-CM | 1 | FRAME | 107,73 Lei | |
| 172 | 664-05761-DW | 1 | GRASSBAG | 186,17 Lei | |
| 181 | 634-07619-DW | 2 | WHEEL | 88,41 Lei | |
| 182 | 634-07620-DW | 2 | WHEEL FRONT | 107,73 Lei | |
| 183 | 731-07240A-CM | 2 | COVER | 18,06 Lei | |
| 192 | 710-05073-CM | 1 | SCREW | 21,11 Lei | |
| 193 | 731-26695 | 1 | CHUTE | 43,16 Lei | |
| 201 | 731-26479-DW | 1 | COVER | 119,91 Lei | |
| 211 | 710-0395-CM | 2 | SCREW | 21,11 Lei | |
| 213 | 330019-04 | 2 | SCREW, PLASTIC THREAD FORM M3.5 X 19 T1 | 4,57 Lei | |
| 214 | 712-04063-CM | 2 | NUT | 21,11 Lei | |
| 221 | 720-04130-CM | 1 | KNOB | 21,11 Lei |
