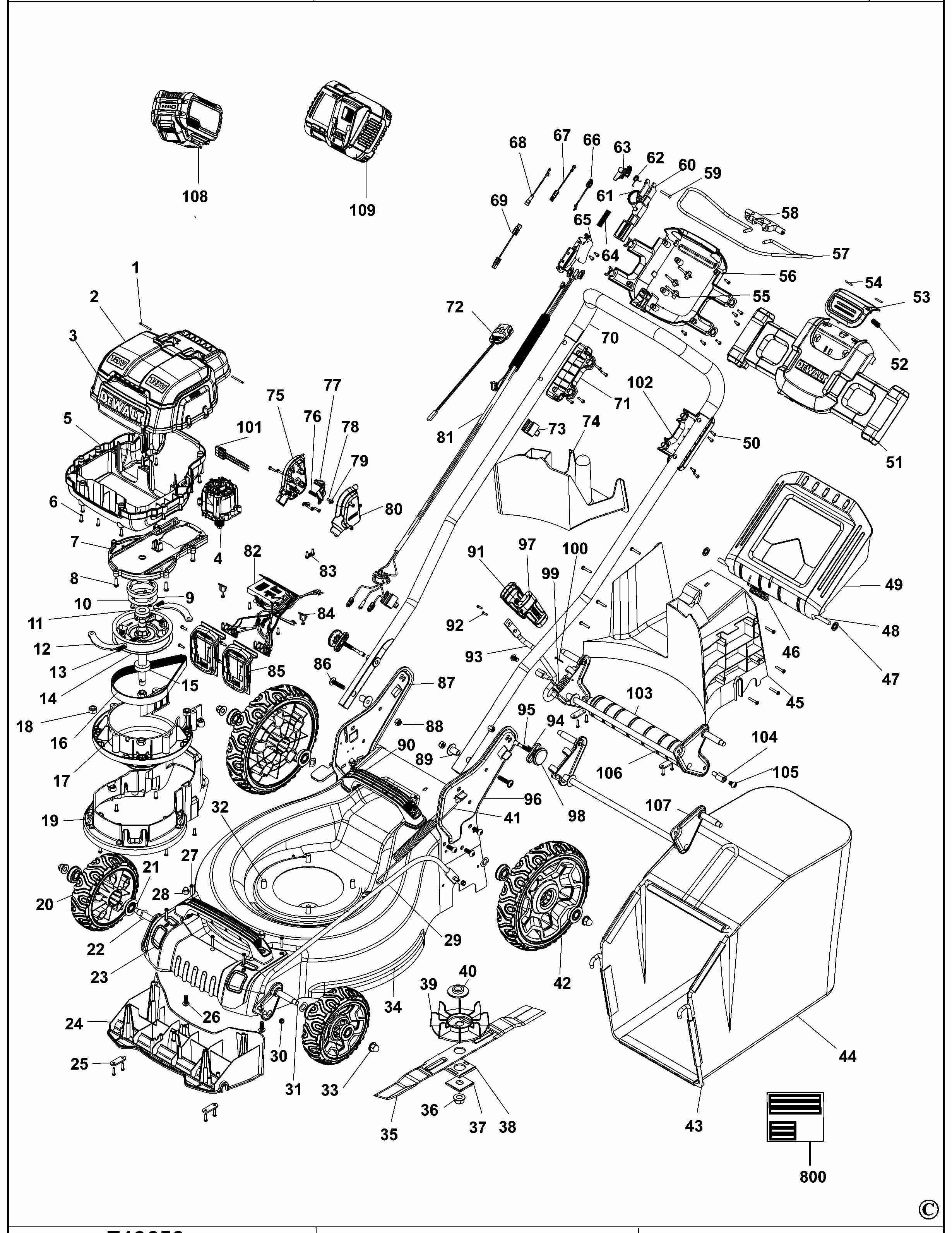

DEWALT MOWER (Type 1)
SKU Produs: DCMW564 /Type: 1
| Pozitie | Cod piesa | Piese utilizate | Nume piesa | Pret | Cantitate/Adauga in cos |
|---|---|---|---|---|---|
| 1 | N529964 | 2 | PIN | 7,37 Lei | |
| 2 | N538306 | 1 | BATTERY COVER | 57,81 Lei | |
| 3 | N522379 | 1 | HOUSING | 88,55 Lei | |
| 4 | N510589 | 1 | MOTOR SA | 361,33 Lei | |
| 5 | N523807 | 1 | COVER | 41,93 Lei | |
| 6 | 330019-12 | 21 | SCREW | 4,57 Lei | |
| 7 | N522496 | 1 | TRANSMISSION SA | 70,39 Lei | |
| 8 | 330045-15 | 14 | Screw Metal | 4,57 Lei | |
| 9 | 90563941 | 1 | BRAKE | 21,85 Lei | |
| 10 | N526051 | 1 | PLATE | 6,23 Lei | |
| 11 | 605040-25 | 1 | BEARING, BALL CW MFG | 17,02 Lei | |
| 12 | N510600 | 2 | PAD | 15,12 Lei | |
| 13 | N554320 | 1 | SPRING | 4,57 Lei | |
| 14 | N510599 | 1 | DRIVE PULLEY | 57,81 Lei | |
| 15 | 330003-15 | 1 | BEARING, BALL | 30,87 Lei | |
| 16 | N538640 | 1 | BELT | 52,22 Lei | |
| 17 | N510603 | 1 | BASE | 70,39 Lei | |
| 18 | N455283 | 4 | NUT M10 | 4,57 Lei | |
| 19 | N523807 | 1 | COVER | 41,93 Lei | |
| 20 | N911216 | 1 | WHEEL FRONT | 52,22 Lei | |
| 21 | N512118 | 8 | BEARING | 19,95 Lei | |
| 22 | N514019 | 4 | WASHER SPECIAL | 4,57 Lei | |
| 23 | N524354 | 1 | COVER | 25,54 Lei | |
| 24 | N510921 | 1 | INSERT | 37,73 Lei | |
| 25 | N523499 | 4 | PLATE | 4,57 Lei | |
| 26 | N526930 | 10 | BOLT M8 | 4,57 Lei | |
| 27 | 330019-14 | 13 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 28 | 330019-14 | 4 | SCREW, PLASTIC THREAD FORM M4X25 T20 | 4,57 Lei | |
| 29 | N546988 | 1 | CONNECTING ROD | 41,93 Lei | |
| 30 | N541610 | 2 | LOCK-NUT | 4,57 Lei | |
| 31 | N501688 | 1 | AXLE FRONT | 57,81 Lei | |
| 32 | N545139 | 4 | BOLT | 5,21 Lei | |
| 33 | N514015 | 4 | NUT | 5,21 Lei | |
| 34 | N599968 | 1 | BASE | 776,53 Lei | |
| 35 | N510897 | 1 | BLADE | 57,81 Lei | |
| 36 | N538858 | 1 | BOLT | 7,37 Lei | |
| 37 | 092715-00 | 1 | SPACER | 7,37 Lei | |
| 38 | 90541434 | 1 | WASHER INSULATING | 5,21 Lei | |
| 39 | 90547431 | 1 | FAN | 25,54 Lei | |
| 40 | 680812-00 | 1 | SPACER | 8,64 Lei | |
| 41 | N528752 | 1 | SPRING | 25,54 Lei | |
| 42 | N658649 | 1 | WHEEL | 88,55 Lei | |
| 43 | N482446 | 1 | FRAME | 57,81 Lei | |
| 44 | N568960 | 1 | GRASSBAG | 106,98 Lei | |
| 45 | N501687 | 1 | INSERT | 106,98 Lei | |
| 46 | N521916 | 1 | SPRING | 6,23 Lei | |
| 47 | 90574276 | 2 | WASHER LOCK | 5,21 Lei | |
| 48 | N511391 | 1 | ROD | 17,02 Lei | |
| 49 | N482347 | 1 | DOOR | 34,05 Lei | |
| 50 | 330019-03 | 29 | Screw M3.5X16 T15 | 4,57 Lei | |
| 51 | N510761 | 1 | HOUSING | 37,73 Lei | |
| 52 | N534694 | 2 | SPRING | 4,57 Lei | |
| 53 | N514408 | 1 | BUTTON | 12,71 Lei | |
| 54 | N516878 | 2 | PIN | 4,57 Lei | |
| 55 | N533427 | 1 | PIN | 4,57 Lei | |
| 56 | N510762 | 1 | HOUSING | 25,54 Lei | |
| 57 | N510894 | 1 | SAFETY KEY | 25,54 Lei | |
| 58 | N516529 | 1 | HANDLE | 10,29 Lei | |
| 59 | N535718 | 2 | PIN | 4,57 Lei | |
| 60 | N516531 | 1 | CONNECTING ROD | 8,64 Lei | |
| 61 | N516530 | 1 | SWITCH | 7,37 Lei | |
| 62 | N531187 | 1 | SPRING | 4,57 Lei | |
| 63 | N529982 | 1 | CATCH | 5,21 Lei | |
| 64 | N534693 | 1 | SPRING | 4,57 Lei | |
| 65 | N474391 | 1 | SWITCH | 70,39 Lei | |
| 66 | N529976 | 1 | HARNESS | 25,54 Lei | |
| 67 | N522815 | 1 | SWITCH | 21,85 Lei | |
| 68 | N529977 | 1 | WIRE | 12,71 Lei | |
| 69 | N529978 | 1 | HARNESS | 41,93 Lei | |
| 70 | NA074187 | 1 | HANDLE SA | 252,58 Lei | |
| 71 | N524113 | 1 | COVER | 8,64 Lei | |
| 72 | N529625 | 1 | KEY | 70,39 Lei | |
| 74 | N511039 | 1 | PLUG | 37,73 Lei | |
| 75 | N521164 | 1 | SWITCH | 7,37 Lei | |
| 76 | 90606558 | 1 | SPRING | 4,57 Lei | |
| 77 | N521166 | 1 | ACTUATOR | 5,21 Lei | |
| 78 | 330019-02 | 16 | SCREW, PLSTC THD FORM M3.5X13 T15 | 4,57 Lei | |
| 79 | 90629573 | 1 | WASHER | 4,57 Lei | |
| 80 | N521165 | 1 | COVER | 7,37 Lei | |
| 81 | N636364 | 1 | HARNESS | 200,99 Lei | |
| 82 | N593669 | 1 | MODULE | 750,36 Lei | |
| 83 | 329301-00 | 3 | CLAMP, CORD CORNER | 4,57 Lei | |
| 84 | N526371 | 2 | MOUNTING BRACKET | 4,57 Lei | |
| 85 | N539660 | 1 | RAIL | 17,02 Lei | |
| 86 | N535212 | 2 | BOLT | 5,21 Lei | |
| 87 | N531011 | 1 | PLATE SA | 130,35 Lei | |
| 88 | N535210 | 2 | NUT | 4,57 Lei | |
| 89 | N535178 | 2 | SPACER | 5,21 Lei | |
| 90 | N501719 | 1 | HANDLE | 19,95 Lei | |
| 91 | N535957 | 1 | GRIP | 5,21 Lei | |
| 92 | 330019-31 | 2 | SCREW | 4,57 Lei | |
| 93 | N508608 | 1 | LEVER | 30,87 Lei | |
| 94 | 90564730 | 1 | SPRING | 4,57 Lei | |
| 95 | 90101536 | 1 | SPRING COMPRESSION | 4,57 Lei | |
| 96 | N501685 | 1 | PLATE LH | 70,39 Lei | |
| 97 | N535958 | 1 | GRIP | 5,21 Lei | |
| 98 | N642431 | 1 | KNOB | 7,37 Lei | |
| 99 | N510242 | 1 | SPRING | 5,21 Lei | |
| 100 | 90636552 | 1 | PIN | 4,57 Lei | |
| 101 | N530551 | 1 | HARNESS MOTOR WIRES DW 2X20V MOWER | 57,81 Lei | |
| 102 | N524114 | 1 | COVER | 8,64 Lei | |
| 103 | N522588 | 1 | ROLLER | 25,54 Lei | |
| 104 | N528290 | 1 | PIN | 12,71 Lei | |
| 105 | N542724 | 2 | BOLT | 4,7 Lei | |
| 106 | N525752 | 1 | AXLE | 120,82 Lei | |
| 107 | N528039 | 1 | AXLE | 70,39 Lei | |
| 108 | N394624 | 1 | BATTERY 18V -5.0AH -90WH | 819,98 Lei | |
| 808 | N534932 | 1 | SPRING TORSION | 4,57 Lei |
